DID chain kit for Suzuki GS 550 (spoked wheel) 77-79 530 ZVM-X2 chain kit

DID chain kit for Suzuki GS 550 (spoked wheel) 77-79 530 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Suzuki GS 550 (spoked wheel) GS550 1977-1979

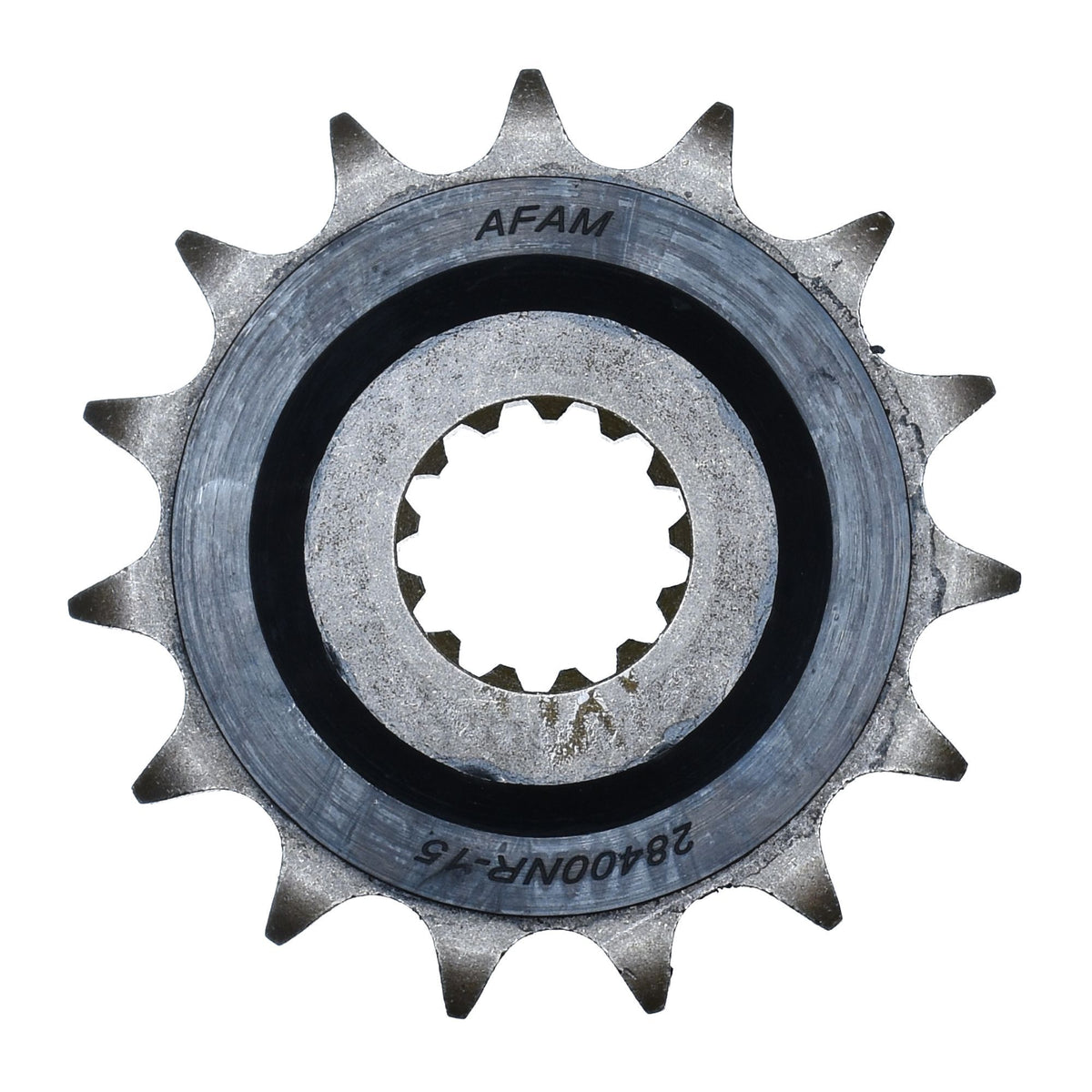

• Front sprocket: AFAM rubberized sprocket #530 Silent Sprocket 15 teeth - a28400oem.15
• Chain: DID chain 530 ZVM-X2 G&G 110 w. rivet link - d530zvmx2.gg.110
• Rear sprocket: Esjot rear sprocket 14400-50 STEEL #530 50 teeth - a14400.50
• Gear ratio sprocket-chain-rear sprocket: 15-110-50

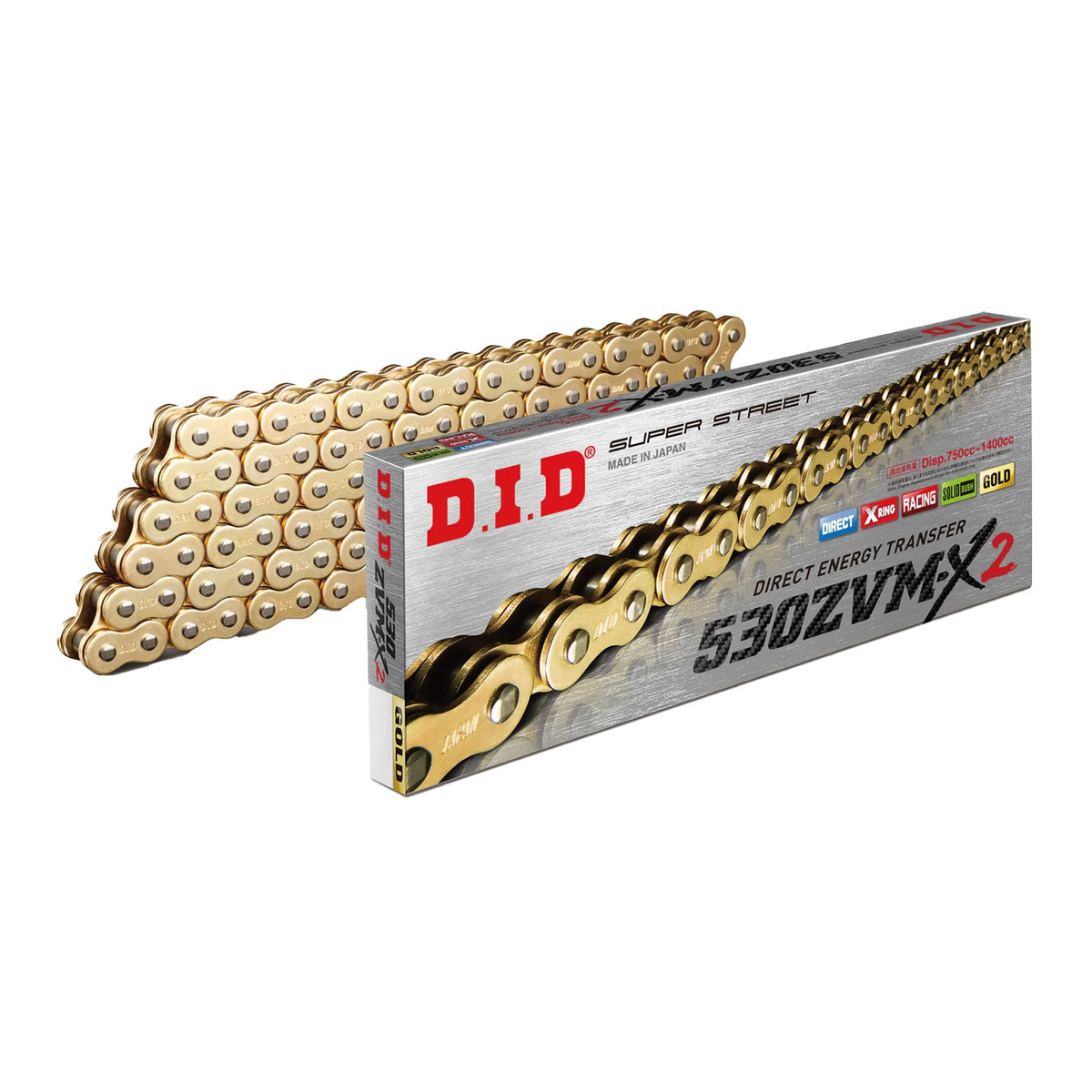

DID 530 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1400 cc

Technical data:
Pitch: 530
Pin length: 24.9 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.20 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-64278

Suitable for

Suzuki 501 - 750 cc GS 550 (spoked wheel) GS550 1977
Suzuki 501 - 750 cc GS 550 (spoked wheel) GS550 1978
Suzuki 501 - 750 cc GS 550 (spoked wheel) GS550 1979
