DID chain kit for Suzuki GSF 1200 Bandit S 96-00 530 ZVM-X2 chain kit

DID chain kit for Suzuki GSF 1200 Bandit S 96-00 530 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to demonstrate compatibility!

Components of the chain kit Suzuki GSF 1200 Bandit S GV75A 1996-2000

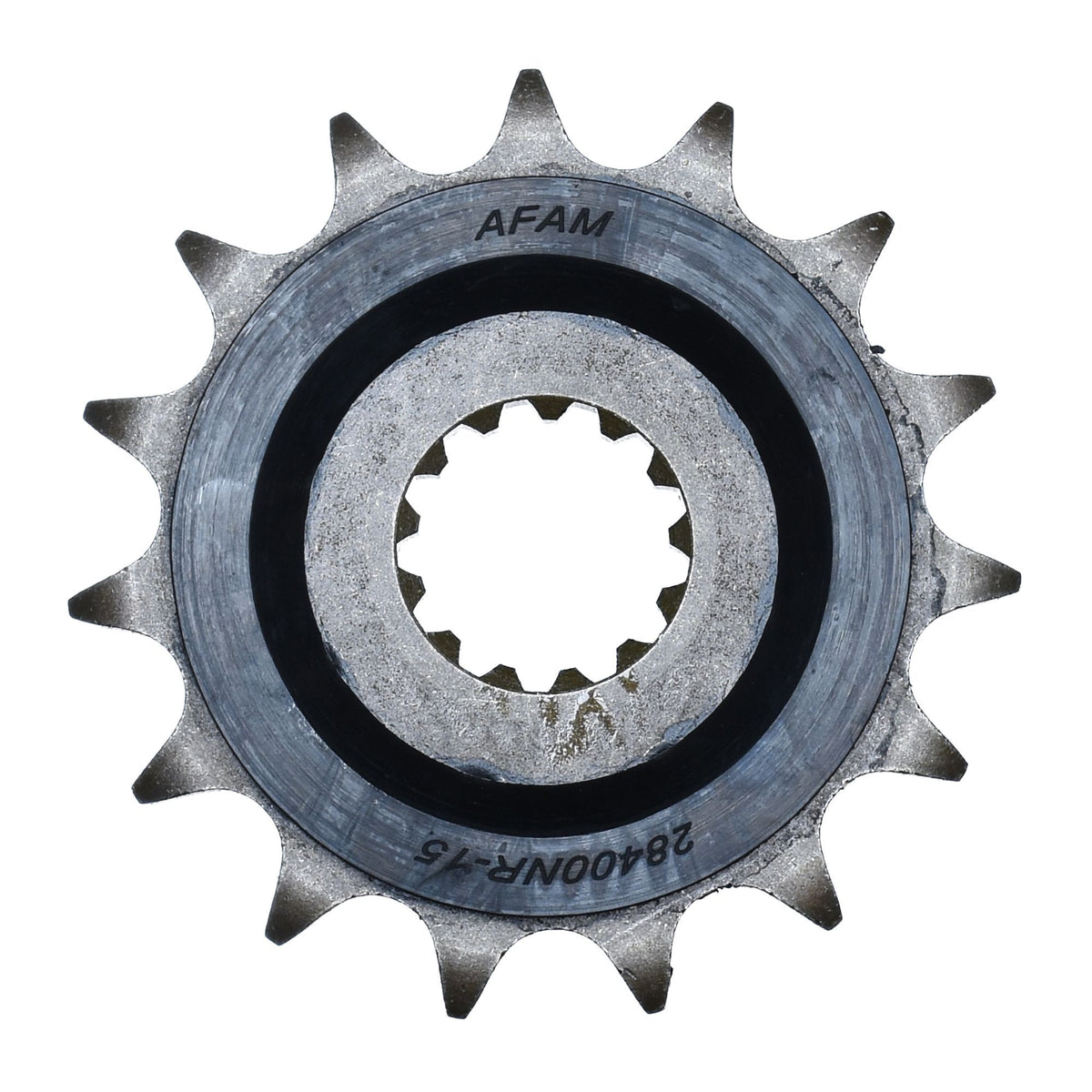

• Sprocket: AFAM sprocket rubber #530 Silent Sprocket 15 teeth - a28400oem.15

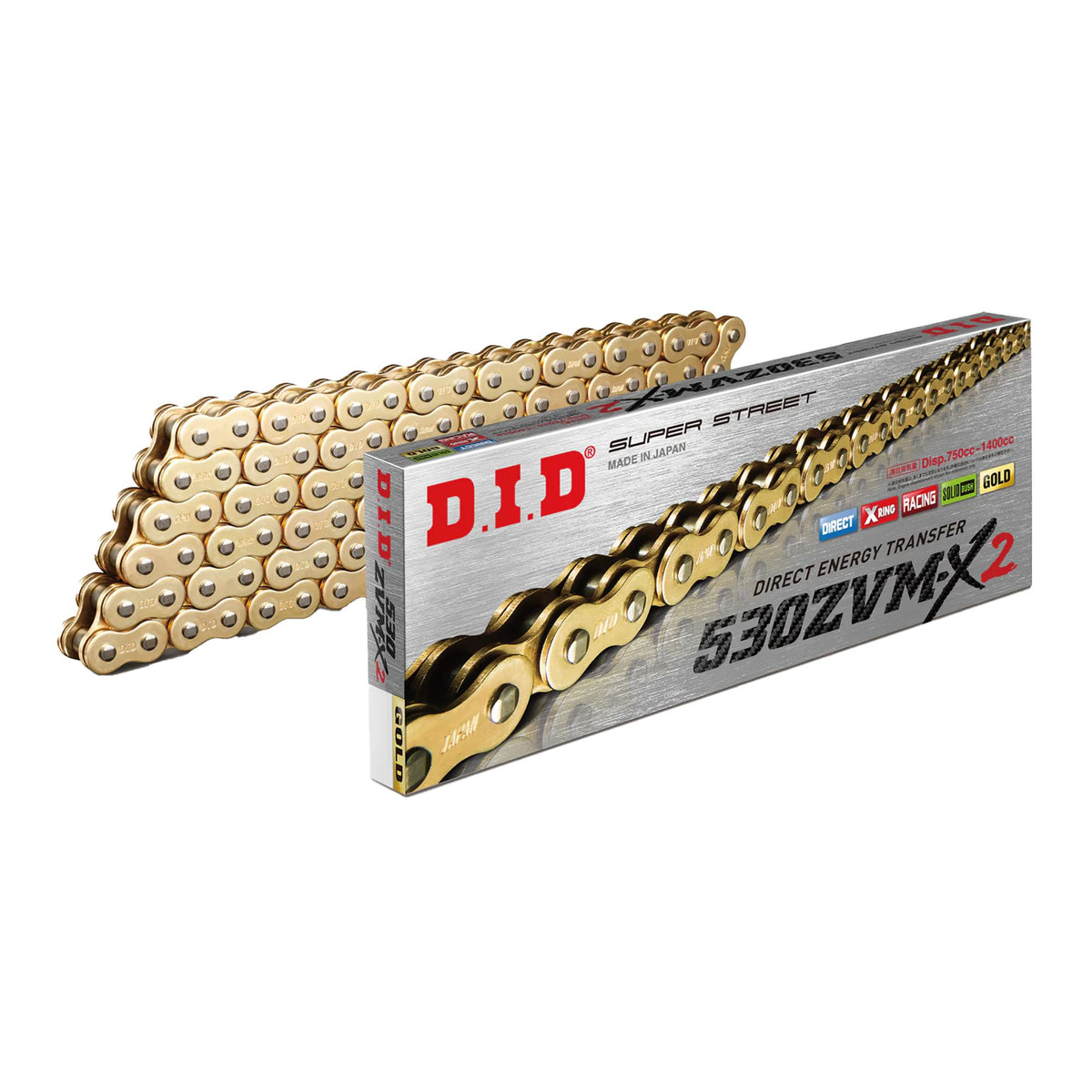

• Chain: DID chain 530 ZVM-X2 G&G 110 w. rivet link - d530zvmx2.gg.110

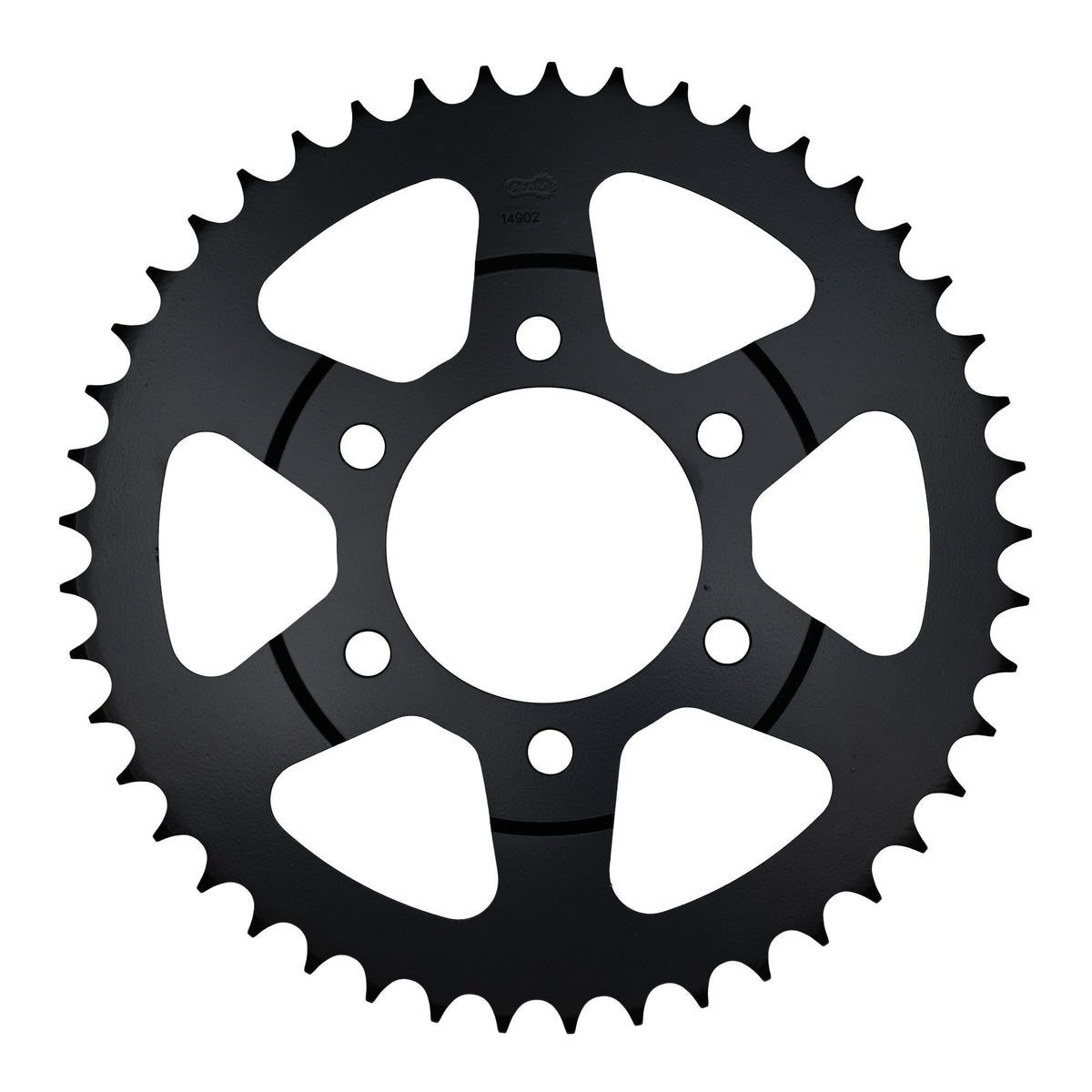

• Rear sprocket: AFAM rear sprocket STEEL #530 45 teeth - a14902.45
• Gear ratio sprocket-chain-rear sprocket: 15-110-45

DID 530 ZVM-X2

Extra reinforced chain, versatile area of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1400 cc

Technical specifications:
Pitch: 530
Pin length: 24.9 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.20 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is exclusively for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-64085

Suitable for

Suzuki over 1001 cc GSF 1200 Bandit S GV75A 1996
Suzuki over 1001 cc GSF 1200 Bandit S GV75A 1997
Suzuki over 1001 cc GSF 1200 Bandit S GV75A 1998
Suzuki over 1001 cc GSF 1200 Bandit S GV75A 1999
Suzuki over 1001 cc GSF 1200 Bandit S GV75A 2000
