DID chain kit for Suzuki GSF 1200 Bandit SA ABS 2006 530 ZVM-X2 chain kit

DID chain kit for Suzuki GSF 1200 Bandit SA ABS 2006 530 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

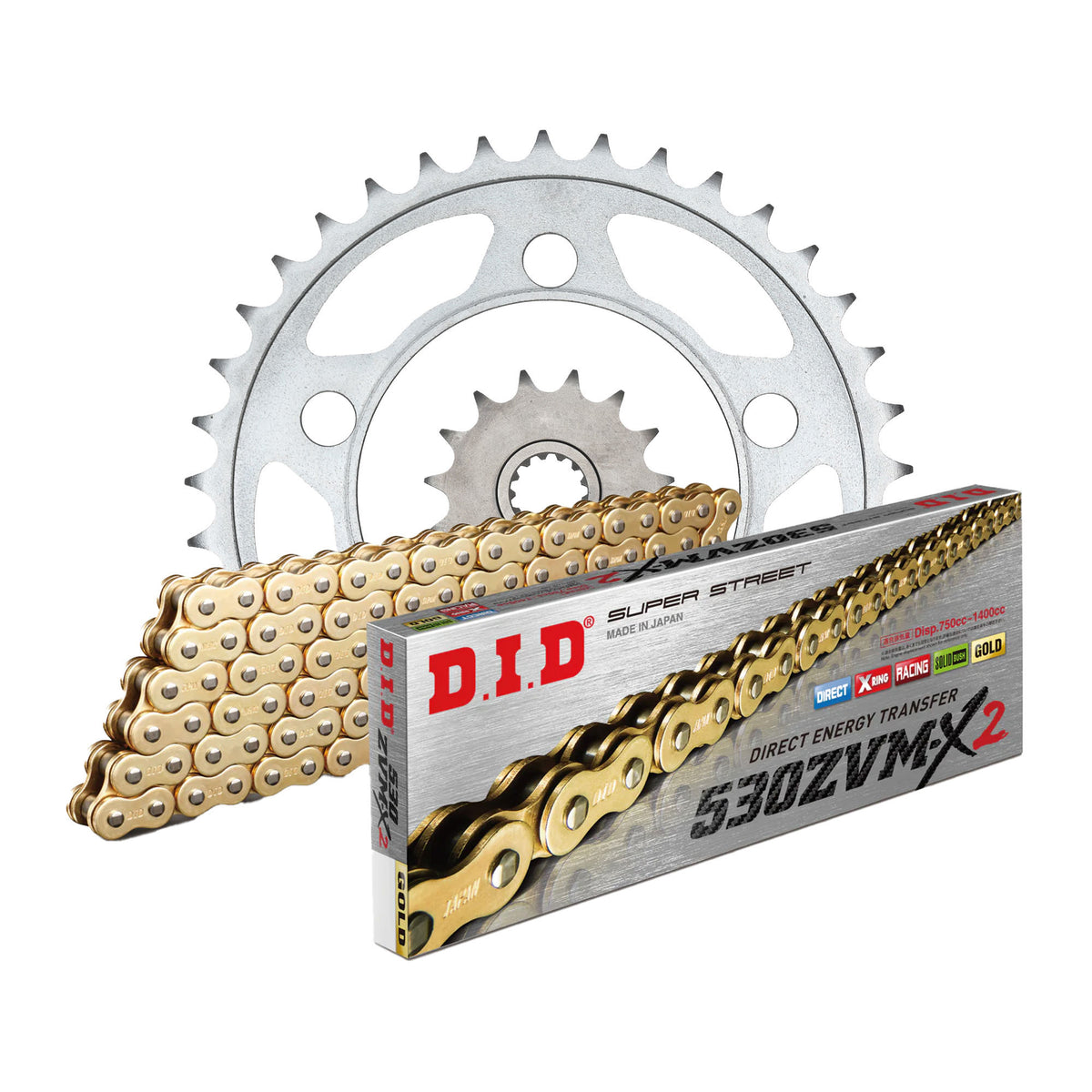

Components of the chain kit Suzuki GSF 1200 Bandit SA ABS WVCB 2006-2006

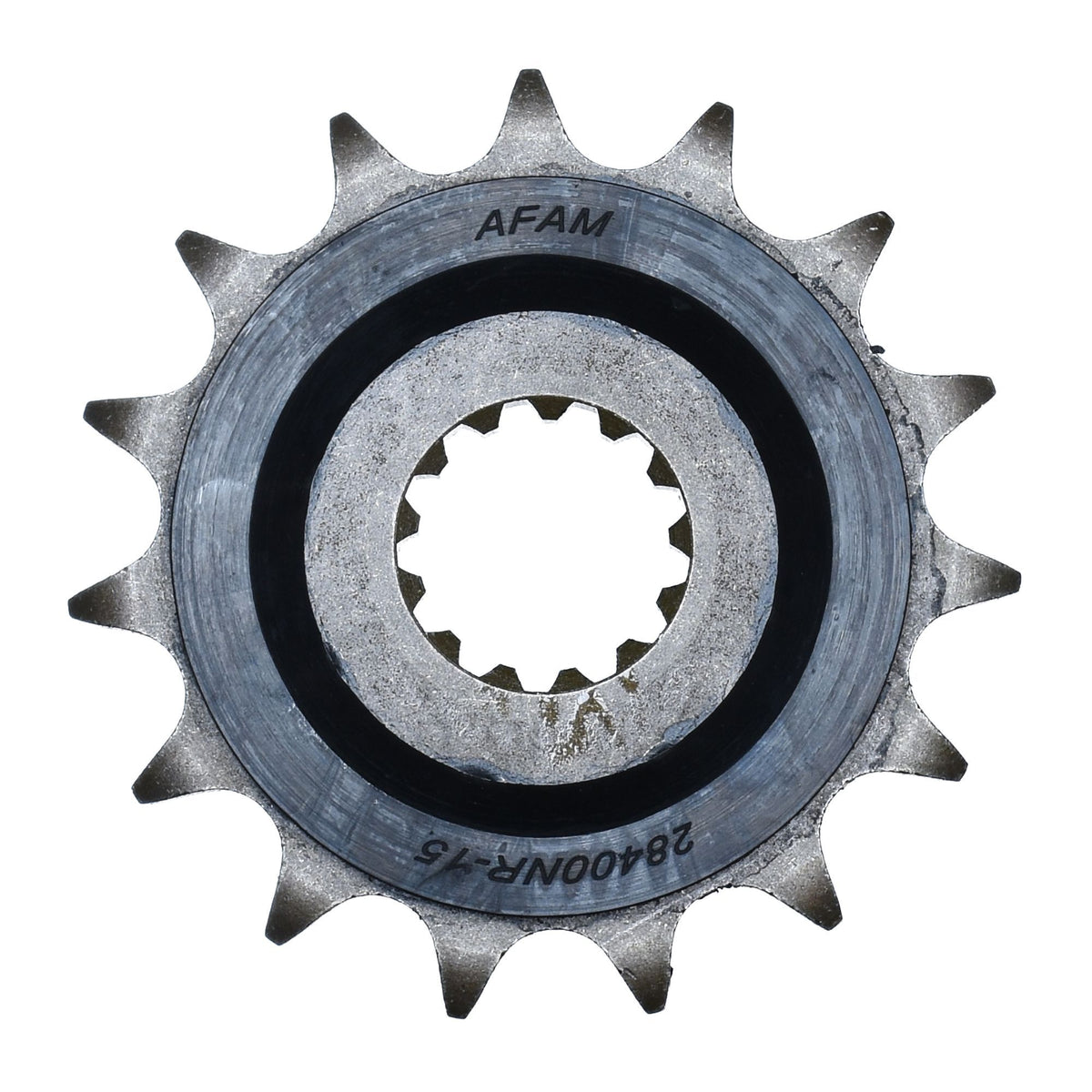

• Front sprocket: AFAM front sprocket rubber #530 Silent Sprocket 15 teeth - a28400oem.15
• Chain: DID chain 530 ZVM-X2 G&G 116 w. rivet link - d530zvmx2.gg.116

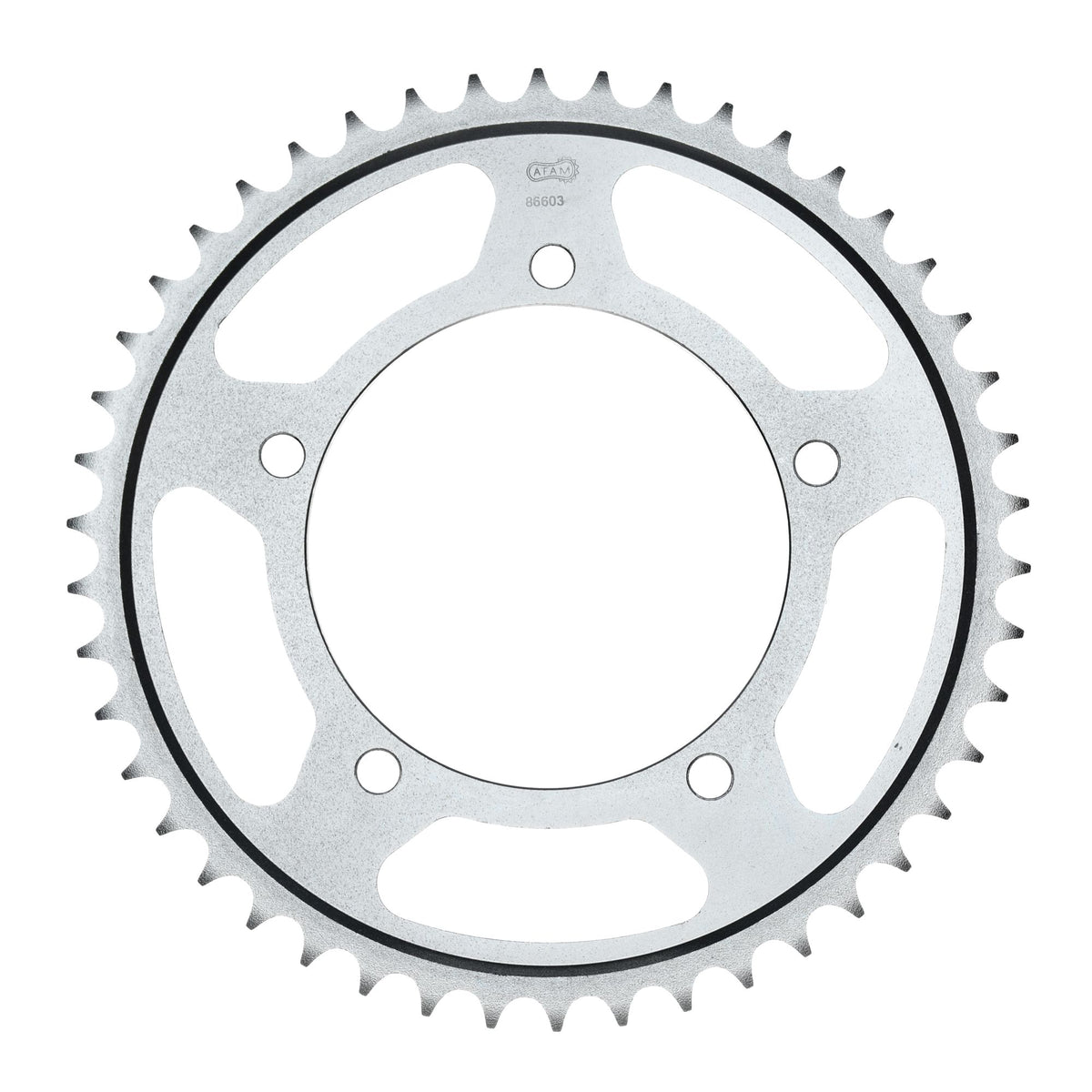

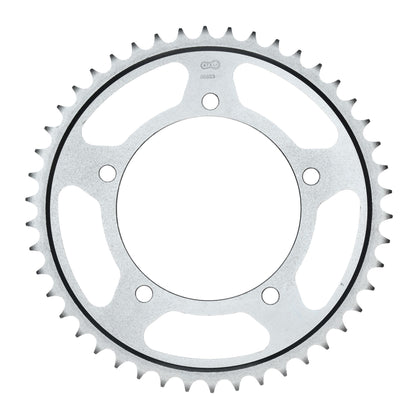

• Rear sprocket: AFAM rear sprocket STEEL #530 45 teeth - a86603.45
• Gear ratio front sprocket-chain-rear sprocket: 15-116-45

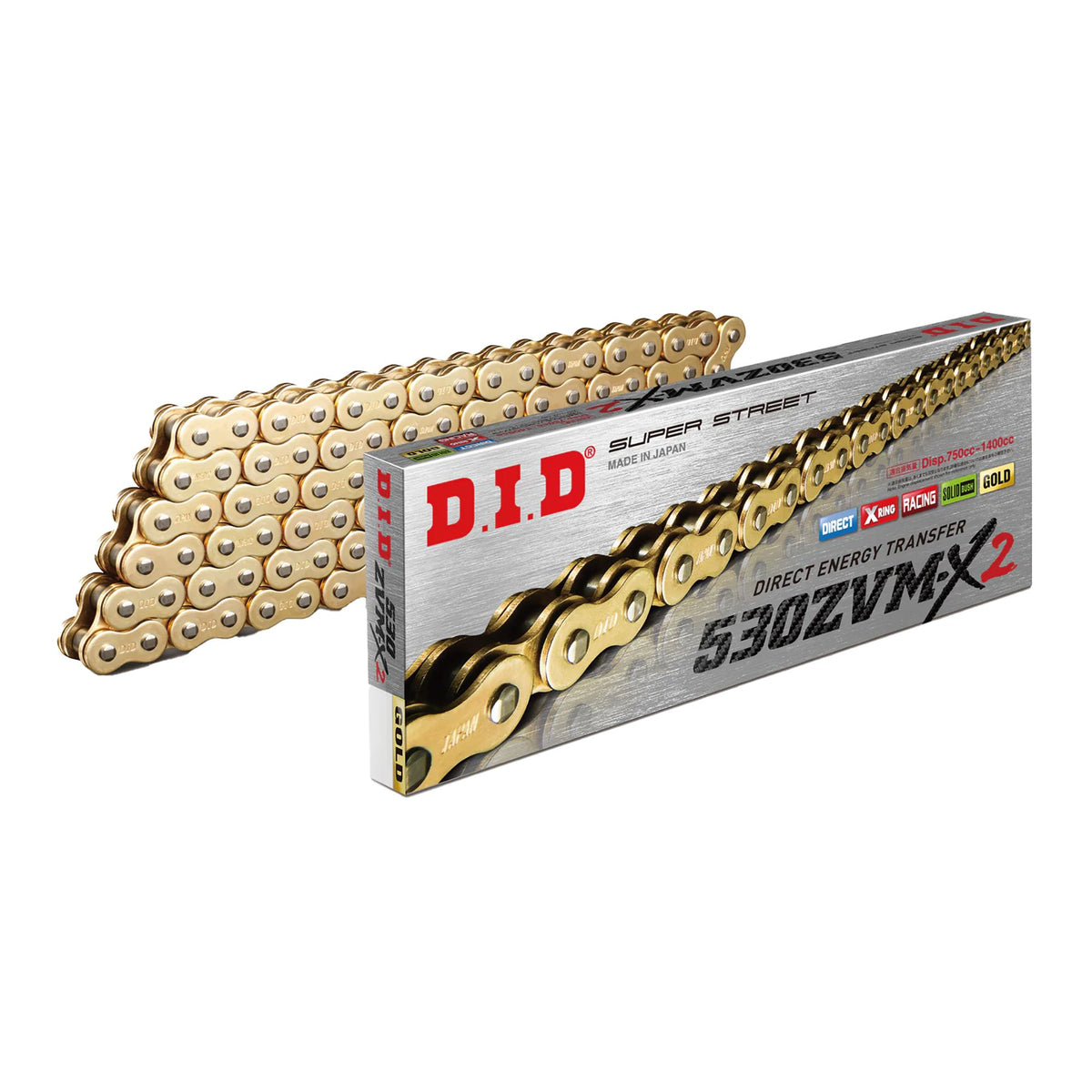

DID 530 ZVM-X2

Extra reinforced chain, versatile application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1400 ccm

Technical data:
Pitch: 530
Pin length: 24.9 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.20 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-64093

Suitable for

Suzuki over 1001 ccm GSF 1200 Bandit SA ABS WVCB 2006
