DID chain kit for Suzuki GSF 1250 Bandit A ABS 07-09 530 ZVM-X2 chain kit

DID chain kit for Suzuki GSF 1250 Bandit A ABS 07-09 530 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki GSF 1250 Bandit A ABS WVCH 2007-2009

• Sprocket: AFAM sprocket #530 18 teeth - a28400.18

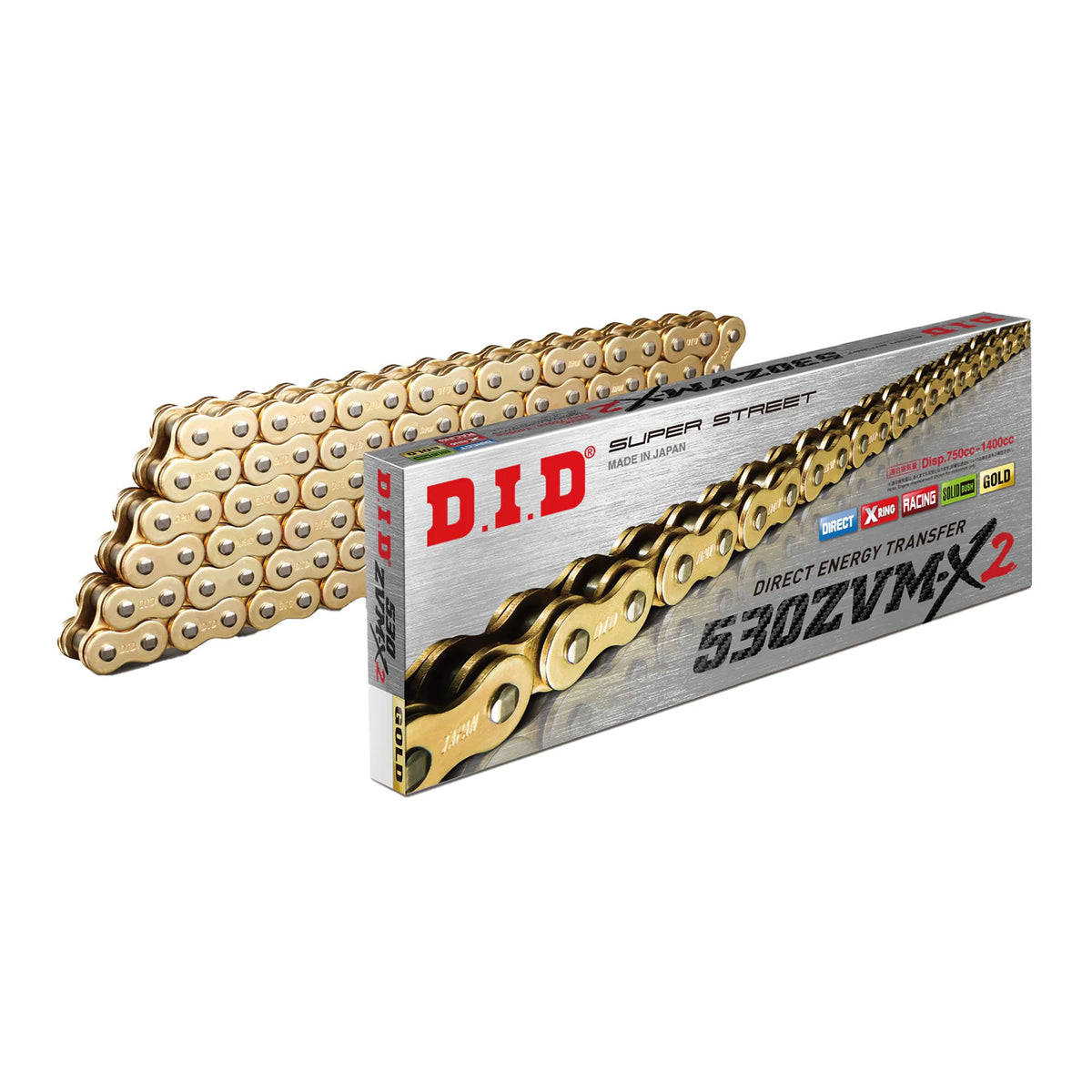

• Chain: DID chain 530 ZVM-X2 G&G 118 with rivet link - d530zvmx2.gg.118

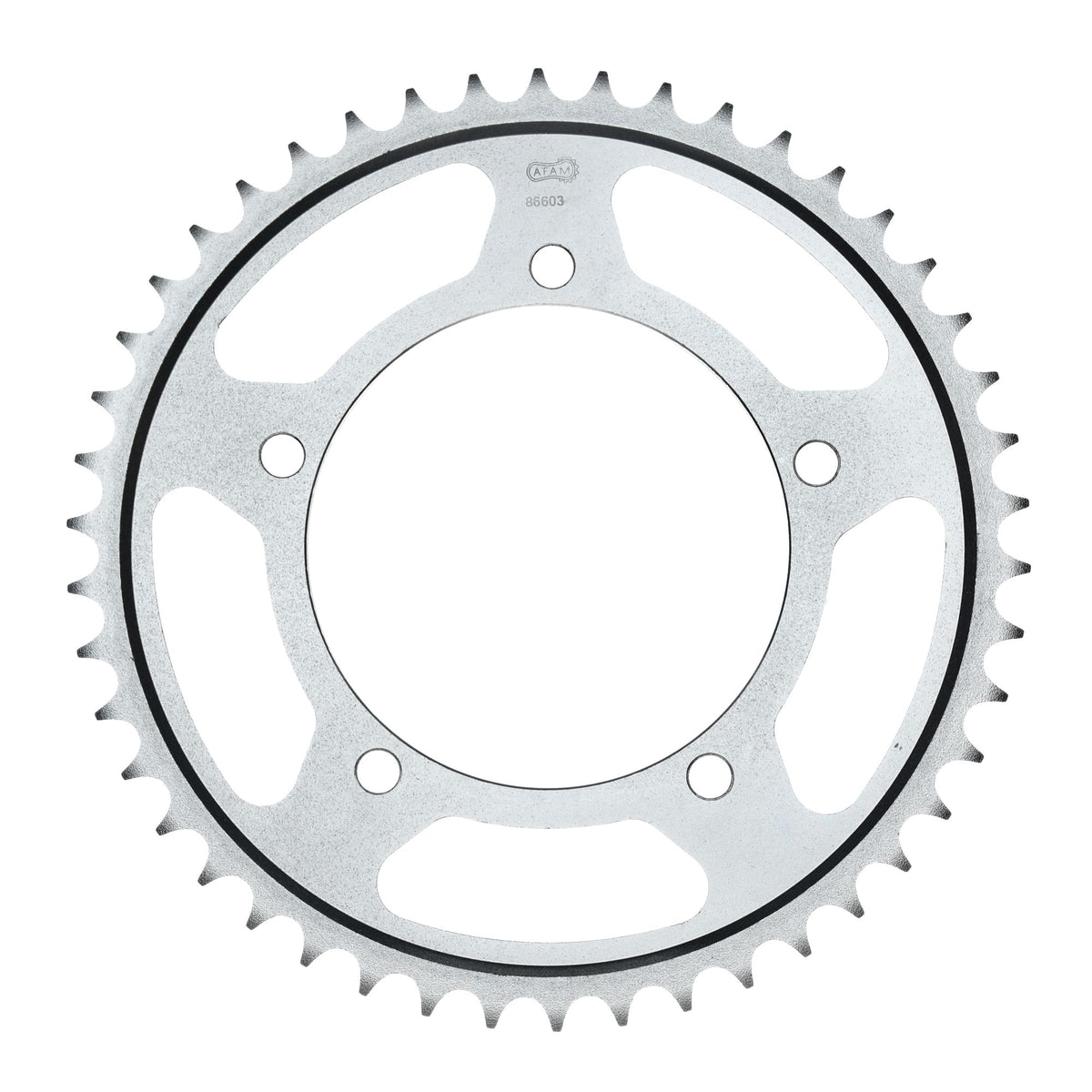

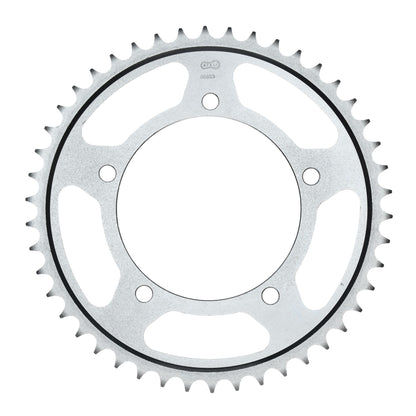

• Rear sprocket: AFAM steel rear sprocket #530 43 teeth - a86603.43
• Gear ratio sprocket-chain-rear sprocket: 18-118-43

DID 530 ZVM-X2

Extra reinforced chain, versatile field of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1400 cc

Technical specifications:
Pitch: 530
Pin length: 24.9 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.20 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-64130

Fits for

Suzuki over 1001 cc GSF 1250 Bandit A ABS WVCH 2007
Suzuki over 1001 cc GSF 1250 Bandit A ABS WVCH 2008
Suzuki over 1001 cc GSF 1250 Bandit A ABS WVCH 2009
