DID chain kit for Suzuki GSF 400 Bandit 91-92 525 ZVM-X2 chain kit

DID chain kit for Suzuki GSF 400 Bandit 91-92 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - the manufacturer's name is only for the purpose of demonstrating compatibility!

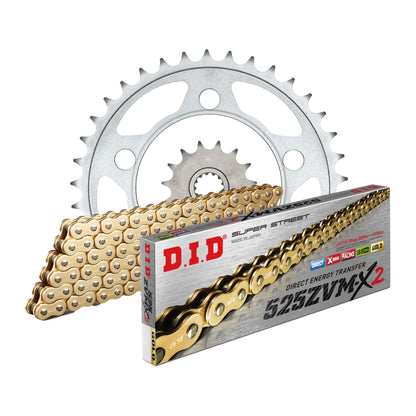

Components of the chain kit for Suzuki GSF 400 Bandit GK75B 1991-1992

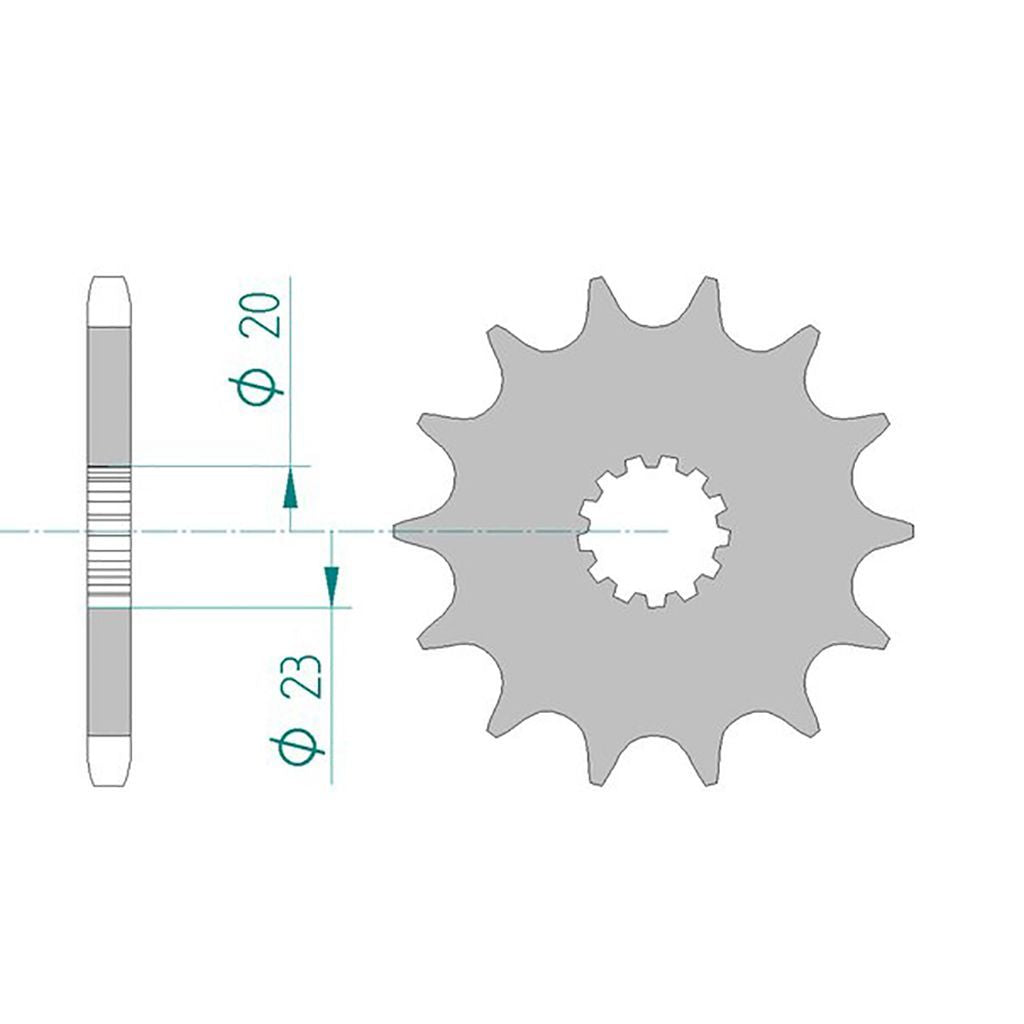

• Front sprocket: AFAM sprocket #525 14 teeth - a22404.14
• Chain: DID chain 525 ZVM-X2 G&G 114 with rivet link - d525zvmx2.gg.114

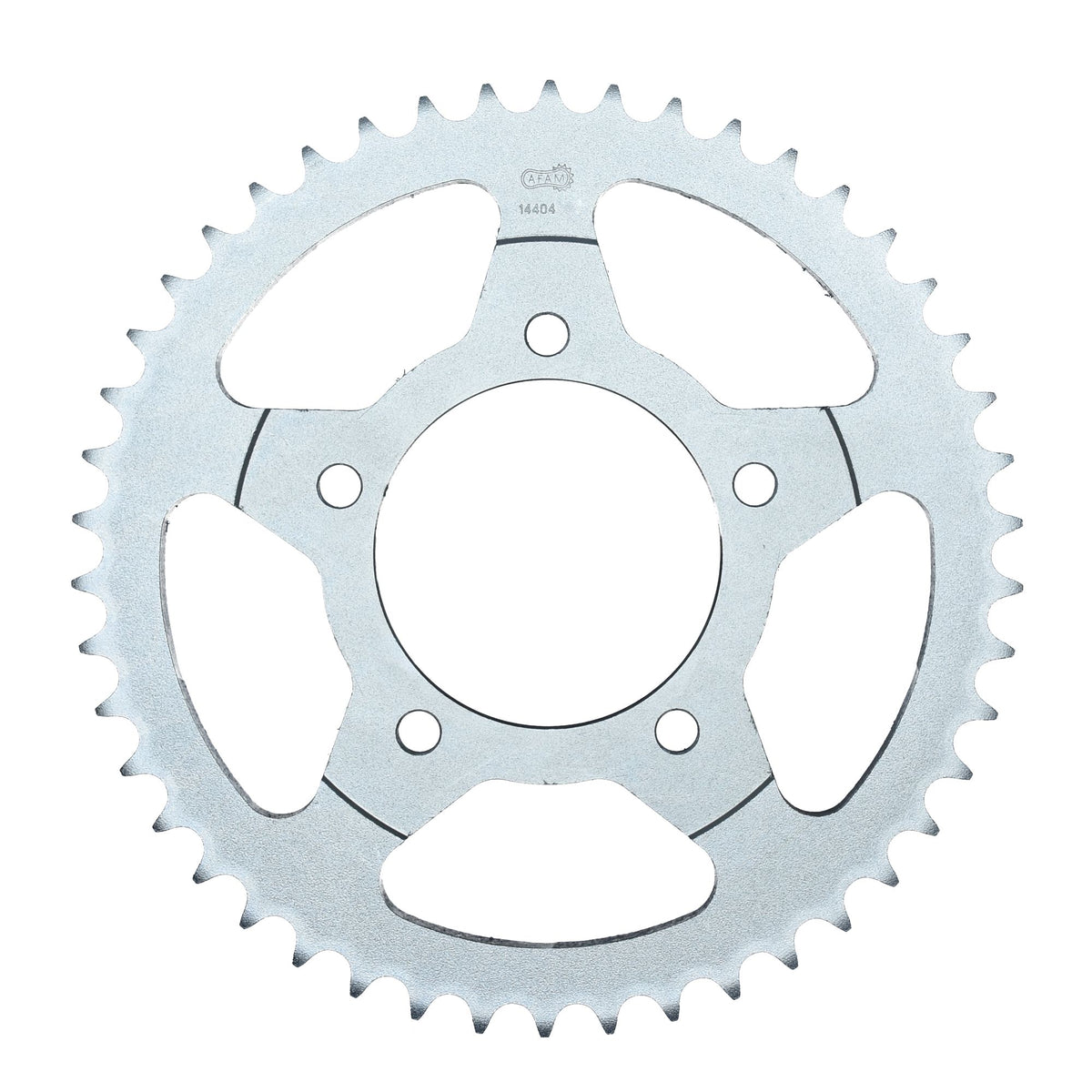

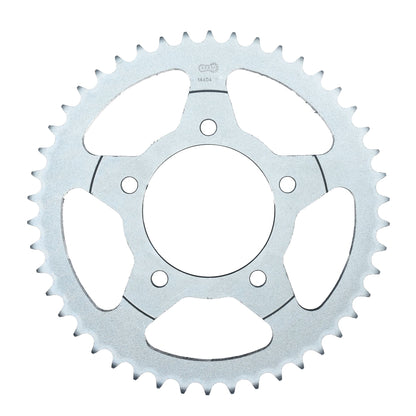

• Rear sprocket: AFAM sprocket STEEL #525 47 teeth - a14404.47
• Gear ratio front sprocket-chain-rear sprocket: 14-114-47

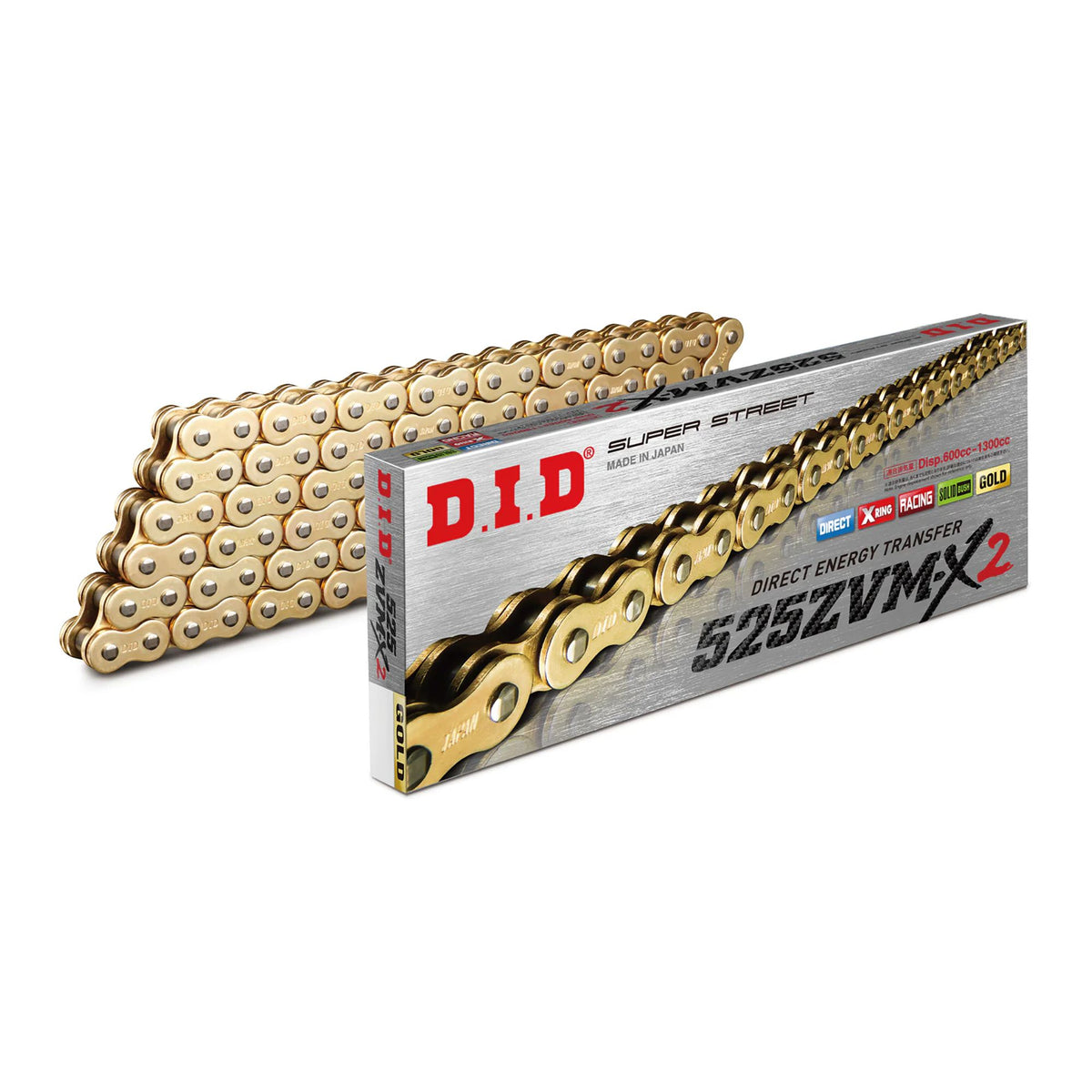

DID 525 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-64213

Suitable for

Suzuki 251 - 500 cc GSF 400 Bandit GK75B 1991
Suzuki 251 - 500 cc GSF 400 Bandit GK75B 1992
