DID chain kit for Suzuki GSF 650 Bandit A ABS 09-11 525 VX3 chain kit

DID Chain kit for Suzuki GSF 650 Bandit A ABS 09-11 525 VX3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Suzuki GSF 650 Bandit A ABS WVCZ 2009-2011

• Sprocket: AFAM sprocket #525 15 teeth - a28401.15
• Chain: DID chain 525 VX3 G&B 118 with rivet link - d525vx3.g-118

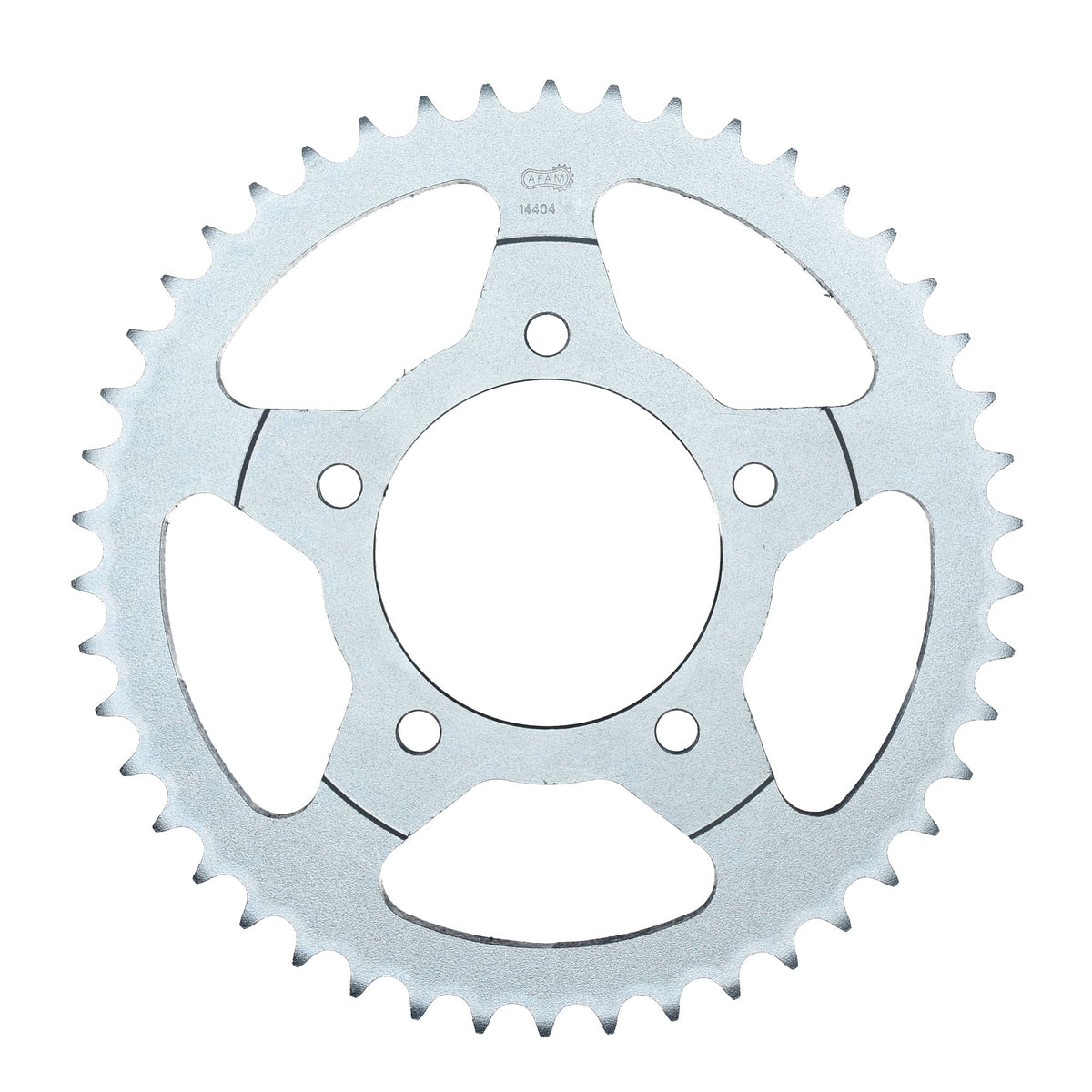

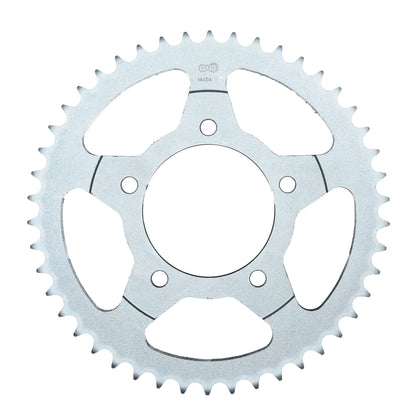

• Rear sprocket: AFAM rear sprocket STEEL #525 48 teeth - a14404.48
• Gear ratio sprocket-chain-rear sprocket: 15-118-48

DID 525 VX3

Successor to the proven 525 VX
X-ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical specifications:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-37148

Suitable for

Suzuki 501 - 750 cc GSF 650 Bandit A ABS WVCZ 2009
Suzuki 501 - 750 cc GSF 650 Bandit A ABS WVCZ 2010
Suzuki 501 - 750 cc GSF 650 Bandit A ABS WVCZ 2011
