DID chain kit for Suzuki GSF 650 Bandit S 07-08 525 VX3 chain kit

DID chain kit for Suzuki GSF 650 Bandit S 07-08 525 VX3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Suzuki GSF 650 Bandit S WVCJ 2007-2008

• Front sprocket: AFAM front sprocket #525 15 teeth - a28401.15
• Chain: DID chain 525 VX3 G&B 118 with rivet link - d525vx3.g-118

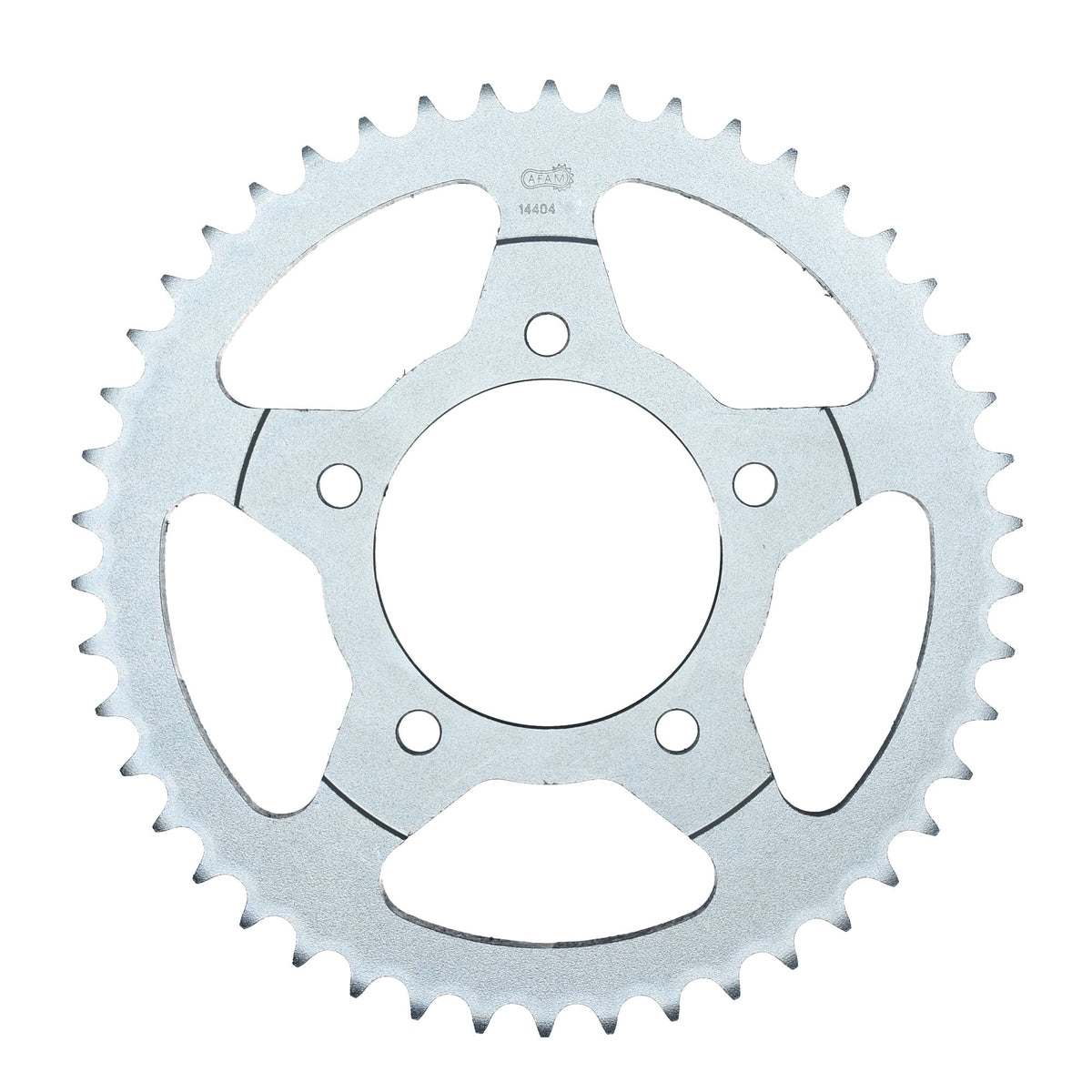

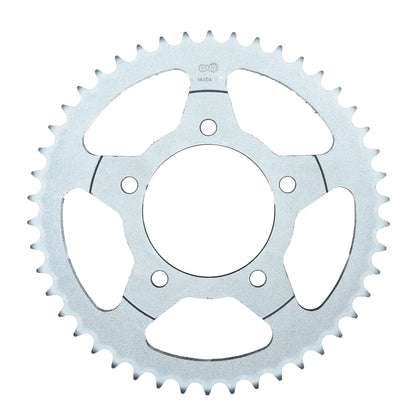

• Rear sprocket: AFAM rear sprocket STEEL #525 48 teeth - a14404.48
• Gear ratio front sprocket-chain-rear sprocket: 15-118-48

DID 525 VX3

Successor to the proven 525 VX
X-ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical data:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-38208

Suitable for

Suzuki 501 - 750 cc GSF 650 Bandit S WVCJ 2007
Suzuki 501 - 750 cc GSF 650 Bandit S WVCJ 2008
