DID chain kit for Suzuki GSX 1100 F 1989 530 VX3 chain kit

DID chain kit for Suzuki GSX 1100 F 1989 530 VX3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

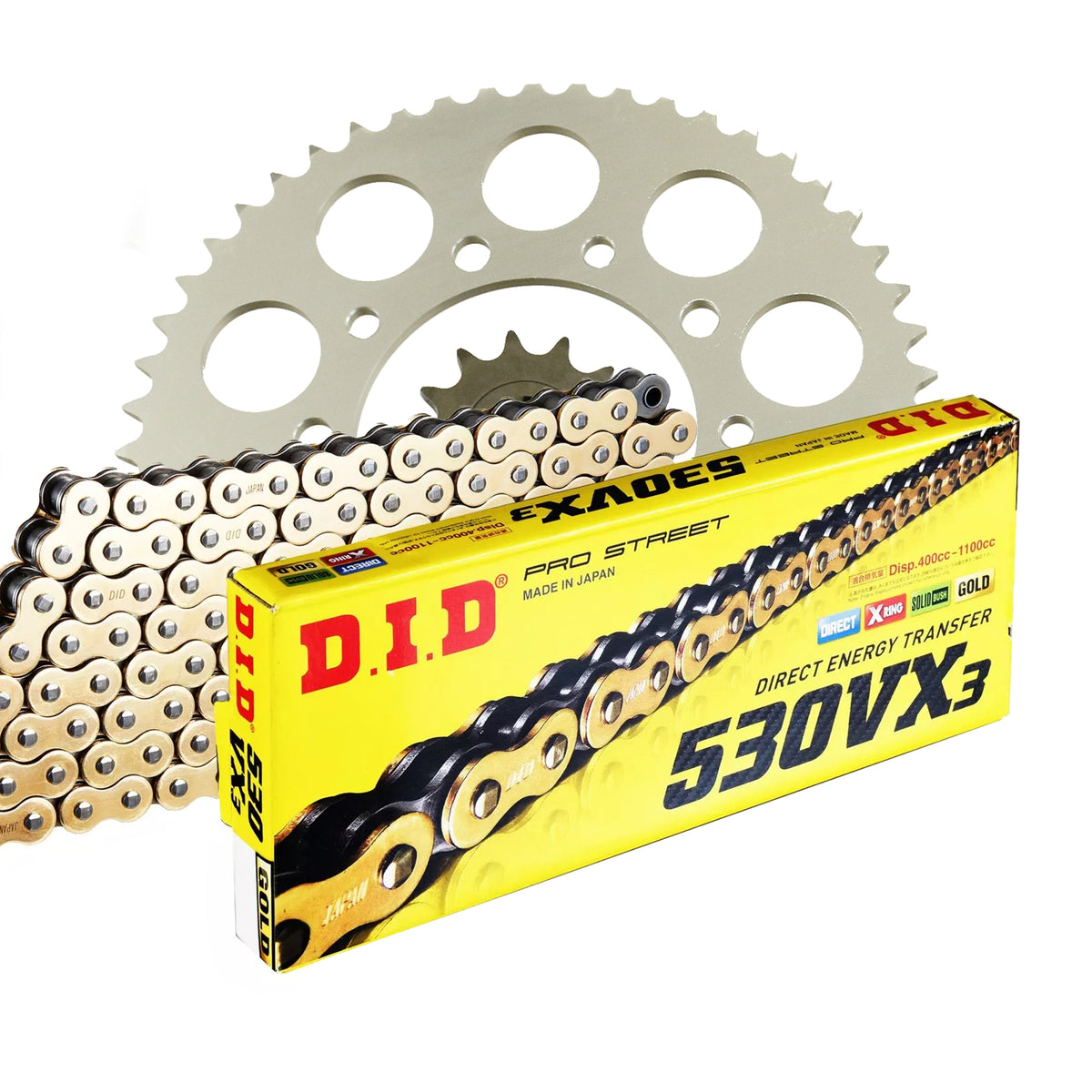

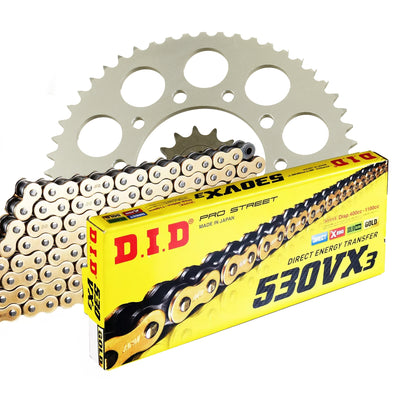

Components of the chain kit Suzuki GSX 1100 F GV72C 1989-1989 Conversion #530

• Sprocket: AFAM sprocket #530 15 teeth - a28400.15
• Chain: DID chain 530 VX3 G&B 118 with rivet link - d530vx3.g-118

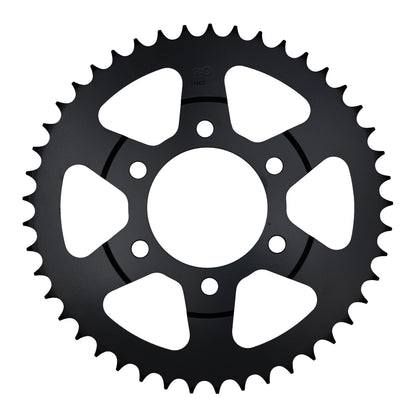

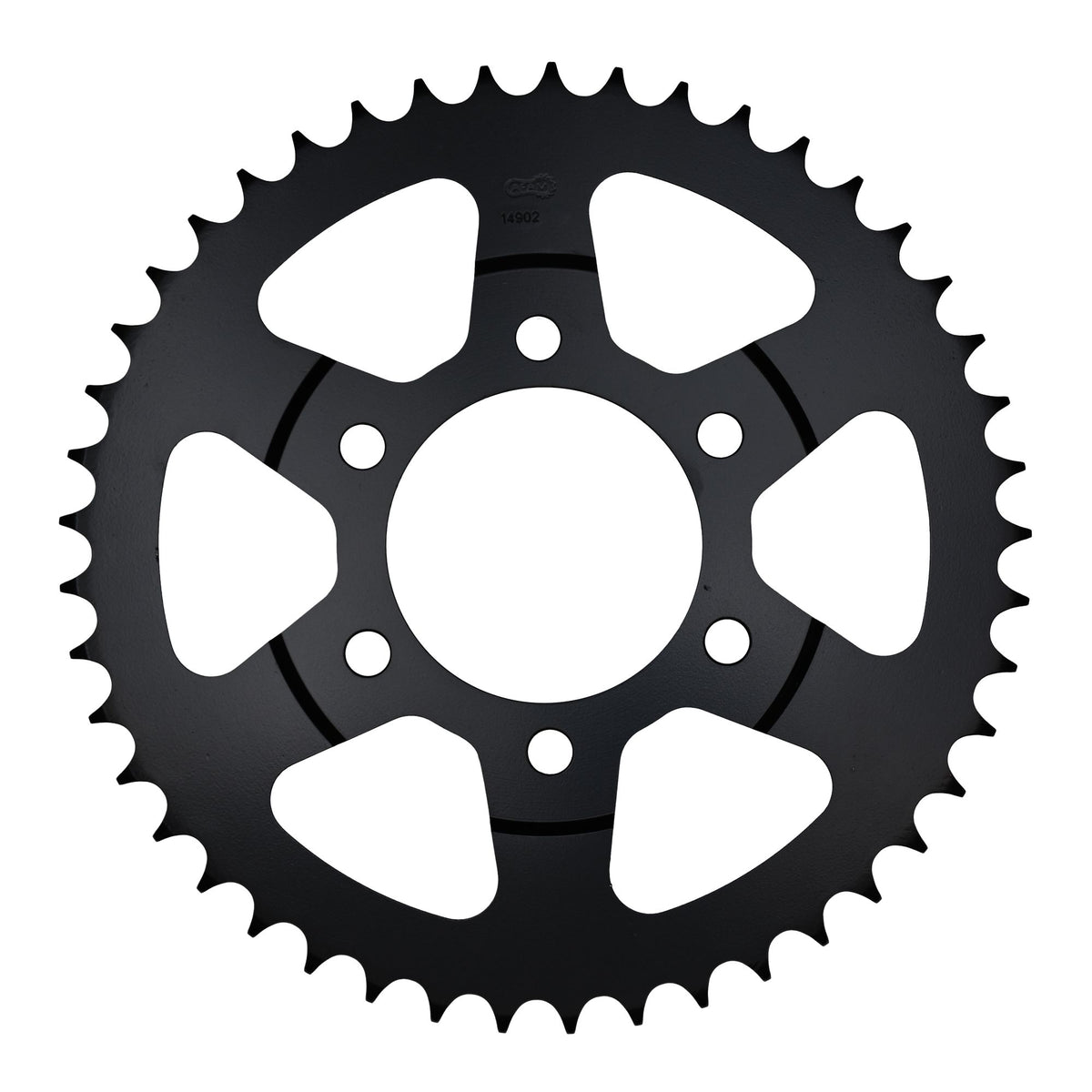

• Chain wheel: AFAM steel sprocket #530 52 teeth - a14902.52
• Gear ratio sprocket-chain-chain wheel: 15-118-52 conversion #530

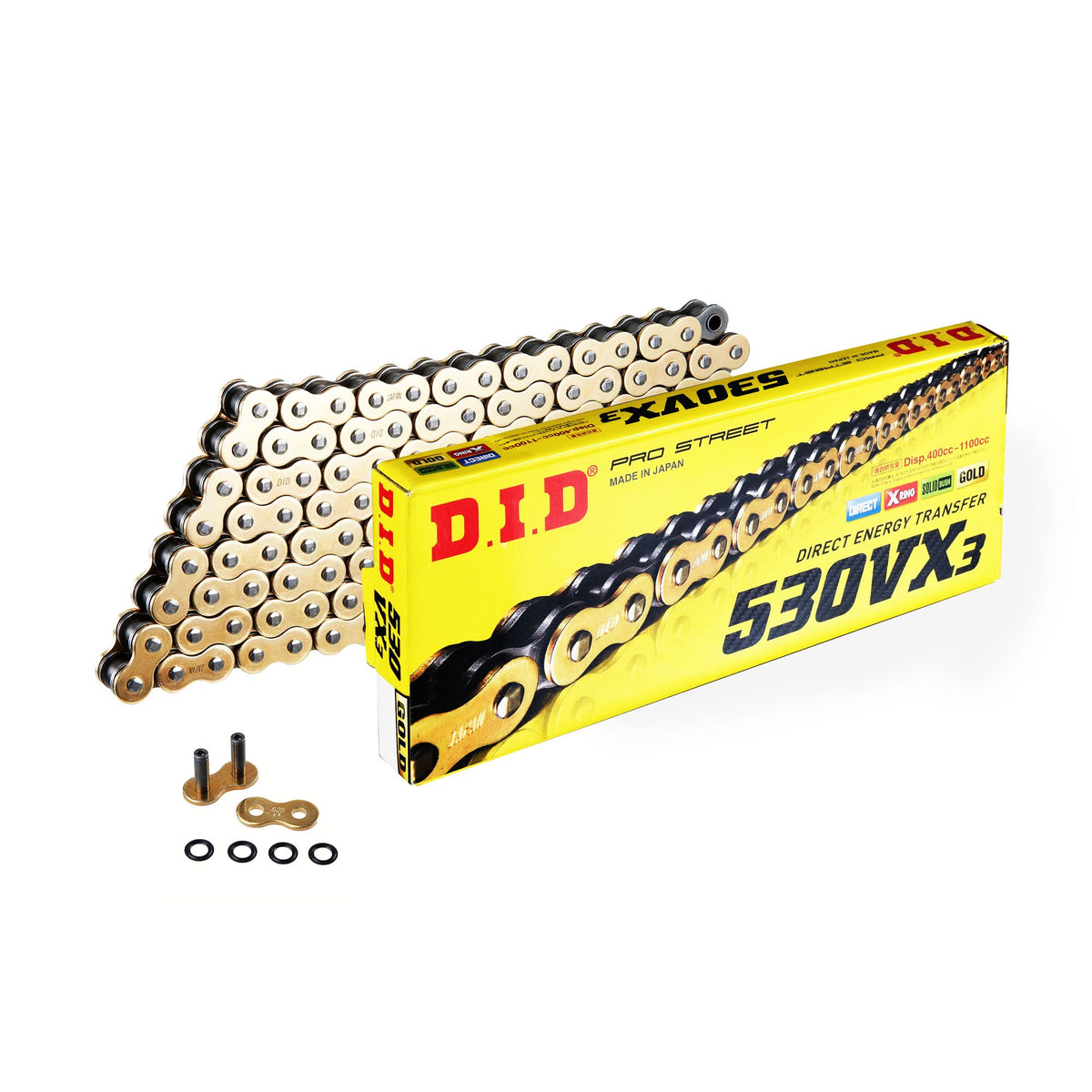

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical data:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-40954

Suitable for

Suzuki over 1001 cc GSX 1100 F GV72C 1989
