DID chain set for Suzuki GSX 400 Katana FE 81-83 530 ZVM-X2 chain kit

DID chain kit for Suzuki GSX 400 Katana FE 81-83 530 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

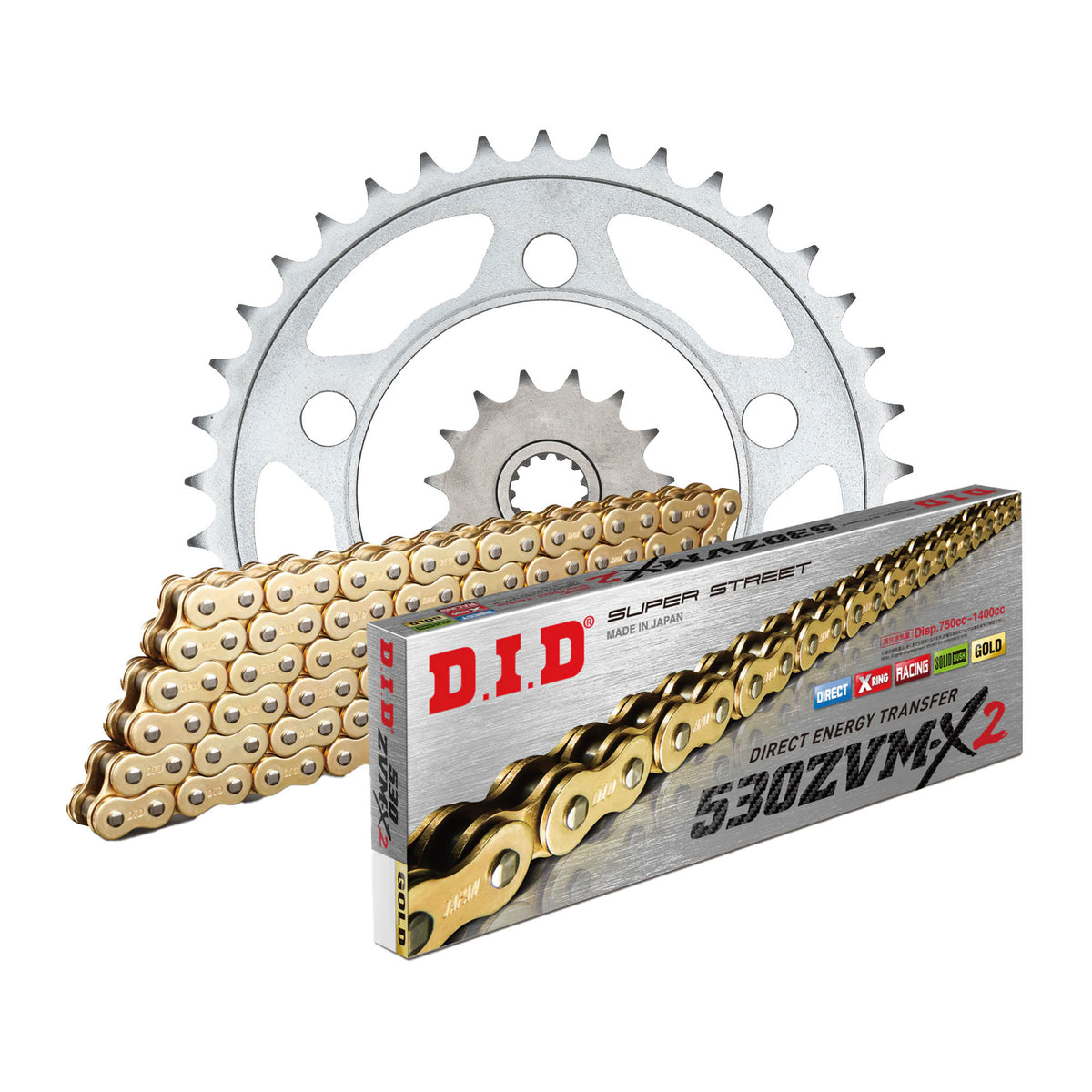

Components of the chain kit Suzuki GSX 400 Katana FE GS40XF 1981-1983

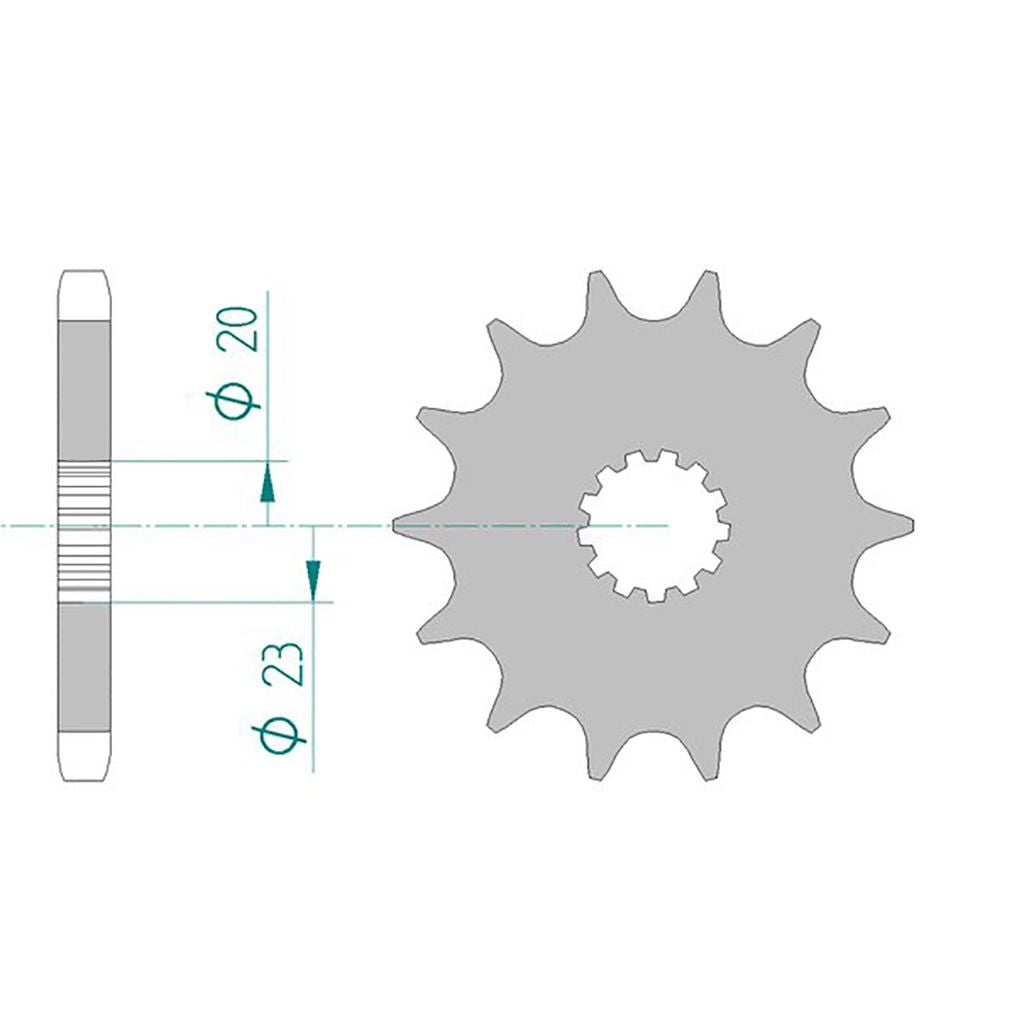

• Front sprocket: AFAM front sprocket #530 15 teeth - a22403.15
• Chain: DID chain 530 ZVM-X2 G&G 104 with rivet link - d530zvmx2.gg.104

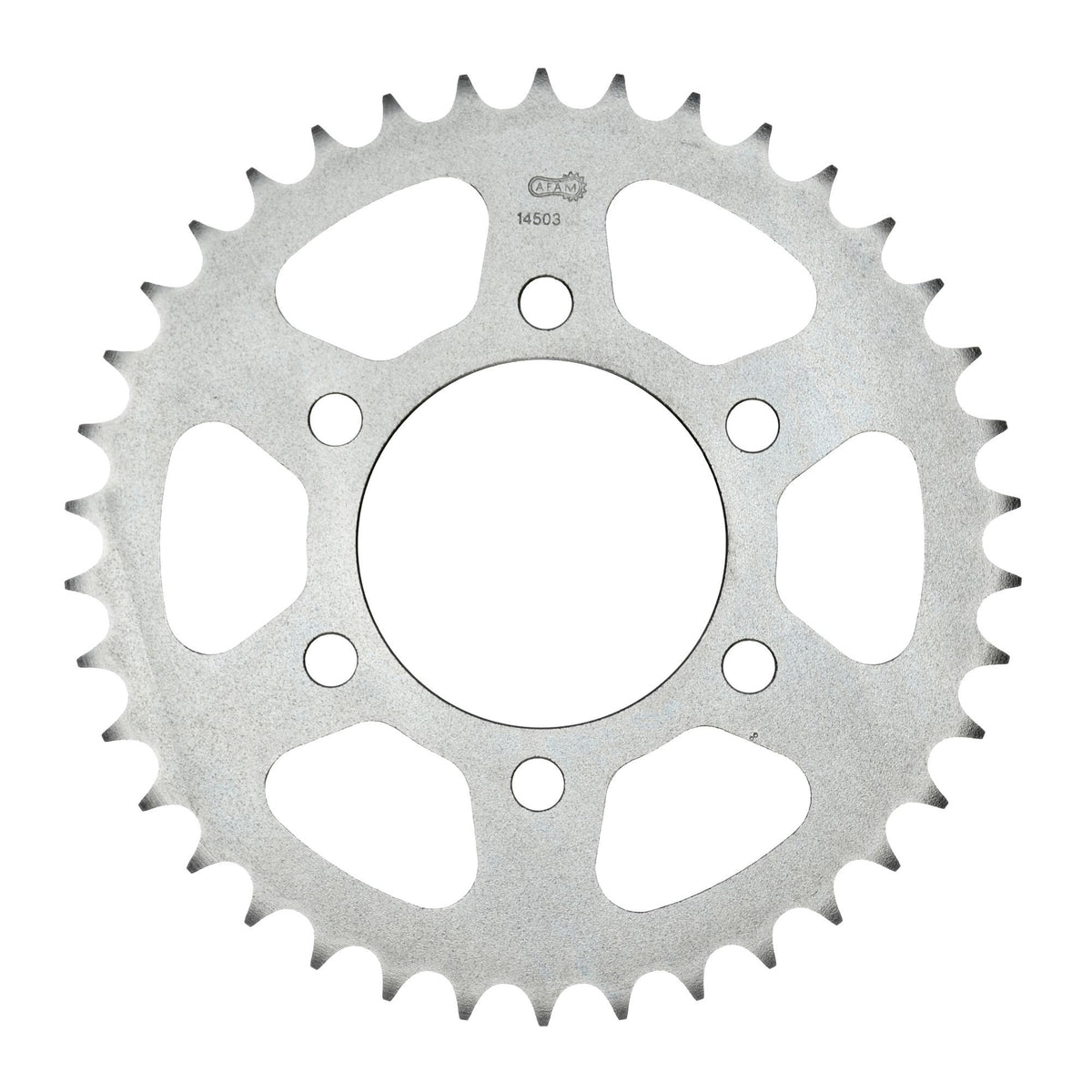

• Rear sprocket: AFAM rear sprocket STEEL #530 43 teeth - a14503.43
• Gear ratio front sprocket-chain-rear sprocket: 15-104-43

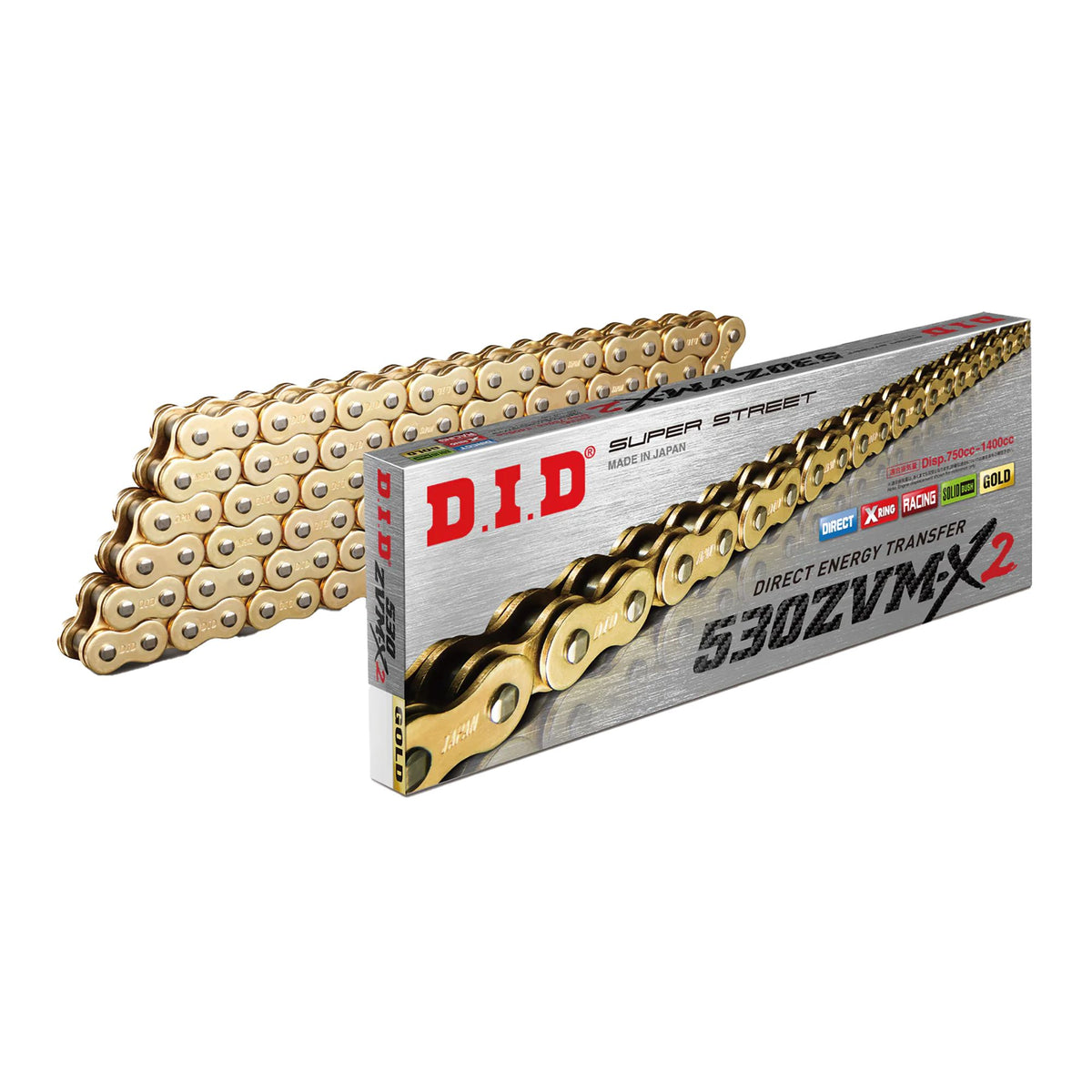

DID 530 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1400 cc

Technical data:
Pitch: 530
Pin length: 24.9 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.20 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the authorization of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-64219

Suitable for

Suzuki 251 - 500 cc GSX 400 Katana FE GS40XF 1981
Suzuki 251 - 500 cc GSX 400 Katana FE GS40XF 1982
Suzuki 251 - 500 cc GSX 400 Katana FE GS40XF 1983
