DID chain kit for Suzuki GSX 400 S Sport 83-87 530 ZVM-X2 chain kit

DID Chain Kit for Suzuki GSX 400 S Sport 83-87 530 ZVM-X2 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki GSX 400 S Sport GK53C 1983-1987

• Sprocket: AFAM sprocket #530 16 teeth - a28400.16

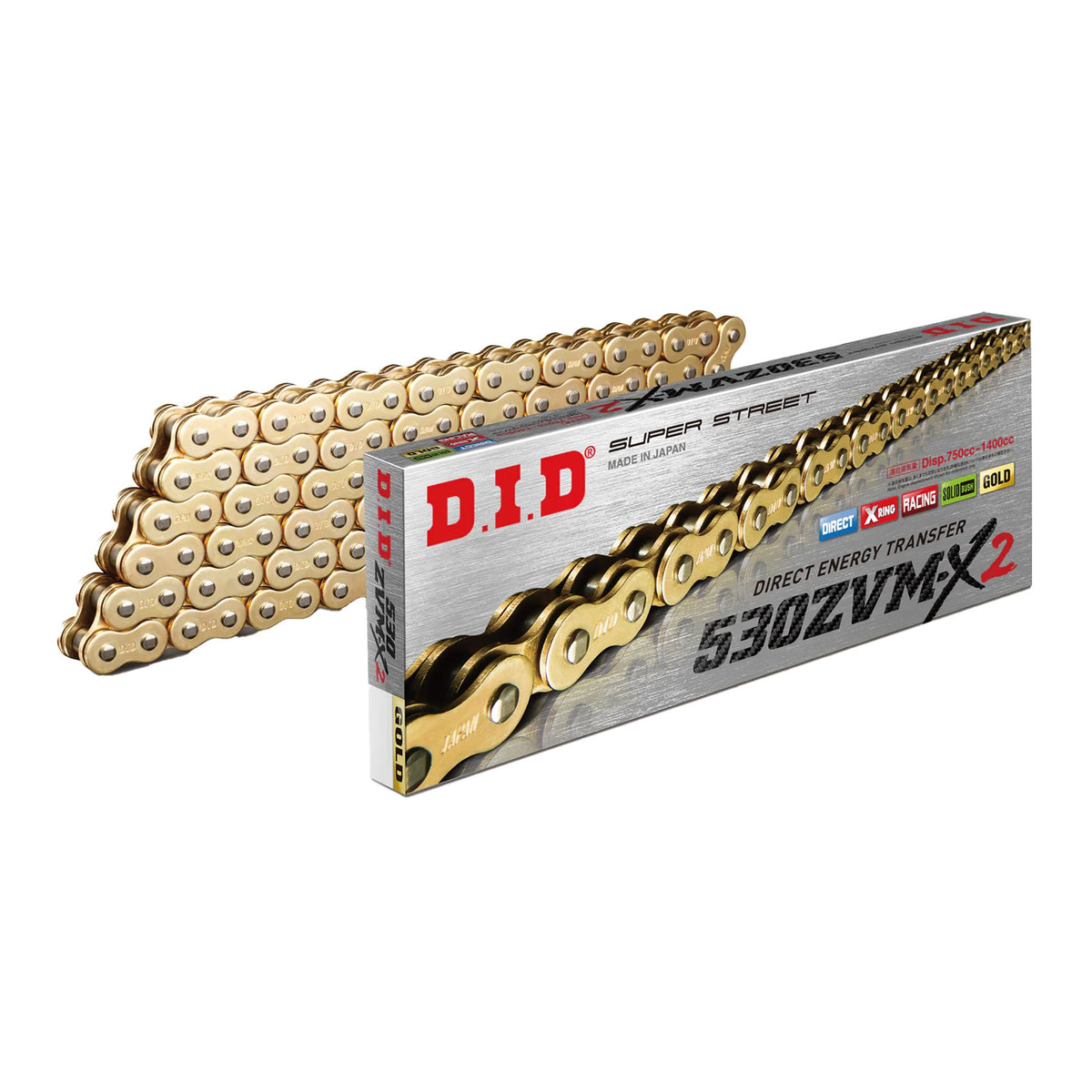

• Chain: DID chain 530 ZVM-X2 G&G 110 w. rivet link - d530zvmx2.gg.110
• Rear sprocket: AFAM rear sprocket STEEL #530 45 teeth - a14400.45
• Gear ratio sprocket-chain-rear sprocket: 16-110-45

DID 530 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1400 cc

Technical specifications:
Pitch: 530
Pin length: 24.9 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.20 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-64222

Suitable for

Suzuki 251 - 500 cc GSX 400 S Sport GK53C 1983
Suzuki 251 - 500 cc GSX 400 S Sport GK53C 1984
Suzuki 251 - 500 cc GSX 400 S Sport GK53C 1985
Suzuki 251 - 500 cc GSX 400 S Sport GK53C 1986
Suzuki 251 - 500 cc GSX 400 S Sport GK53C 1987
