Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

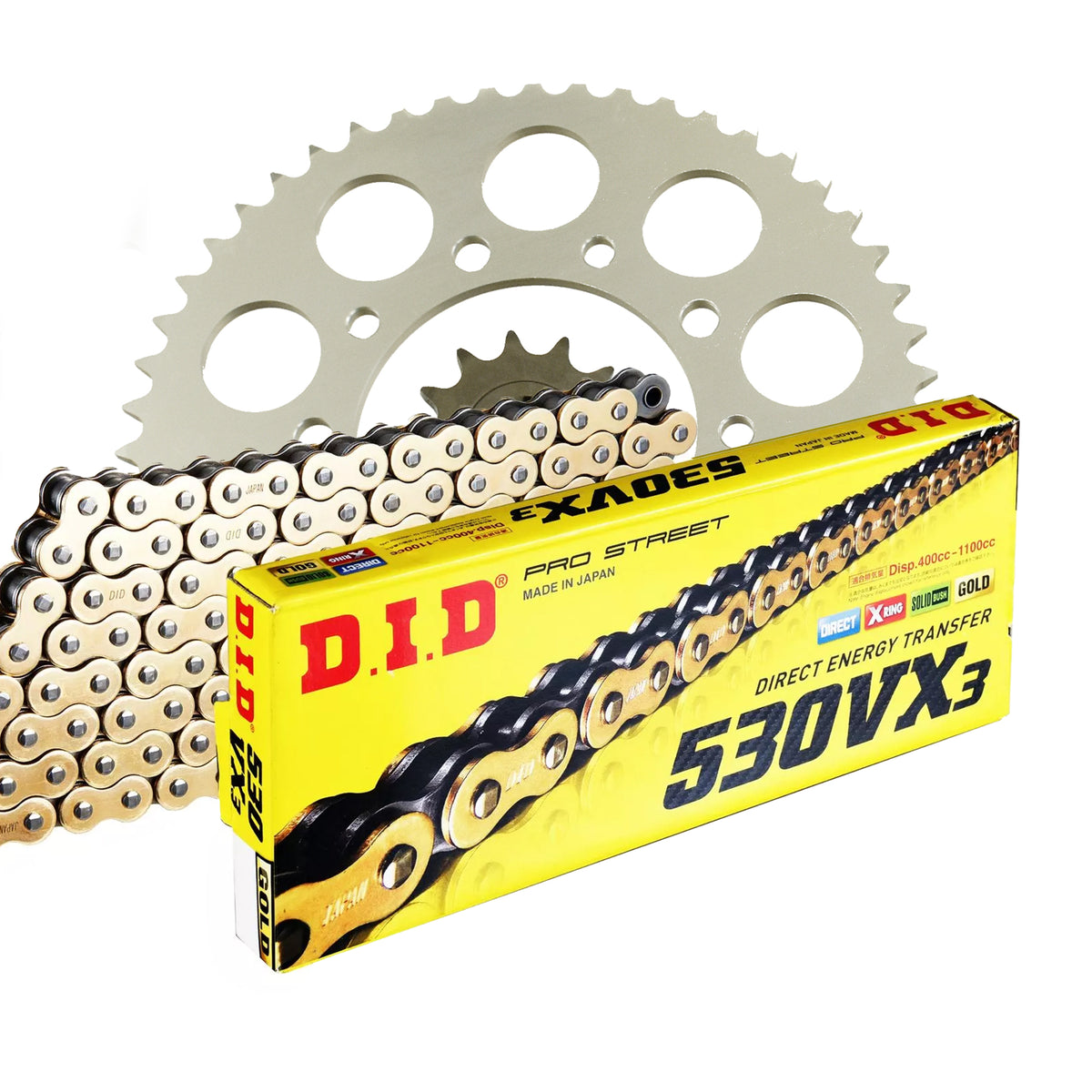

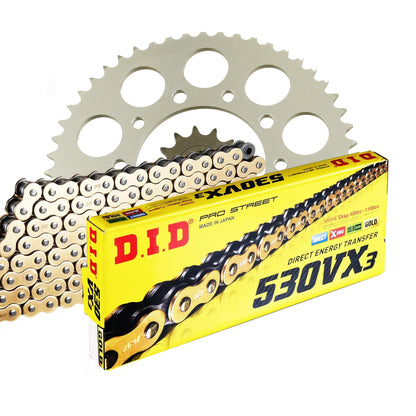

Components of the chain kit Suzuki GSX 600 F GN72B 1989-1991

• Front sprocket: AFAM front sprocket #530 14 teeth - a28400.14
• Chain: DID chain 530 VX3 G&B 112 with rivet link - d530vx3.g-112

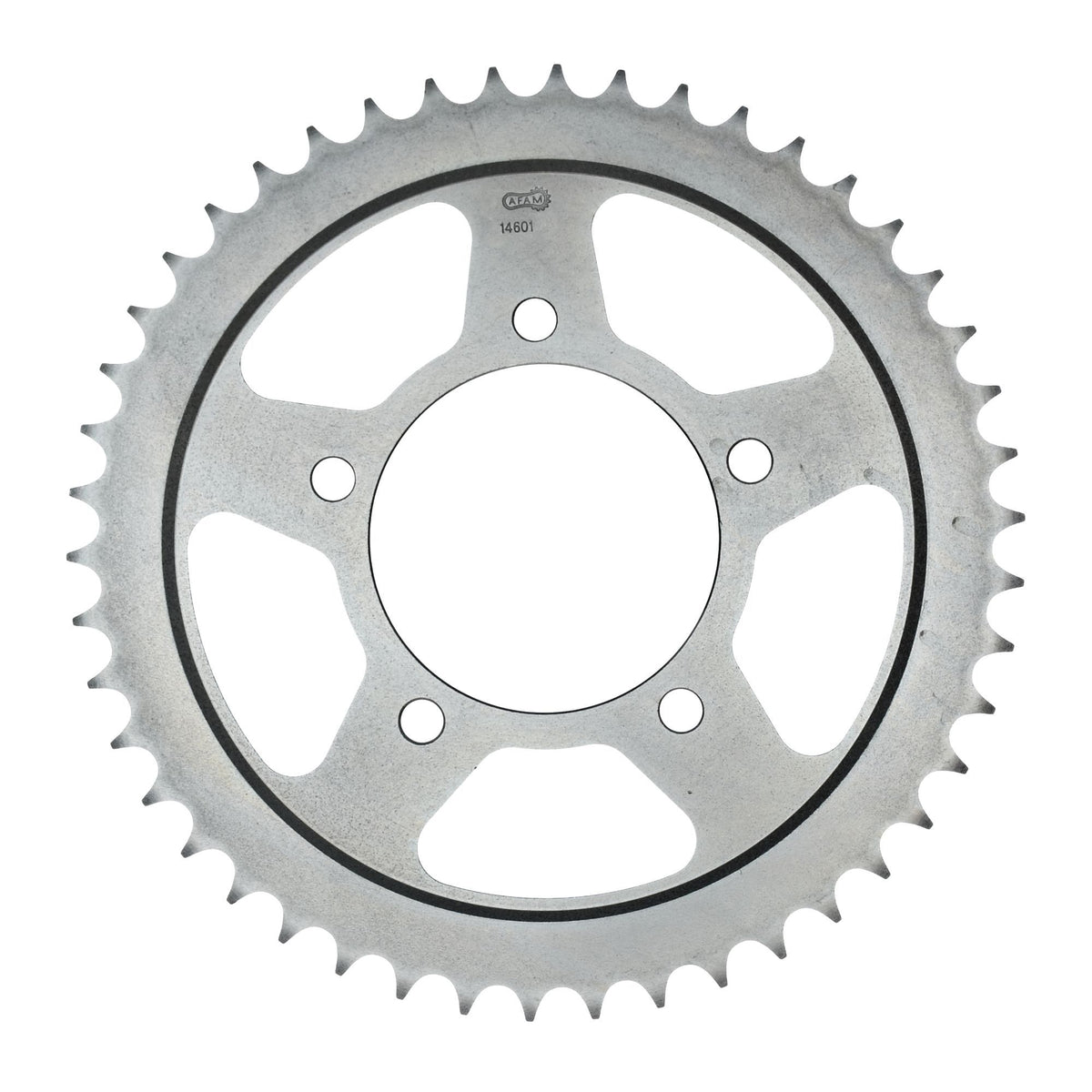

• Rear sprocket: AFAM rear sprocket STEEL #530 46 teeth - a14601.46
• Transmission ratio front sprocket-chain-rear sprocket: 14-112-46

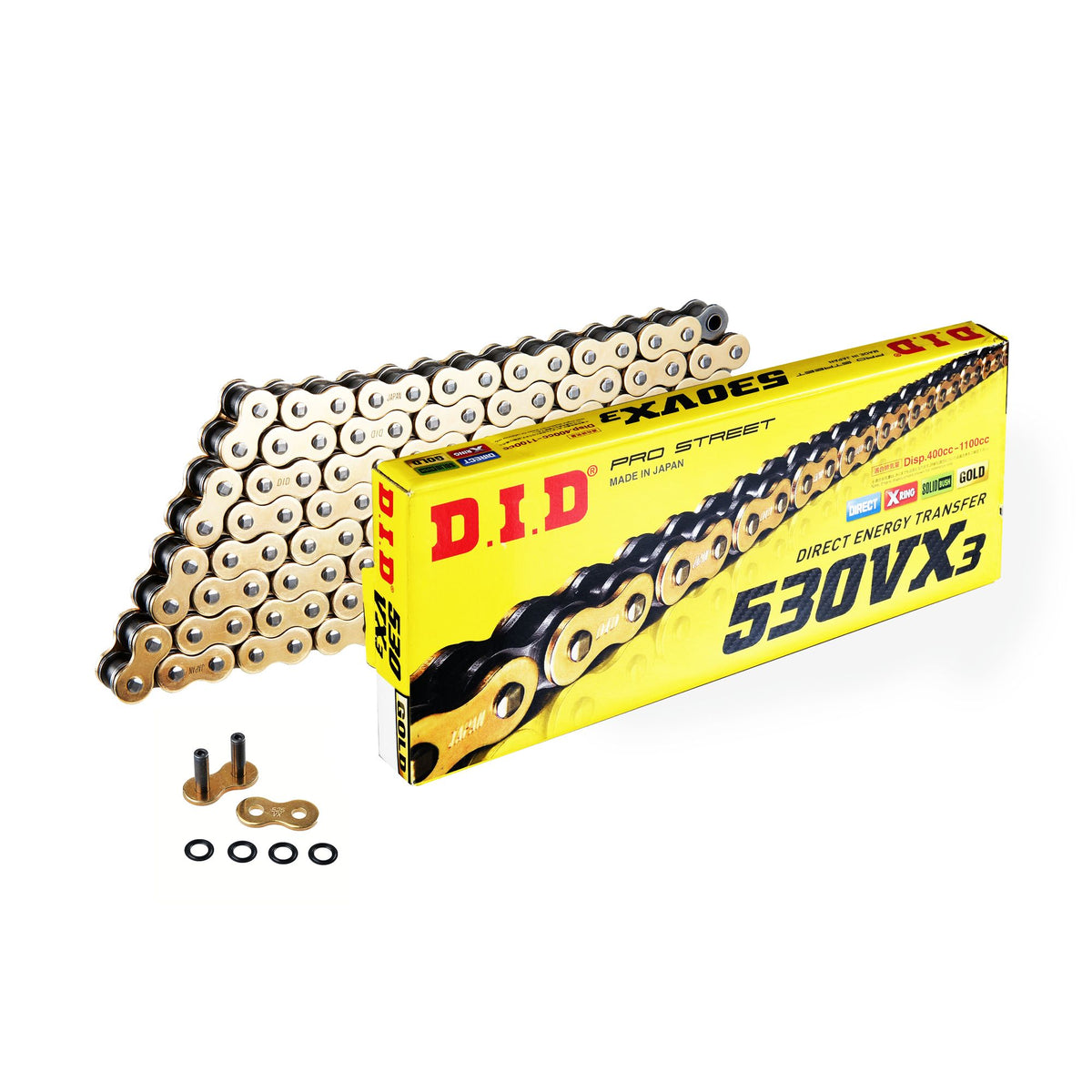

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical specifications:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Article number	KKF-28098

Suitable for

Suzuki 501 - 750 ccm GSX 600 F GN72B 1989
Suzuki 501 - 750 ccm GSX 600 F GN72B 1990
Suzuki 501 - 750 ccm GSX 600 F GN72B 1991
