DID chain kit for Suzuki GSX 750 98-02 530 ZVM-X2 chain kit

DID chain set for Suzuki GSX 750 98-02 530 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the chain kit Suzuki GSX 750 AE 1998-2002

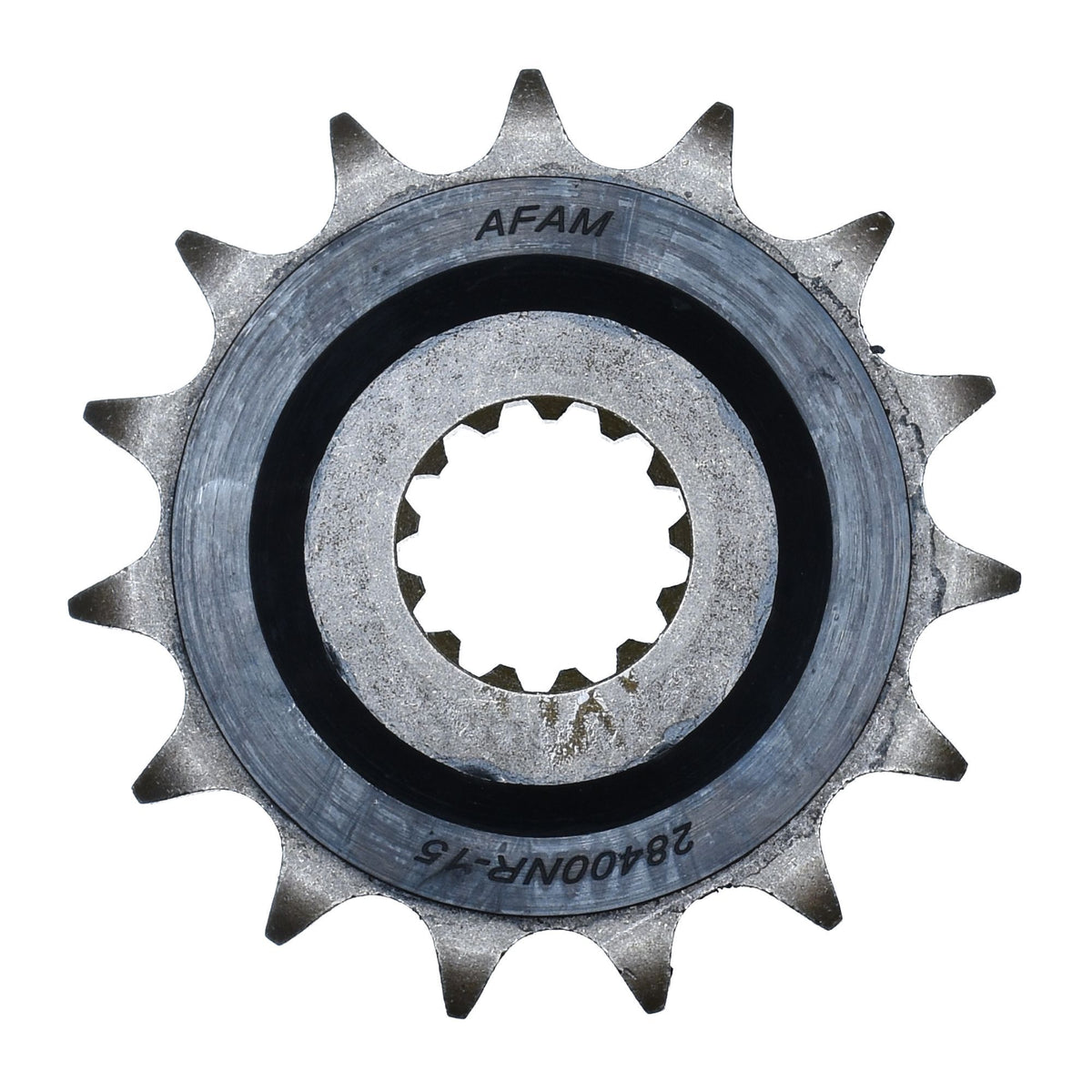

• Sprocket: AFAM sprocket rubber #530 Silent Sprocket 15 teeth - a28400oem.15
• Chain: DID chain 530 ZVM-X2 G&G 112 with rivet link - d530zvmx2.gg.112

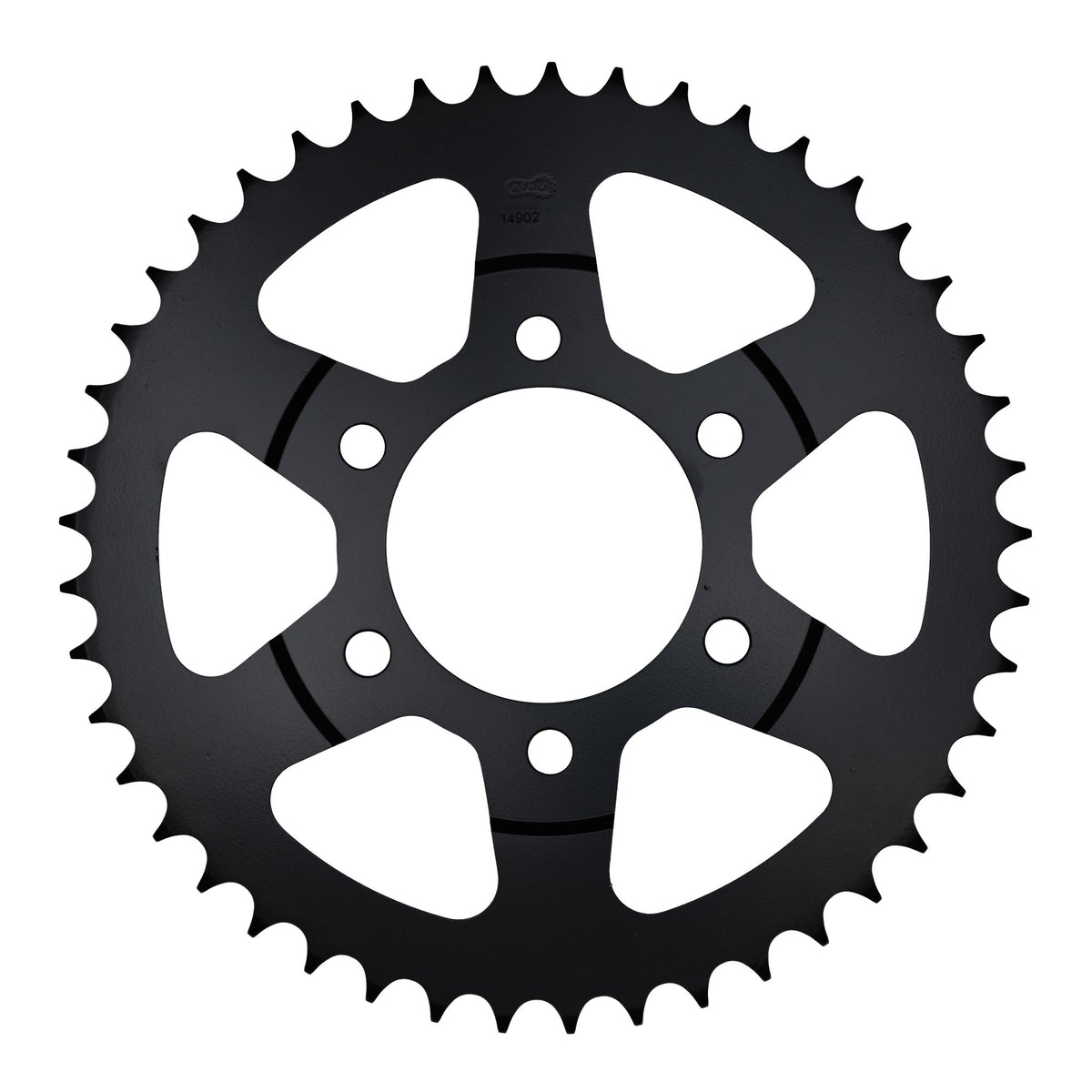

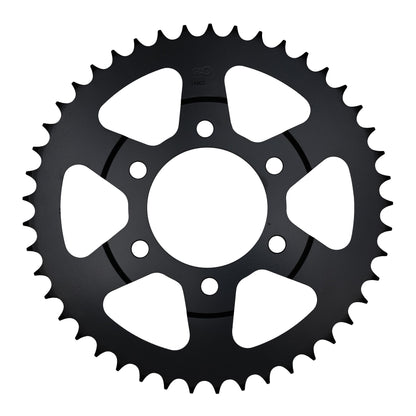

• Rear sprocket: AFAM rear sprocket STEEL #530 42 teeth - a14902.42
• Transmission ratio sprocket-chain-rear sprocket: 15-112-42

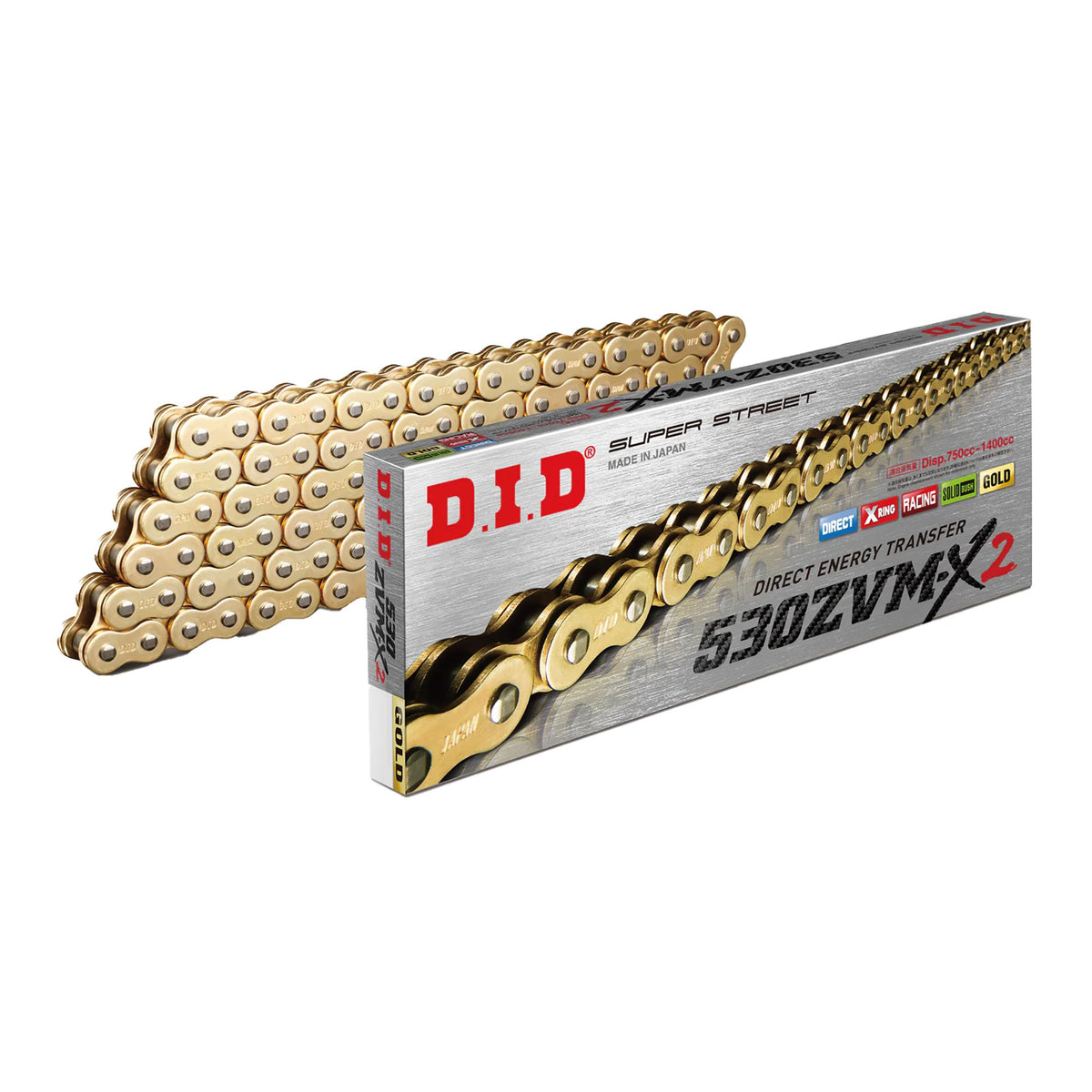

DID 530 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1400 cc

Technical specifications:
Pitch: 530
Pin length: 24.9 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.20 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-64438

Suitable for

Suzuki 501 - 750 cc GSX 750 AE 1998
Suzuki 501 - 750 cc GSX 750 AE 1999
Suzuki 501 - 750 cc GSX 750 AE 2000
Suzuki 501 - 750 cc GSX 750 AE 2001
Suzuki 501 - 750 cc GSX 750 AE 2002
