DID chain kit for Suzuki GSX-R 1100 86-88 530 ZVM-X2 chain kit

DID chain kit for Suzuki GSX-R 1100 86-88 530 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Suzuki GSX-R 1100 GU74B 1986-1988 conversion #530 chain kit

• Sprocket: AFAM sprocket #530 14 teeth - a28400.14

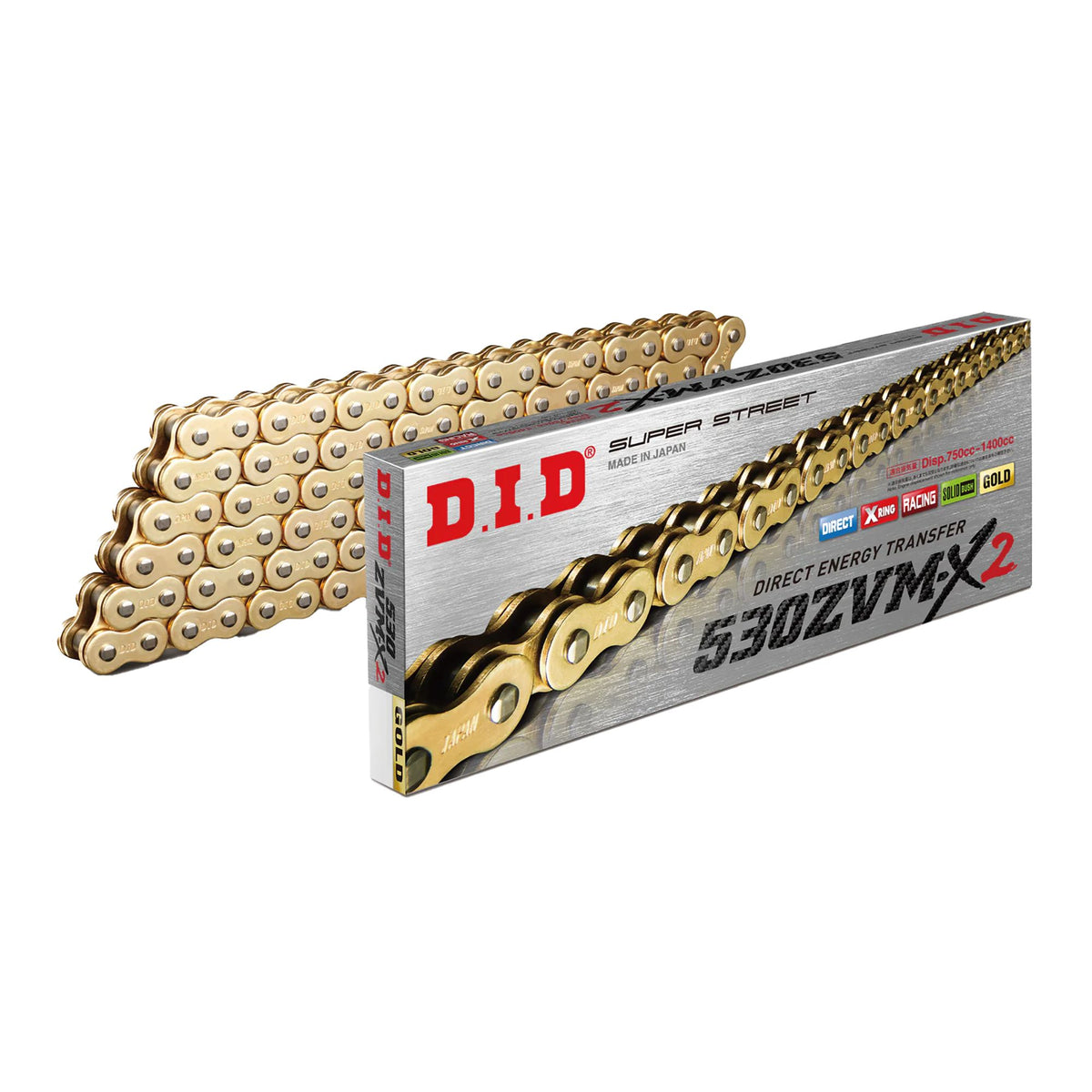

• Chain: DID chain 530 ZVM-X2 G&G 114 w. rivet link - d530zvmx2.gg.114

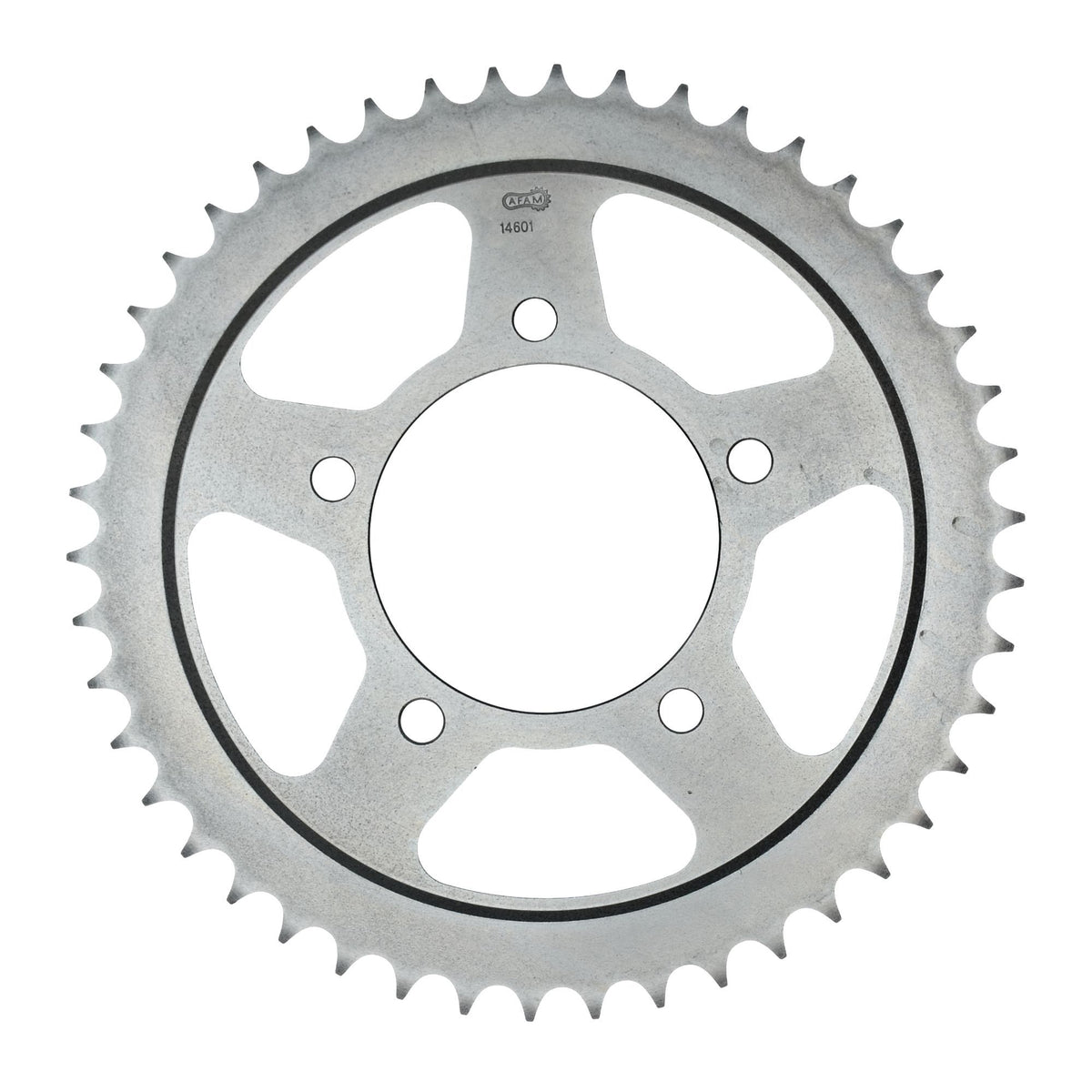

• Rear sprocket: AFAM rear sprocket STEEL #530 46 teeth - a14601.46
• Gear ratio sprocket-chain-rear sprocket: 14-114-46 conversion #530

DID 530 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1400 cc

Technical data:
Pitch: 530
Pin length: 24.9 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.20 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-64067

Suitable for

Suzuki over 1001 cc GSX-R 1100 GU74B 1986
Suzuki over 1001 cc GSX-R 1100 GU74B 1987
Suzuki over 1001 cc GSX-R 1100 GU74B 1988
