DID chain kit for Suzuki GSX-R 1100 W 93-94 530 VX3 chain kit

DID Chain Kit for Suzuki GSX-R 1100 W 93-94 530 VX3 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

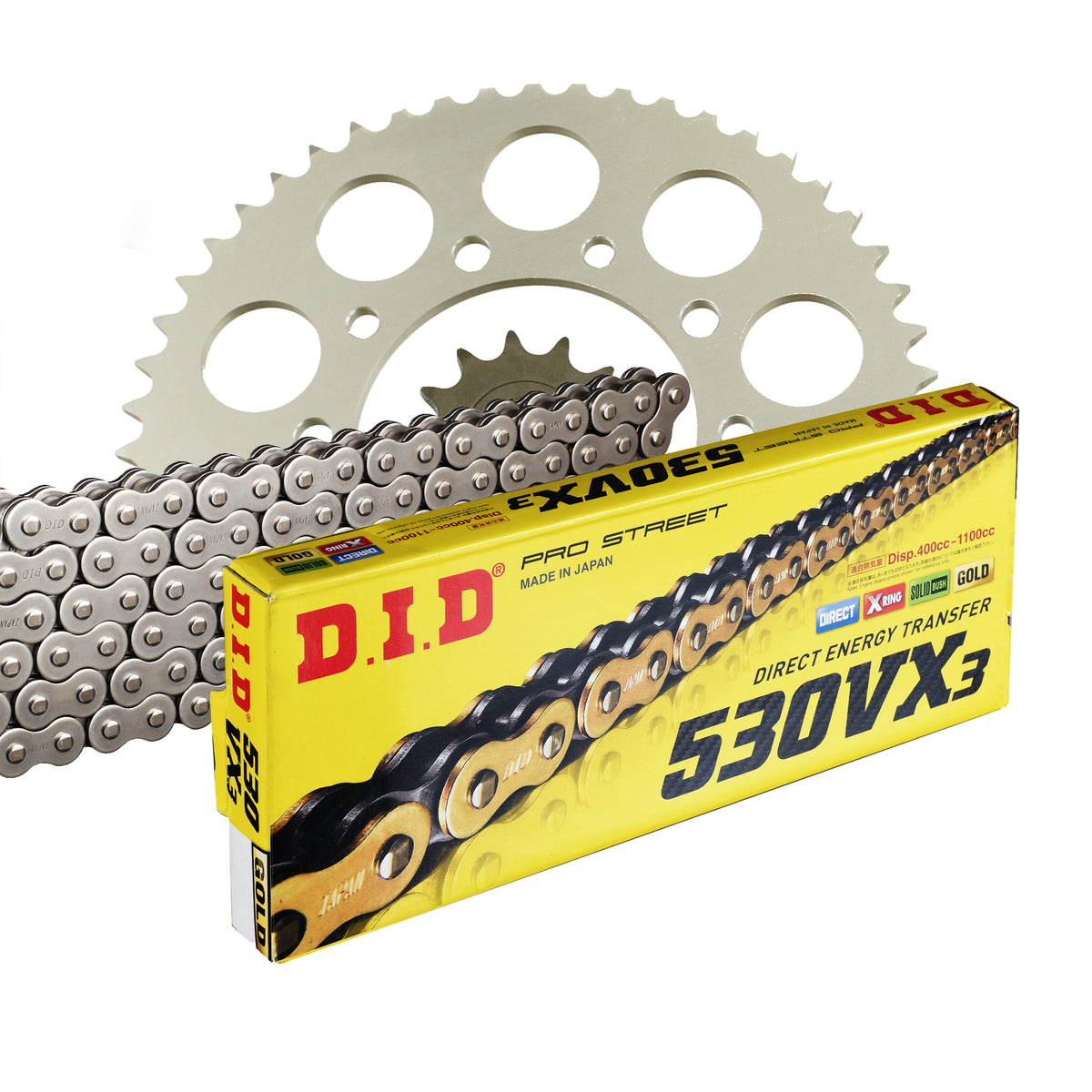

Components of the Suzuki GSX-R 1100 W GU75C 1993-1994 conversion chain kit #530

• Sprocket: AFAM sprocket #530 15 teeth - a28400.15
• Chain: DID chain 530 VX3 B&B 114 with rivet link - d530vx3-114

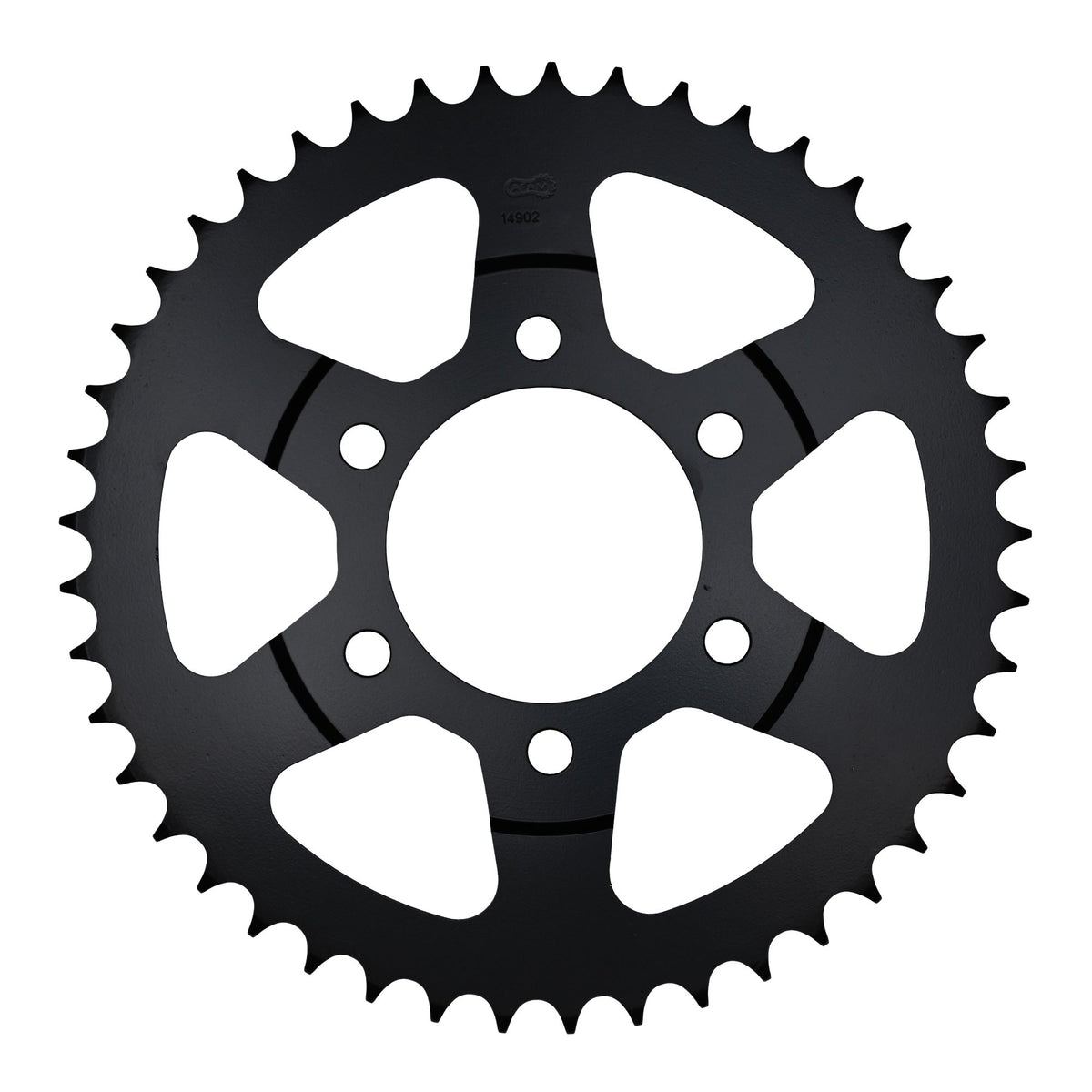

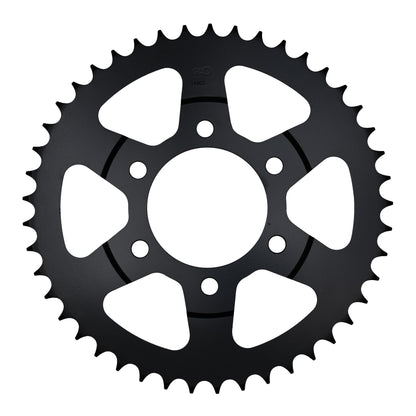

• Rear sprocket: AFAM rear sprocket STEEL #530 42 teeth - a14902.42
• Gear ratio sprocket-chain-rear sprocket: 15-114-42 conversion #530

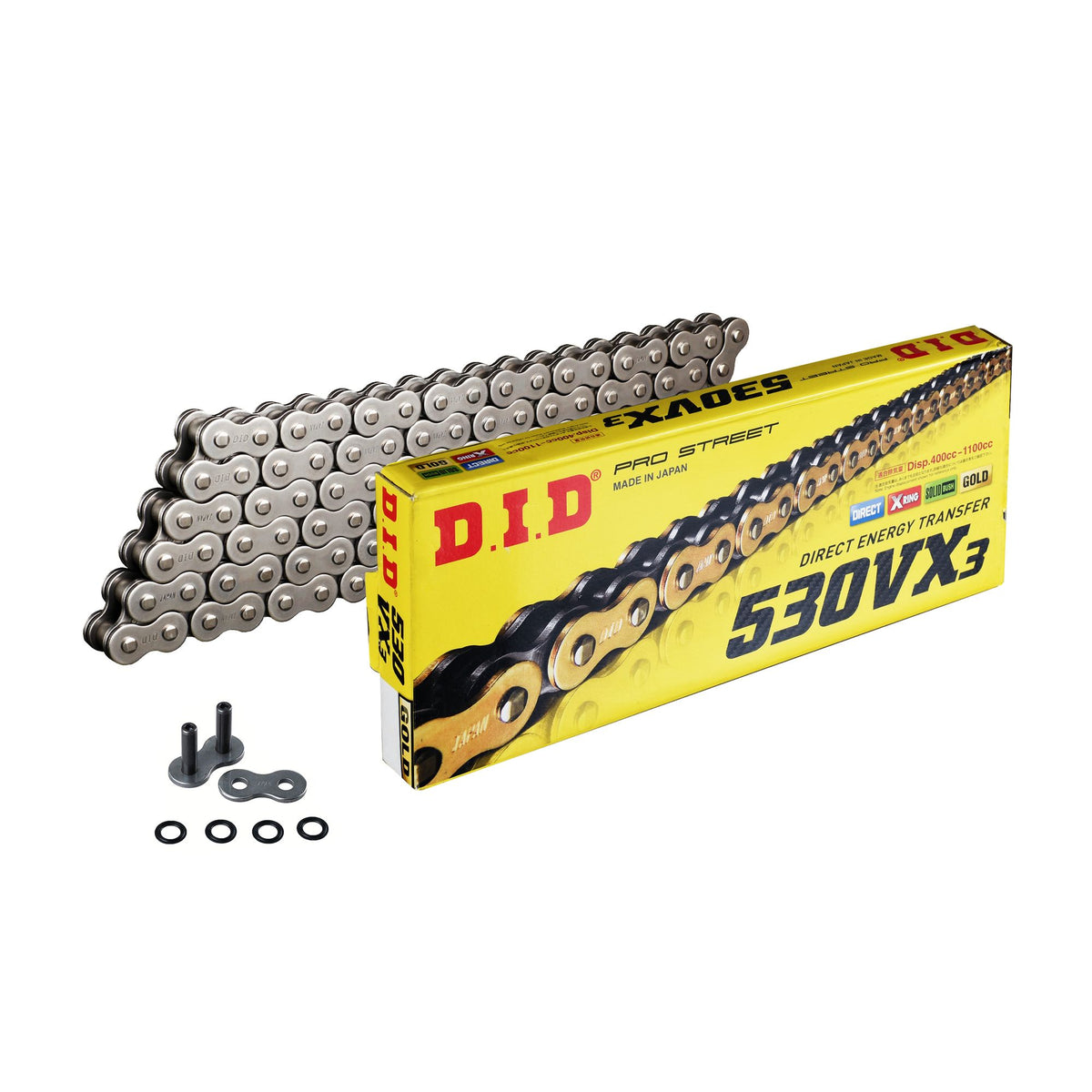

DID 530 VX3

Successor to the proven 530 VX
X-Ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical data:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-16119

Suitable for

Suzuki over 1001 cc GSX-R 1100 W GU75C 1993
Suzuki over 1001 cc GSX-R 1100 W GU75C 1994
