DID chain kit for Suzuki GSX-S 750 Street ABS 17-18 525 ZVM-X2 chain kit

DID chain kit for Suzuki GSX-S 750 Street ABS 17-18 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki GSX-S 750 Street ABS WC5 2017-2018

• Front sprocket: Esjot sprocket 28401-17 #525 Sport 17 teeth - a28401s.17

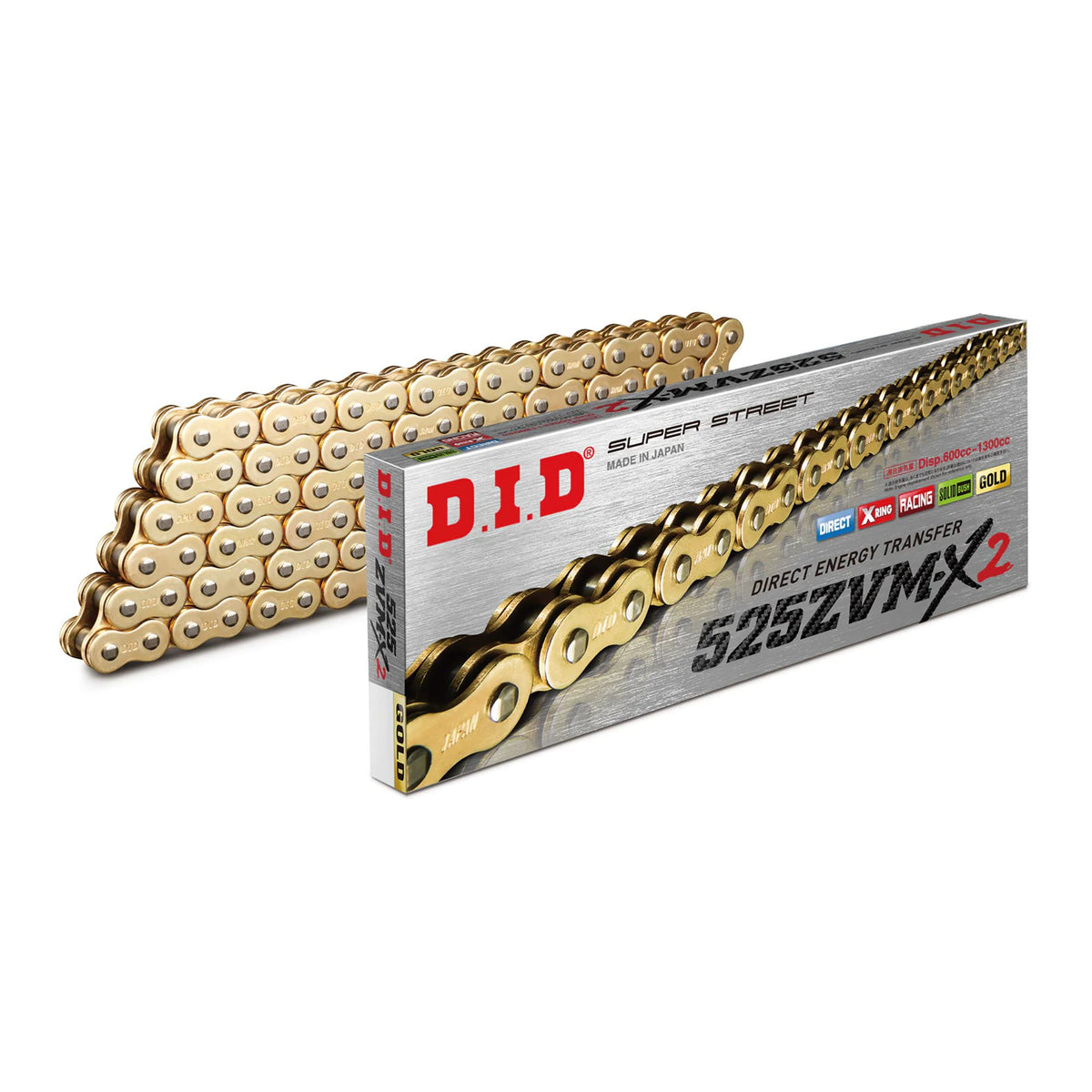

• Chain: DID chain 525 ZVM-X2 G&G 114 w. rivet link - d525zvmx2.gg.114
• Rear sprocket: AFAM sprocket STEEL #525 43 teeth - a12815.43
• Gear ratio front sprocket-chain-rear sprocket: 17-114-43

DID 525 ZVM-X2

Extra reinforced chain, versatile area of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-73104

Suitable for

Suzuki 501 - 750 cc GSX-S 750 Street ABS WC5 2017
Suzuki 501 - 750 cc GSX-S 750 Street ABS WC5 2018
