DID chain set for Suzuki RM 125 01-03 520 ERT3 chain kit

DID chain kit for Suzuki RM 125 01-03 520 ERT3 chain set

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless stated otherwise: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Suzuki RM 125 RF16C 2001-2003 chain kit

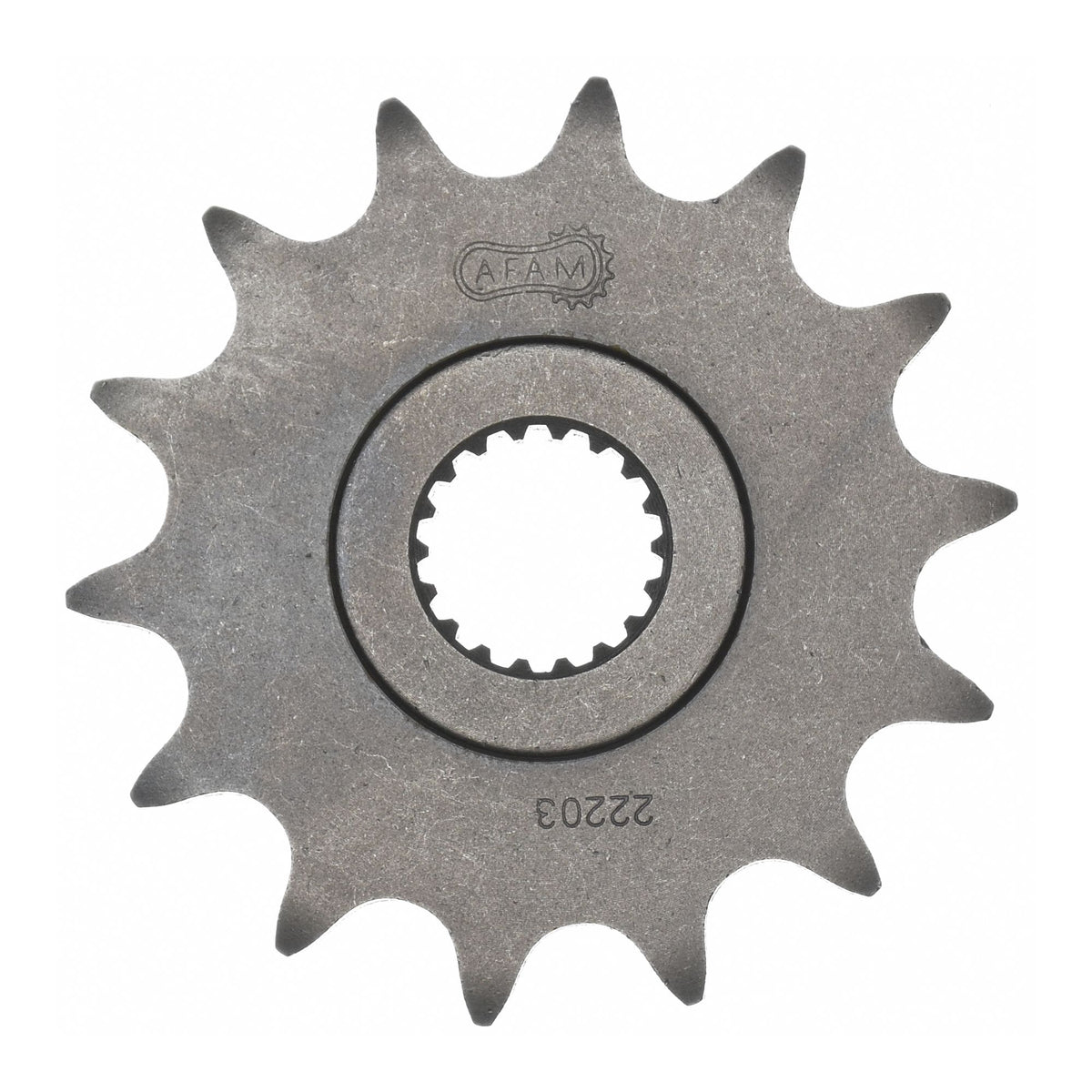

• Sprocket: AFAM sprocket #520 12 teeth - a22203.12
• Chain: DID chain 520 ERT3 G&G 112 with clip master link - d520ert3-112

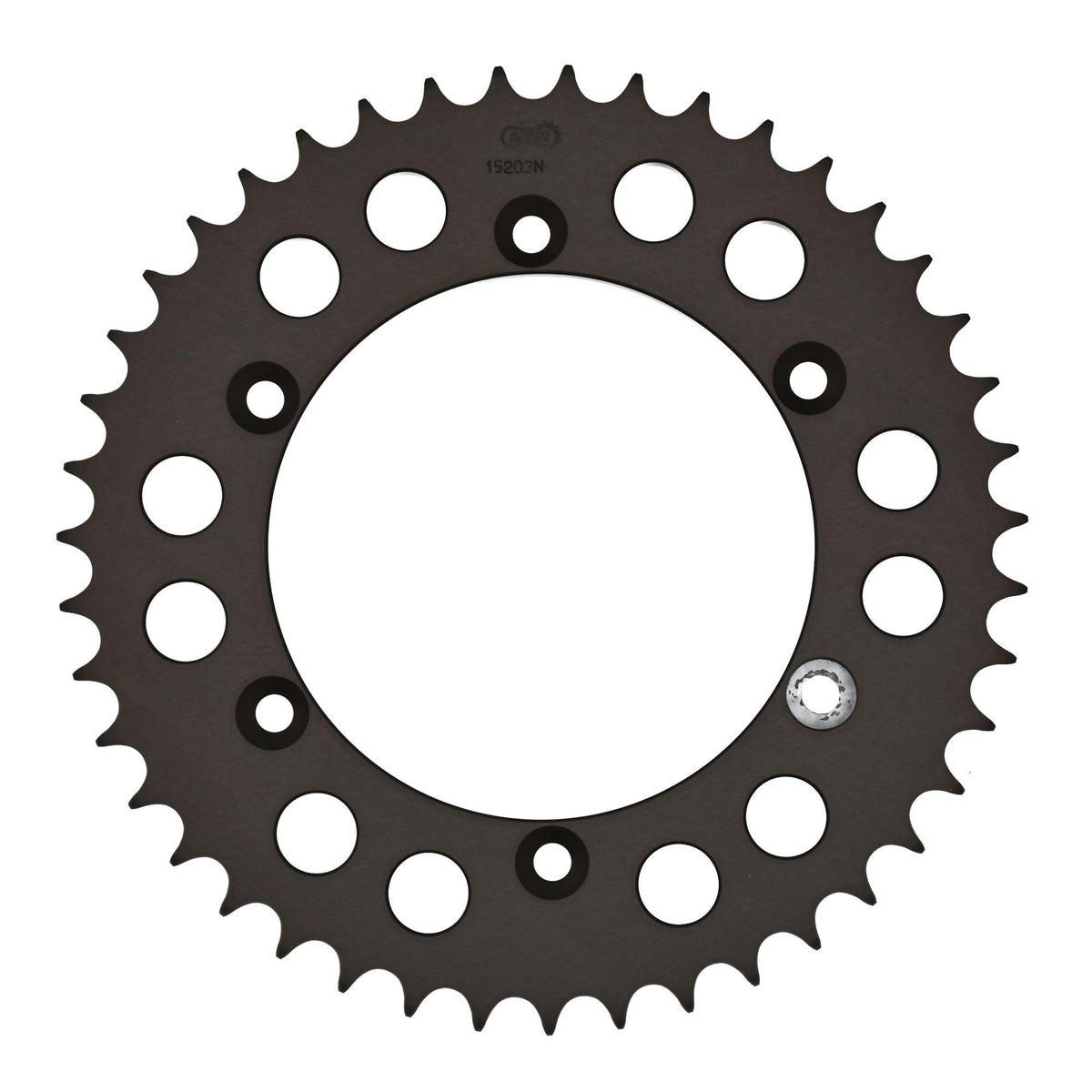

• Rear sprocket: AFAM rear sprocket ALU #520 49 teeth - a15203n.49
• Gear ratio sprocket-chain-rear sprocket: 12-112-49

DID 520 ERT3

Extra reinforced pure motocross chain
No O-rings
Color: Gold/Gold
Application by displacement: up to 450 cc / motocross only

Technical data:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless stated otherwise: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-16661

Suitable for

Suzuki 101 - 125 cc RM 125 RF16C 2001
Suzuki 101 - 125 cc RM 125 RF16C 2002
Suzuki 101 - 125 cc RM 125 RF16C 2003
