DID chain kit for Suzuki RM 250 1998 520 NZ chain set

DID Chain Kit for Suzuki RM 250 1998 520 NZ Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Chain Kit Suzuki RM 250 RJ17A 1998-1998

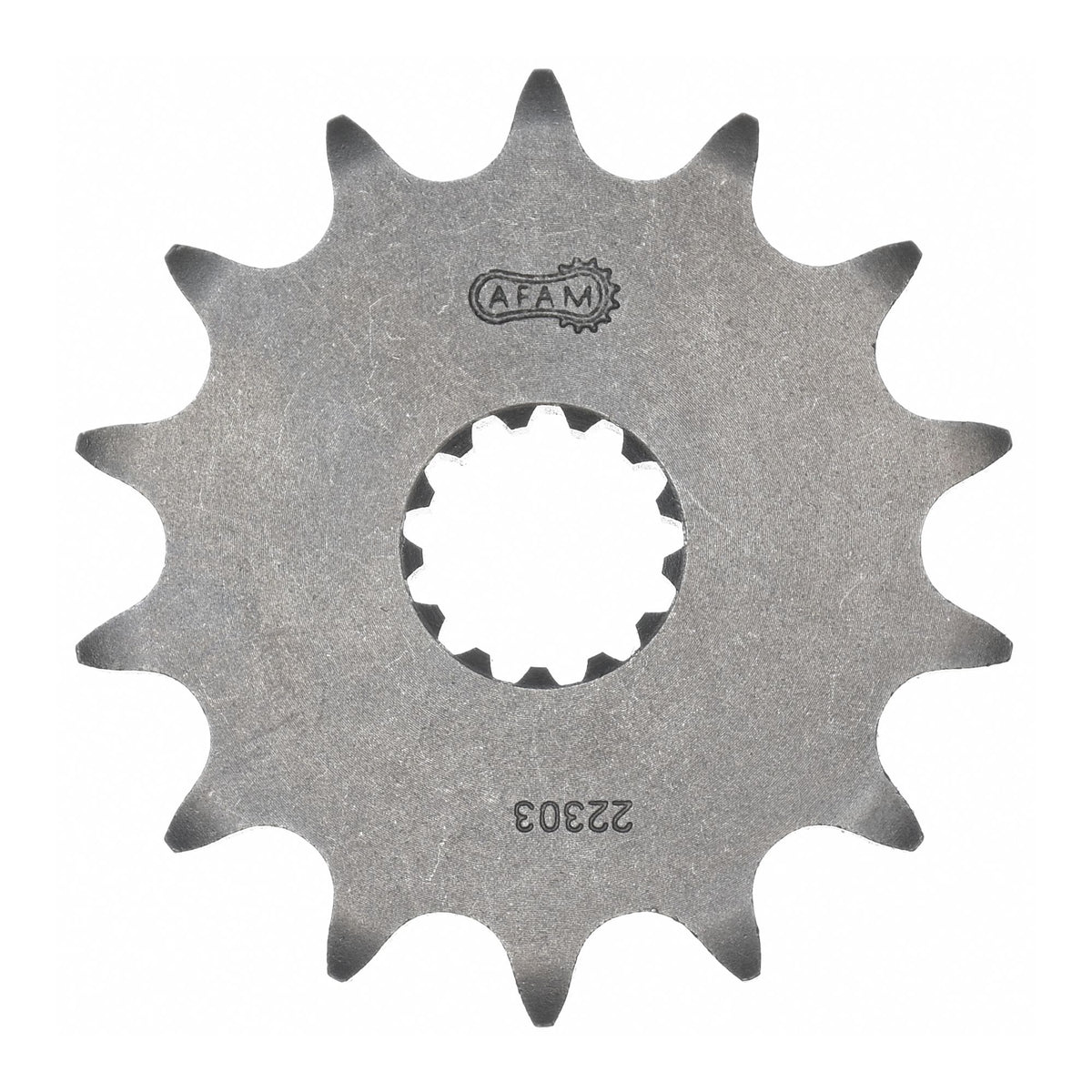

• Sprocket: AFAM sprocket #520 13 teeth - a22303.13
• Chain: DID chain 520 NZ 114 with clip master link - d6252001114
• Rear sprocket: AFAM rear sprocket ALU #520 50 teeth - a15203n.50
• Transmission ratio sprocket-chain-rear sprocket: 13-114-50

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical data:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-41209

Suitable for

Suzuki 126 - 250 ccm RM 250 RJ17A 1998
