DID chain kit for Suzuki SV 650 S 99-02 525 ZVM-X2 chain kit

DID chain kit for Suzuki SV 650 S 99-02 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

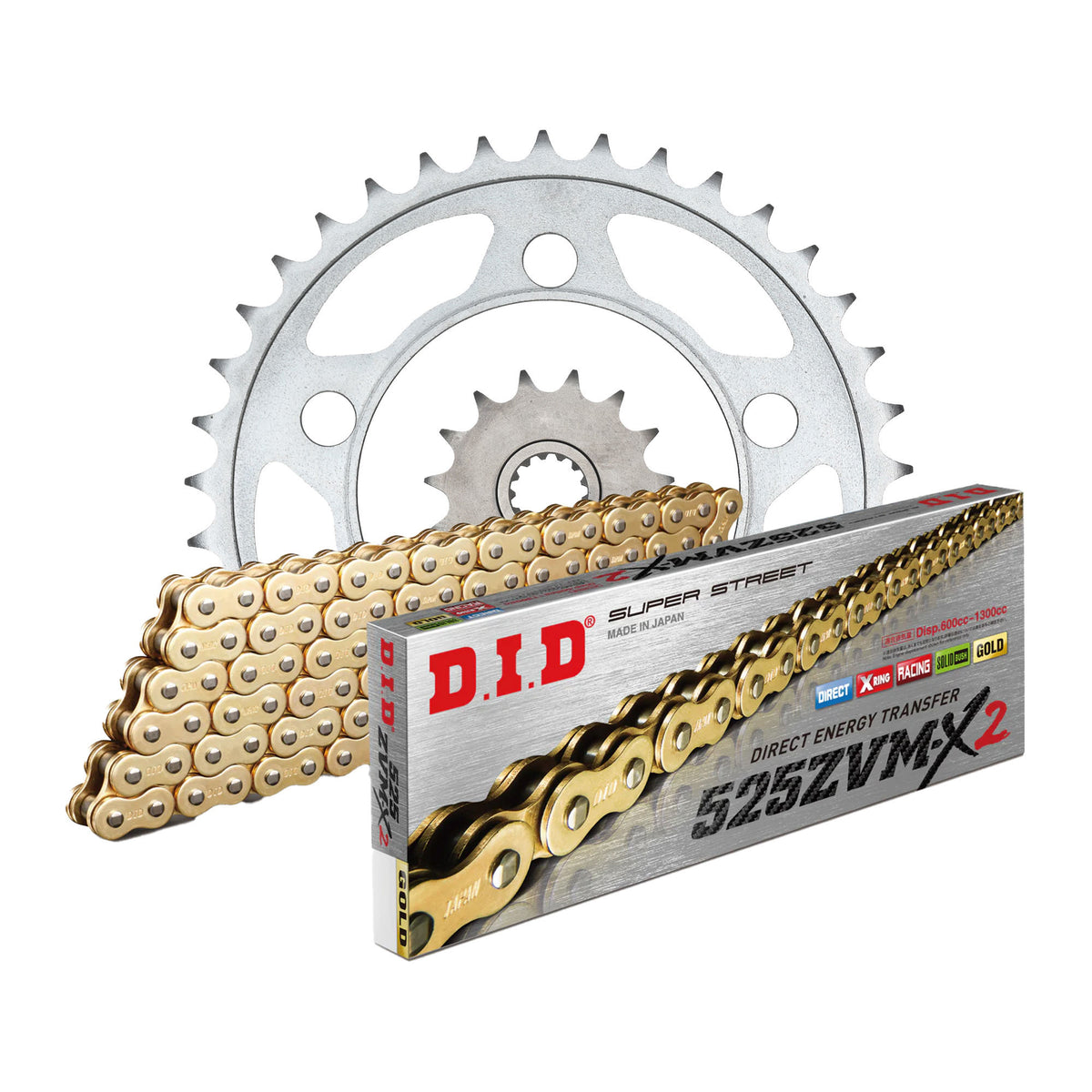

Components of the chain kit Suzuki SV 650 S AV1 1999-2002

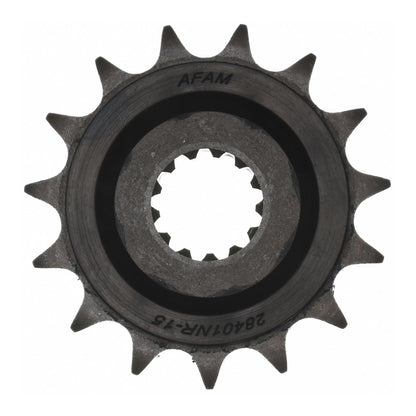

• Sprocket: AFAM sprocket 28401-15 rubber #525 15 teeth - a28401oem.15
• Chain: DID chain 525 ZVM-X2 G&G 108 with rivet link - d525zvmx2.gg.108
• Chain wheel: AFAM chain wheel STEEL #525 44 teeth - a14404.44
• Gear ratio sprocket-chain-chain wheel: 15-108-44

DID 525 ZVM-X2

Extra reinforced chain, versatile application area
X-Ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-64420

Suitable for

Suzuki 501 - 750 cc SV 650 S AV1 1999
Suzuki 501 - 750 cc SV 650 S AV1 2000
Suzuki 501 - 750 cc SV 650 S AV1 2001
Suzuki 501 - 750 cc SV 650 S AV1 2002
