DID chain set for Triumph Daytona 675 R 11-12 525 ZVM-X2 chain kit

DID chain kit for Triumph Daytona 675 R 11-12 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching rivet connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Daytona 675 R D67LC 2011-2012

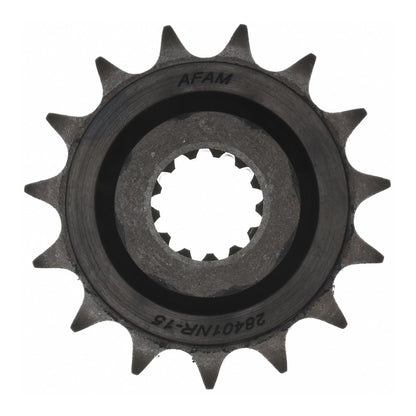

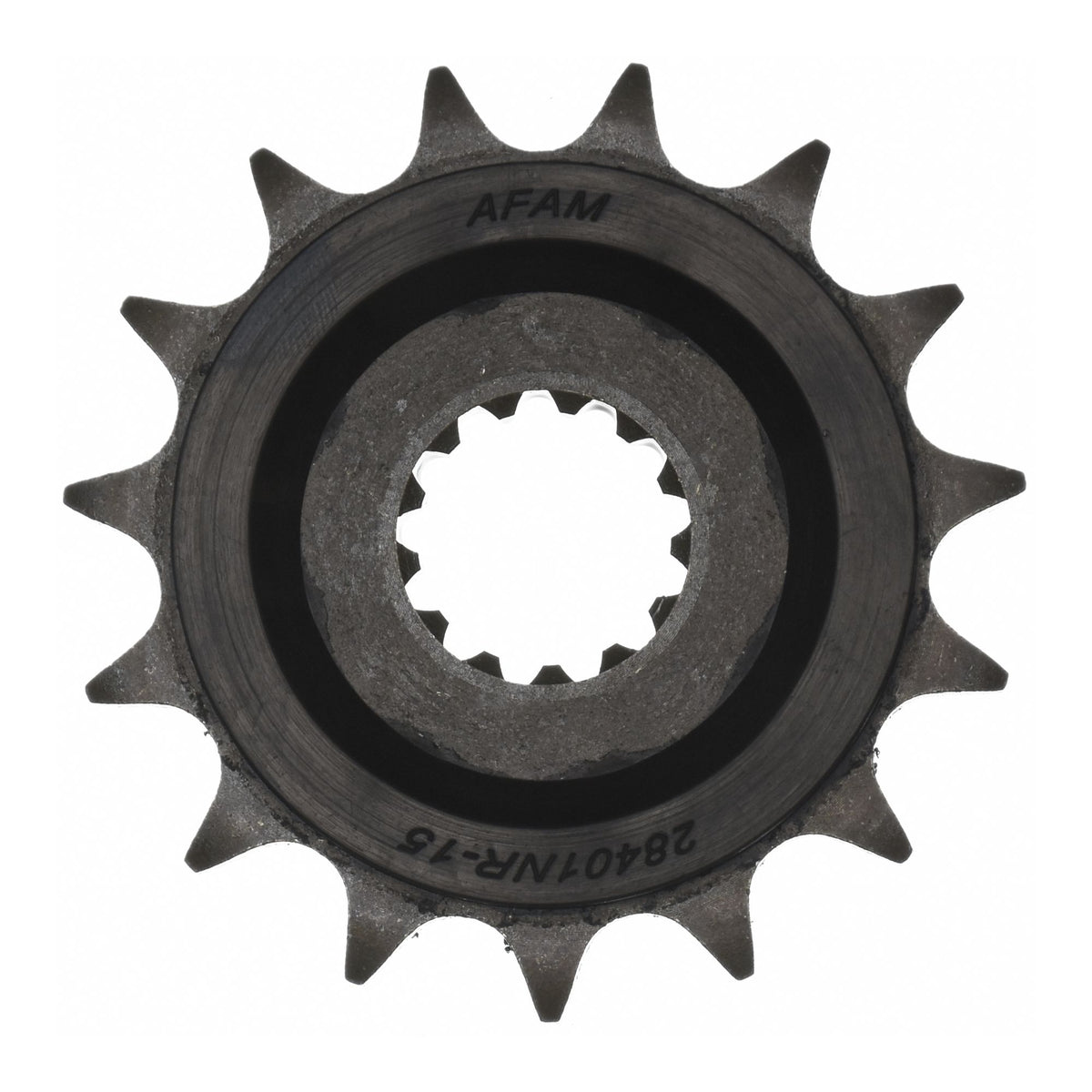

• Front sprocket: AFAM front sprocket 28401-16 rubber #525 16 teeth - a28401oem.16
• Chain: DID chain 525 ZVM-X2 G&G 116 w. rivet link - d525zvmx2.gg.116

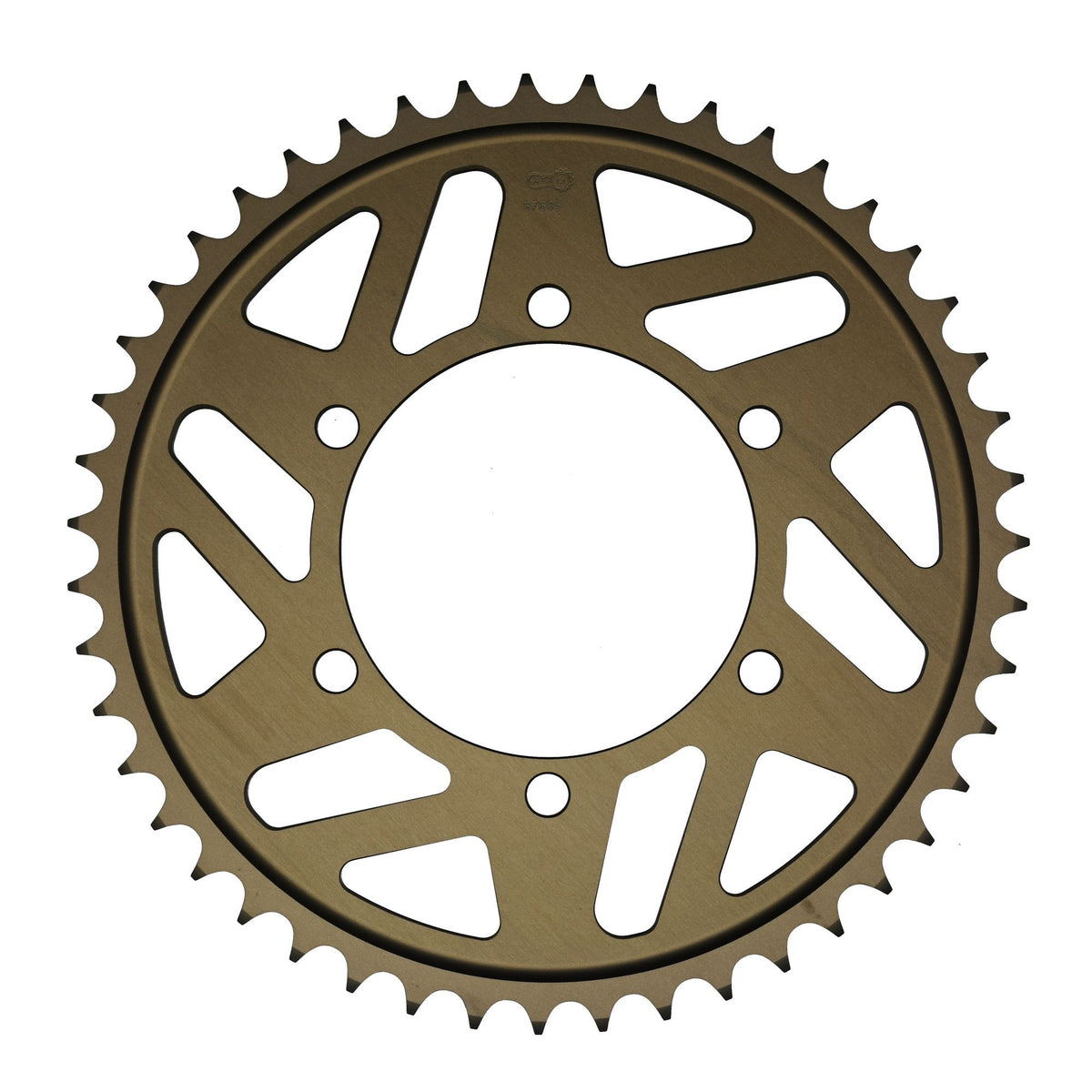

• Rear sprocket: AFAM rear sprocket ALU #525 47 teeth - a87605.47
• Gear ratio front sprocket-chain-rear sprocket: 16-116-47

DID 525 ZVM-X2

Extra reinforced chain, versatile range of use
X-Ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-64583

Suitable for

Triumph 501 - 750 ccm Daytona 675 R D67LC 2011
Triumph 501 - 750 ccm Daytona 675 R D67LC 2012
