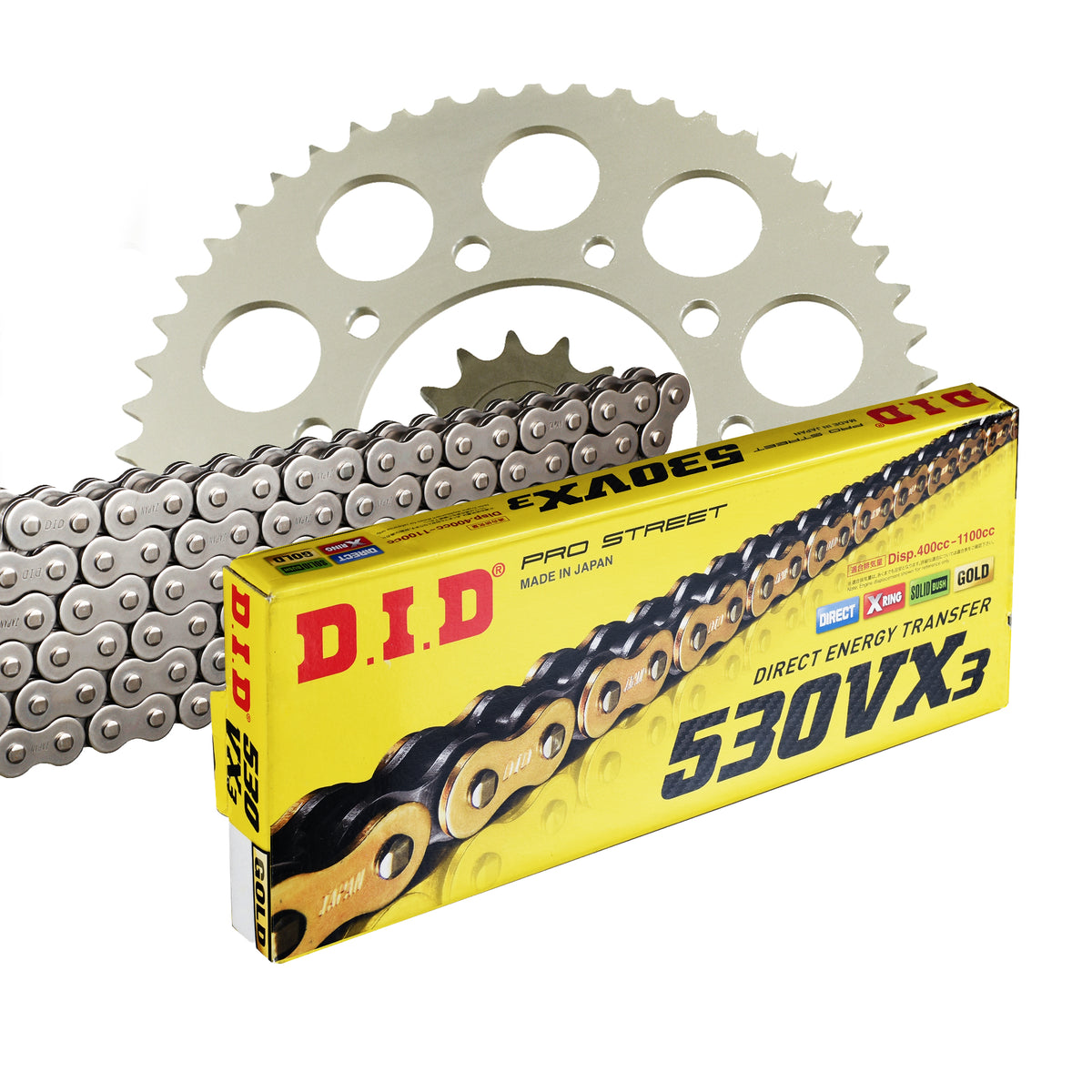

DID chain set for Triumph Speed Triple R ABS 1050 16-17 530 VX3 chain kit

DID Chain Kit for Triumph Speed Triple R ABS 1050 16-17 530 VX3 Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Triumph Speed Triple R ABS 1050 NN01 2016-2017

• Front sprocket: AFAM sprocket #530 TRI 900-1200 18 teeth - a88800.18
• Chain: DID chain 530 VX3 B&B 108 with rivet link - d530vx3-108
• Rear sprocket: AFAM steel sprocket #530 43 teeth - a86601.43
• Gear ratio sprocket-chain-rear sprocket: 18-108-43

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical data:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-29038

Suitable for

Triumph over 1001 cc Speed Triple R ABS 1050 NN01 2016
Triumph over 1001 cc Speed Triple R ABS 1050 NN01 2017
