DID chain kit for Triumph Street Triple 660 S ABS 17-19 525 VX3 chain kit

DID chain kit for Triumph Street Triple 660 S ABS 17-19 525 VX3 chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Street Triple 660 S ABS HD03 2017-2019

• Front sprocket: AFAM front sprocket 28401-16 rubberized #525 16 teeth - a28401oem.16
• Chain: DID chain 525 VX3 G&B 118 with rivet link - d525vx3.g-118

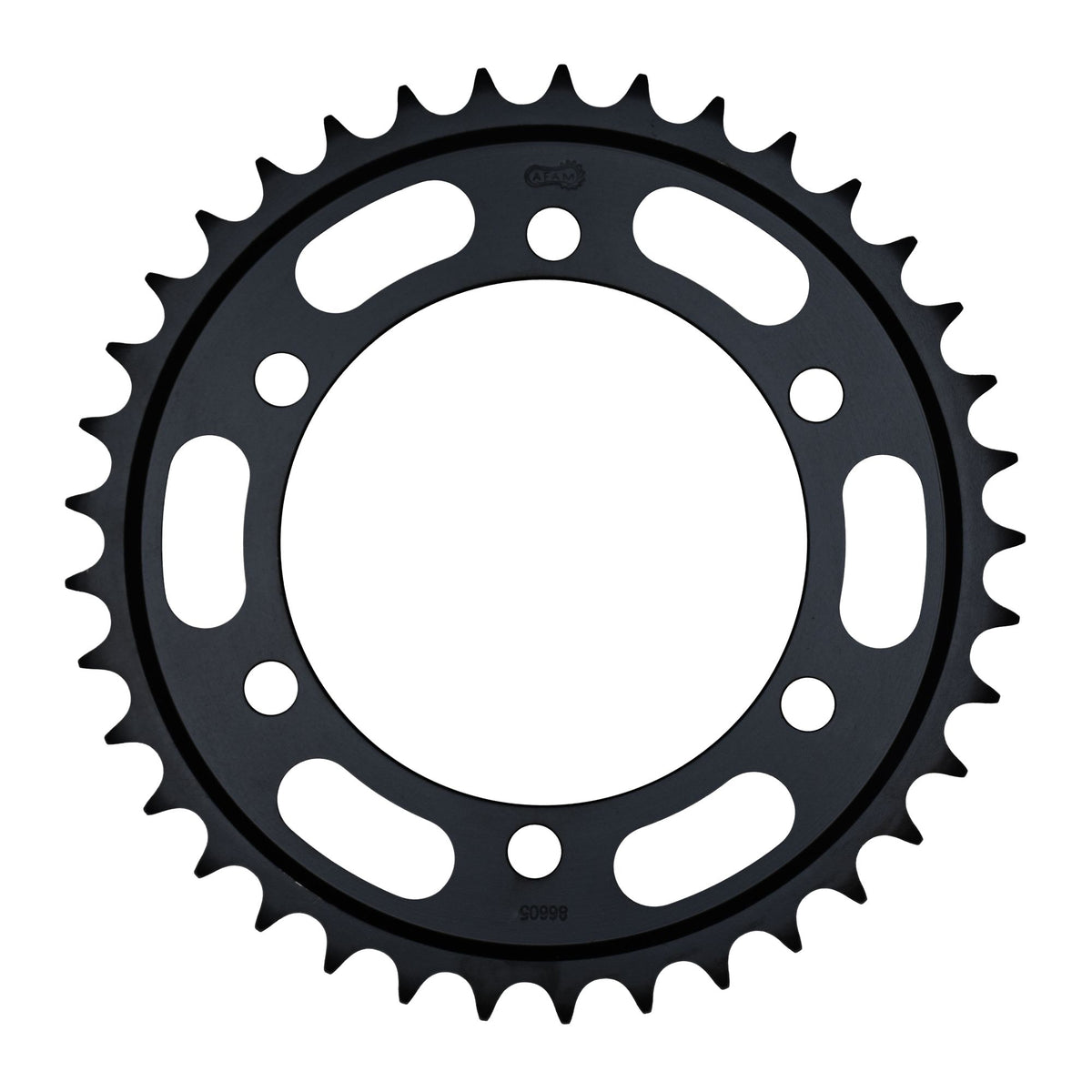

• Rear sprocket: AFAM rear sprocket STEEL #525 - a86605.46
• Gear ratio front sprocket-chain-rear sprocket: 16-118-46

DID 525 VX3

Successor to the proven 525 VX
X-Ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical data:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-37748

Fits for

Triumph 501 - 750 cc Street Triple 660 S ABS HD03 2017
Triumph 501 - 750 cc Street Triple 660 S ABS HD03 2018
Triumph 501 - 750 cc Street Triple 660 S ABS HD03 2019
