DID chain kit for Triumph Thruxton R 1200 ABS 16-19 525 ZVM-X2 chain kit

DID chain kit for Triumph Thruxton R 1200 ABS 16-19 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Thruxton R 1200 ABS DE01 2016-2019

• Front sprocket: AFAM front sprocket #525 16 teeth - a88900.16
• Chain: DID chain 525 ZVM-X2 G&G 100 with rivet link - d525zvmx2.gg.100

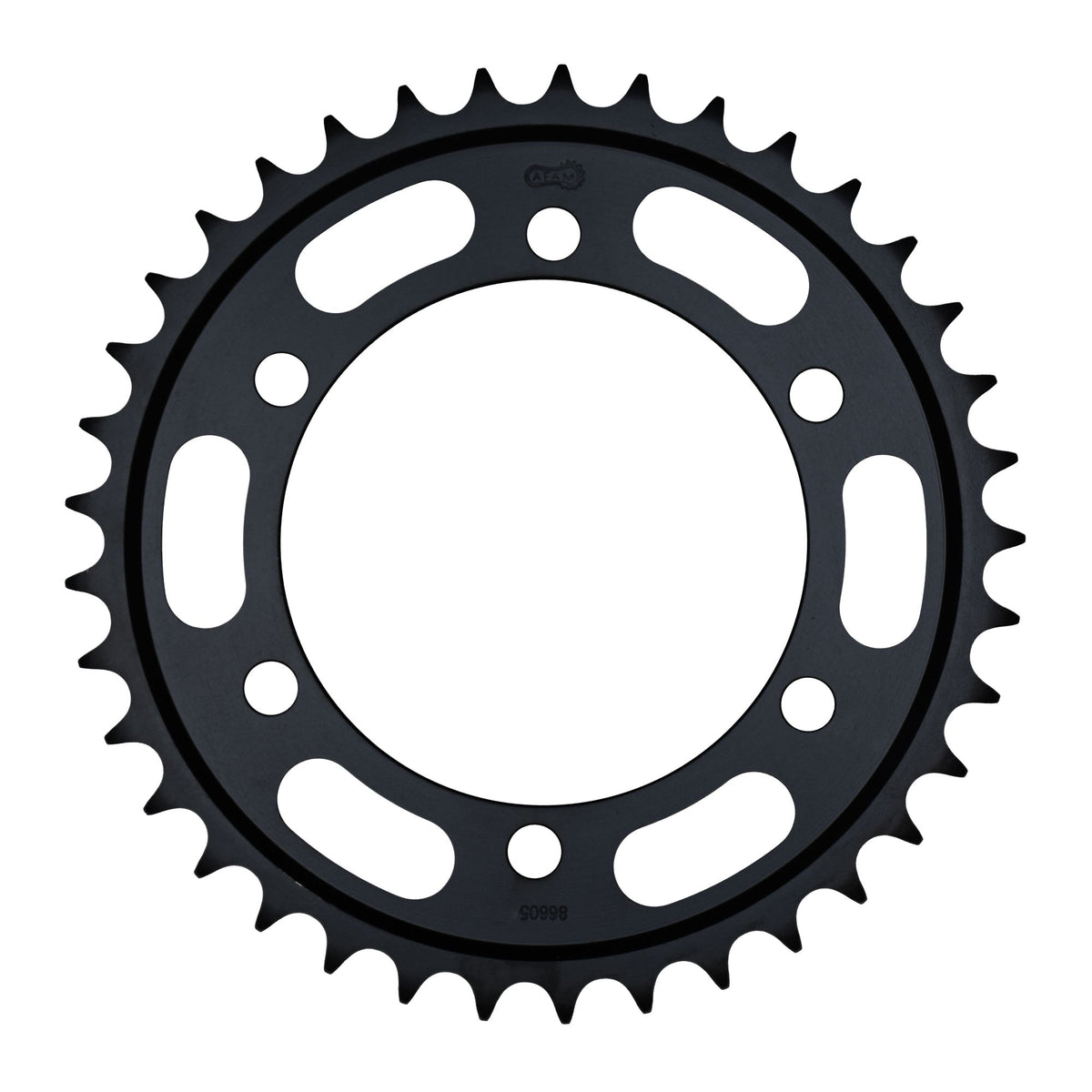

• Rear sprocket: AFAM rear sprocket STEEL #525 42 teeth - a86605.42
• Gear ratio front sprocket-chain-rear sprocket: 16-100-42

DID 525 ZVM-X2

Extra reinforced chain, versatile range of use
X-Ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The goods offered are accessories/spare parts from a third-party manufacturer and were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-64546

Suitable for

Triumph over 1001 cc Thruxton R 1200 ABS DE01 2016
Triumph over 1001 cc Thruxton R 1200 ABS DE01 2017
Triumph over 1001 cc Thruxton R 1200 ABS DE01 2018
Triumph over 1001 cc Thruxton R 1200 ABS DE01 2019
