DID chain kit for Voxan Street Scrambler 1000 04-08 525 ZVMX chain kit

DID chain kit for Voxan Street Scrambler 1000 04-08 525 ZVMX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

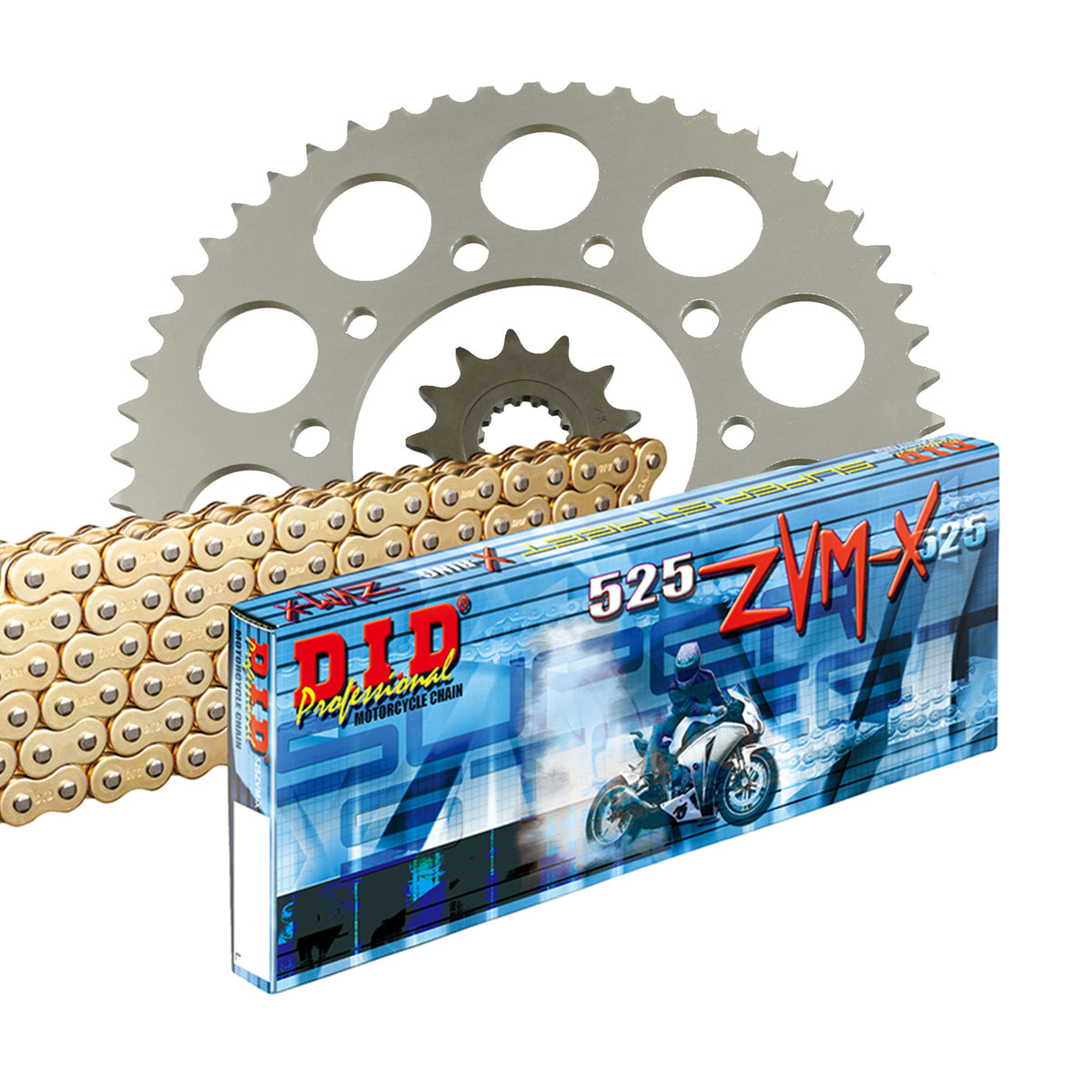

Components of the Voxan Street Scrambler 1000 2004-2008 chain kit

• Front sprocket: AFAM sprocket #525 18 teeth - a91800.18

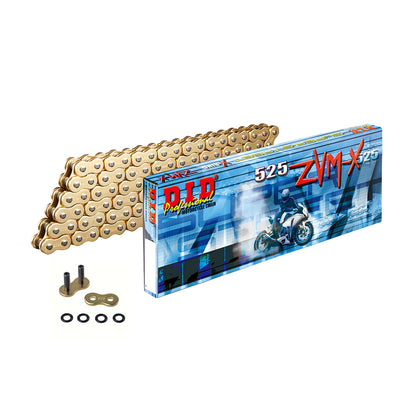

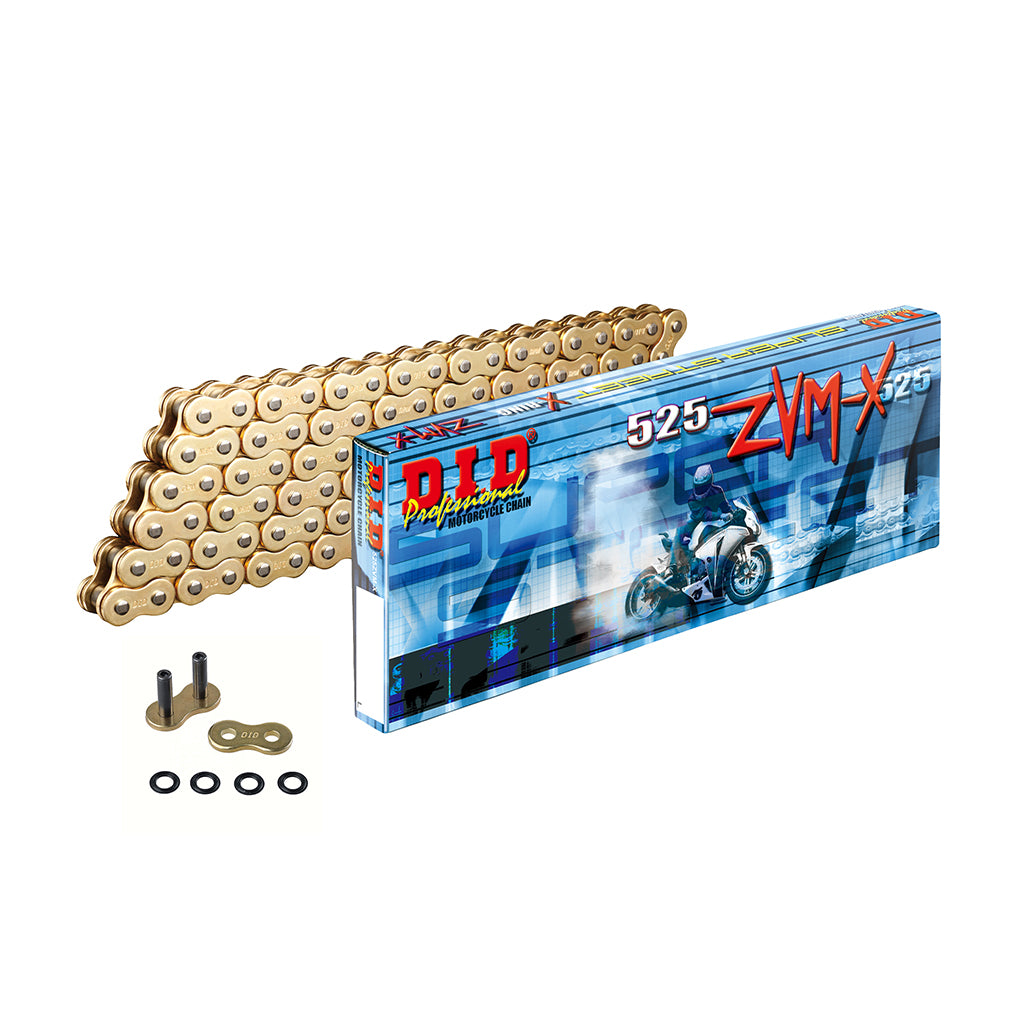

• Chain: DID chain 525 ZVM-X G&G 106 w. rivet link - d6252529106

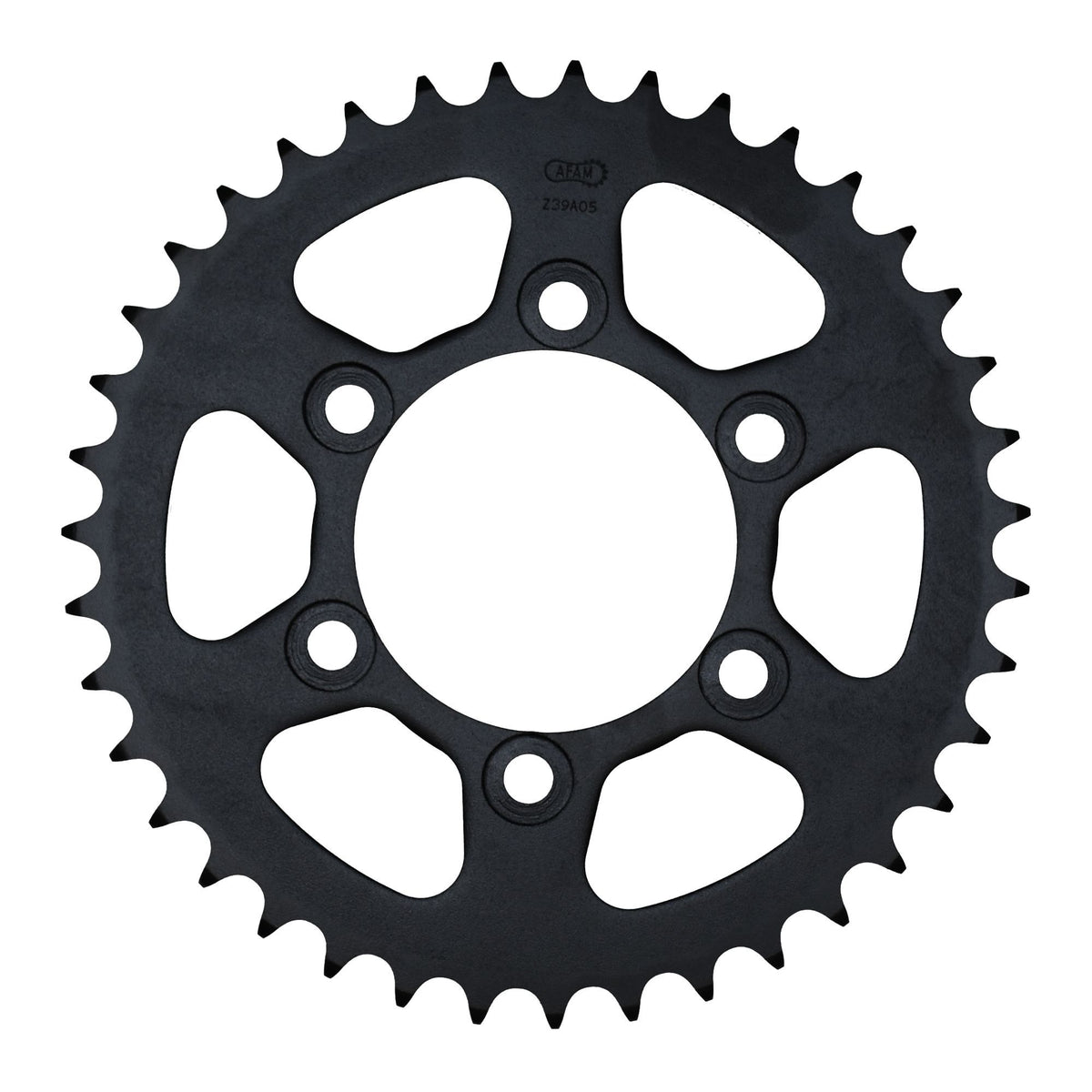

• Rear sprocket: AFAM rear sprocket STEEL #525 42 teeth - a92666.42
• Gear ratio sprocket-chain-rear sprocket: 18-106-42

DID 525 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 46.30 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The product offered is a third-party accessory/spare part, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Article number	KKF-30040

Fits

Voxan 751 - 1000 cc Street Scrambler 1000 2004
Voxan 751 - 1000 cc Street Scrambler 1000 2005
Voxan 751 - 1000 cc Street Scrambler 1000 2006
Voxan 751 - 1000 cc Street Scrambler 1000 2007
Voxan 751 - 1000 cc Street Scrambler 1000 2008
