DID chain kit for XRoads Mustang 150 03-04 520 VX3 chain kit

DID Chain Kit for XRoads Mustang 150 03-04 520 VX3 Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the XRoads Mustang 150 2003-2004 chain kit

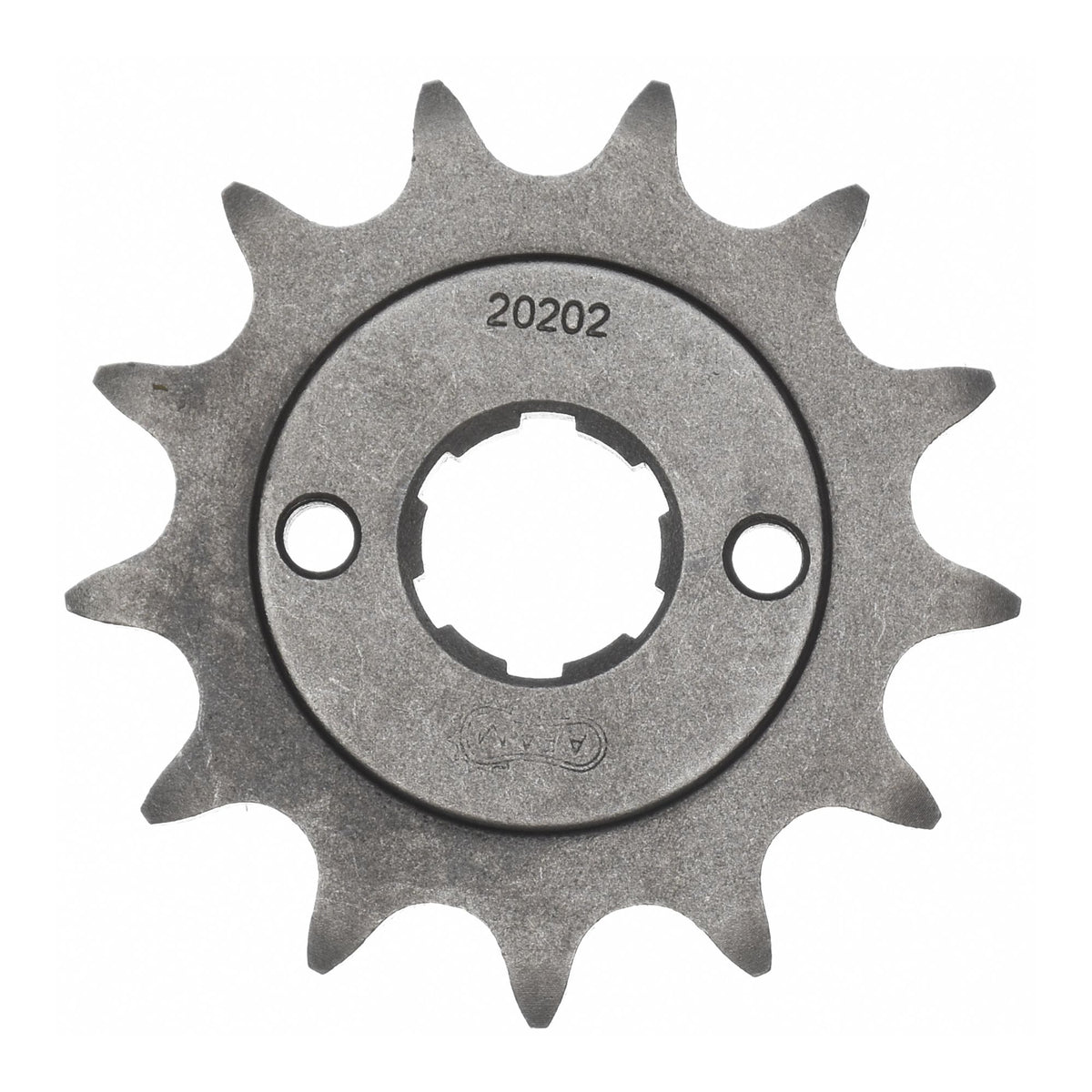

• Sprocket: AFAM sprocket #520 12 teeth - a20202.12
• Chain: DID chain 520 VX3 G&B 92 with rivet link - d520vx3-92

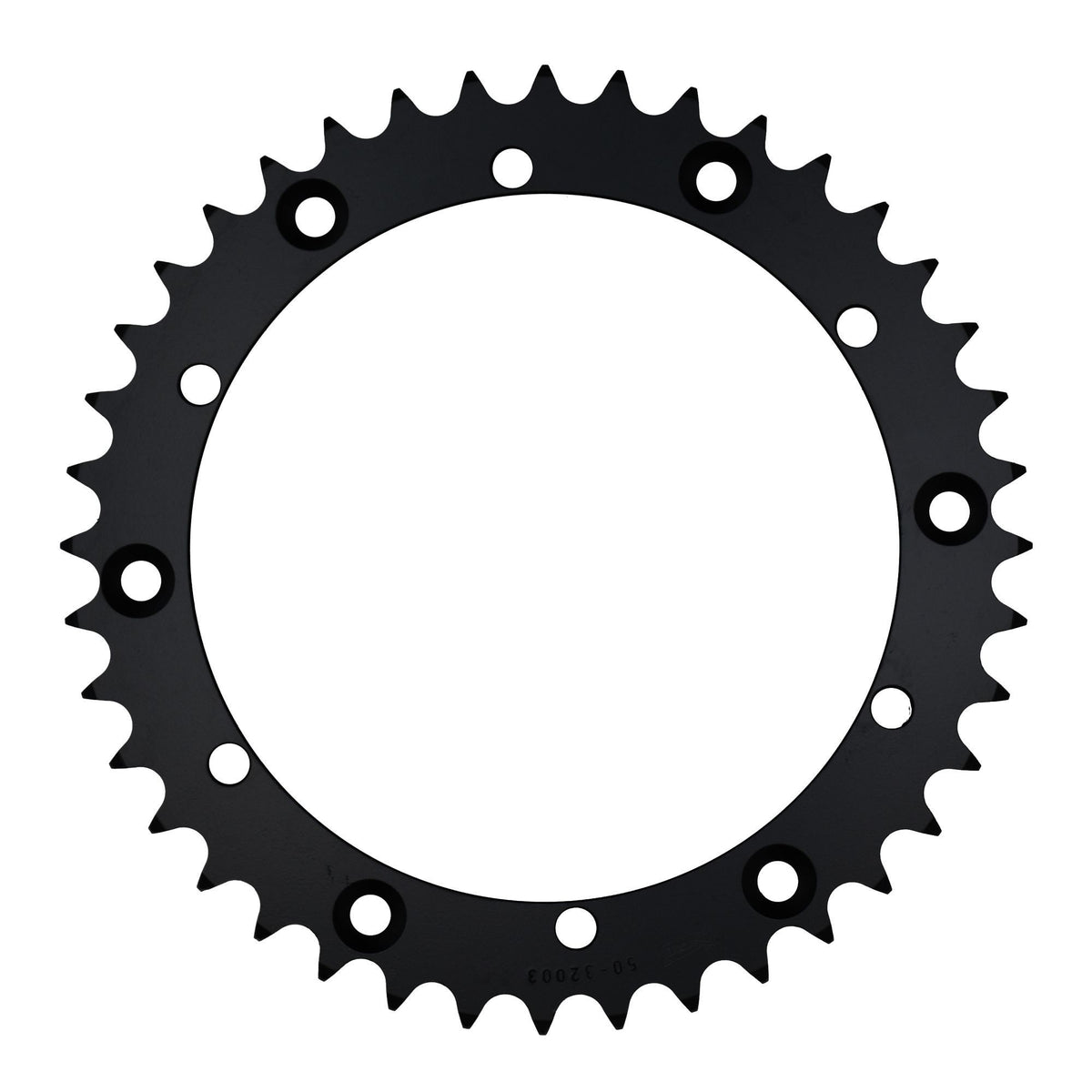

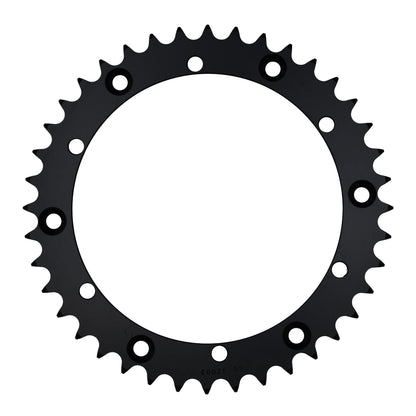

• Rear sprocket: AFAM steel rear sprocket #520 40 teeth - a12502.40
• Gear ratio sprocket-chain-rear sprocket: 12-92-40

DID 520 VX3

Successor to the proven 520 VX2
X-Ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical data:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-45188

Fits

XRoads 126 - 250 cc Mustang 150 2003
XRoads 126 - 250 cc Mustang 150 2004
