DID chain kit for Yamaha DT 125 R (80 km/h) 99-03 428 HD chain kit

DID chain kit for Yamaha DT 125 R (80 km/h) 99-03 428 HD chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha DT 125 R (80 km/h) DE03 1999-2003

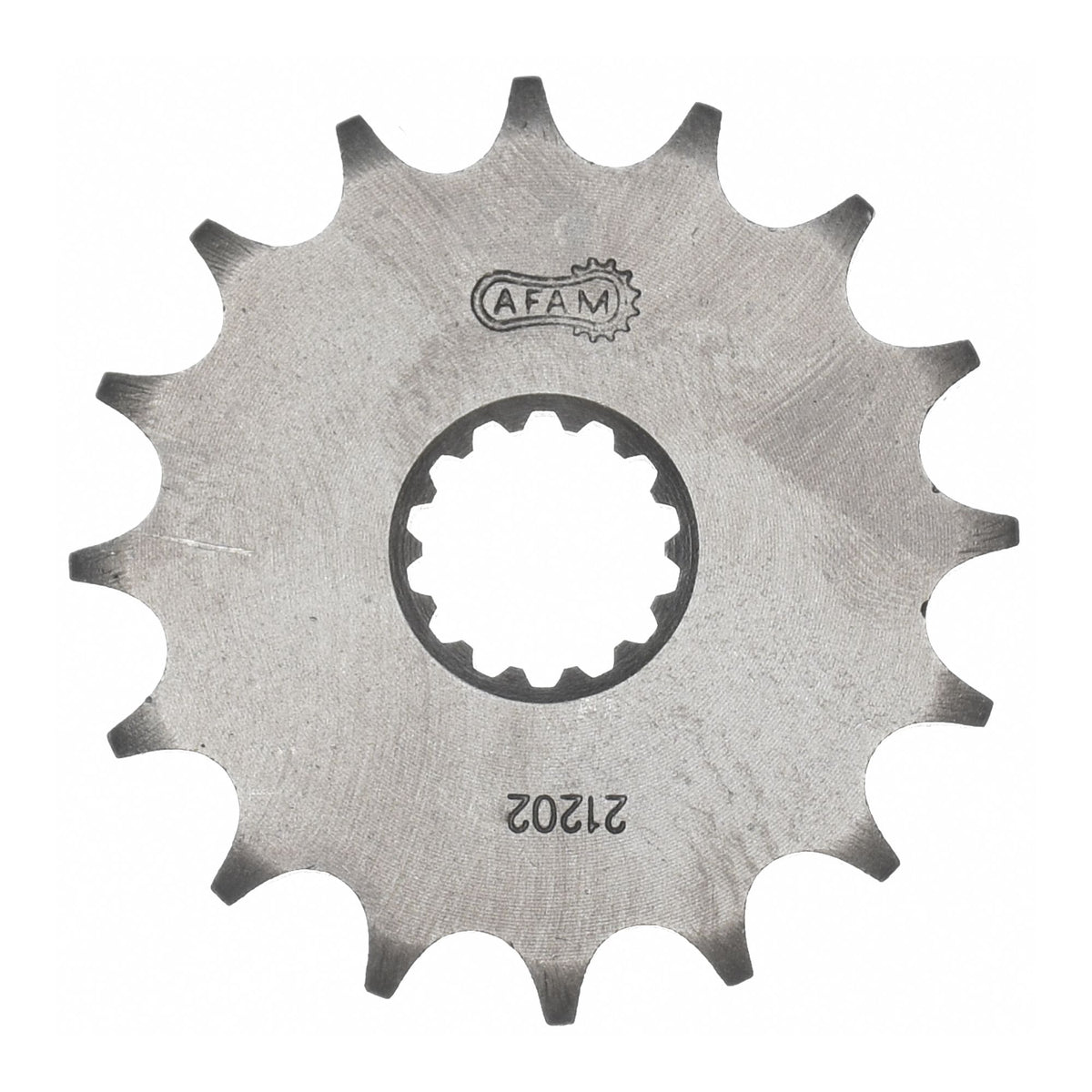

• Sprocket: AFAM sprocket #428 13 teeth - a21202.13
• Chain: DID chain 428 HD 134 with clip connecting link - d6242801134

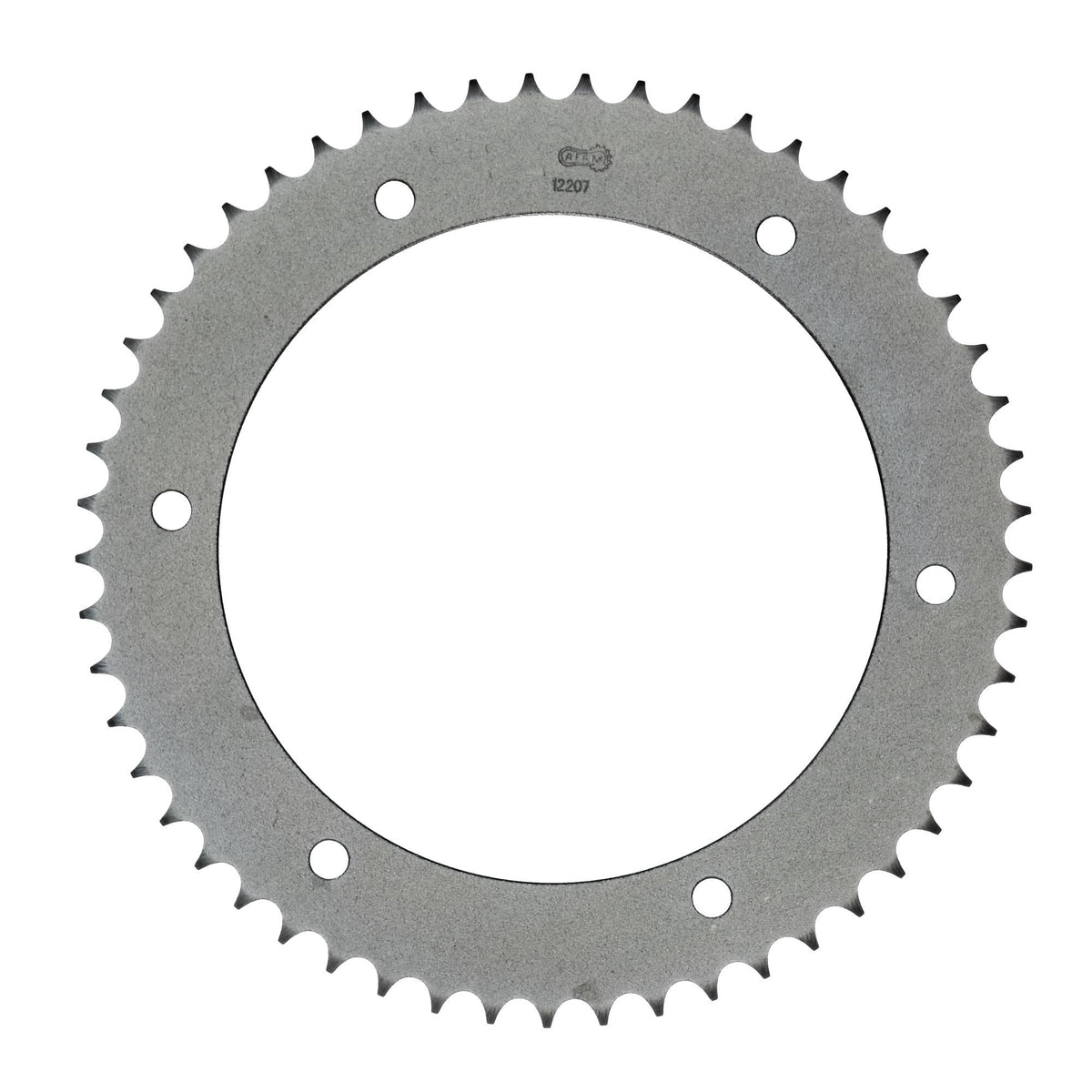

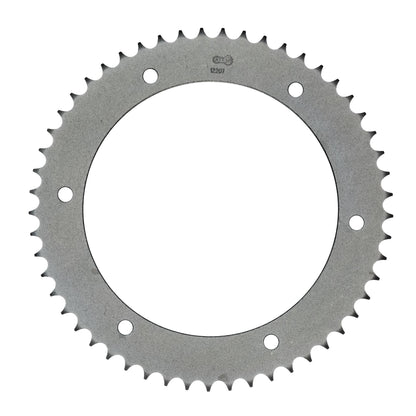

• Chain wheel: AFAM chain wheel STEEL #428 57 teeth - a12207.57
• Gear ratio sprocket-chain-chain wheel: 13-134-57

DID 428 HD

Slightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-53156

Fits

Yamaha 101 - 125 cc DT 125 R (80 km/h) DE03 1999
Yamaha 101 - 125 cc DT 125 R (80 km/h) DE03 2000
Yamaha 101 - 125 cc DT 125 R (80 km/h) DE03 2001
Yamaha 101 - 125 cc DT 125 R (80 km/h) DE03 2002
Yamaha 101 - 125 cc DT 125 R (80 km/h) DE03 2003
