DID chain kit for Yamaha DT 125 R 91-98 428 HD chain kit

DID chain set for Yamaha DT 125 R 91-98 428 HD chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Yamaha DT 125 R 4BL 1991-1998 101 km/h for driving schools

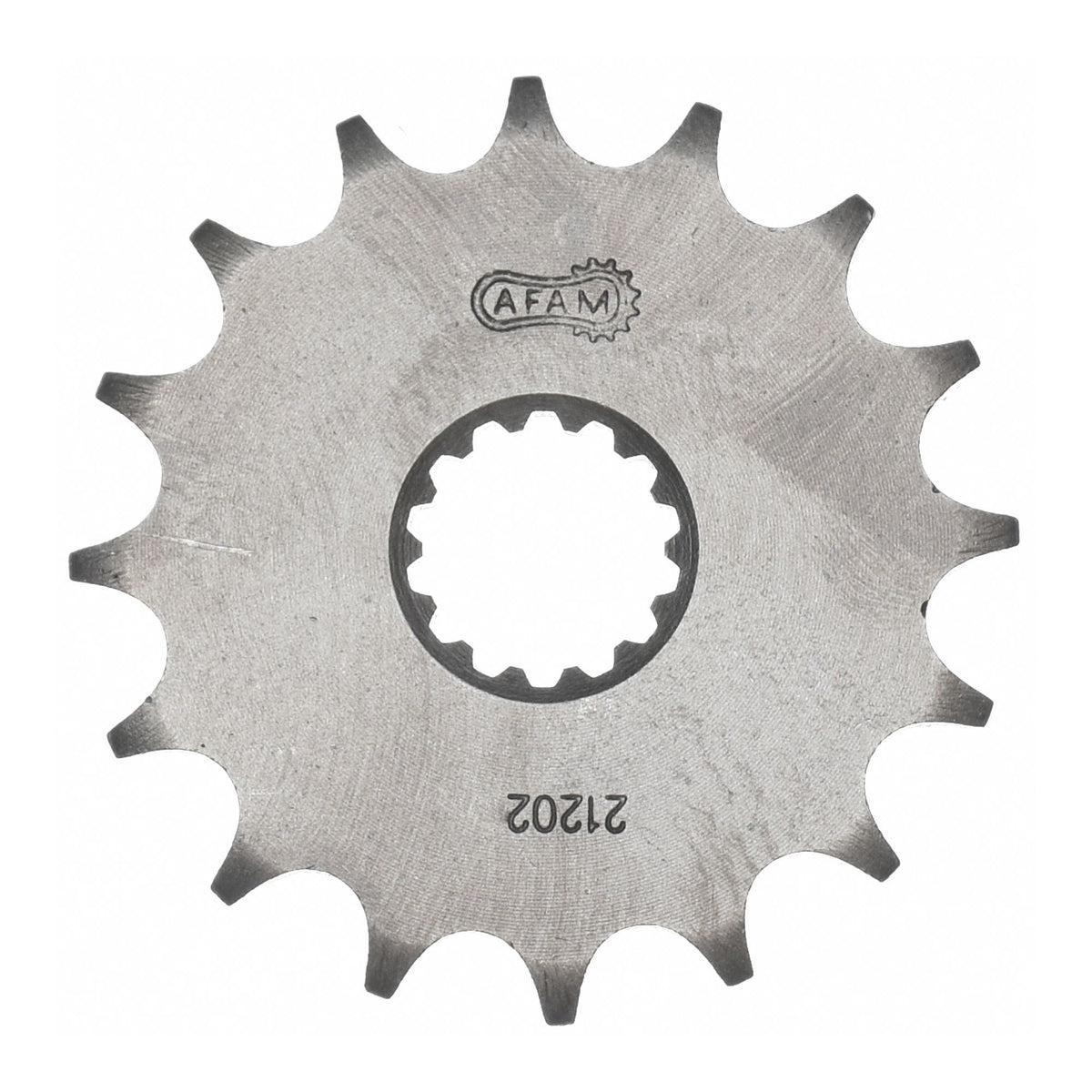

• Front sprocket: AFAM sprocket #428 16 teeth - a21202.16
• Chain: DID chain 428 HD 130 with clip link - d6242801130

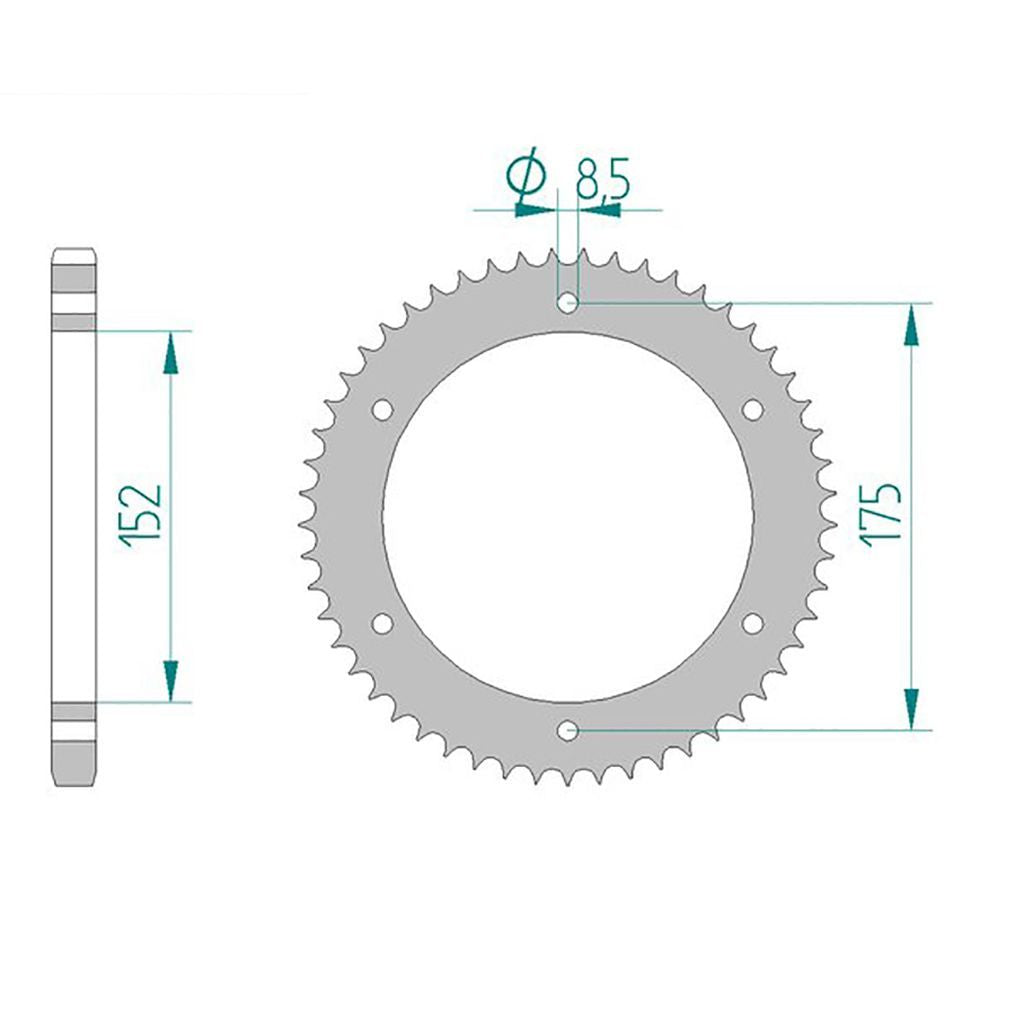

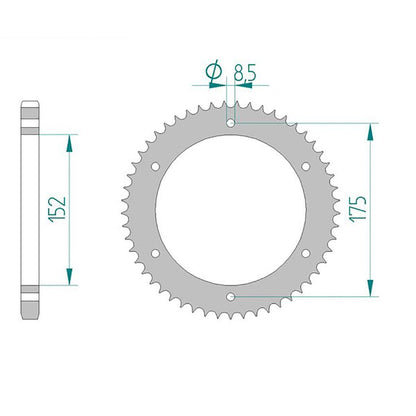

• Rear sprocket: Esjot sprocket 12207-51 STEEL #428 51 teeth - a12207.51
• Gear ratio sprocket-chain-rear sprocket: 16-130-51 101 km/h for driving schools

DID 428 HD

Slightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-17930

Suitable for

Yamaha 101 - 125 ccm DT 125 R 4BL 1991
Yamaha 101 - 125 ccm DT 125 R 4BL 1992
Yamaha 101 - 125 ccm DT 125 R 4BL 1993
Yamaha 101 - 125 ccm DT 125 R 4BL 1994
Yamaha 101 - 125 ccm DT 125 R 4BL 1995
Yamaha 101 - 125 ccm DT 125 R 4BL 1996
Yamaha 101 - 125 ccm DT 125 R 4BL 1997
Yamaha 101 - 125 ccm DT 125 R 4BL 1998
