DID chain set for Yamaha FJ 1200 86-87 530 VX3 chain kit

DID chain kit for Yamaha FJ 1200 86-87 530 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

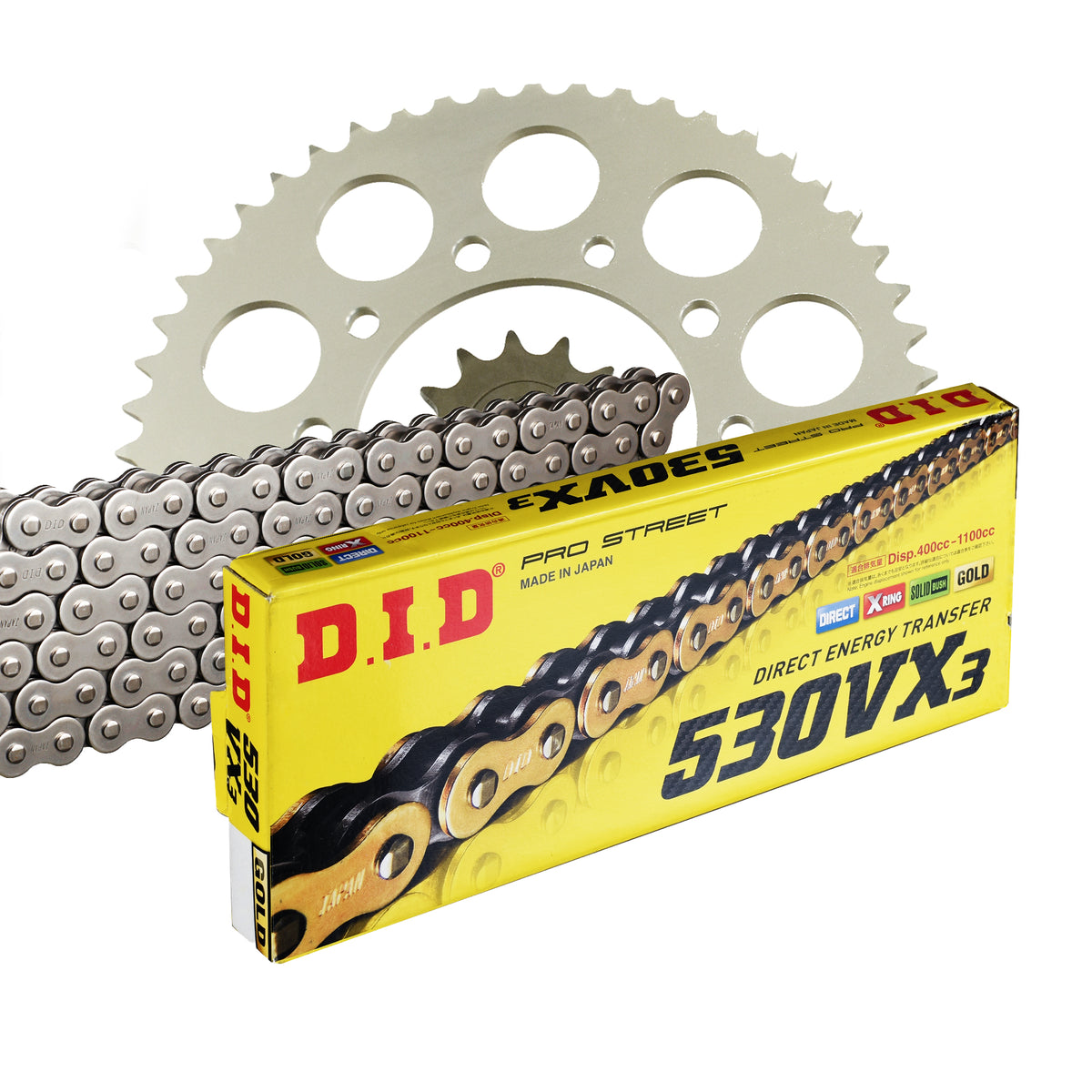

Components of the chain kit Yamaha FJ 1200 1XJ 1986-1987

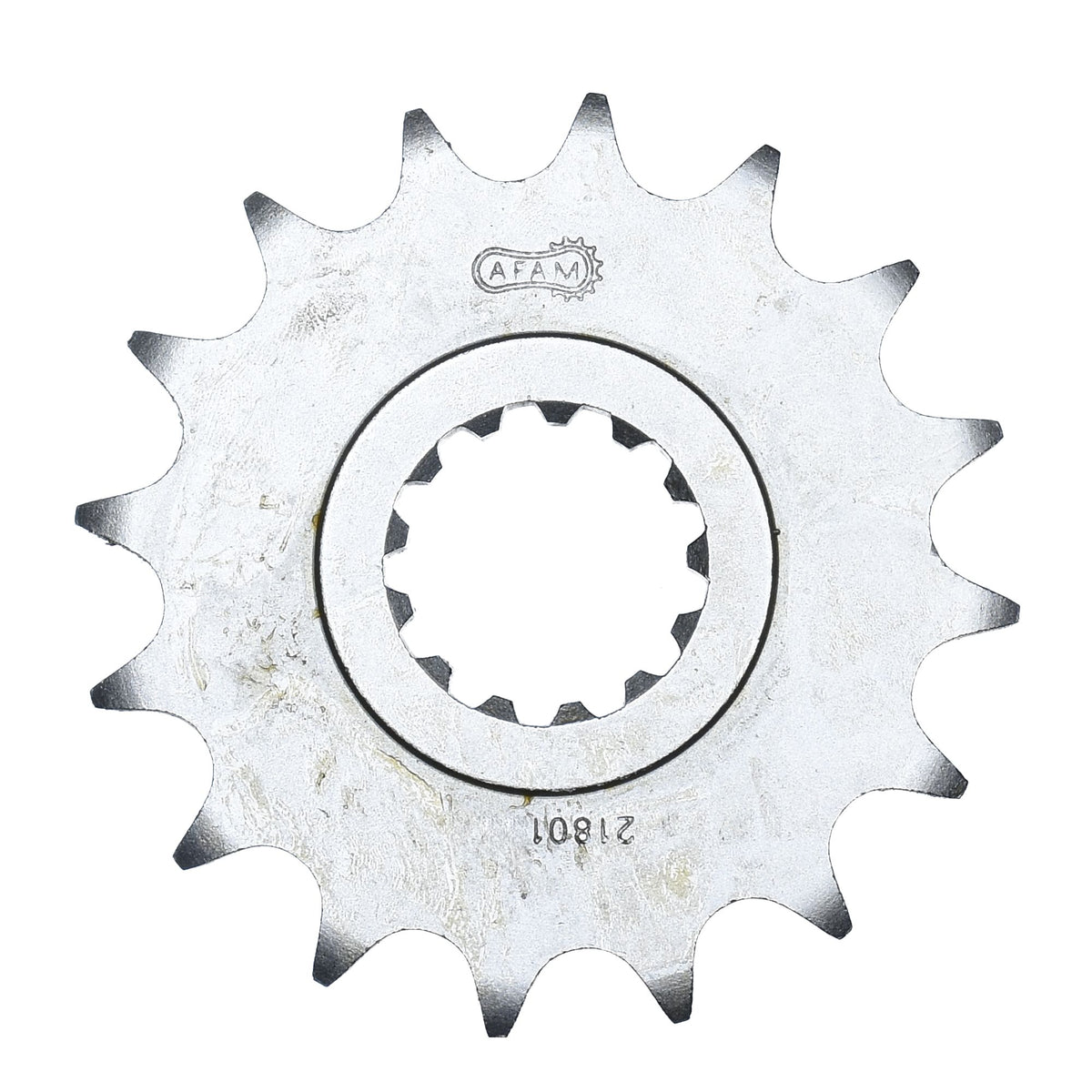

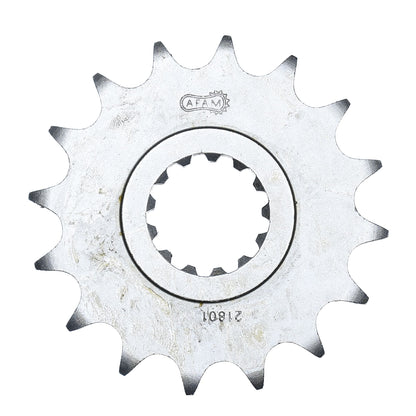

• Front sprocket: AFAM sprocket #530 17 teeth - a21801.17

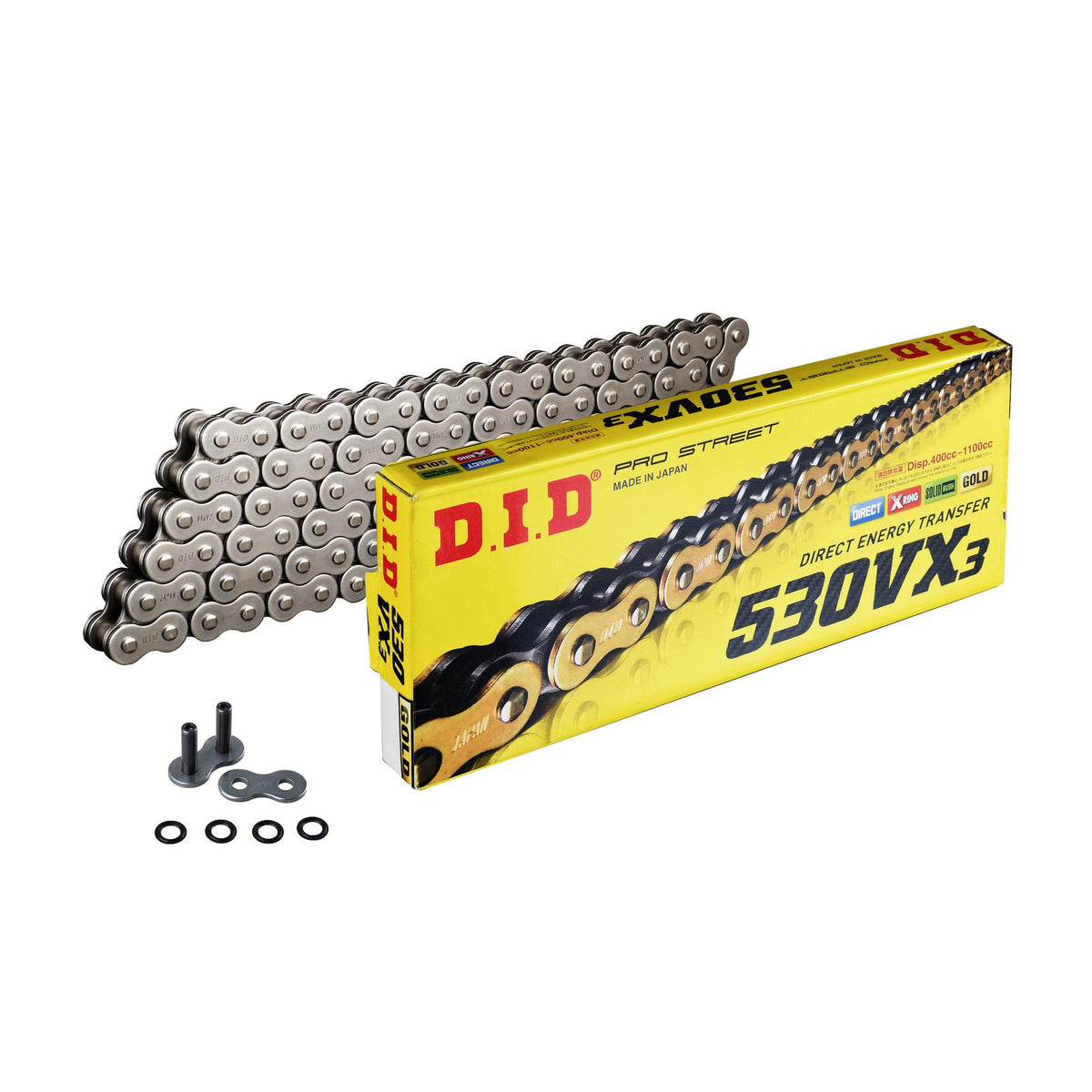

• Chain: DID chain 530 VX3 B&B 110 with rivet link - d530vx3-110

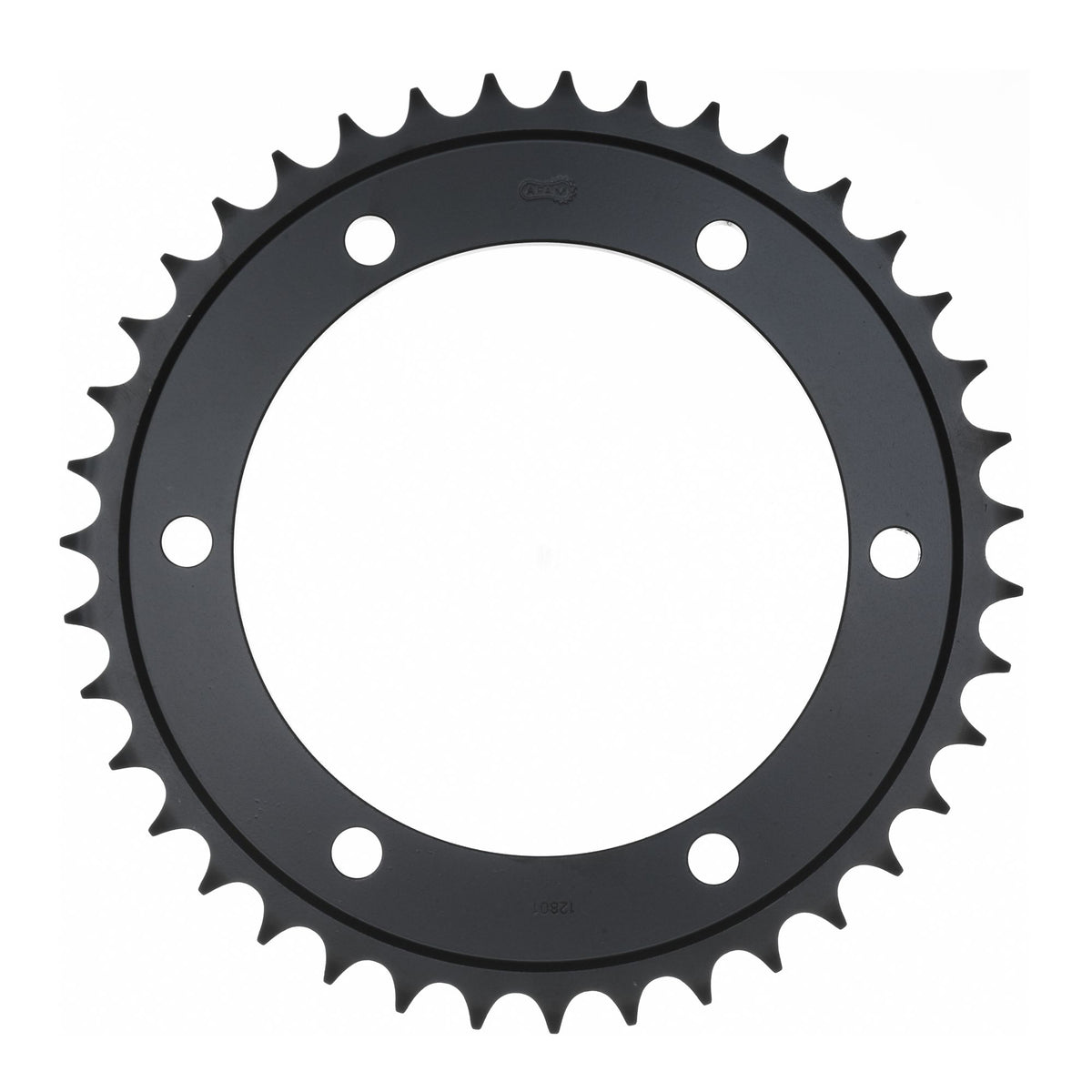

• Rear sprocket: AFAM sprocket STEEL #530 40 teeth - a12801.40
• Gear ratio sprocket-chain-rear sprocket: 17-110-40

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical data:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-39428

Suitable for

Yamaha over 1001 cc FJ 1200 1XJ 1986
Yamaha over 1001 cc FJ 1200 1XJ 1987
