DID chain kit for Yamaha FJ 1200 91-97 530 VX3 chain kit

DID chain set for Yamaha FJ 1200 91-97 530 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

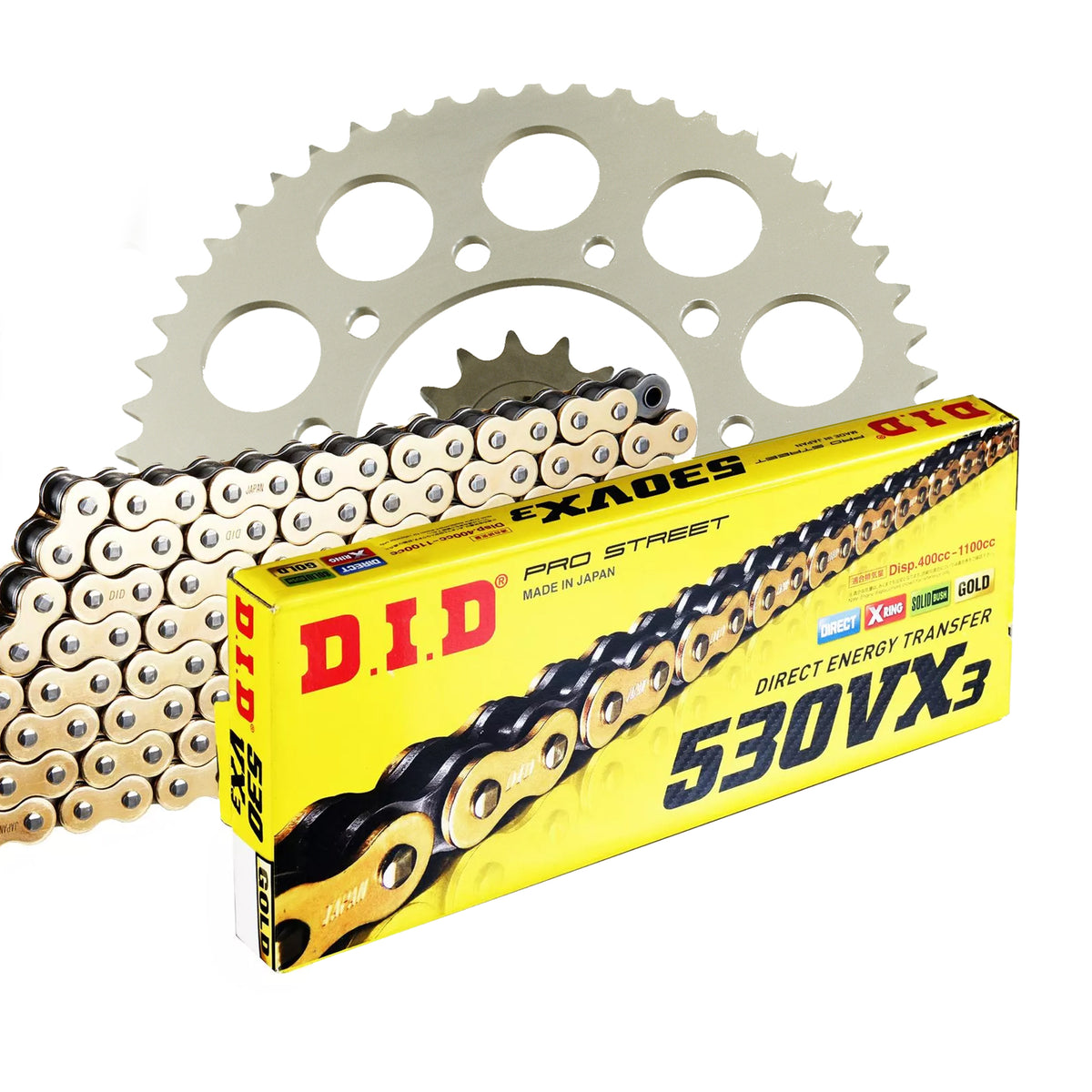

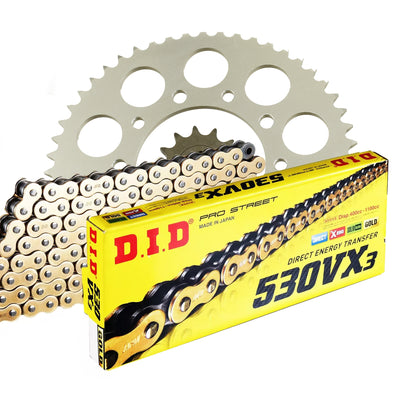

Components of the chain kit for Yamaha FJ 1200 3YA 1991-1997

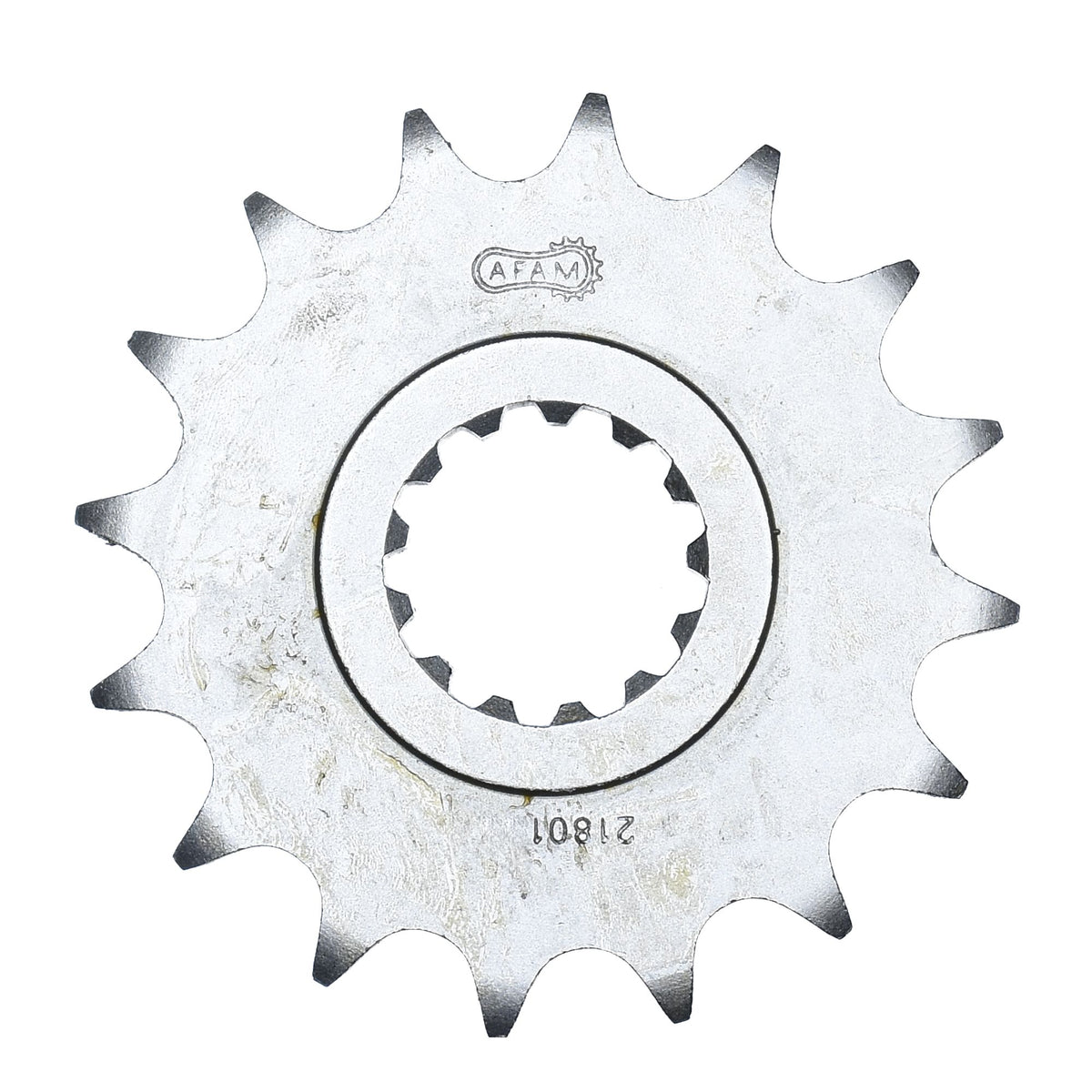

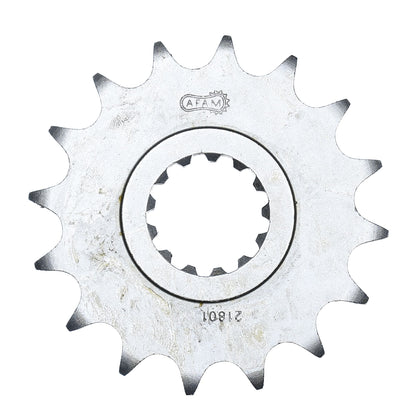

• Front sprocket: AFAM front sprocket #530 17 teeth - a21801.17

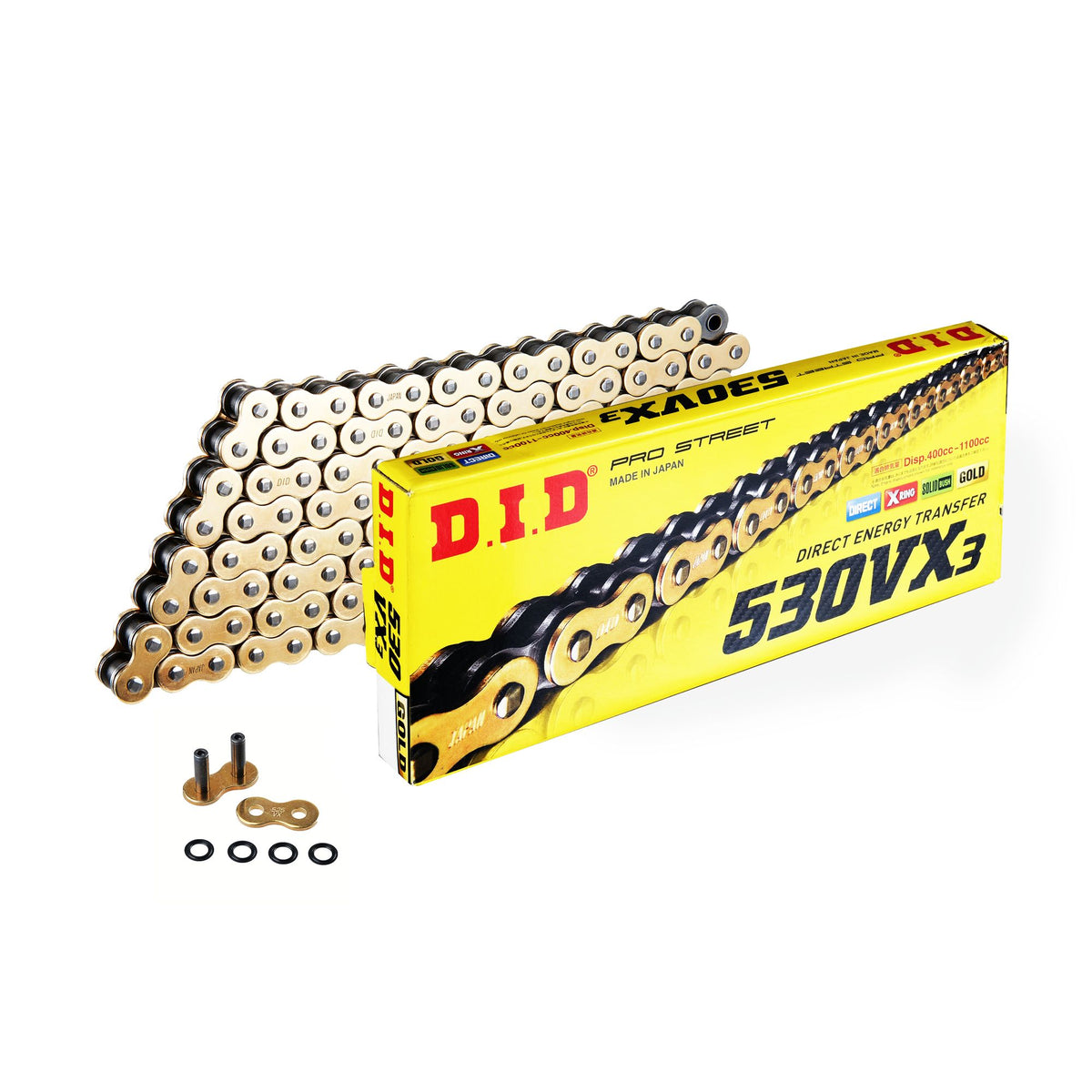

• Chain: DID chain 530 VX3 G&B 110 with rivet link - d530vx3.g-110

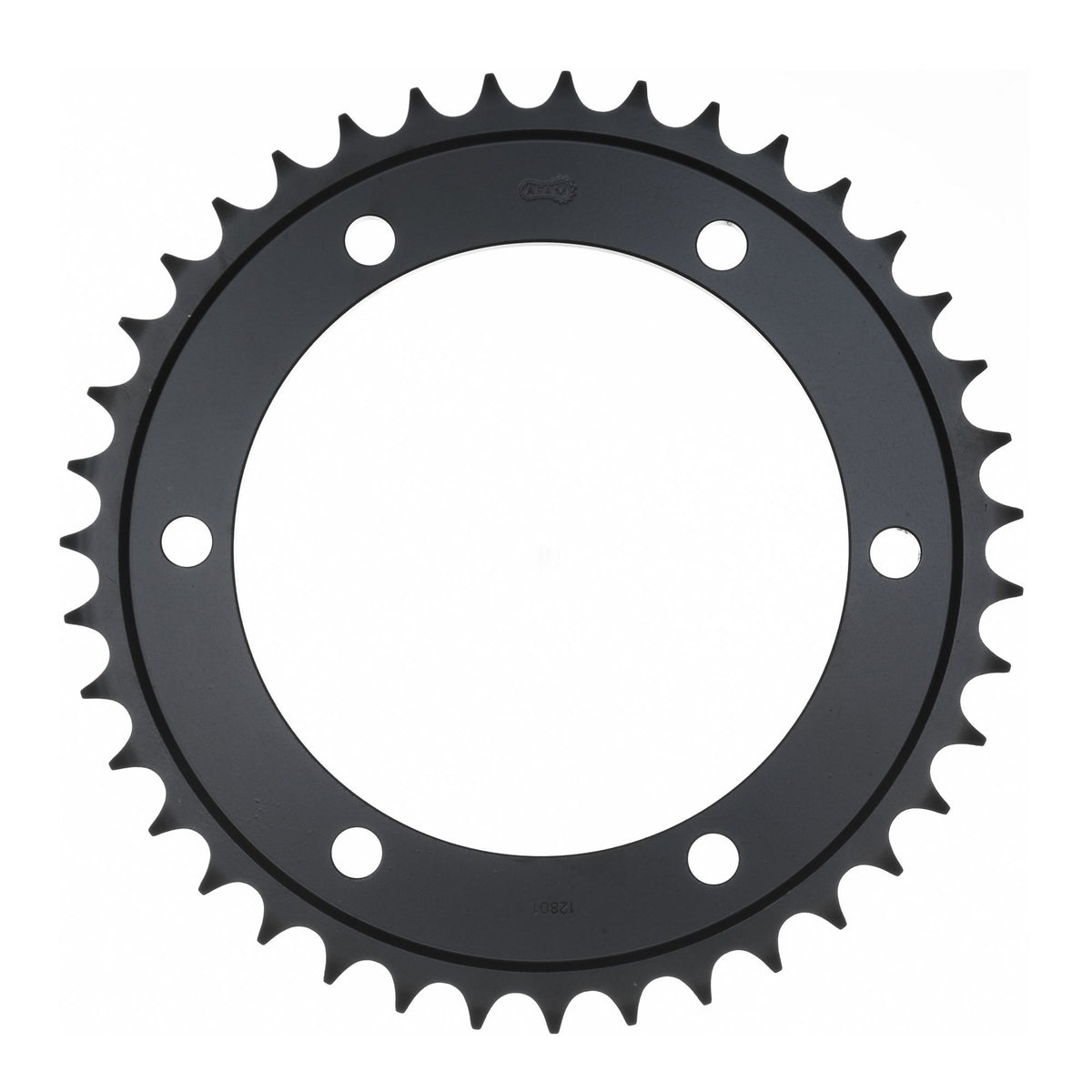

• Rear sprocket: AFAM rear sprocket STEEL #530 39 teeth - a12801.39
• Gear ratio front sprocket-chain-rear sprocket: 17-110-39

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical specifications:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Part number	KKF-51423

Fits

Yamaha over 1001 cc FJ 1200 3YA 1991
Yamaha over 1001 cc FJ 1200 3YA 1992
Yamaha over 1001 cc FJ 1200 3YA 1993
Yamaha over 1001 cc FJ 1200 3YA 1994
Yamaha over 1001 cc FJ 1200 3YA 1995
Yamaha over 1001 cc FJ 1200 3YA 1996
Yamaha over 1001 cc FJ 1200 3YA 1997
