DID chain set for Yamaha FZ 750 Genesis 87-90 530 VX3 chain kit

DID chain kit for Yamaha FZ 750 Genesis 87-90 530 VX3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

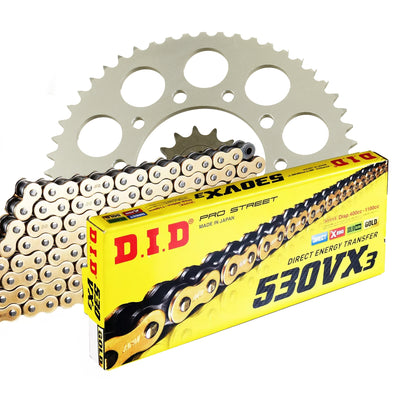

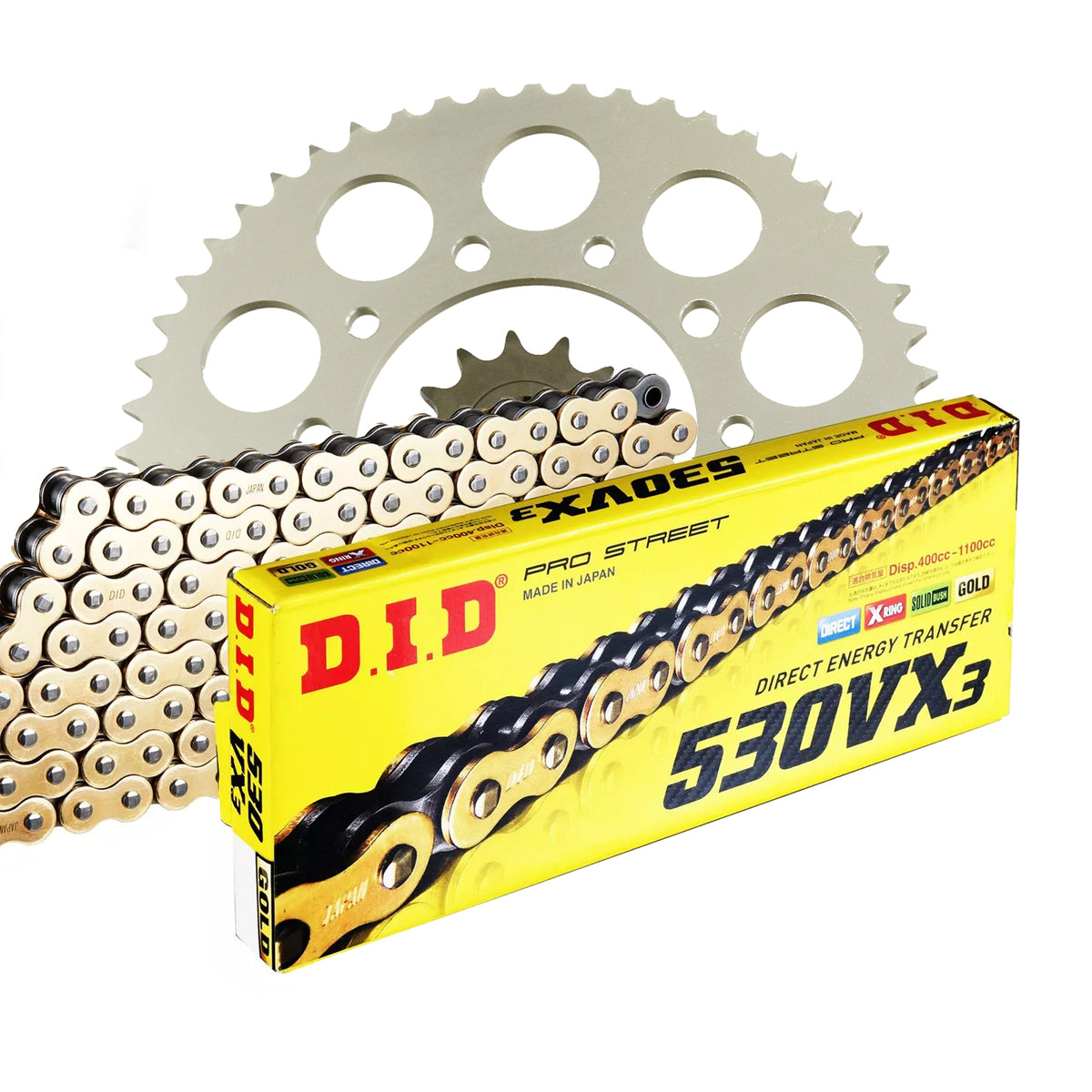

Components of the chain kit Yamaha FZ 750 Genesis 2KK 1987-1990

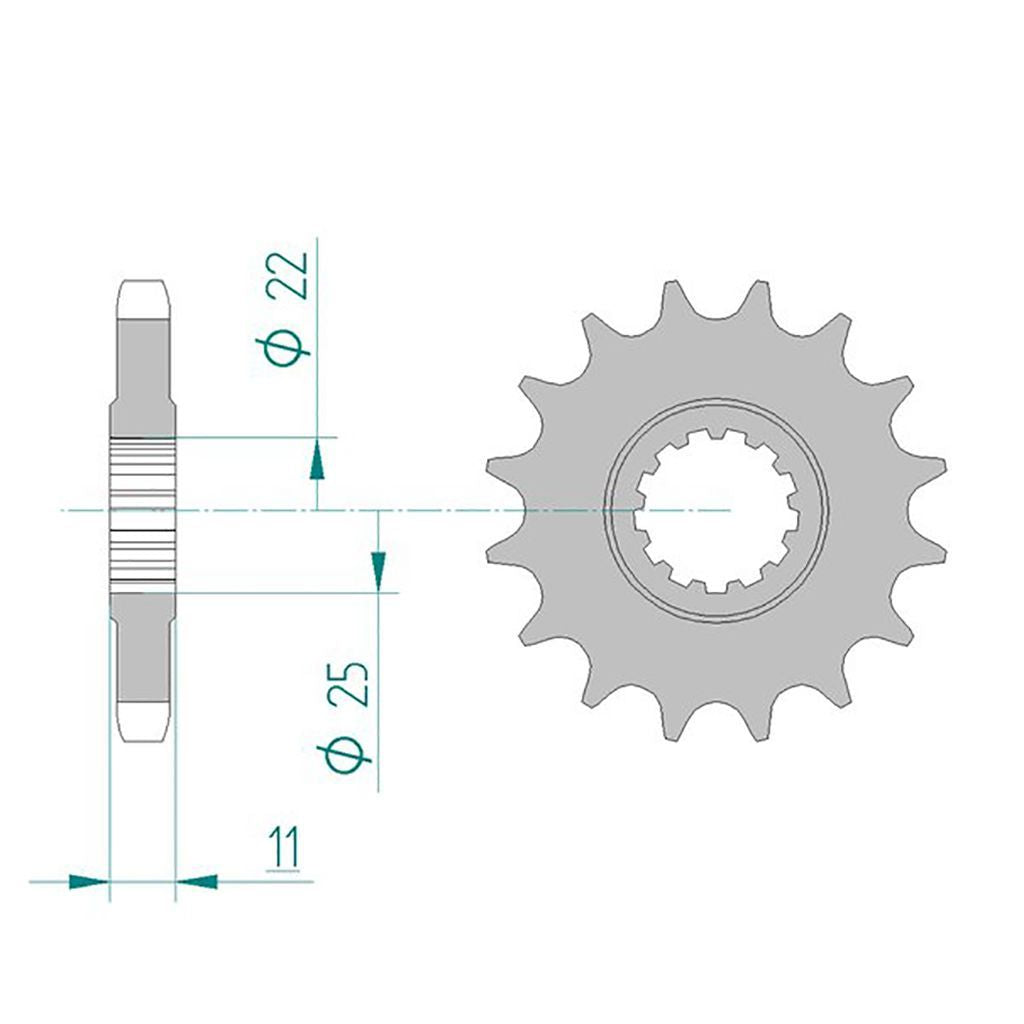

• Front sprocket: AFAM front sprocket #530 16 teeth - a21602.16

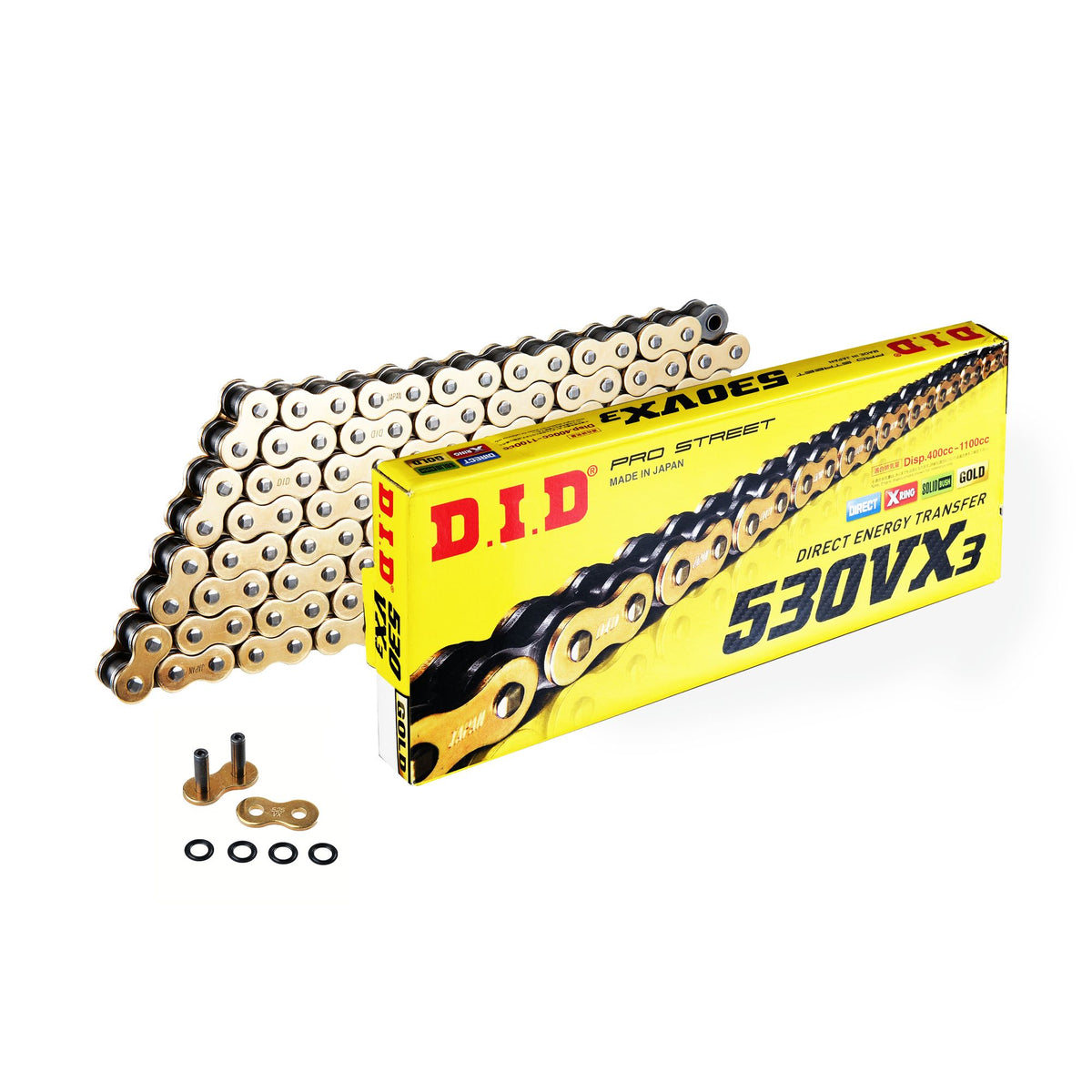

• Chain: DID chain 530 VX3 G&B 110 with rivet link - d530vx3.g-110

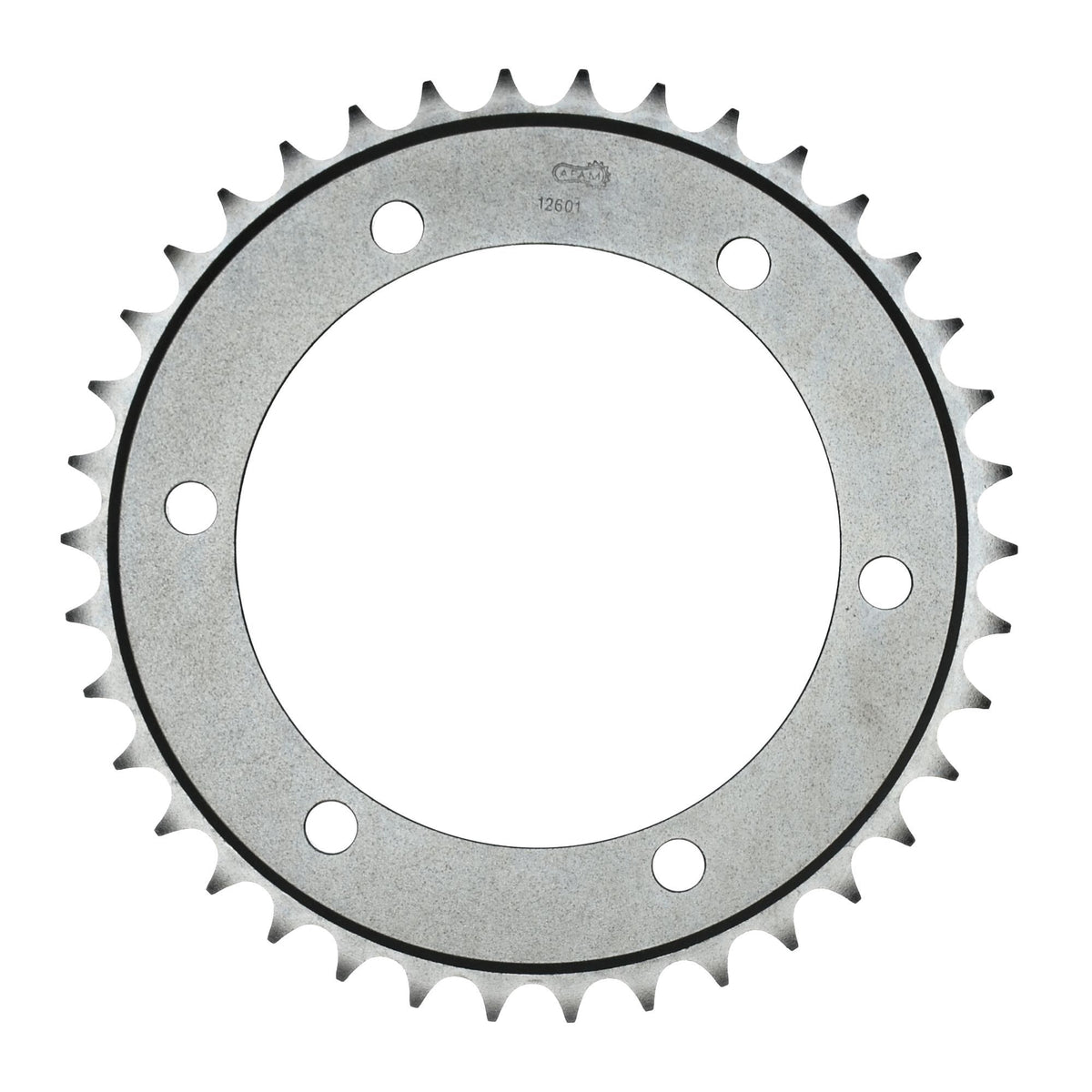

• Rear sprocket: AFAM rear sprocket STEEL #530 43 teeth - a12601.43
• Gear ratio front sprocket-chain-rear sprocket: 16-110-43

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical specifications:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear life index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-44390

Fits

Yamaha 501 - 750 cc FZ 750 Genesis 2KK 1987
Yamaha 501 - 750 cc FZ 750 Genesis 2KK 1988
Yamaha 501 - 750 cc FZ 750 Genesis 2KK 1989
Yamaha 501 - 750 cc FZ 750 Genesis 2KK 1990
