DID chain kit for Yamaha FZ1 N 11-15 530 VX3 chain kit

DID Chain kit for Yamaha FZ1 N 11-15 530 VX3 chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

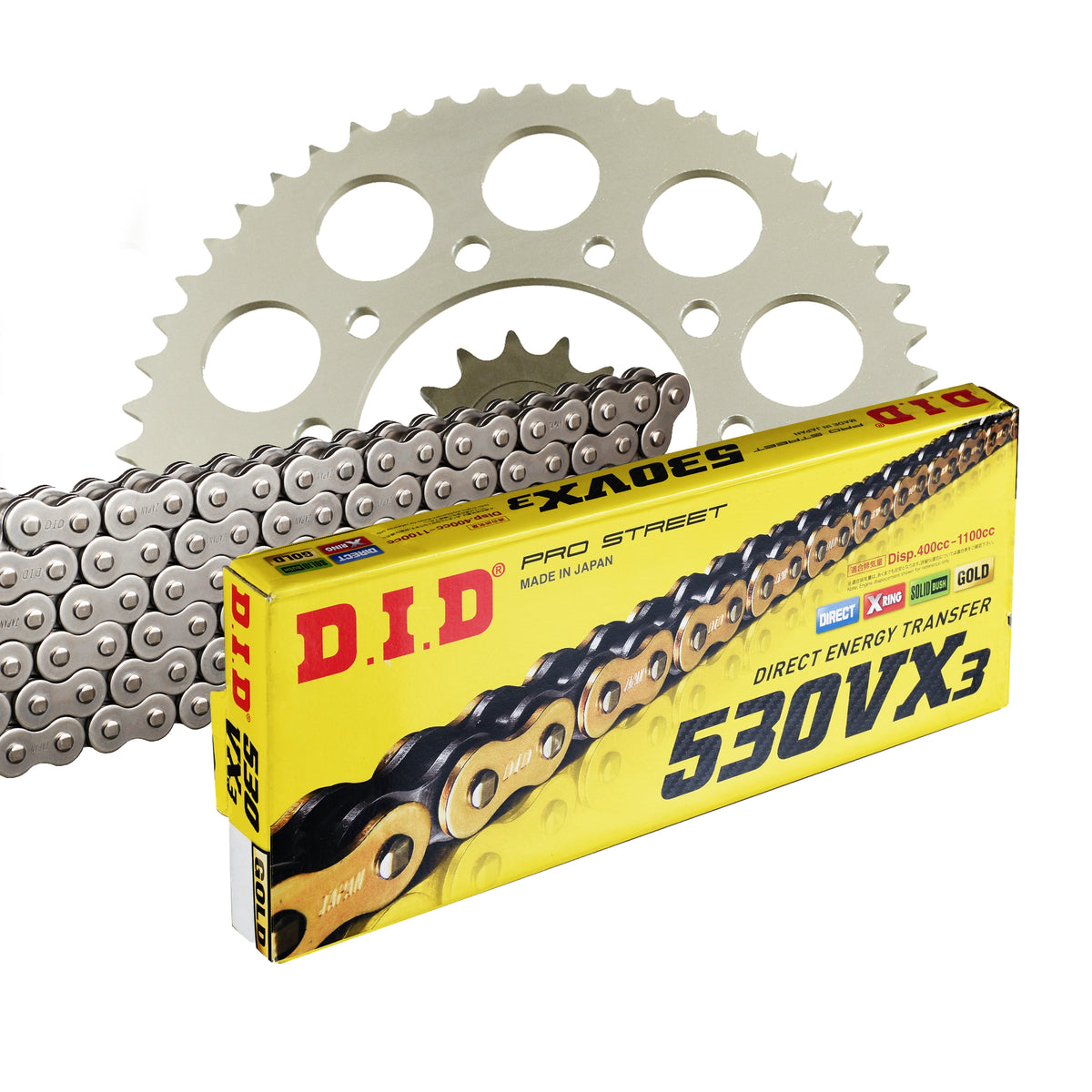

Components of the chain kit Yamaha FZ1 N RN16 2011-2015

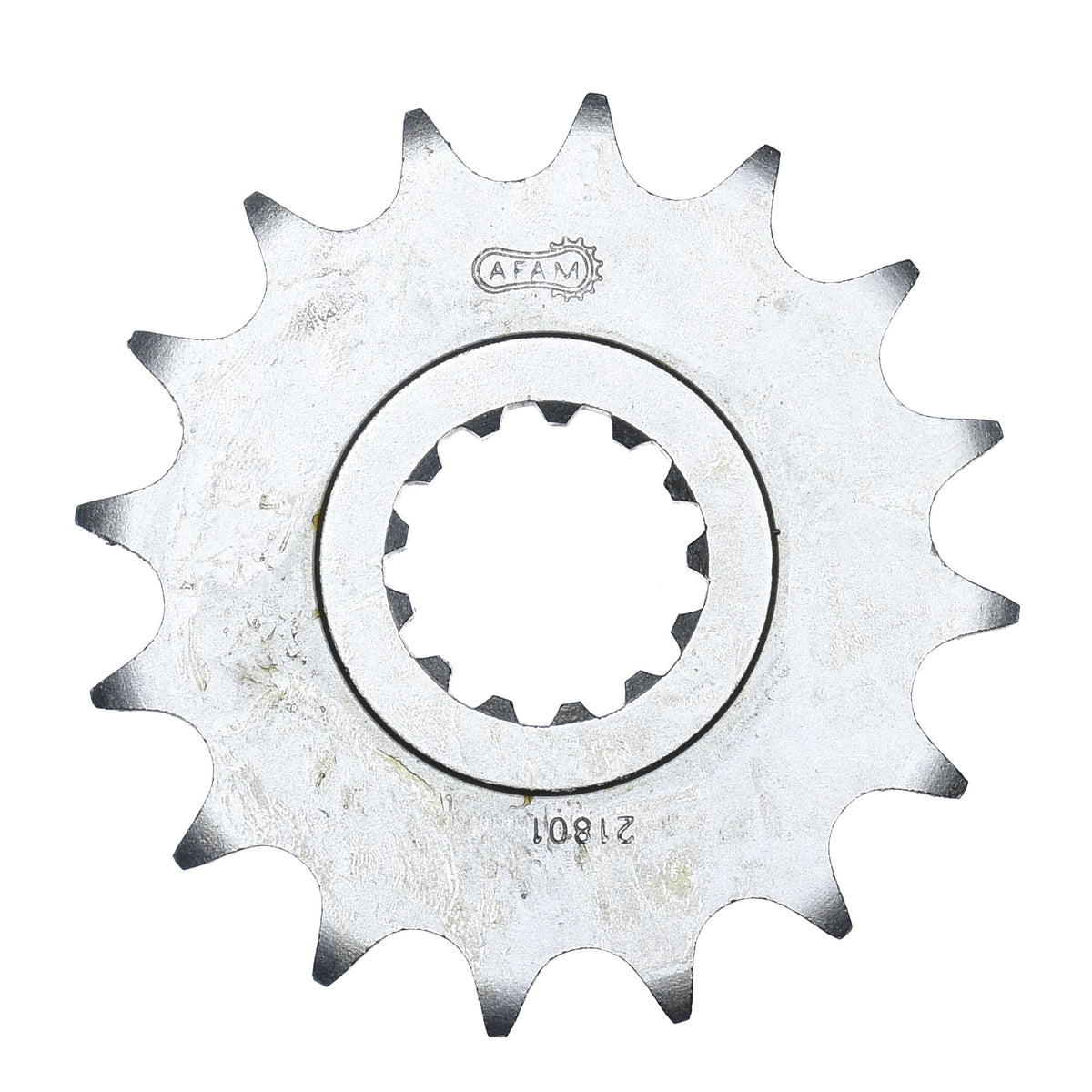

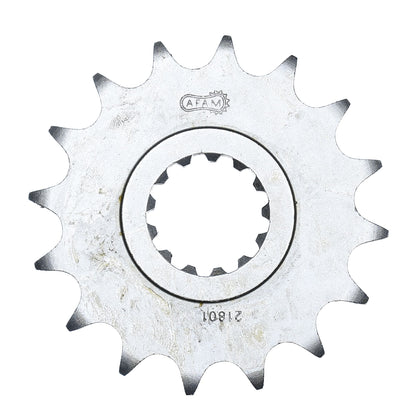

• Front sprocket: AFAM front sprocket #530 17 teeth - a21801.17

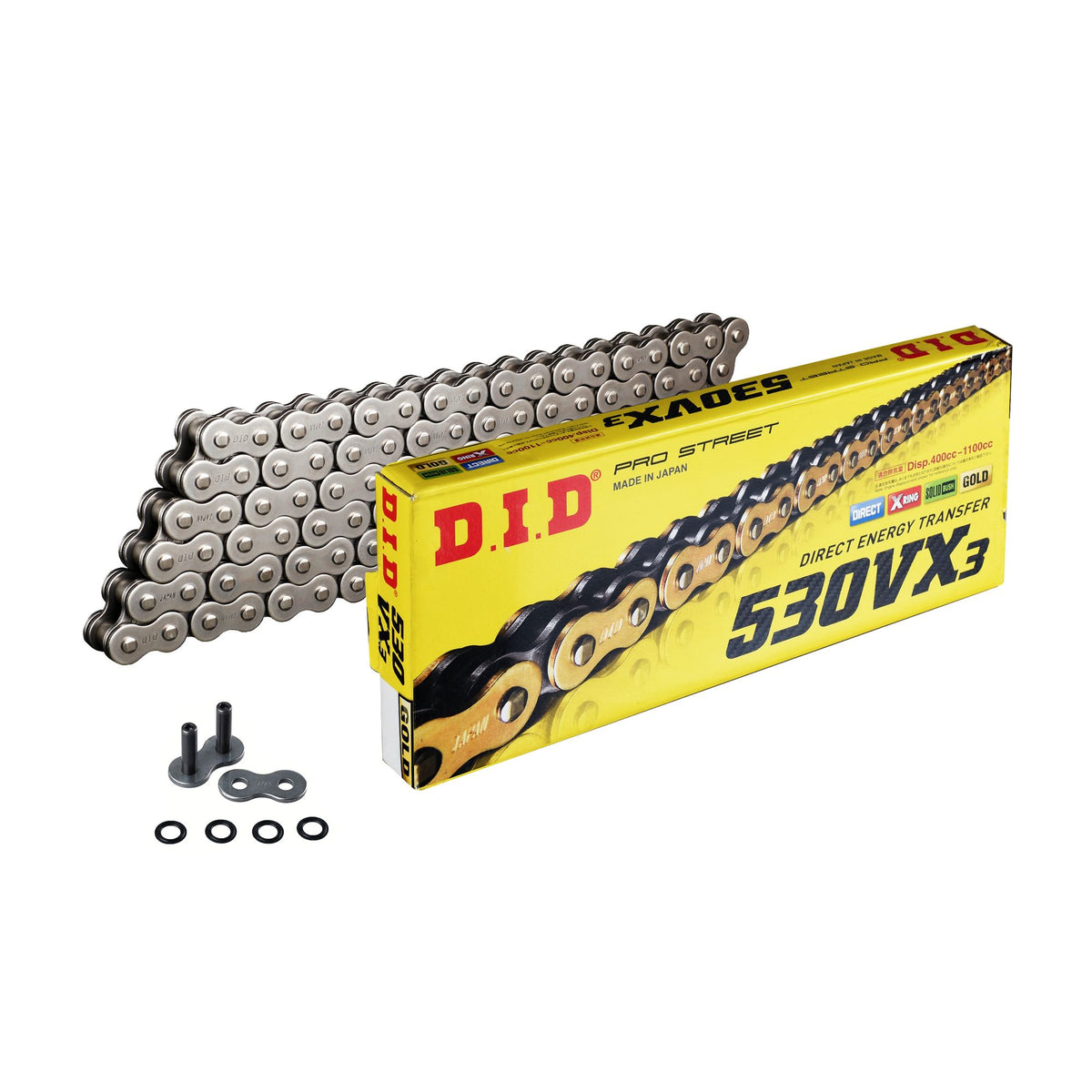

• Chain: DID chain 530 VX3 B&B 122 with rivet link - d530vx3-122

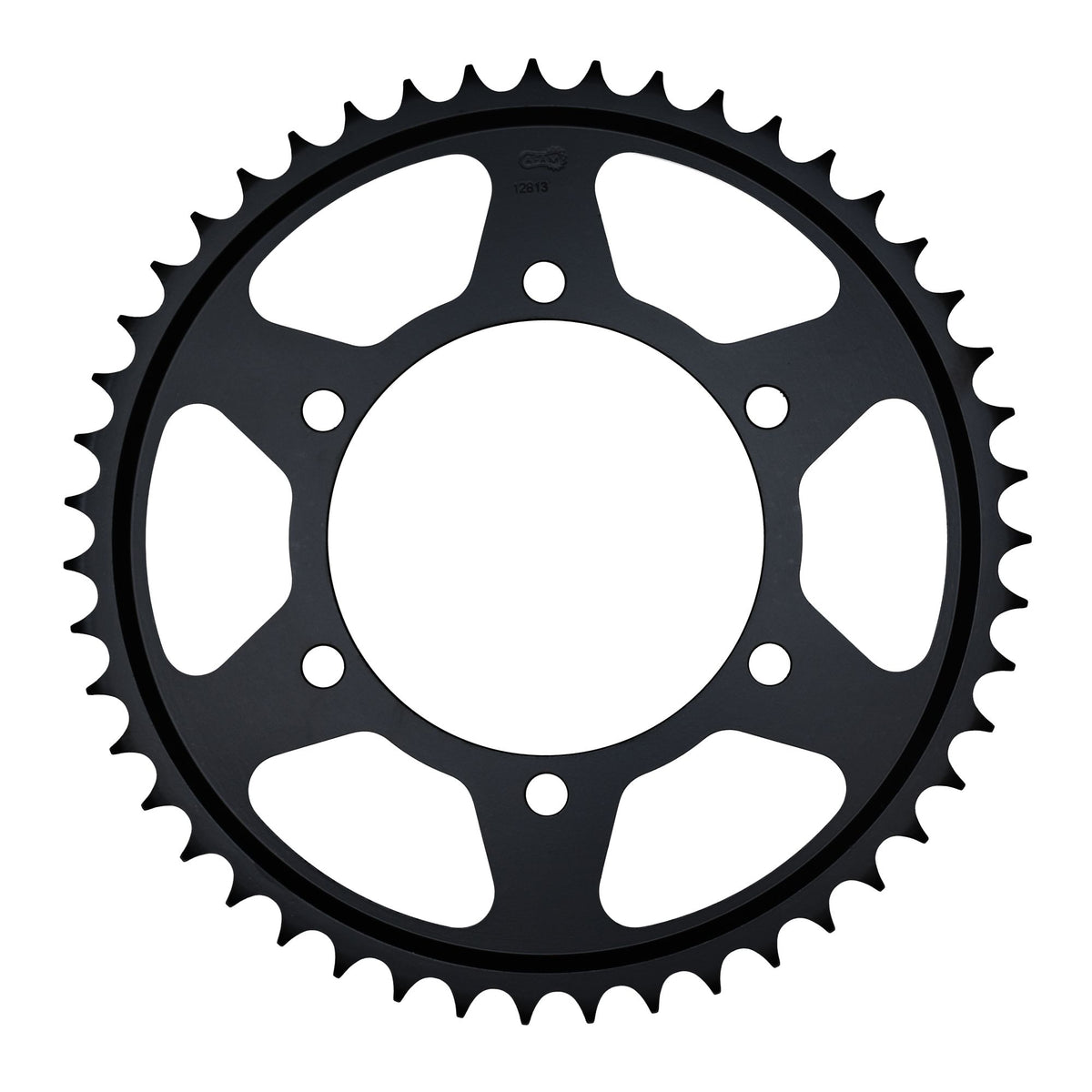

• Rear sprocket: AFAM rear sprocket STEEL #530 45 teeth - a12813.45
• Gear ratio front sprocket-chain-rear sprocket: 17-122-45

DID 530 VX3

Successor to the proven 530 VX
X-Ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical data:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The offered goods are accessories/spare parts from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is exclusively for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-38289

Fits

Yamaha 751 - 1000 cc FZ1 N RN16 2011
Yamaha 751 - 1000 cc FZ1 N RN16 2012
Yamaha 751 - 1000 cc FZ1 N RN16 2013
Yamaha 751 - 1000 cc FZ1 N RN16 2014
Yamaha 751 - 1000 cc FZ1 N RN16 2015
