DID chain kit for Yamaha FZ6 S2 NHG 2007 530 VX3 chain kit

DID chain kit for Yamaha FZ6 S2 NHG 2007 530 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to illustrate compatibility!

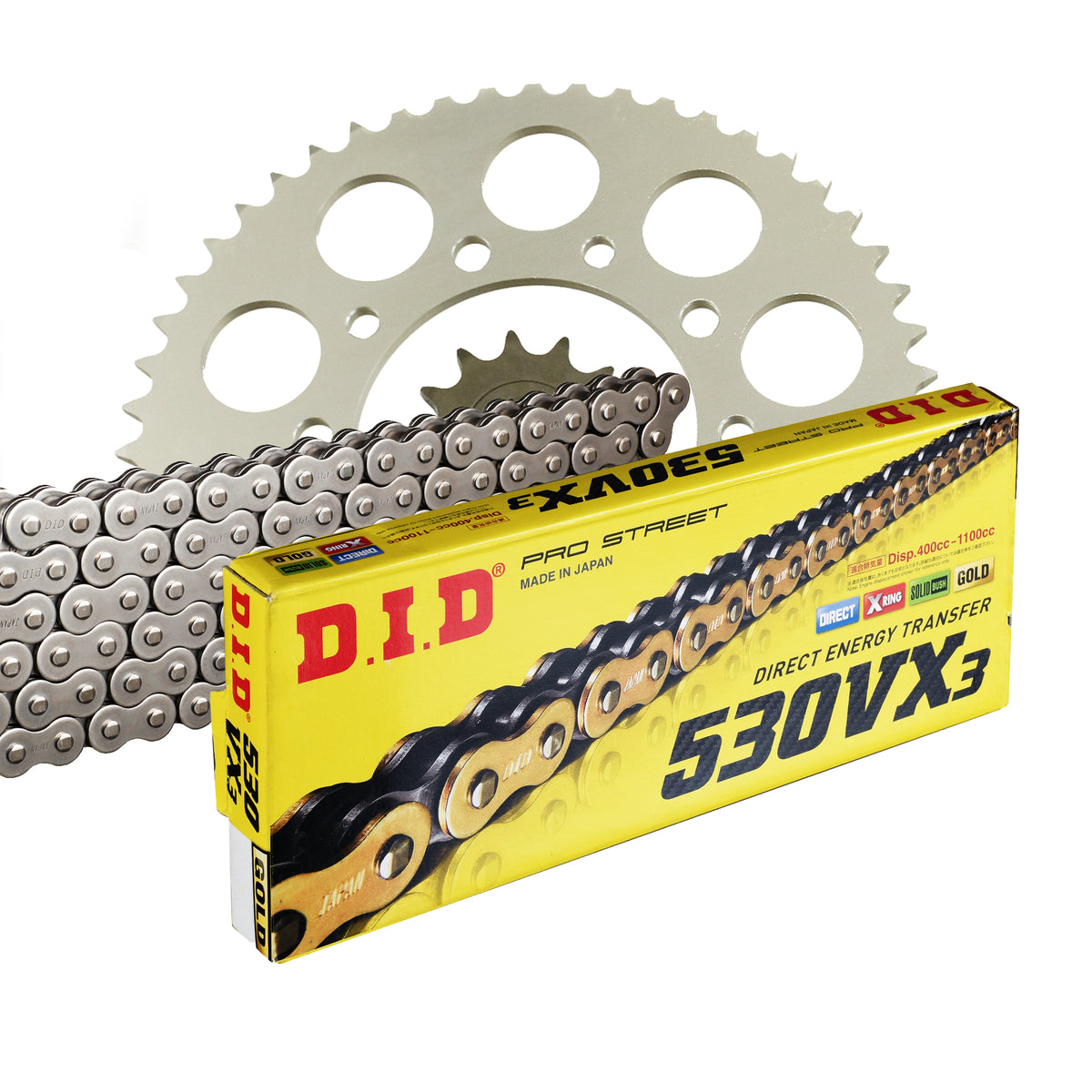

Components of the chain kit Yamaha FZ6 S2 NHG RJ146 2007-2007

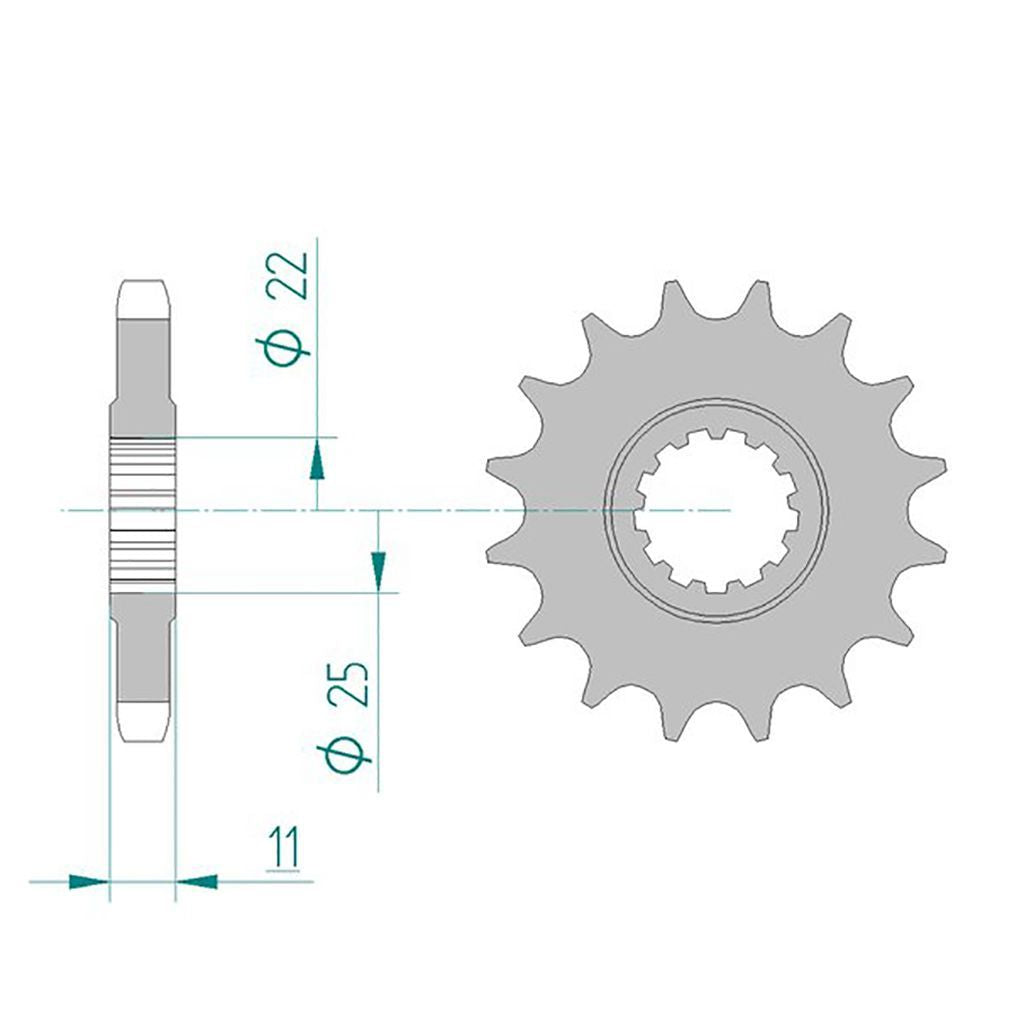

• Sprocket: AFAM sprocket #530 16 teeth - a21602.16
• Chain: DID chain 530 VX3 B&B 118 with rivet link - d530vx3-118

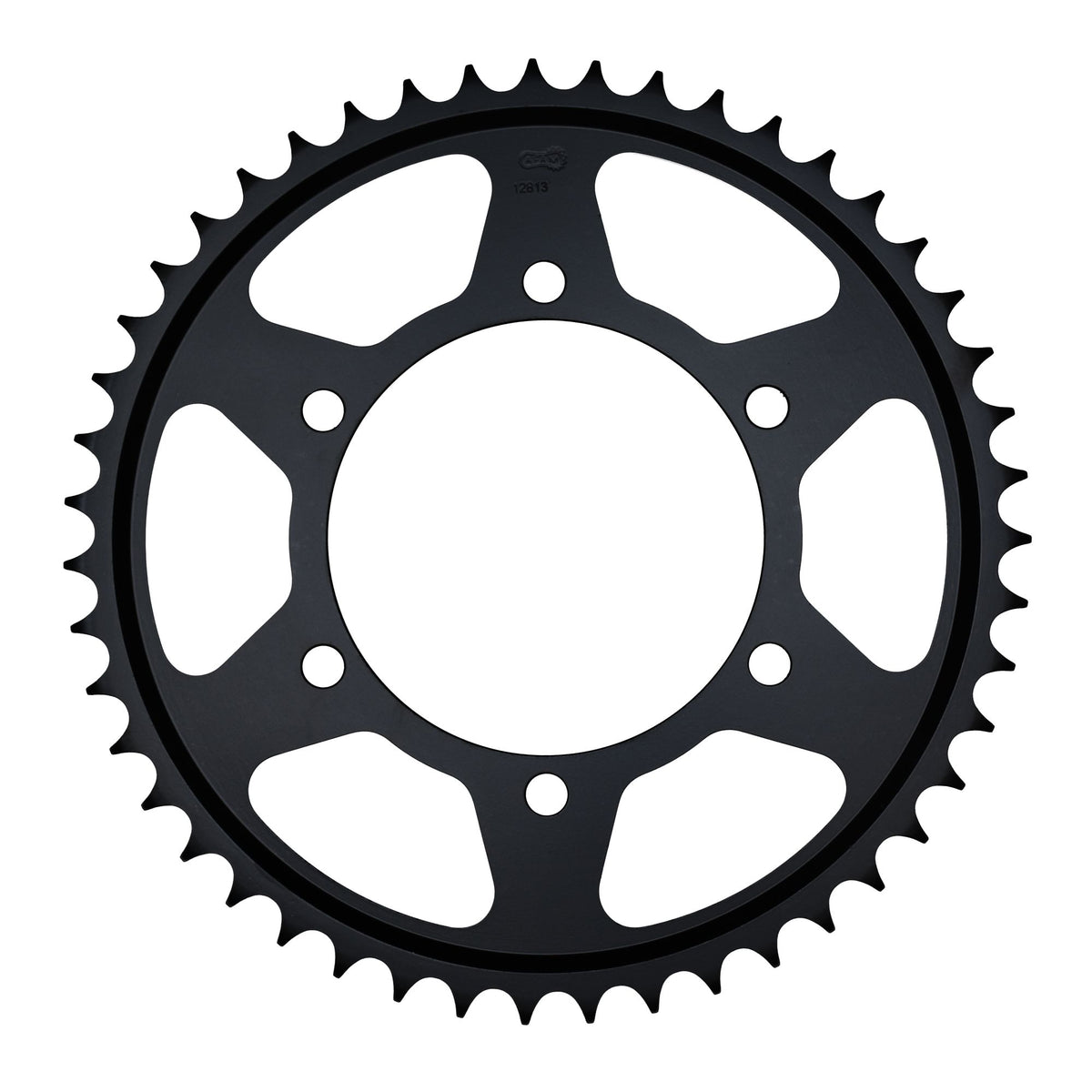

• Rear sprocket: AFAM rear sprocket STEEL #530 46 teeth - a12813.46
• Gear ratio sprocket-chain-rear sprocket: 16-118-46

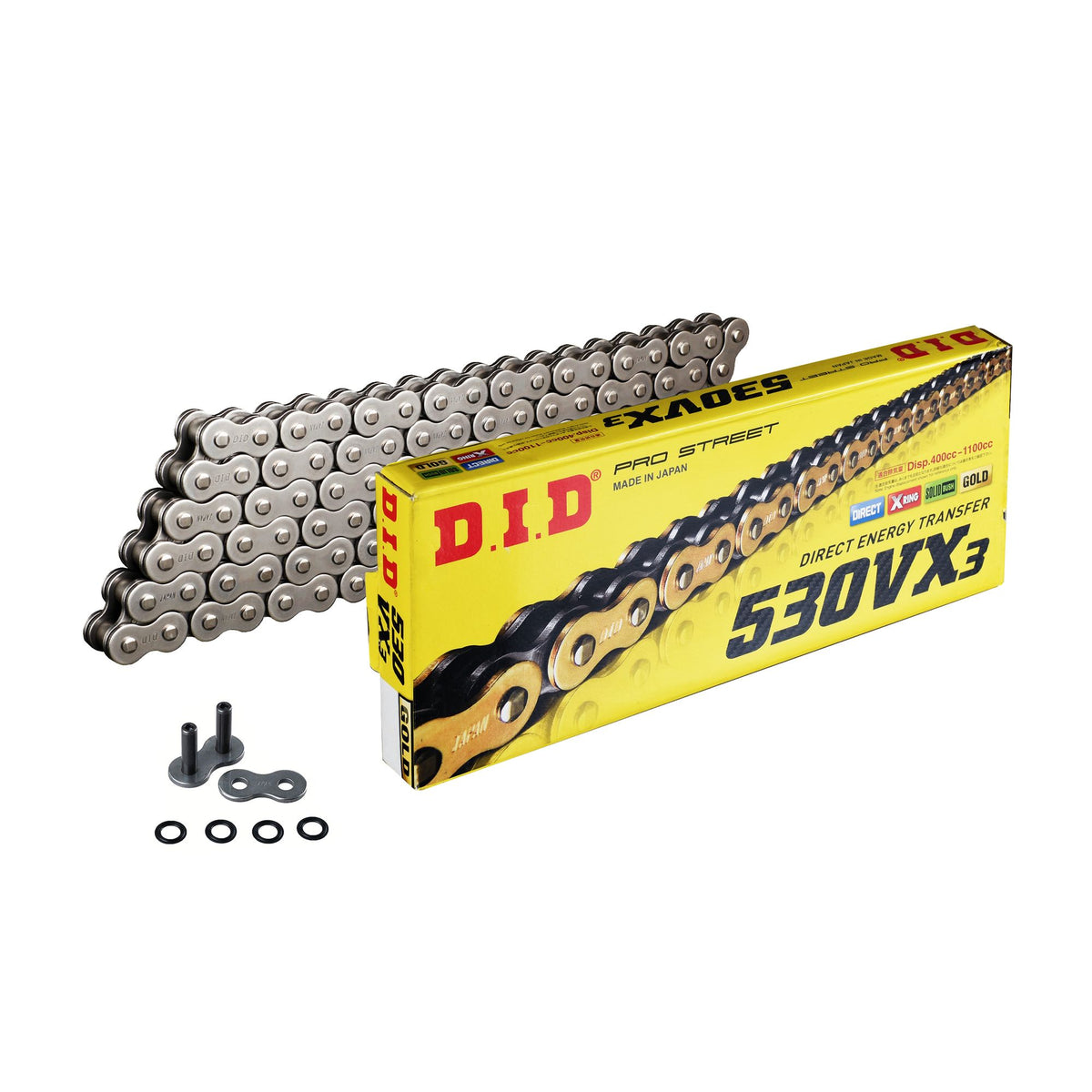

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 ccm

Technical data:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-34947

Suitable for

Yamaha 501 - 750 ccm FZ6 S2 NHG RJ146 2007
