DID chain kit for Yamaha FZR 1000 Genesis 87-88 530 VX3 chain kit

DID chain kit for Yamaha FZR 1000 Genesis 87-88 530 VX3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

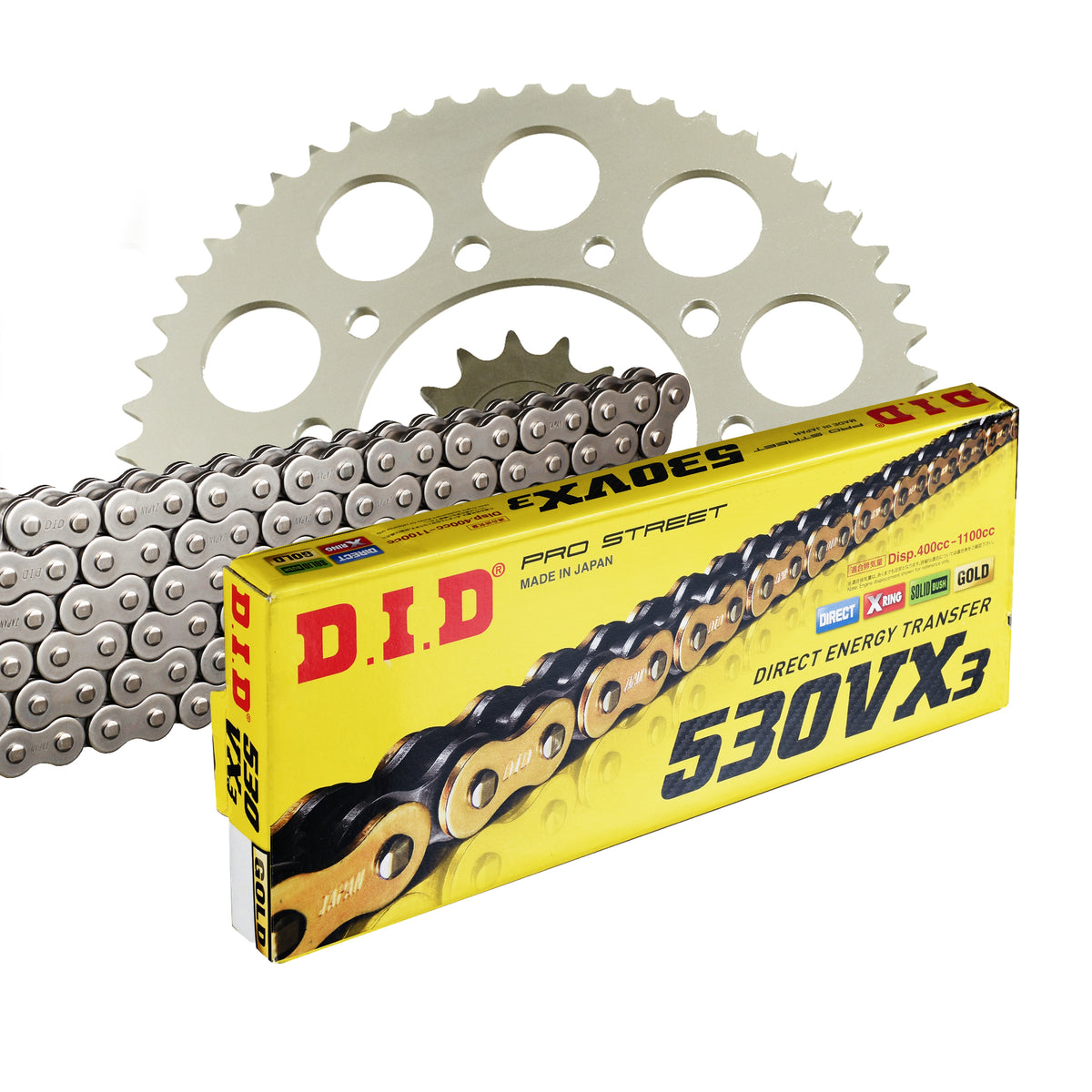

Components of the chain kit Yamaha FZR 1000 Genesis 2LA 1987-1988 conversion #530

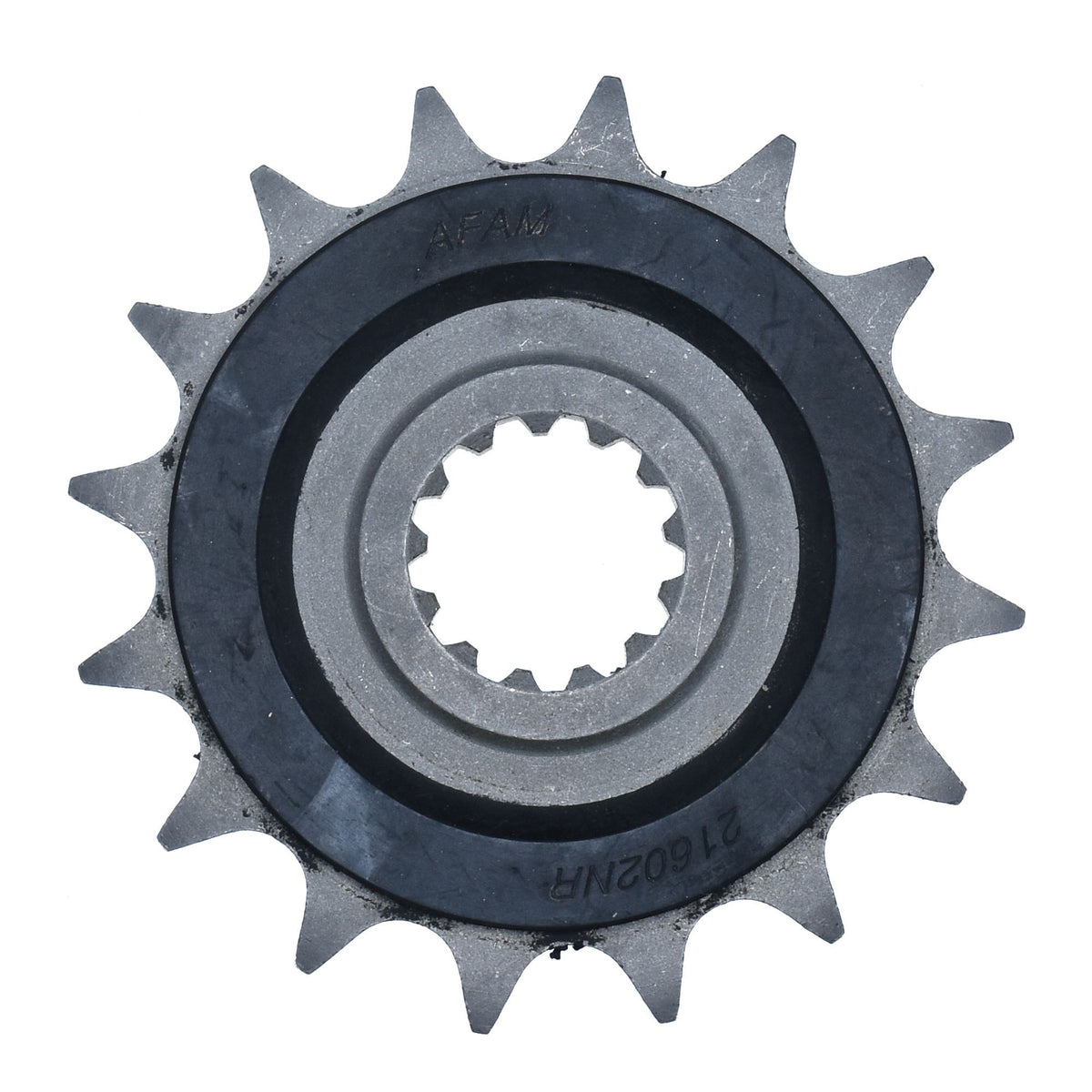

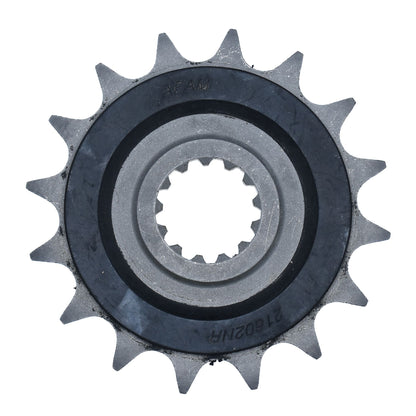

• Sprocket: AFAM rubberized sprocket #530 silent sprocket 16 teeth - a21602oem.16

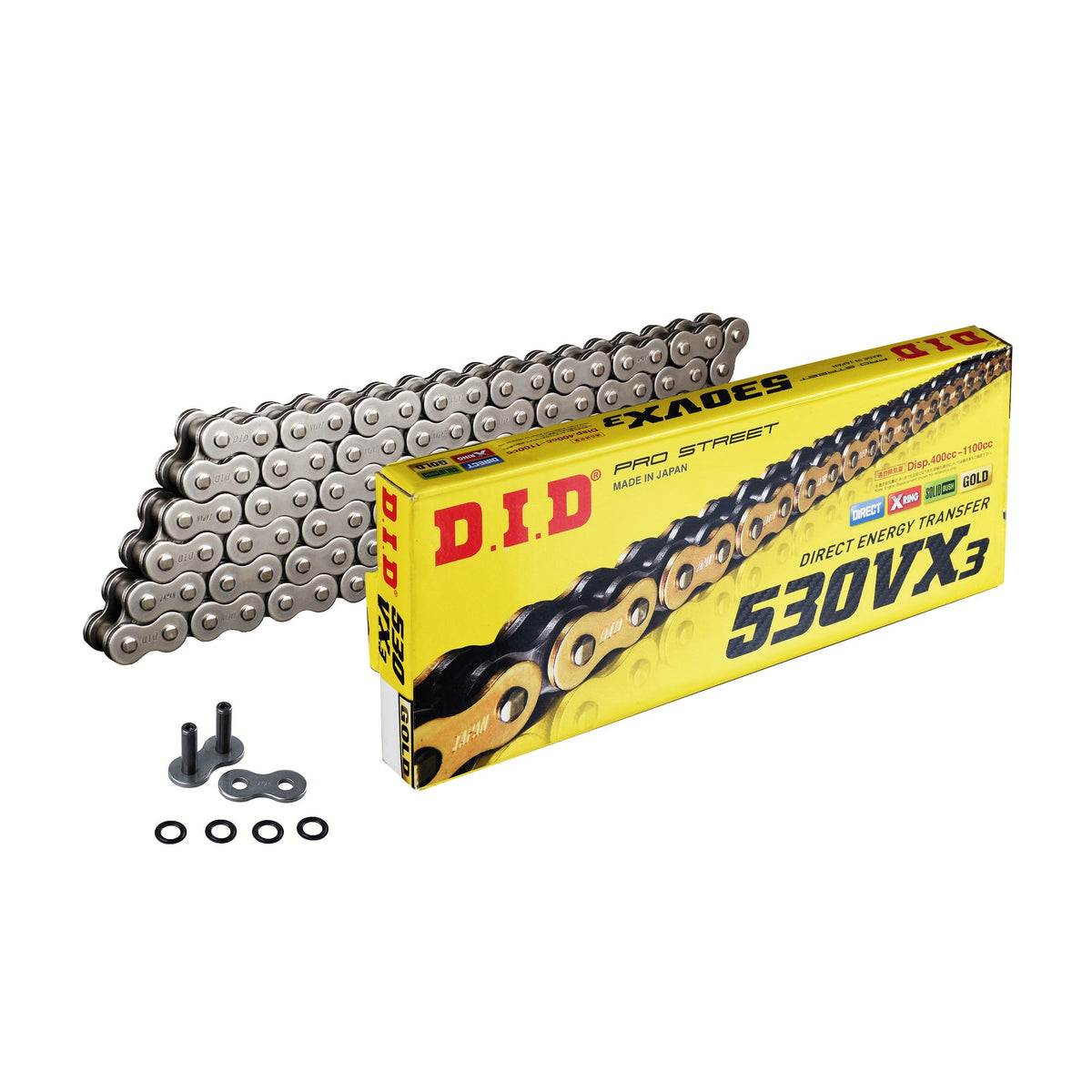

• Chain: DID chain 530 VX3 B&B 110 with rivet link - d530vx3-110

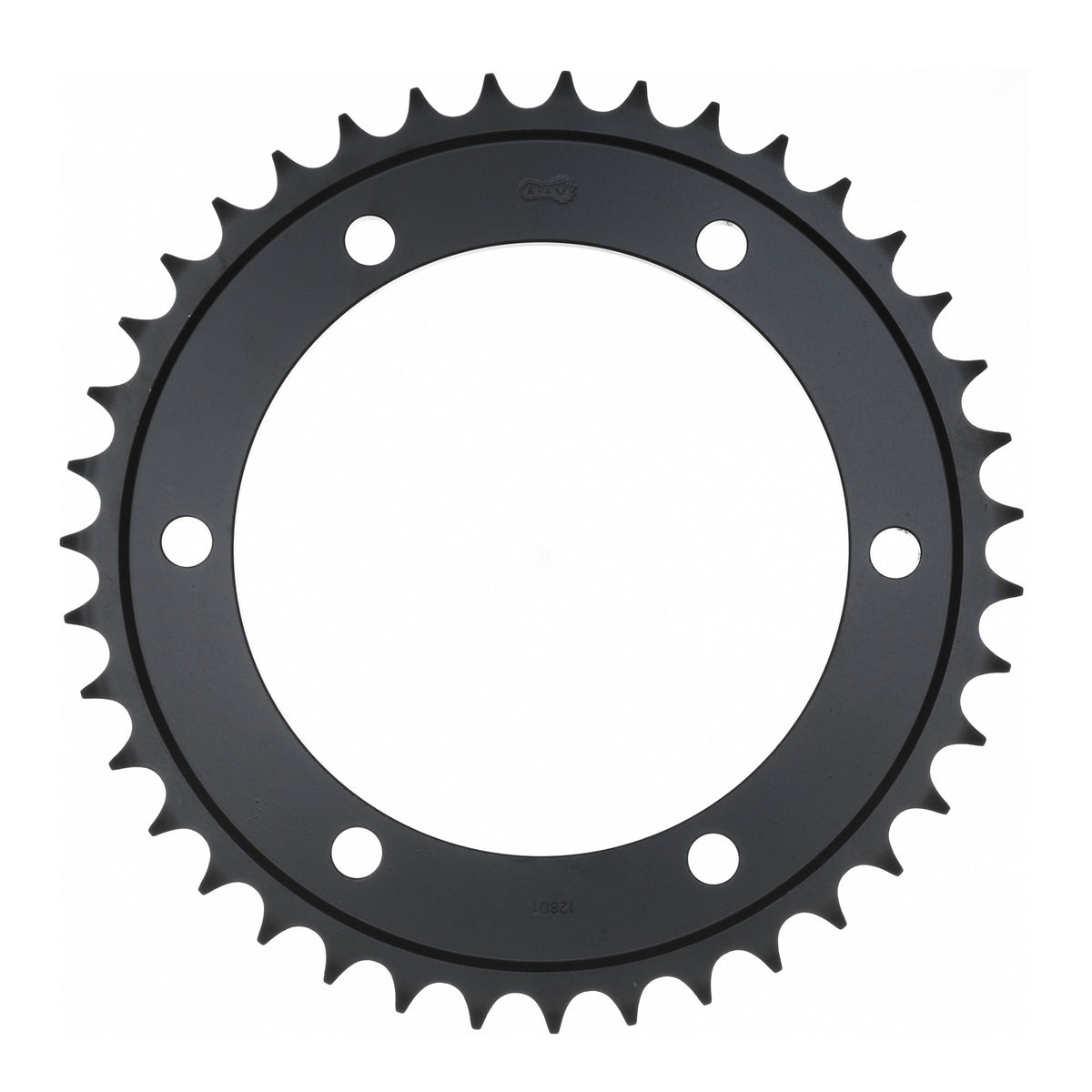

• Rear sprocket: AFAM rear sprocket STEEL #530 46 teeth - a12801.46
• Gear ratio sprocket-chain-rear sprocket: 16-110-46 conversion #530

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical specifications:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The offered goods are accessories/spare parts from a third-party manufacturer, not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Part number	KKF-17663

Suitable for

Yamaha 751 - 1000 cc FZR 1000 Genesis 2LA 1987
Yamaha 751 - 1000 cc FZR 1000 Genesis 2LA 1988
