DID chain kit for Yamaha FZR 400 RR 1992 428 NZ chain kit

DID Chain Kit for Yamaha FZR 400 RR 1992 428 NZ Chain Kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility representation only!

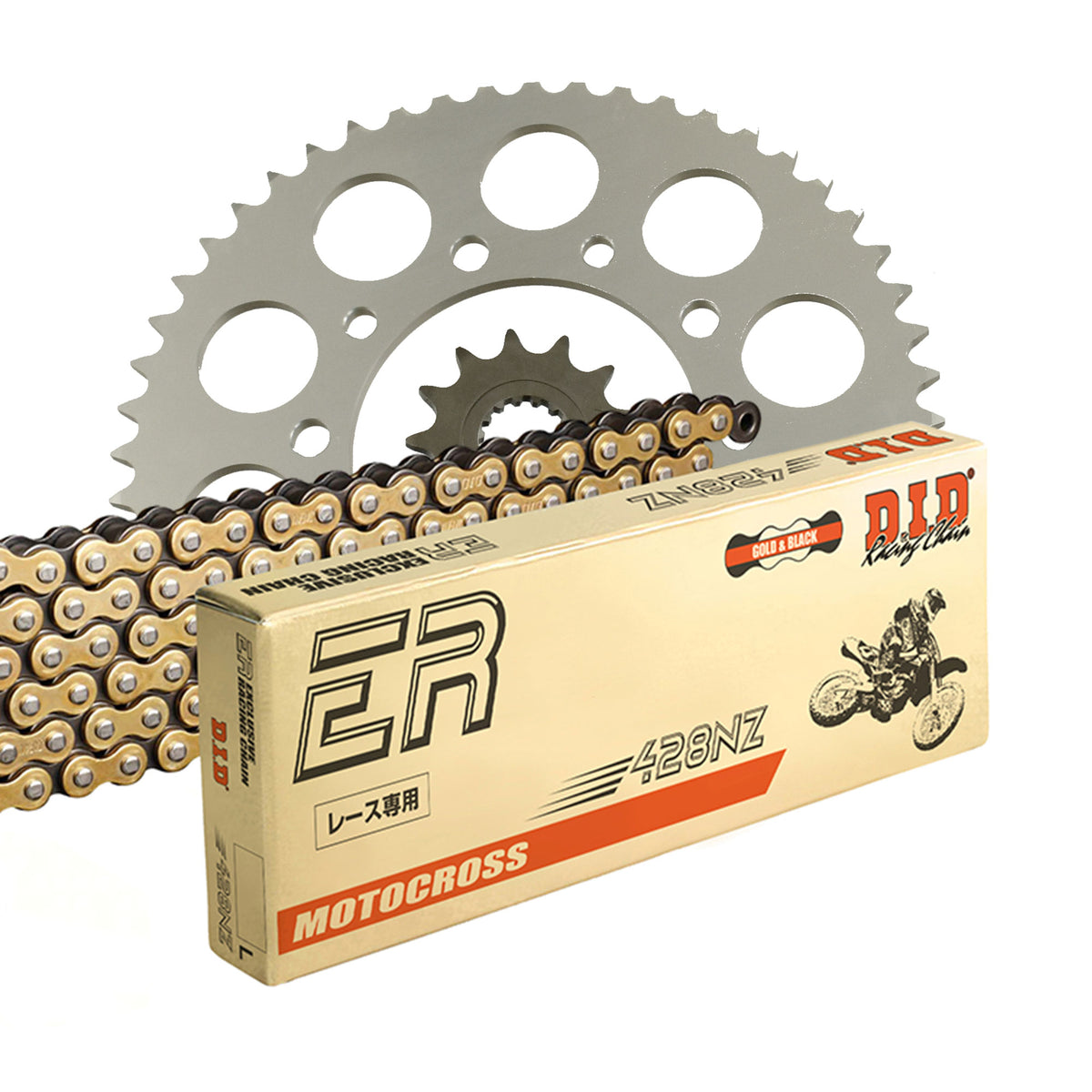

Components of the chain kit Yamaha FZR 400 RR 4DX 1992-1992

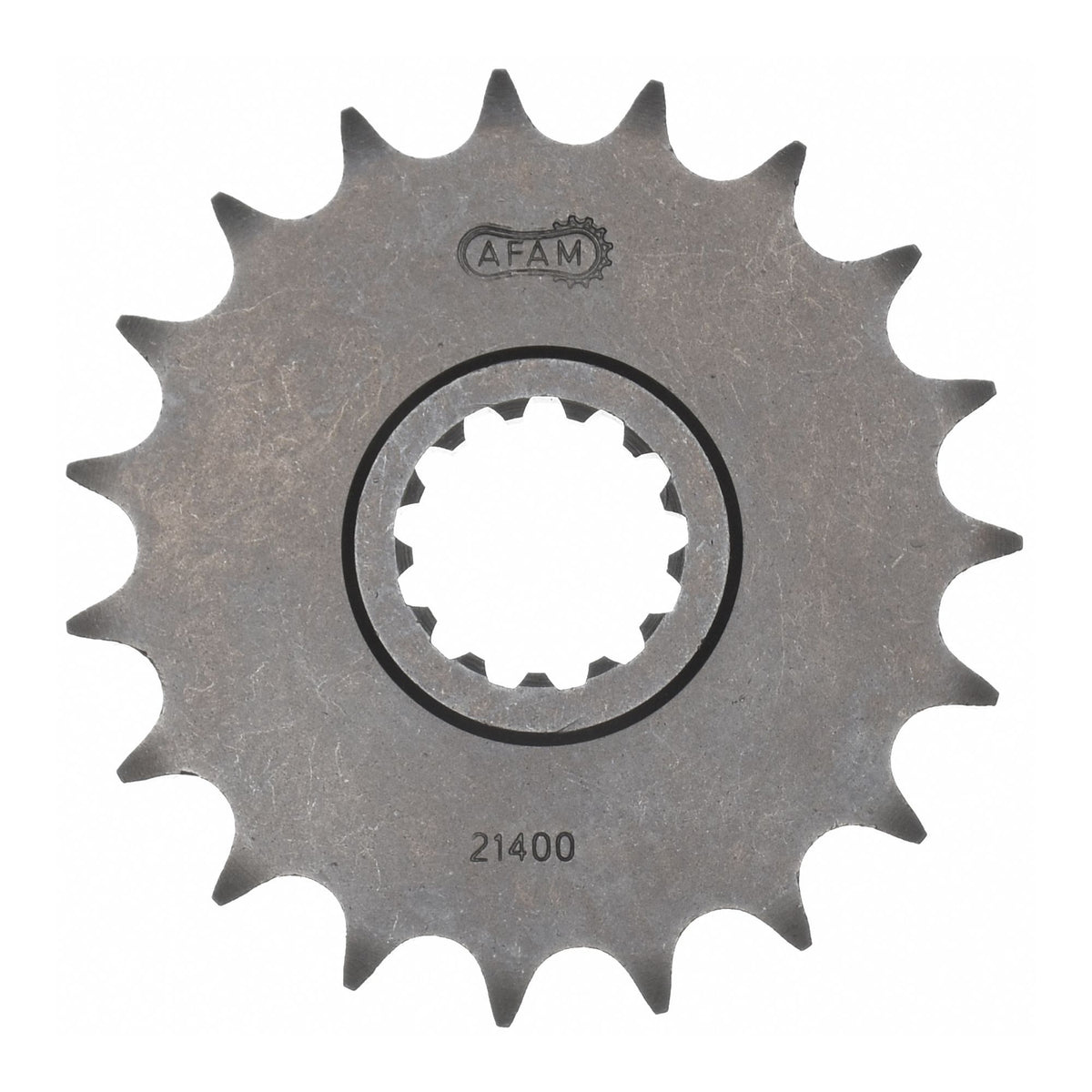

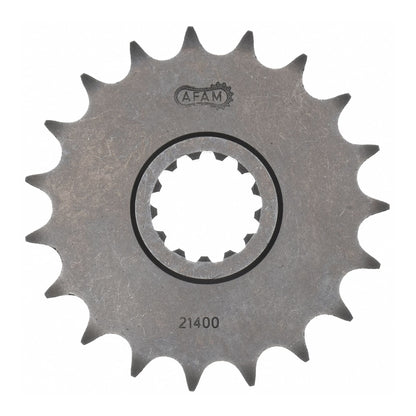

• Sprocket: AFAM sprocket #428 19 teeth - a21400.19

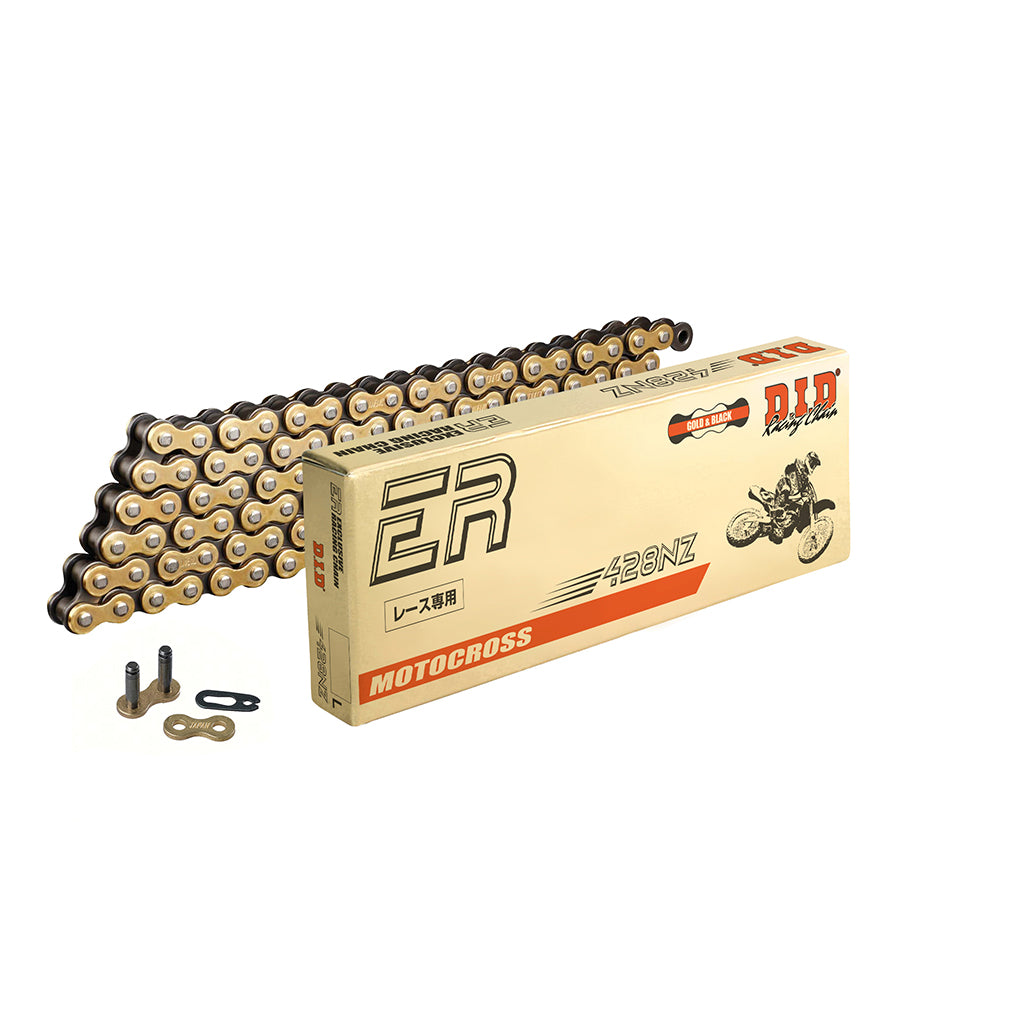

• Chain: DID chain 428 NZ G&B 130 with clip connecting link - d6242802130

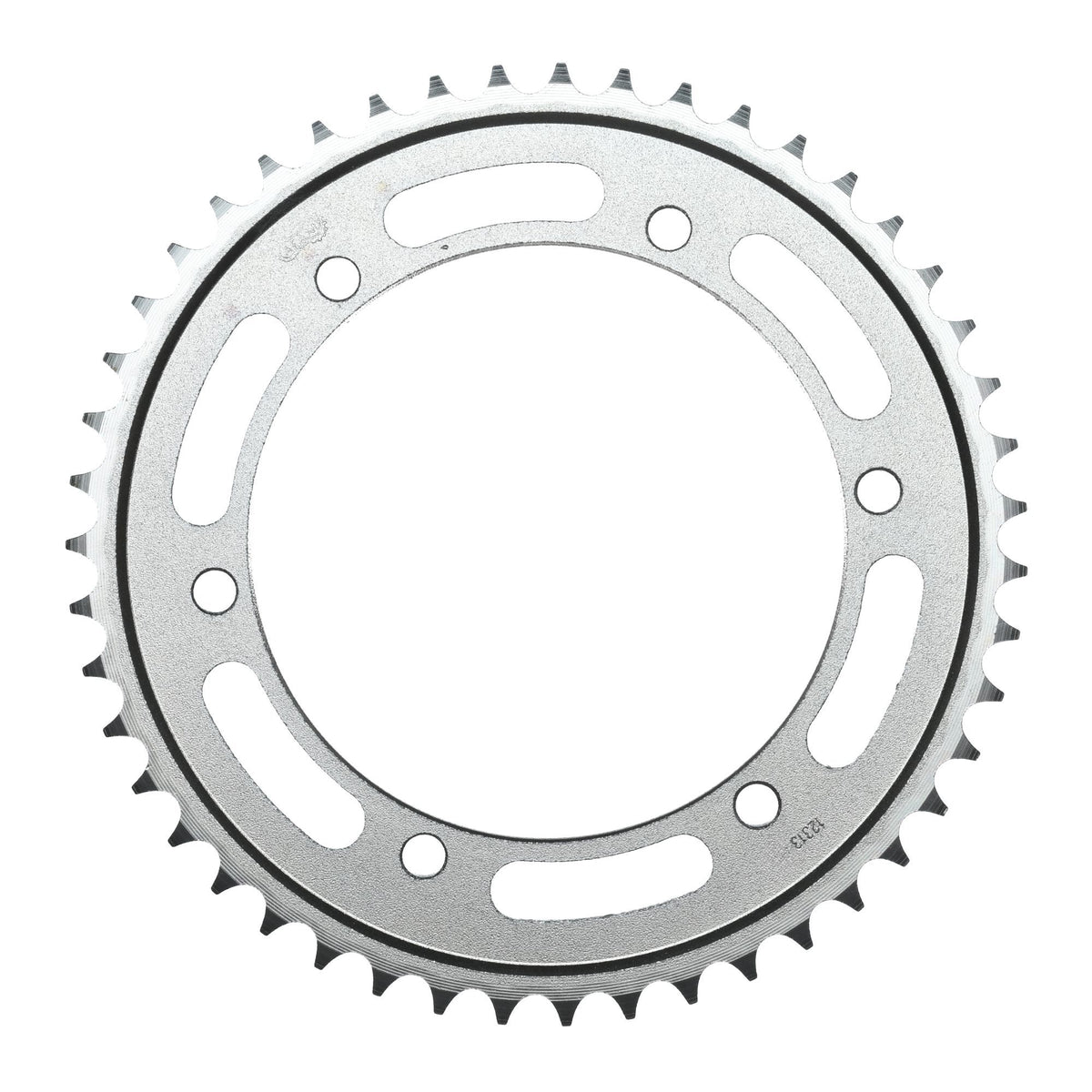

• Rear sprocket: AFAM sprocket STEEL #428 55 teeth - a12313.55
• Transmission ratio sprocket-chain-rear sprocket: 19-130-55

DID 428 NZ

Extra reinforced chain
Without sealing rings
Color: Gold/Black
Application by displacement: up to 150 ccm

Technical data:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 410
Tensile strength: 25.50 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-34504

Fits

Yamaha 251 - 500 ccm FZR 400 RR 4DX 1992
