DID chain kit for Yamaha FZS 1000 Fazer S 03-04 530 VX3 chain kit

DID chain set for Yamaha FZS 1000 Fazer S 03-04 530 VX3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless stated otherwise: Not an original part - manufacturer names are for compatibility purposes only!

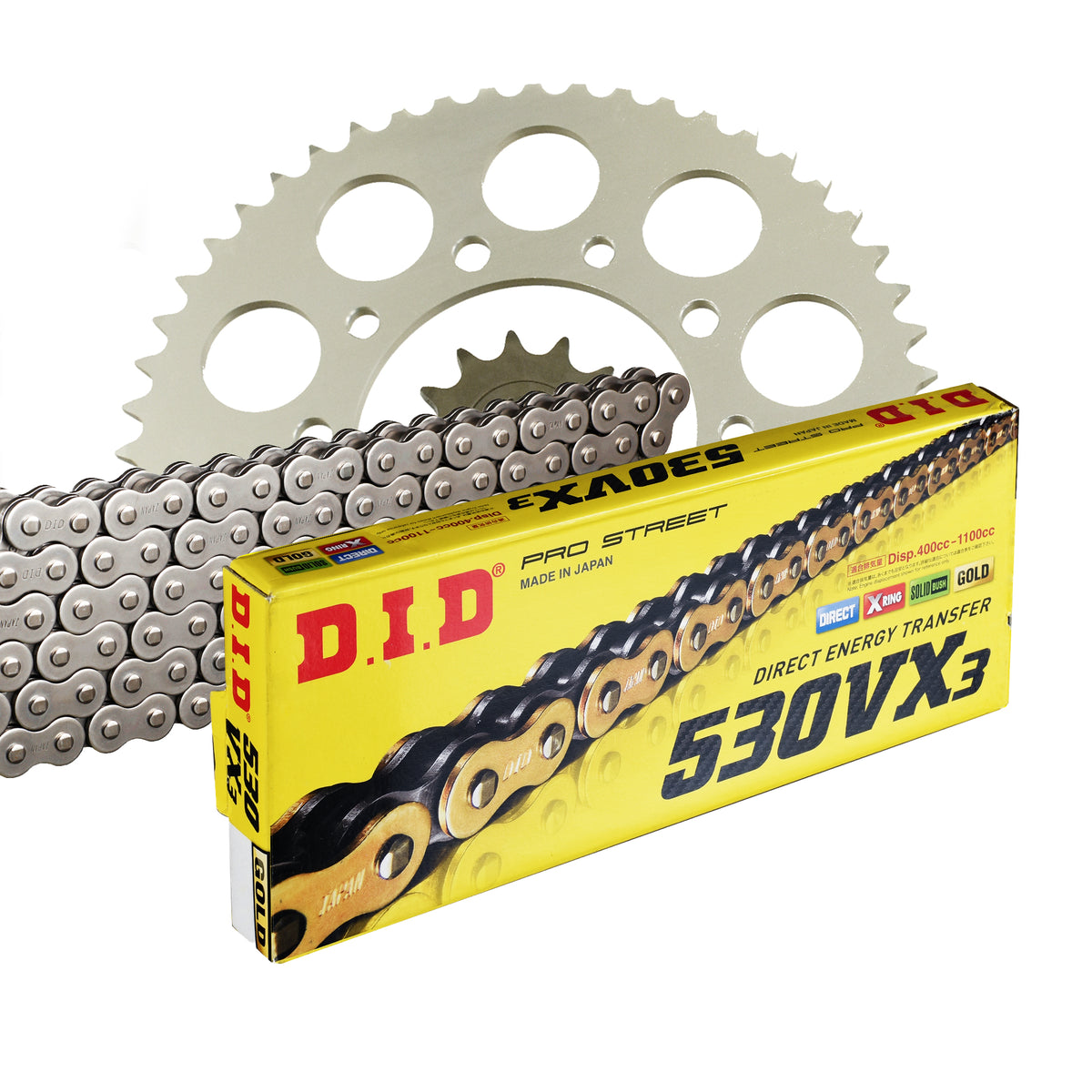

Components of the chain kit Yamaha FZS 1000 Fazer S RN06 2003-2004

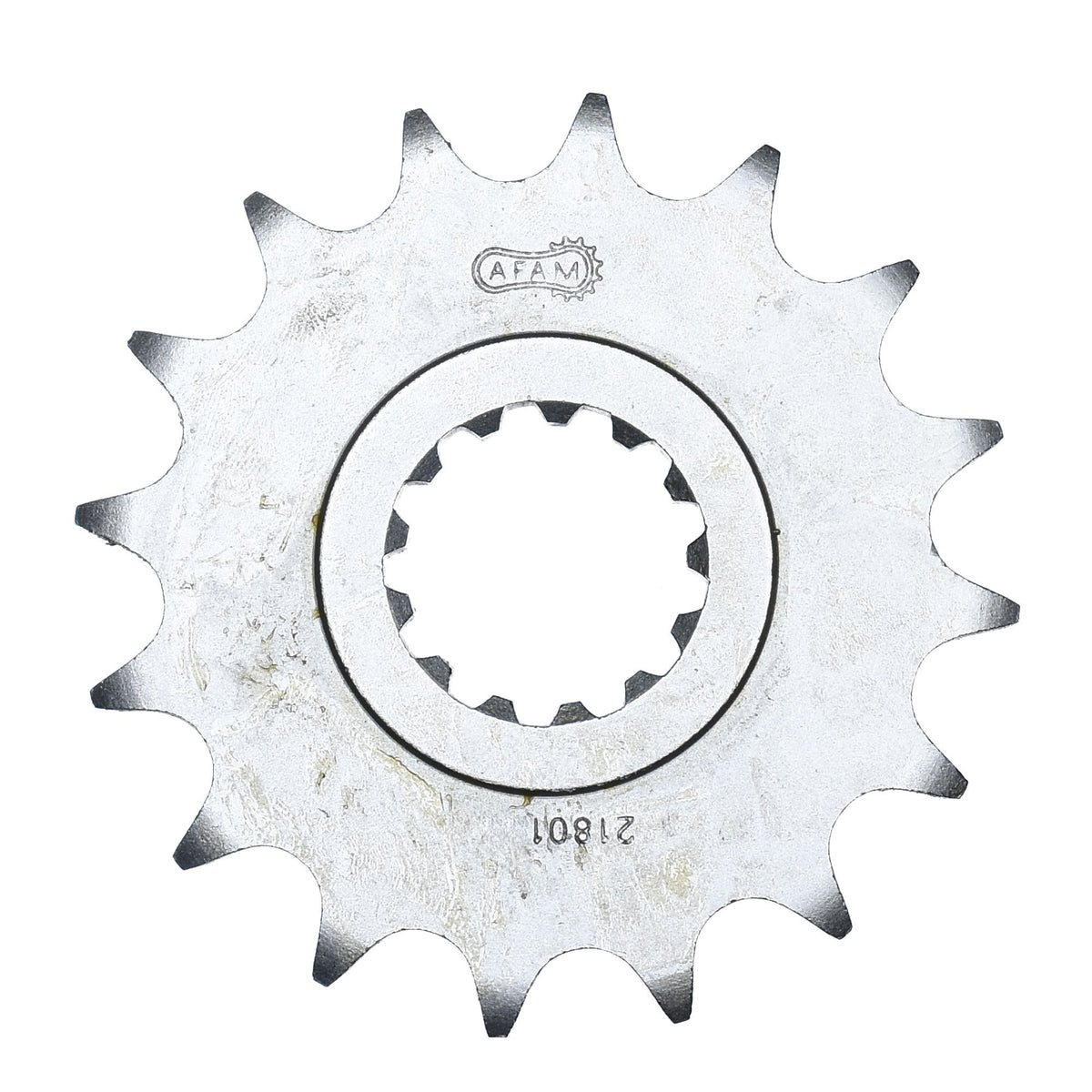

• Front sprocket: AFAM front sprocket #530 16 teeth - a21801.16

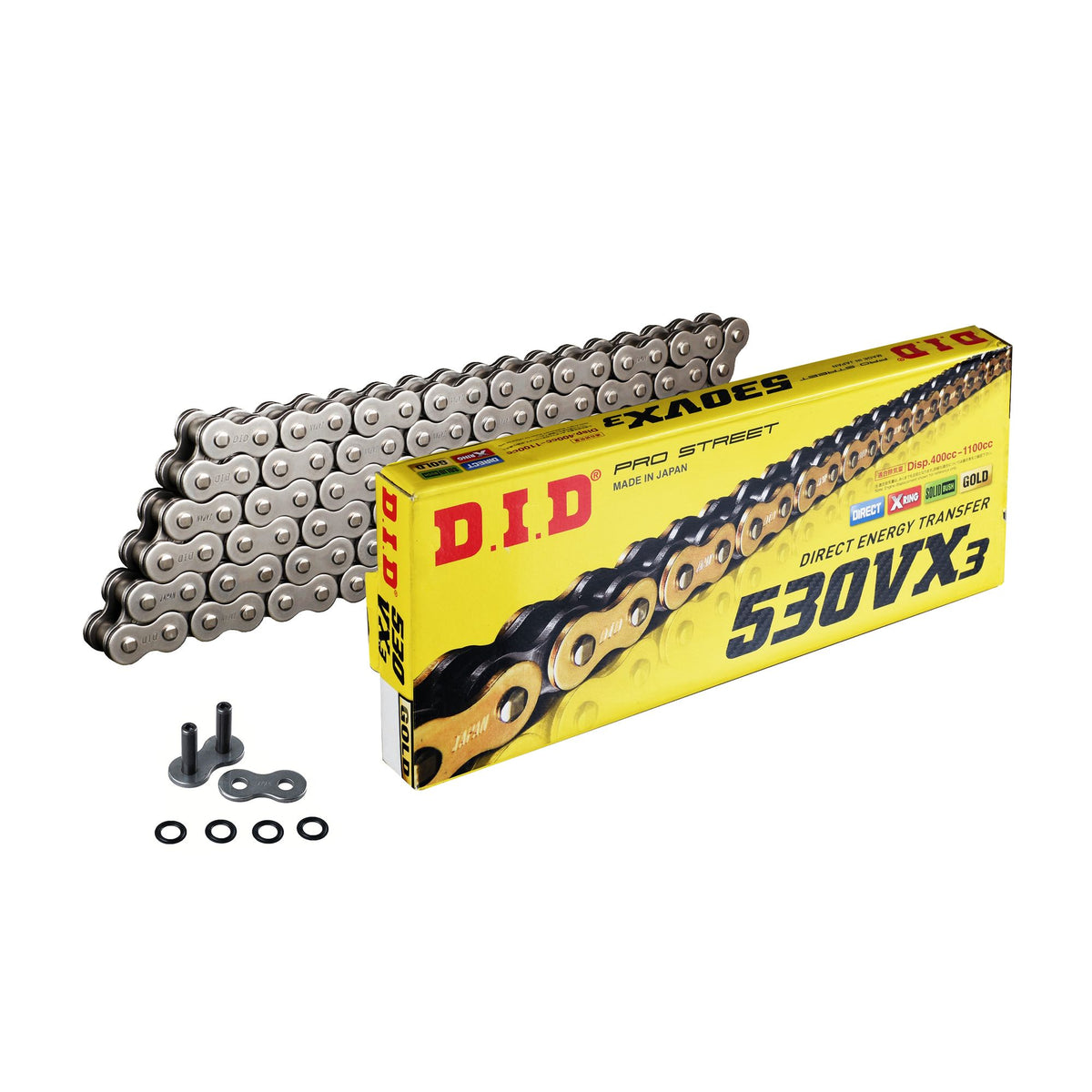

• Chain: DID chain 530 VX3 B&B 116 with rivet link - d530vx3-116

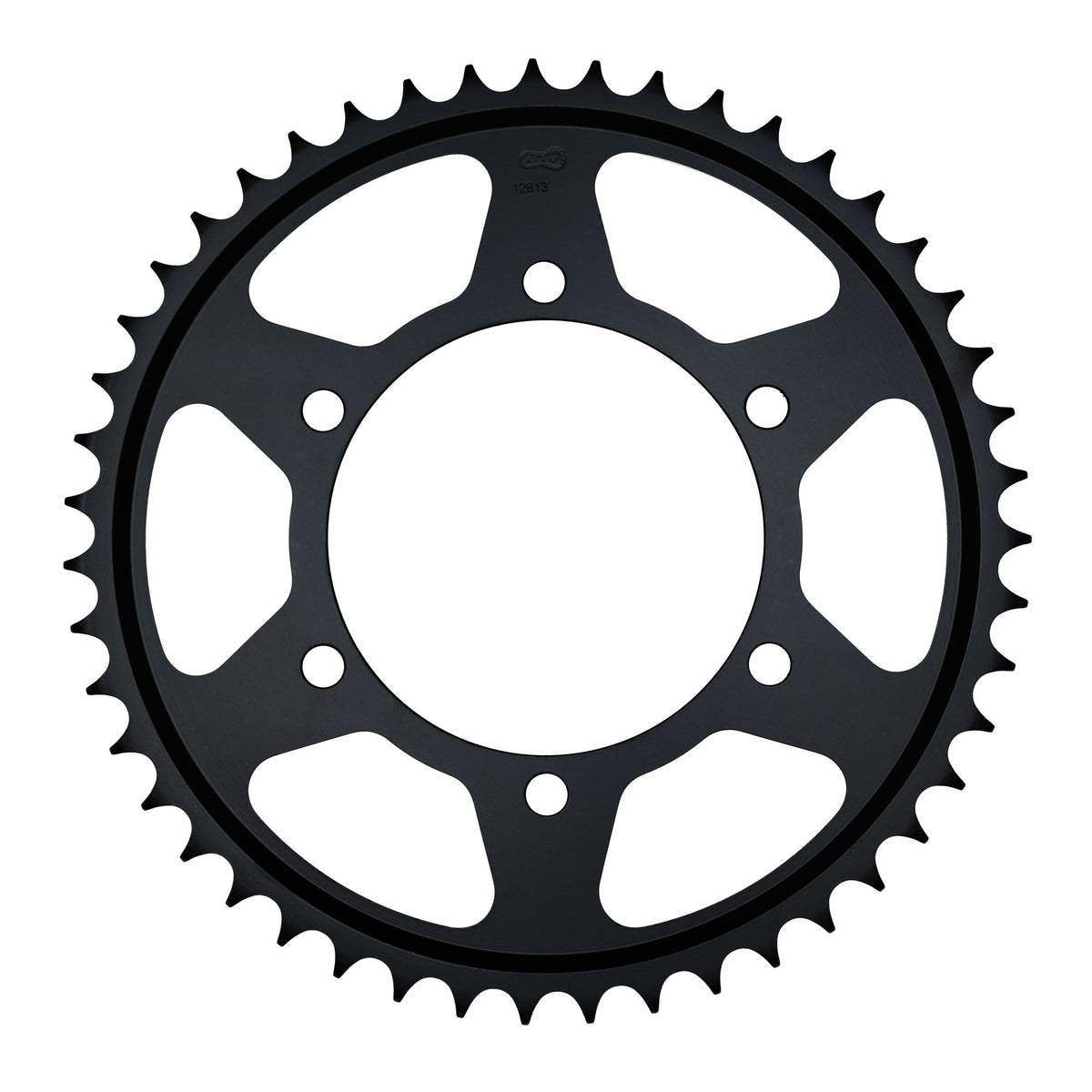

• Rear sprocket: AFAM rear sprocket STEEL #530 44 teeth - a12813.44
• Gear ratio front sprocket-chain-rear sprocket: 16-116-44

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical data:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Mileage index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless stated otherwise: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is solely for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-38302

Suitable for

Yamaha 751 - 1000 cc FZS 1000 Fazer S RN06 2003
Yamaha 751 - 1000 cc FZS 1000 Fazer S RN06 2004
