DID chain kit for Yamaha MT-09 Tracer ABS 15-16 525 ZVMX chain kit

DID chain kit for Yamaha MT-09 Tracer ABS 15-16 525 ZVMX chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

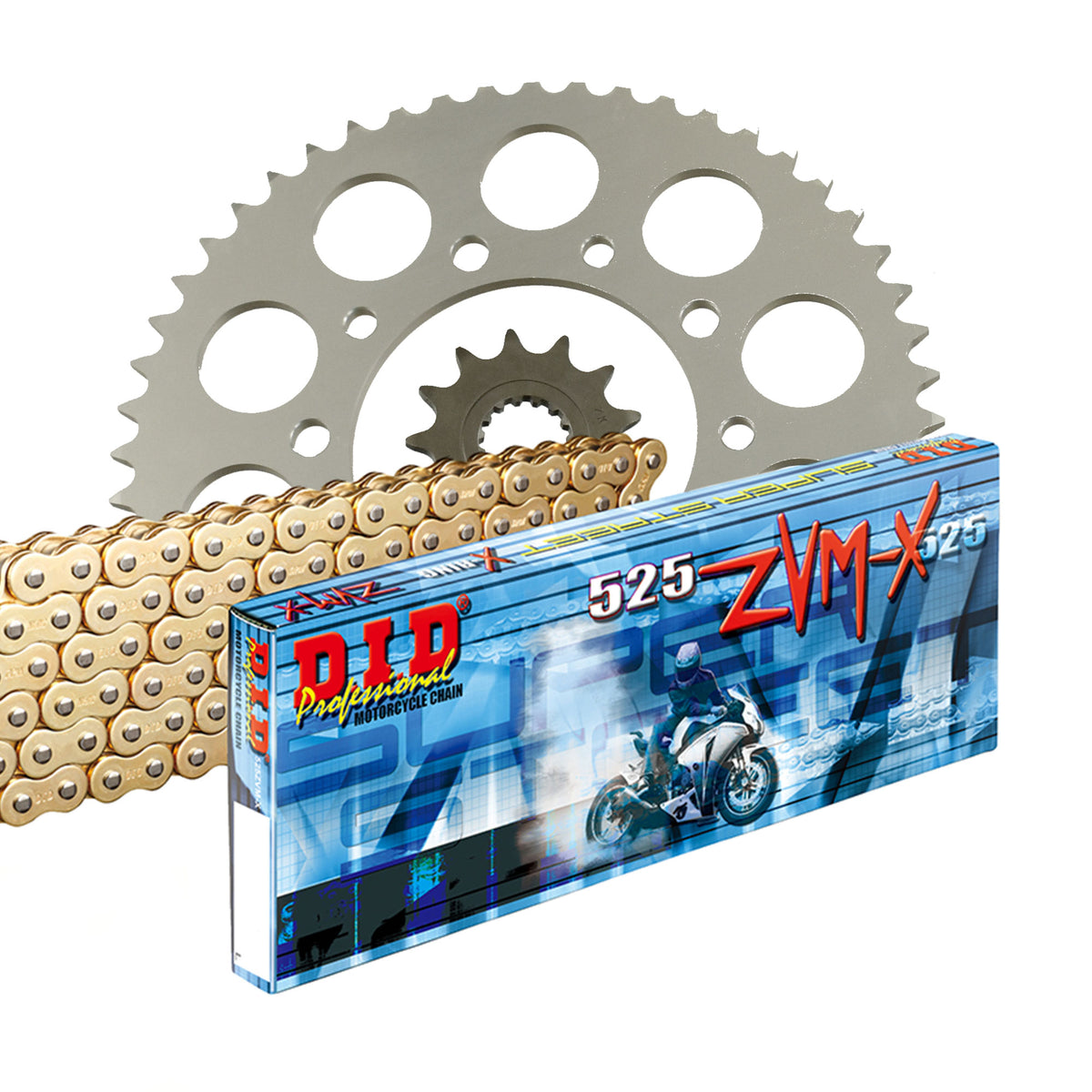

Components of the chain kit Yamaha MT-09 Tracer ABS RN29 2015-2016

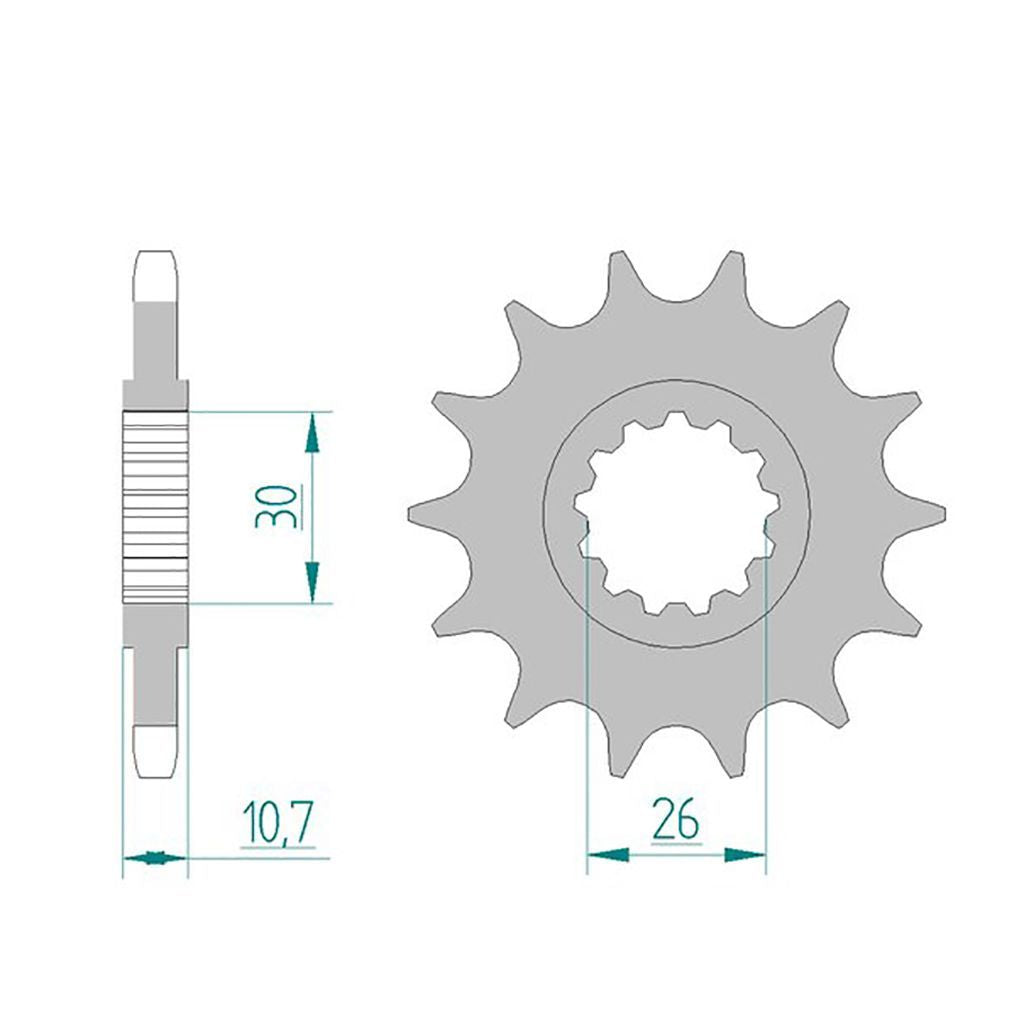

• Sprocket: AFAM sprocket #525 16 teeth - a21607.16

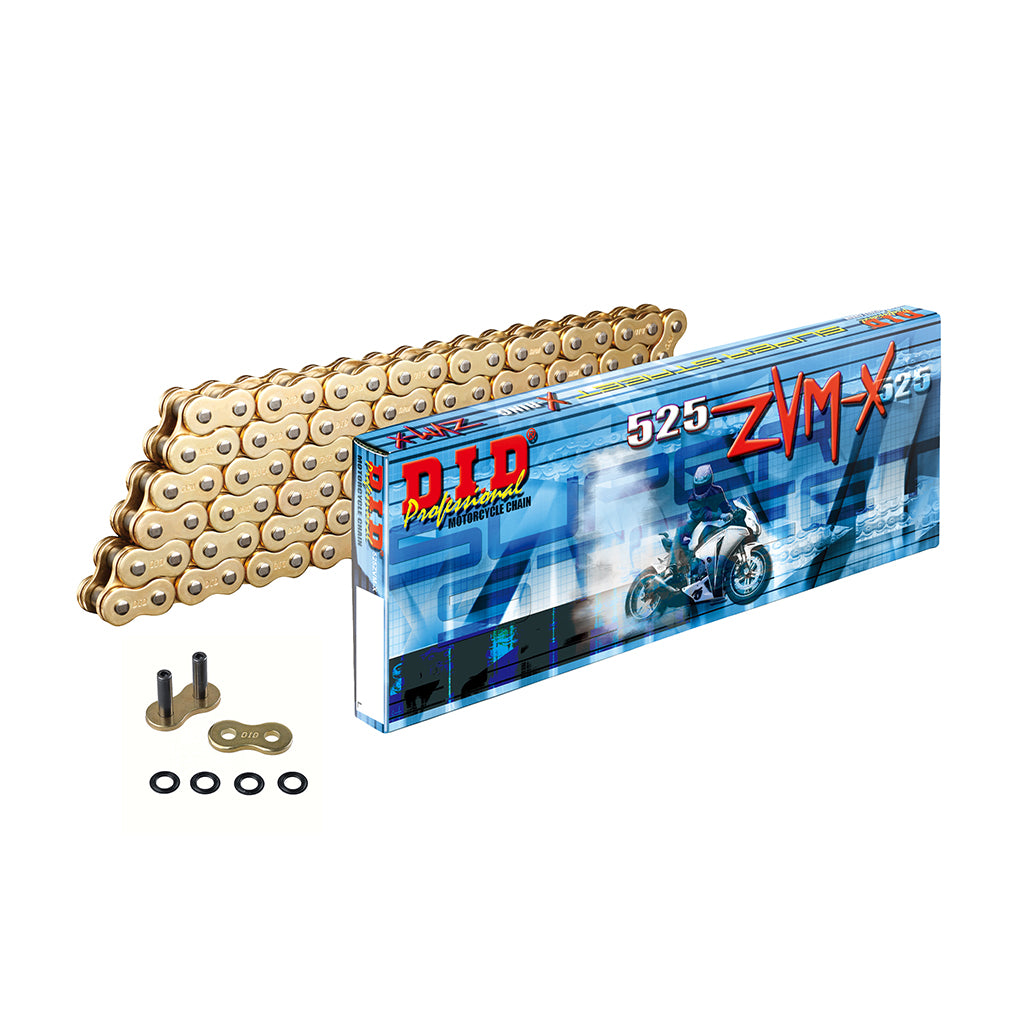

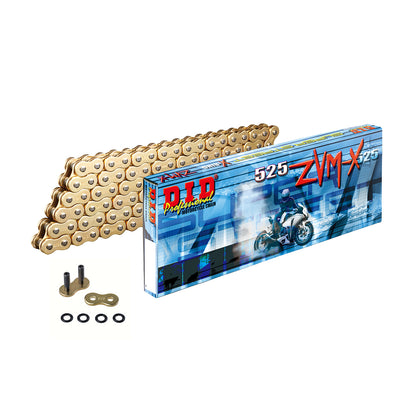

• Chain: DID chain 525 ZVM-X G&G 110 w. rivet link - d6252529110

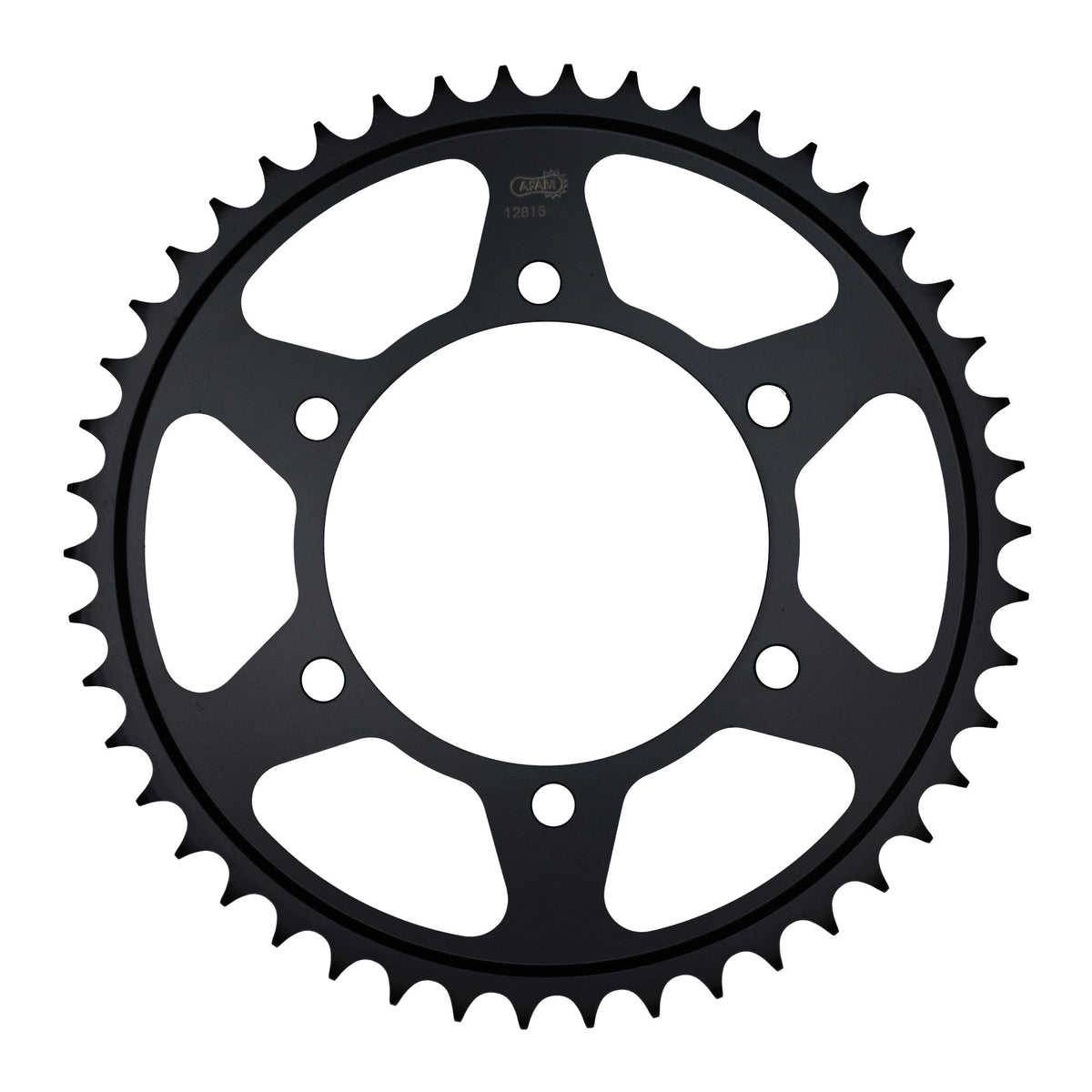

• Chainwheel: AFAM chainwheel STEEL #525 45 teeth - a12815.45
• Gear ratio sprocket-chain-chainwheel: 16-110-45

DID 525 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 ccm

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear index: 4000
Tensile strength: 46.30 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-48680

Fits

Yamaha 751 - 1000 ccm MT-09 Tracer ABS RN29 2015
Yamaha 751 - 1000 ccm MT-09 Tracer ABS RN29 2016
