DID chain set for Yamaha SR 500 SP (drum brake) 88-90 530 NZ chain kit

DID chain kit for Yamaha SR 500 SP (drum brake) 88-90 530 NZ chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

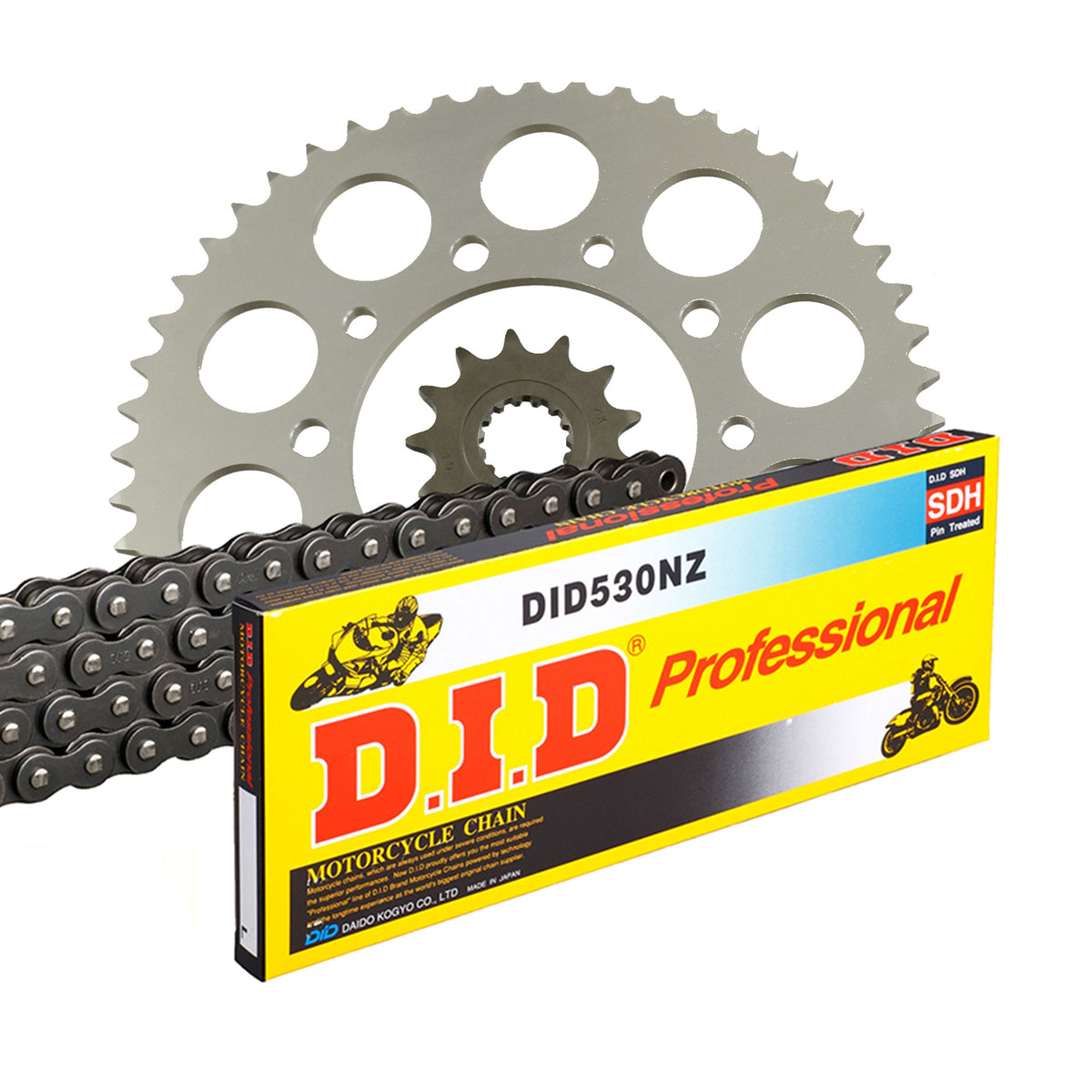

Components of the chain kit Yamaha SR 500 SP (drum brake) 48T 1988-1990

• Sprocket: AFAM sprocket #530 16 teeth - a28400.16

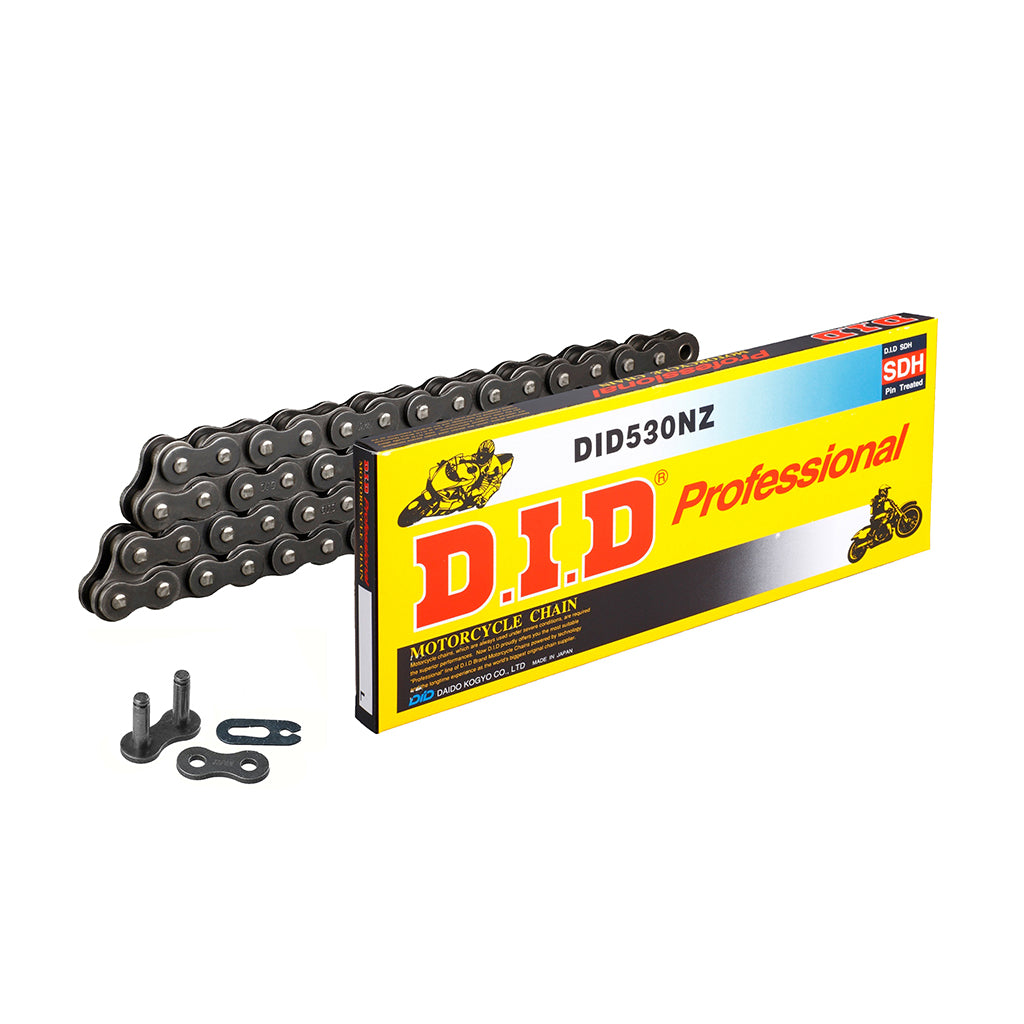

• Chain: DID chain 530 NZ 102 with clip link - d6253001102

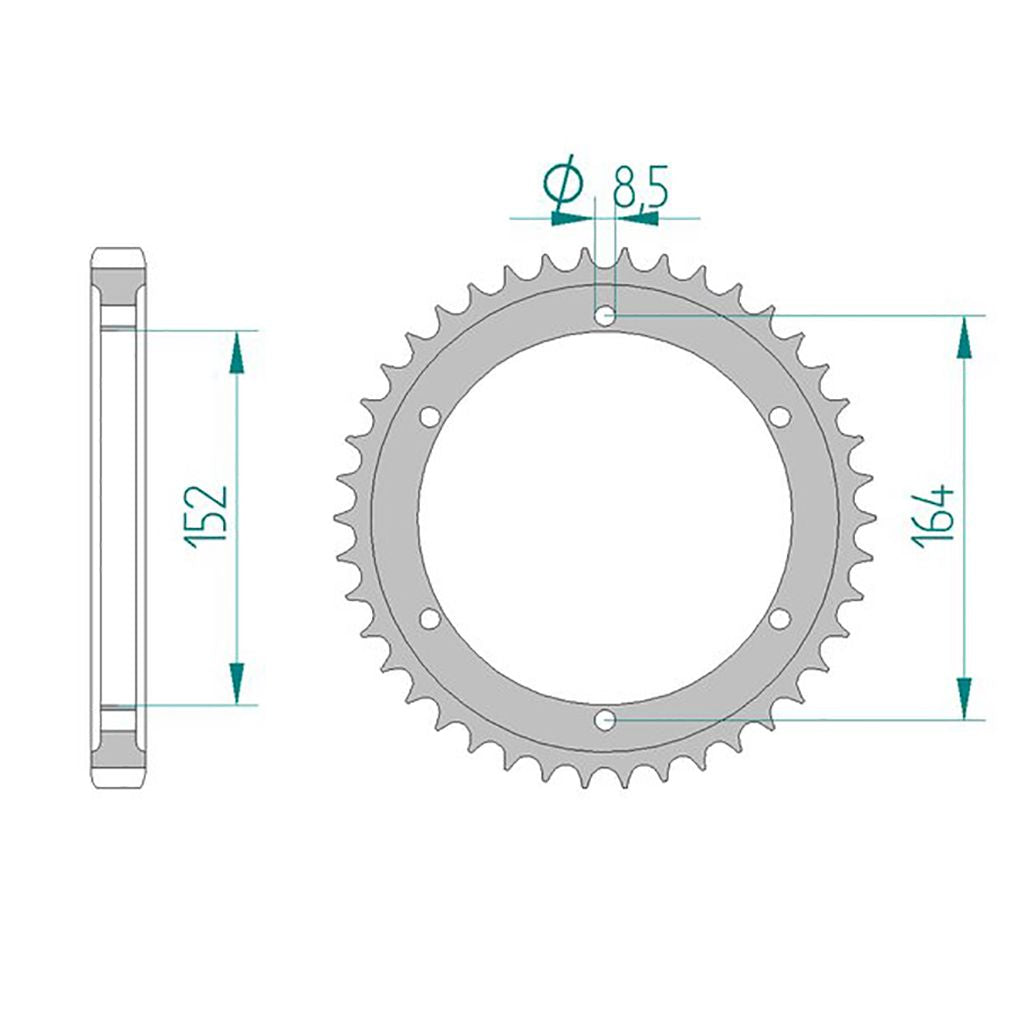

• Rear sprocket: AFAM STEEL rear sprocket #530 42 teeth - a12503.42
• Transmission ratio sprocket-chain-rear sprocket: 16-102-42

DID 530 NZ

Extra reinforced chain, especially for classic bikes and Harleys
Without O-rings
Color: Black

Technical data:
Pitch: 530
Pin length: 22.55 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.4 mm
Wear resistance index: 410
Tensile strength: 38.30 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-28822

Suitable for

Yamaha 251 - 500 cc SR 500 SP (drum brake) 48T 1988
Yamaha 251 - 500 cc SR 500 SP (drum brake) 48T 1989
Yamaha 251 - 500 cc SR 500 SP (drum brake) 48T 1990
