DID chain kit for Yamaha TZR 125 (Japan) 97-99 428 HD chain kit

DID chain set for Yamaha TZR 125 (Japan) 97-99 428 HD chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha TZR 125 (Japan) 4FL 1997-1999

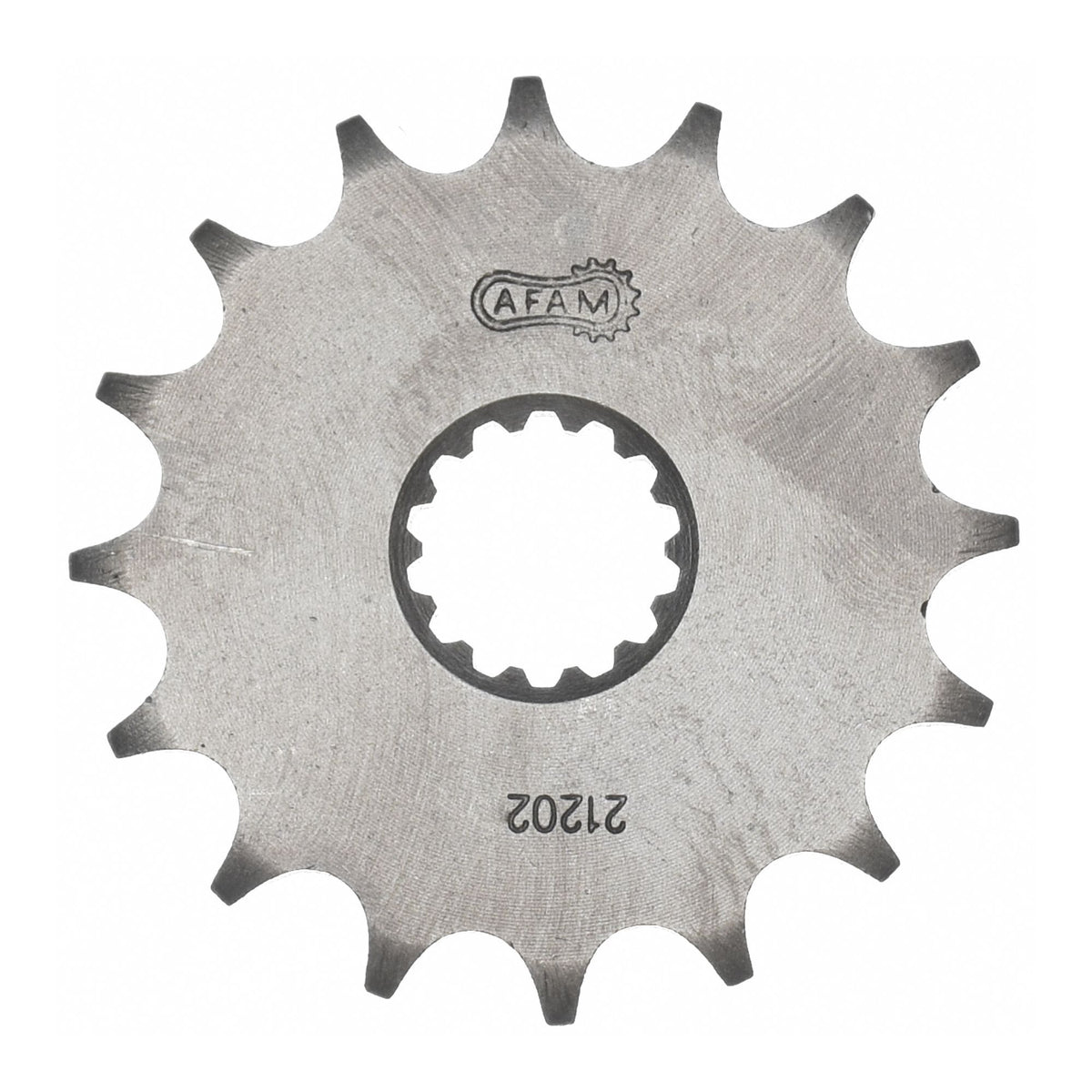

• Front sprocket: AFAM front sprocket #428 16 teeth - a21202.16
• Chain: DID chain 428 HD 140 with clip master link - d6242801140

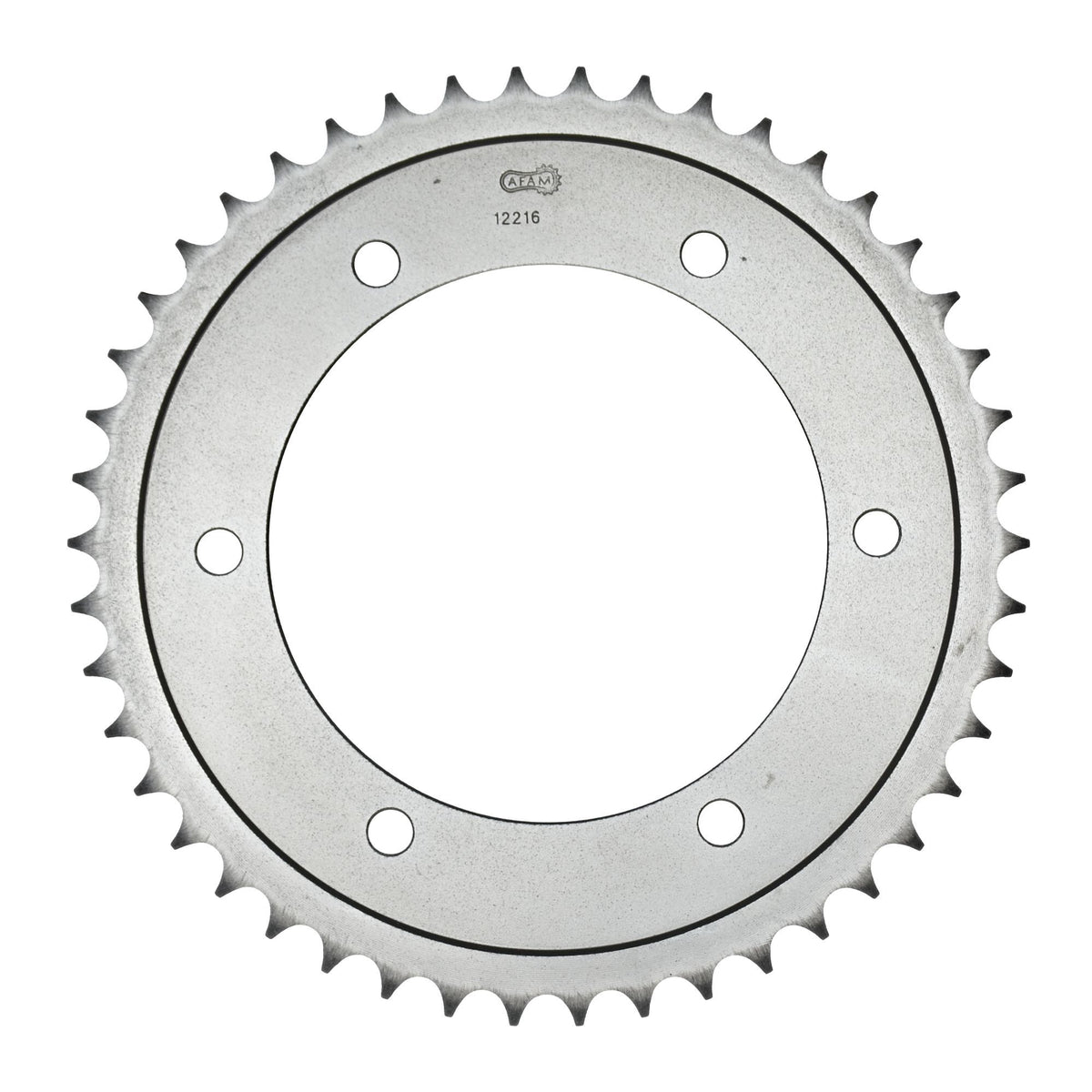

• Rear sprocket: AFAM rear sprocket STEEL #428 46 teeth - a12216.46
• Gear ratio front sprocket-chain-rear sprocket: 16-140-46

DID 428 HD

Slightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The offered product is a third-party accessory/spare part, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-53176

Suitable for

Yamaha 101 - 125 ccm TZR 125 (Japan) 4FL 1997
Yamaha 101 - 125 ccm TZR 125 (Japan) 4FL 1998
Yamaha 101 - 125 ccm TZR 125 (Japan) 4FL 1999
