DID chain kit for Yamaha TZR 125 R (Belgarda) 91-93 428 D chain kit

DID chain kit for Yamaha TZR 125 R (Belgarda) 91-93 428 D chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

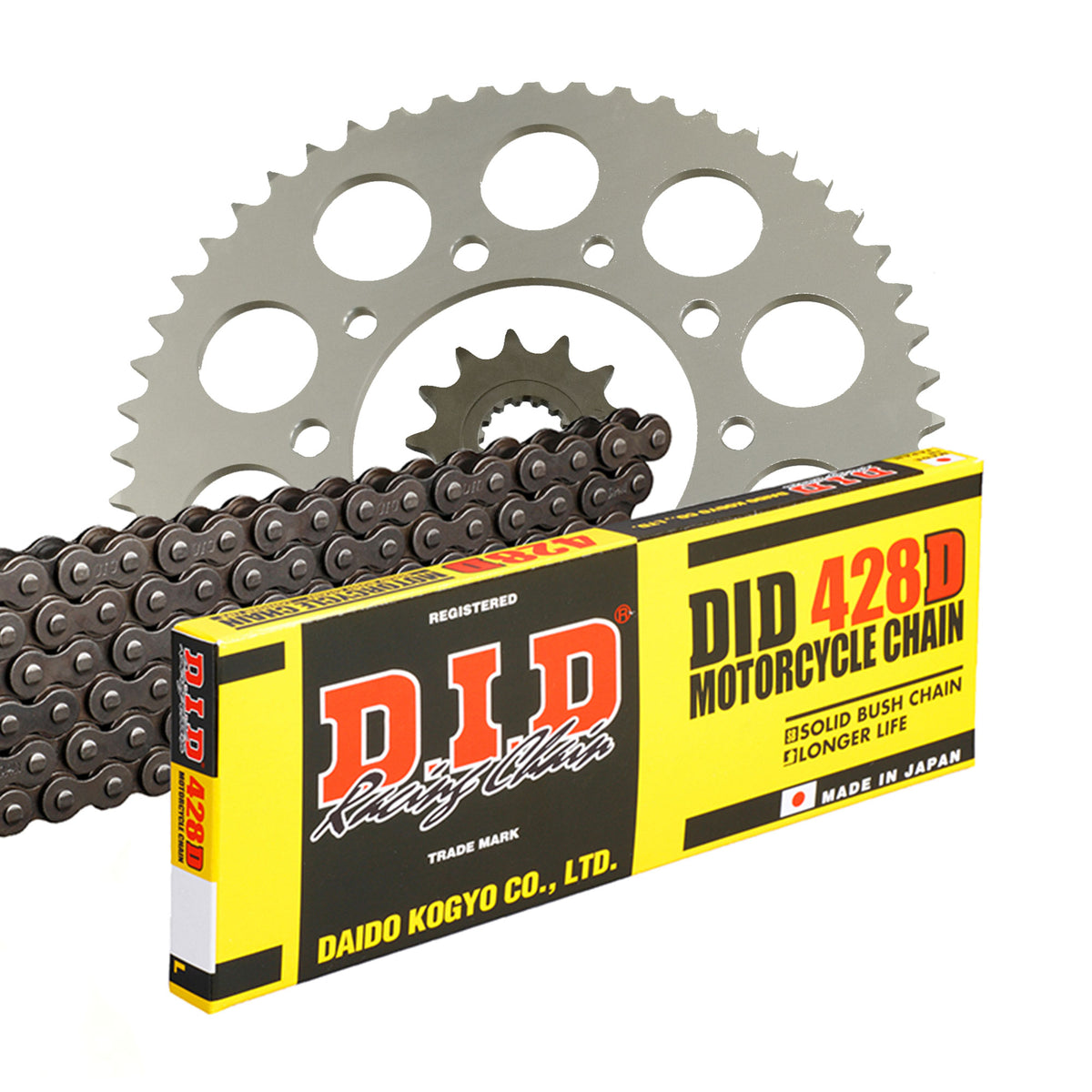

Components of the chain kit for Yamaha TZR 125 R (Belgarda) 4DL 1991-1993

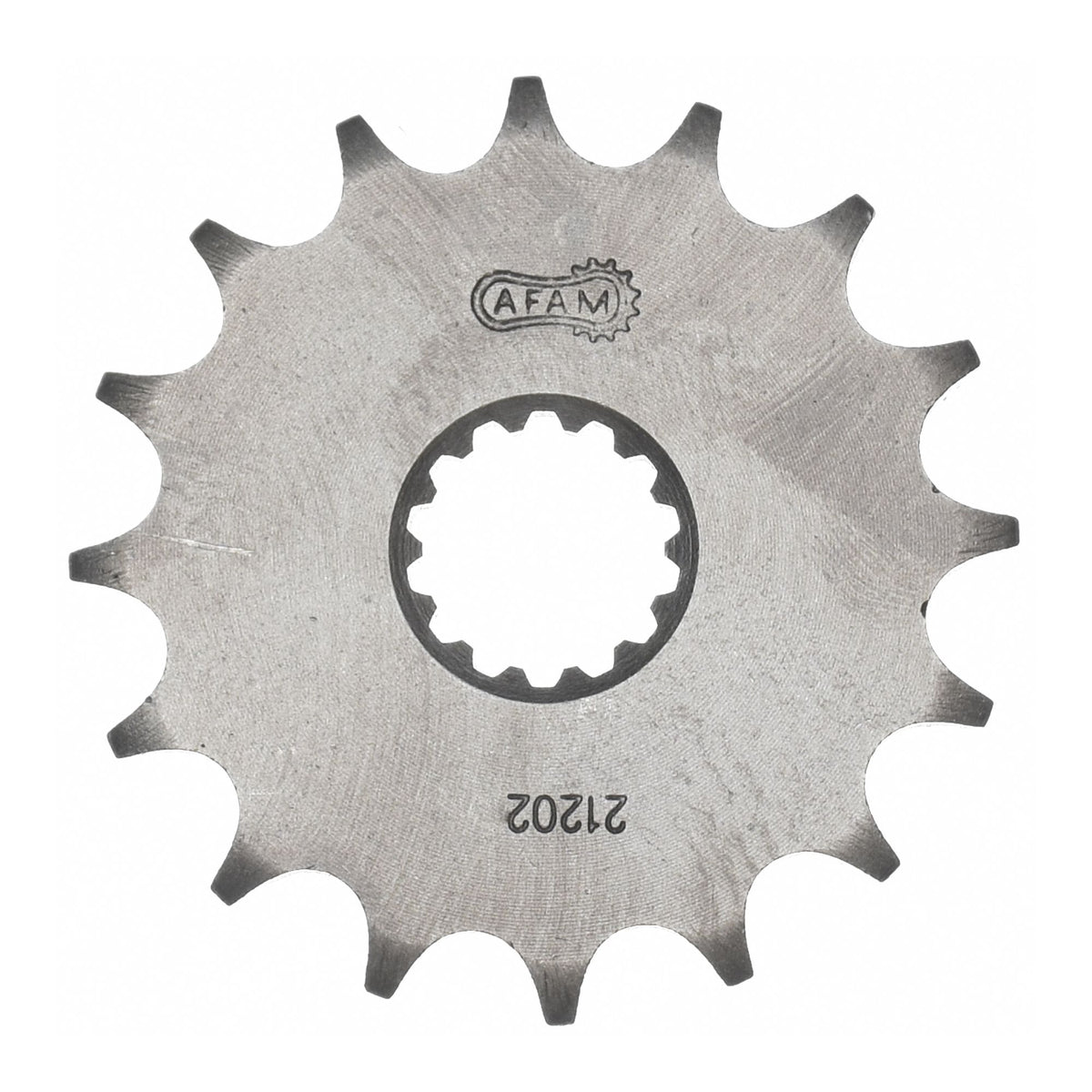

• Front sprocket: AFAM sprocket #428 18 teeth - a21202.18

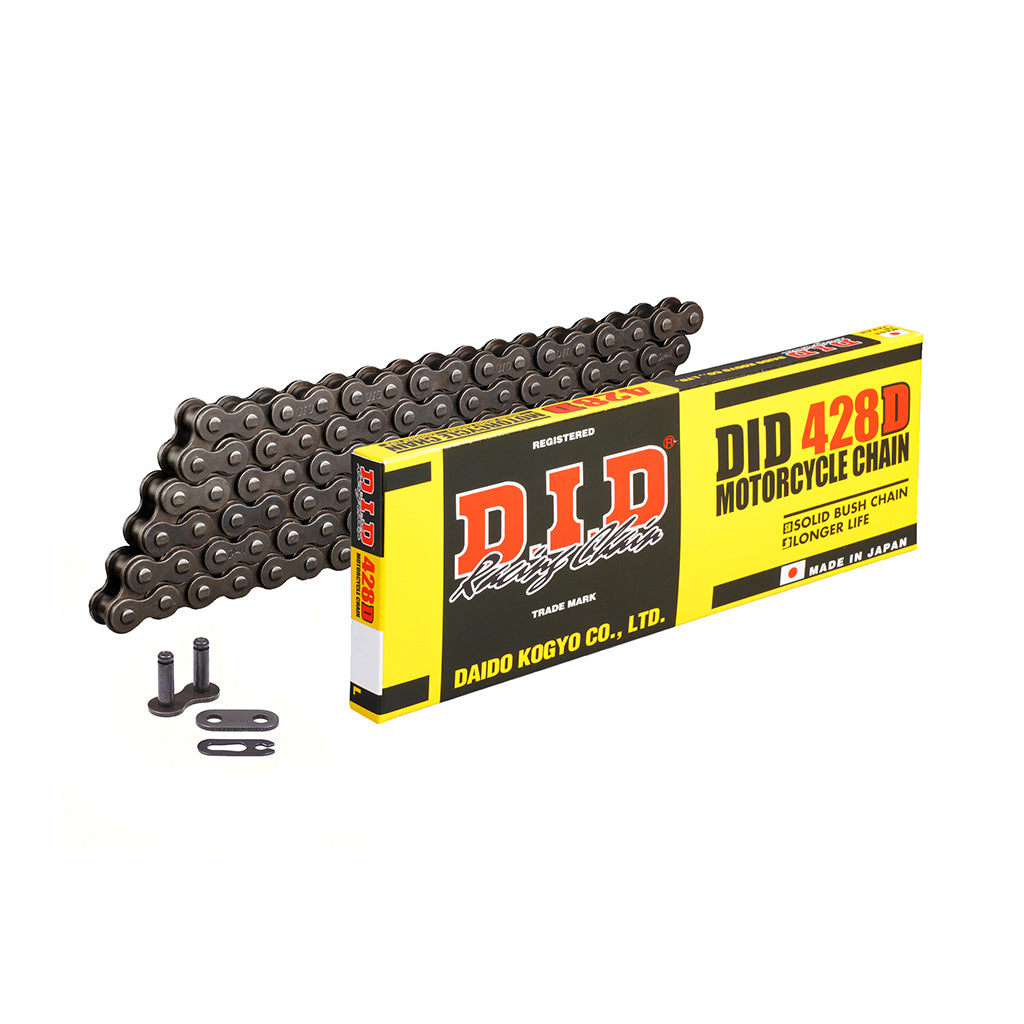

• Chain: DID chain 428 D 136 with clip link - d6242800136

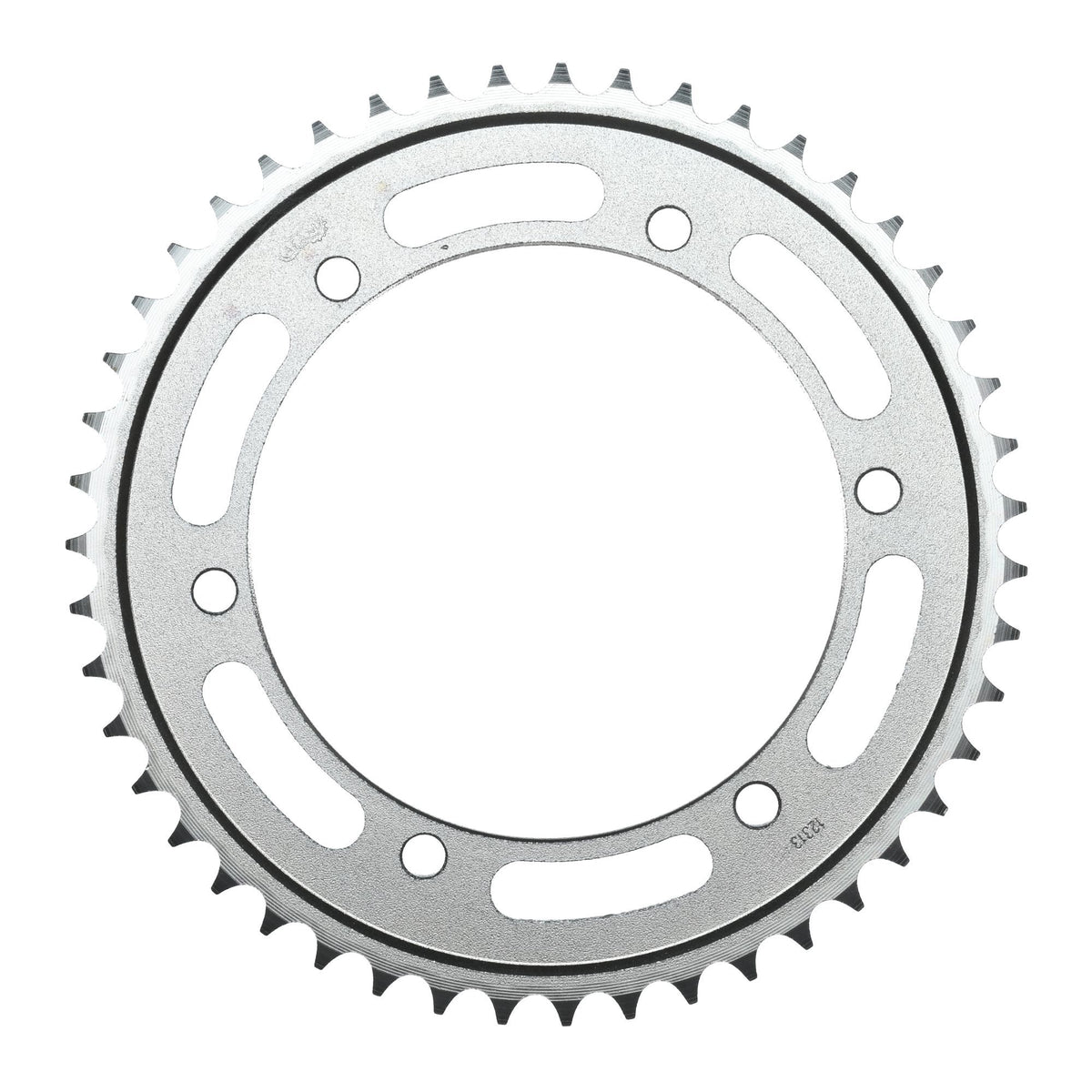

• Rear sprocket: AFAM STEEL sprocket #428 47 teeth - a12313.47
• Gear ratio sprocket-chain-rear sprocket: 18-136-47

DID 428 D

Affordable and simple standard chain
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 16.7 mm
Roller Ø: 8.50 mm
Inner plate thickness: 1.5 mm
Outer plate thickness: 1.5 mm
Wear resistance index: 100
Tensile strength: 18.80 kN
Weight per 100 links: 0.84 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-30280

Suitable for

Yamaha 101 - 125 cc TZR 125 R (Belgarda) 4DL 1991
Yamaha 101 - 125 cc TZR 125 R (Belgarda) 4DL 1992
Yamaha 101 - 125 cc TZR 125 R (Belgarda) 4DL 1993
