DID chain kit for Yamaha TZR 125 R (Belgarda) 91-93 428 HD chain kit

DID chain kit for Yamaha TZR 125 R (Belgarda) 91-93 428 HD chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility identification only!

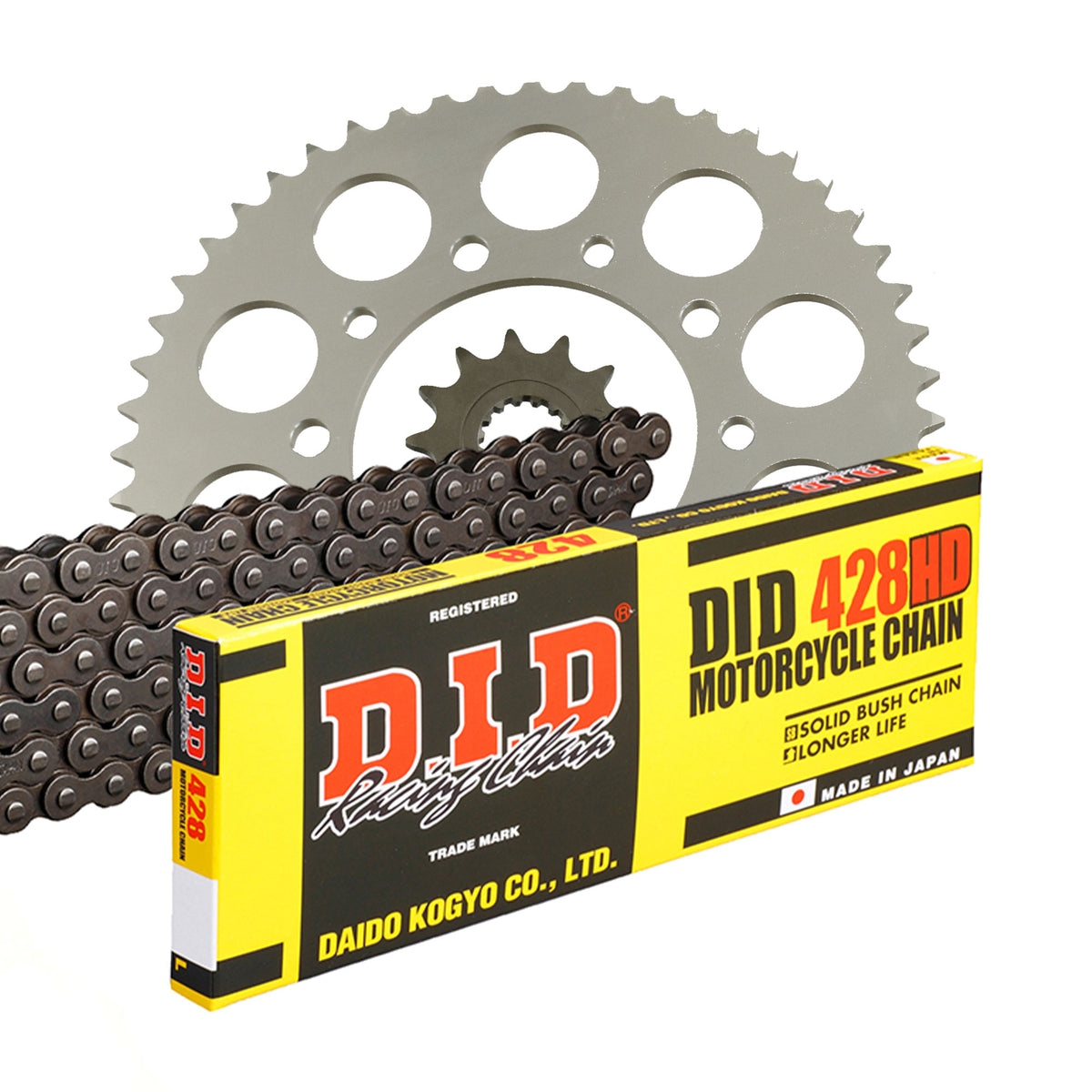

Components of the chain kit for Yamaha TZR 125 R (Belgarda) 4DL 1991-1993

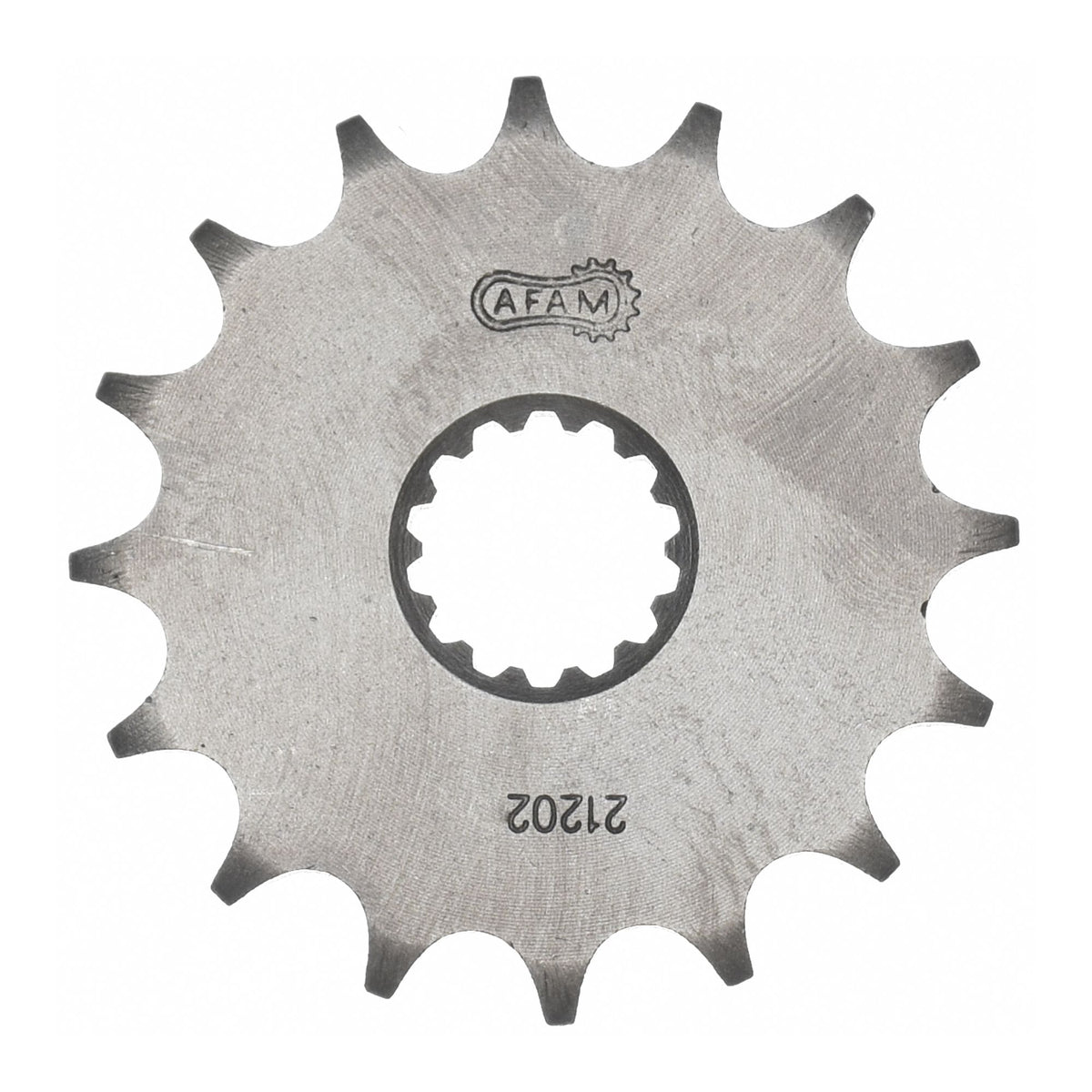

• Front sprocket: AFAM front sprocket #428 18 teeth - a21202.18

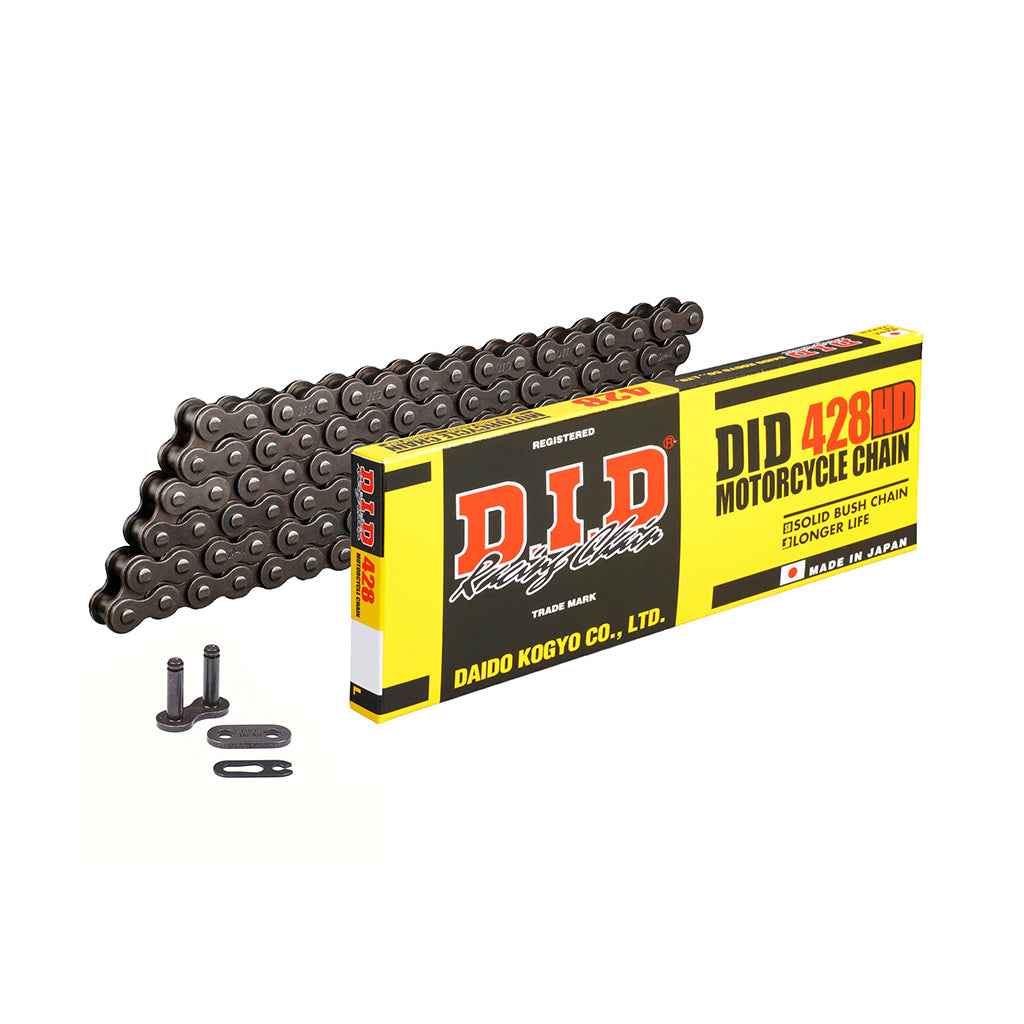

• Chain: DID chain 428 HD 136 with clip link - d6242801136

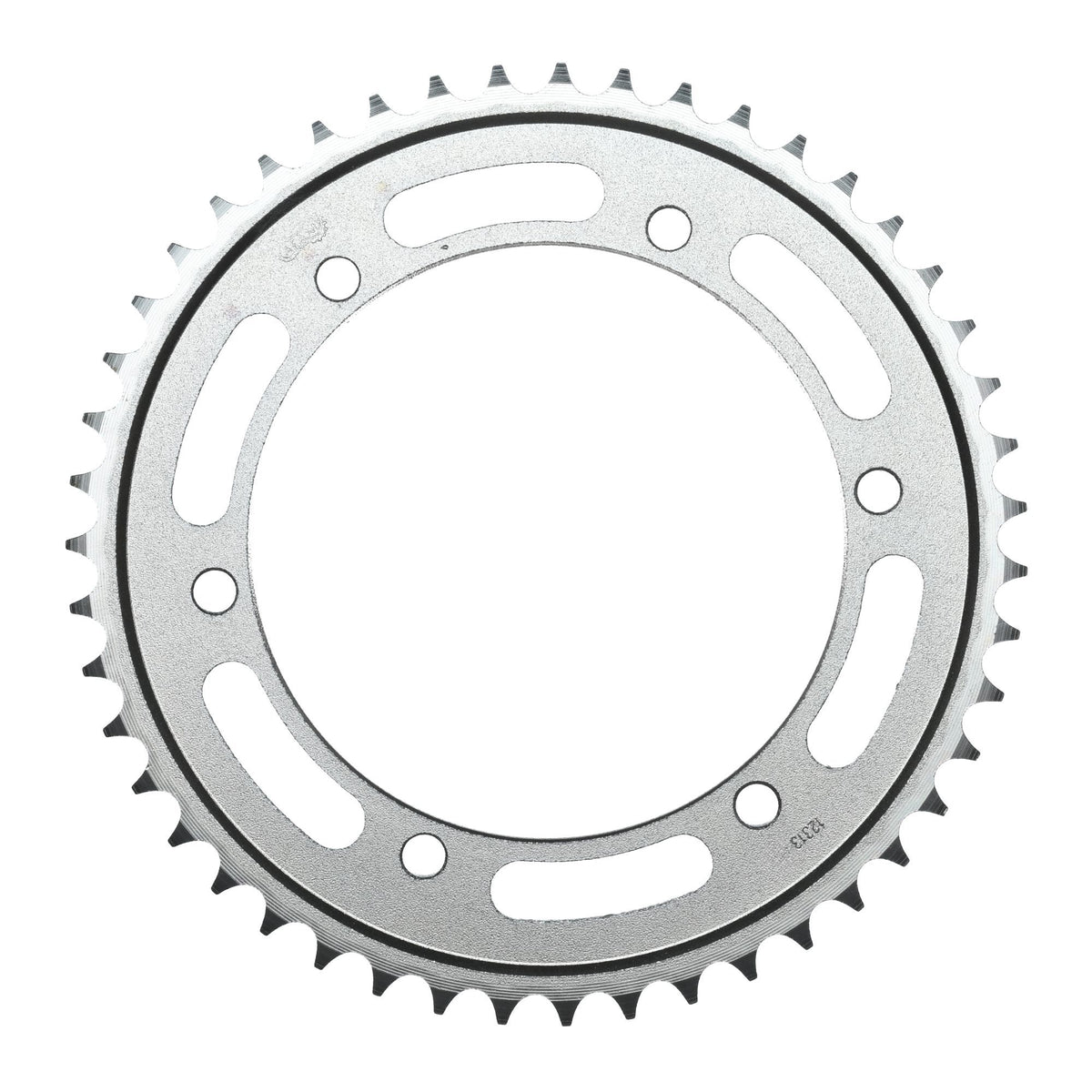

• Rear sprocket: AFAM rear sprocket STEEL #428 47 teeth - a12313.47
• Gear ratio sprocket-chain-rear sprocket: 18-136-47

DID 428 HD

Lightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-38503

Suitable for

Yamaha 101 - 125 ccm TZR 125 R (Belgarda) 4DL 1991
Yamaha 101 - 125 ccm TZR 125 R (Belgarda) 4DL 1992
Yamaha 101 - 125 ccm TZR 125 R (Belgarda) 4DL 1993
