DID chain kit for Yamaha TZR 125 R (Belgarda) 91-93 428 VX chain kit

DID chain kit for Yamaha TZR 125 R (Belgarda) 91-93 428 VX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

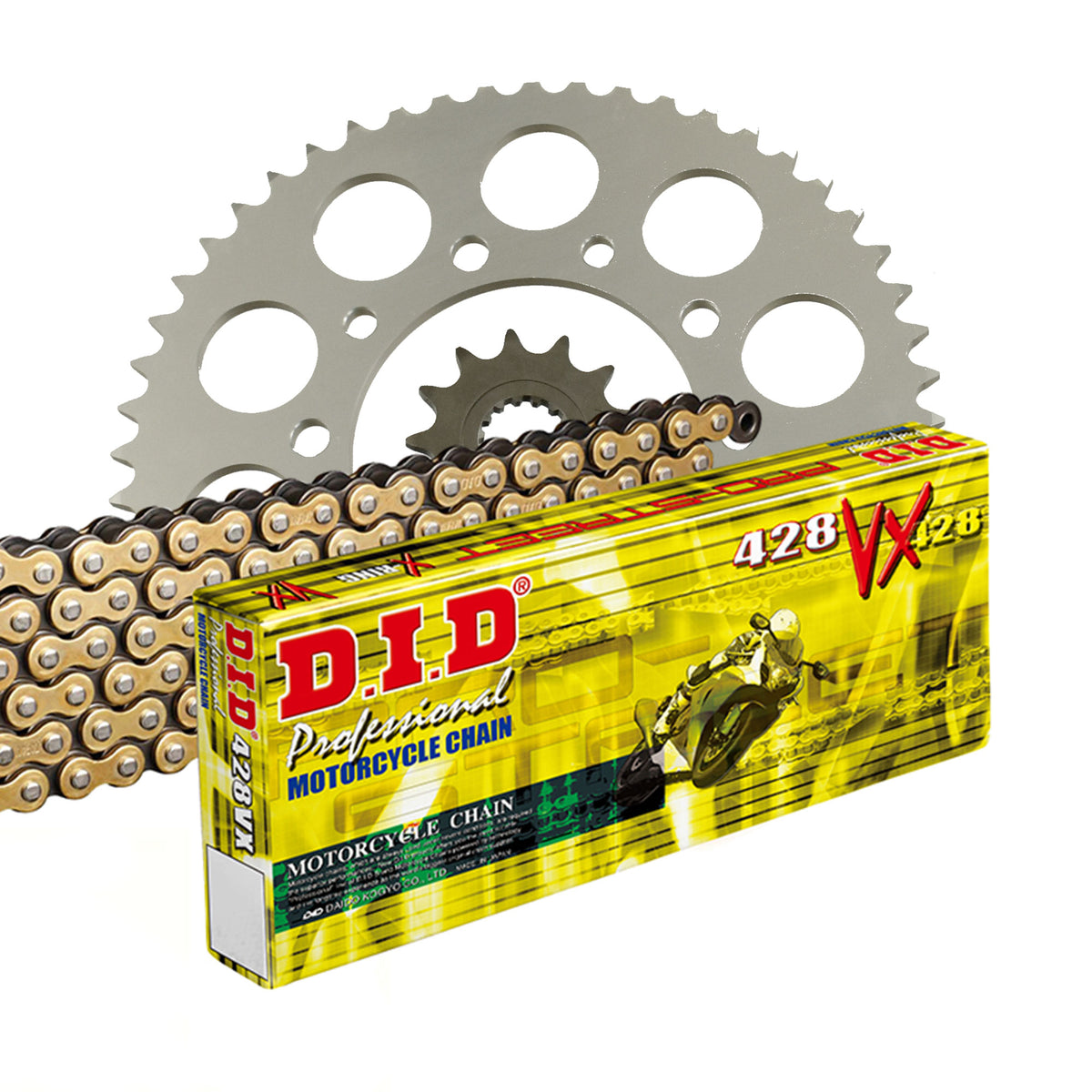

Components of the chain kit for Yamaha TZR 125 R (Belgarda) 4DL 1991-1993

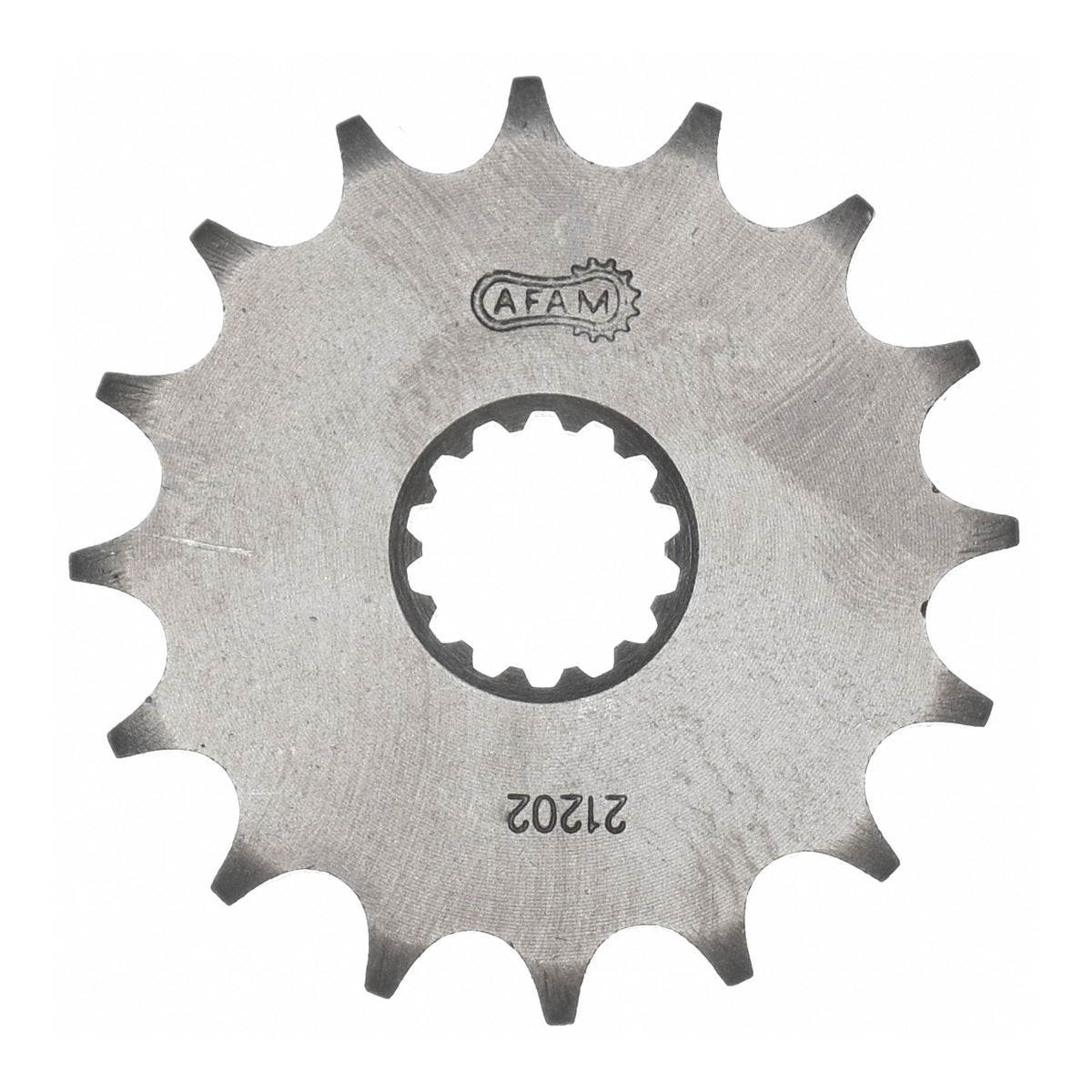

• Front sprocket: AFAM sprocket #428 18 teeth - a21202.18

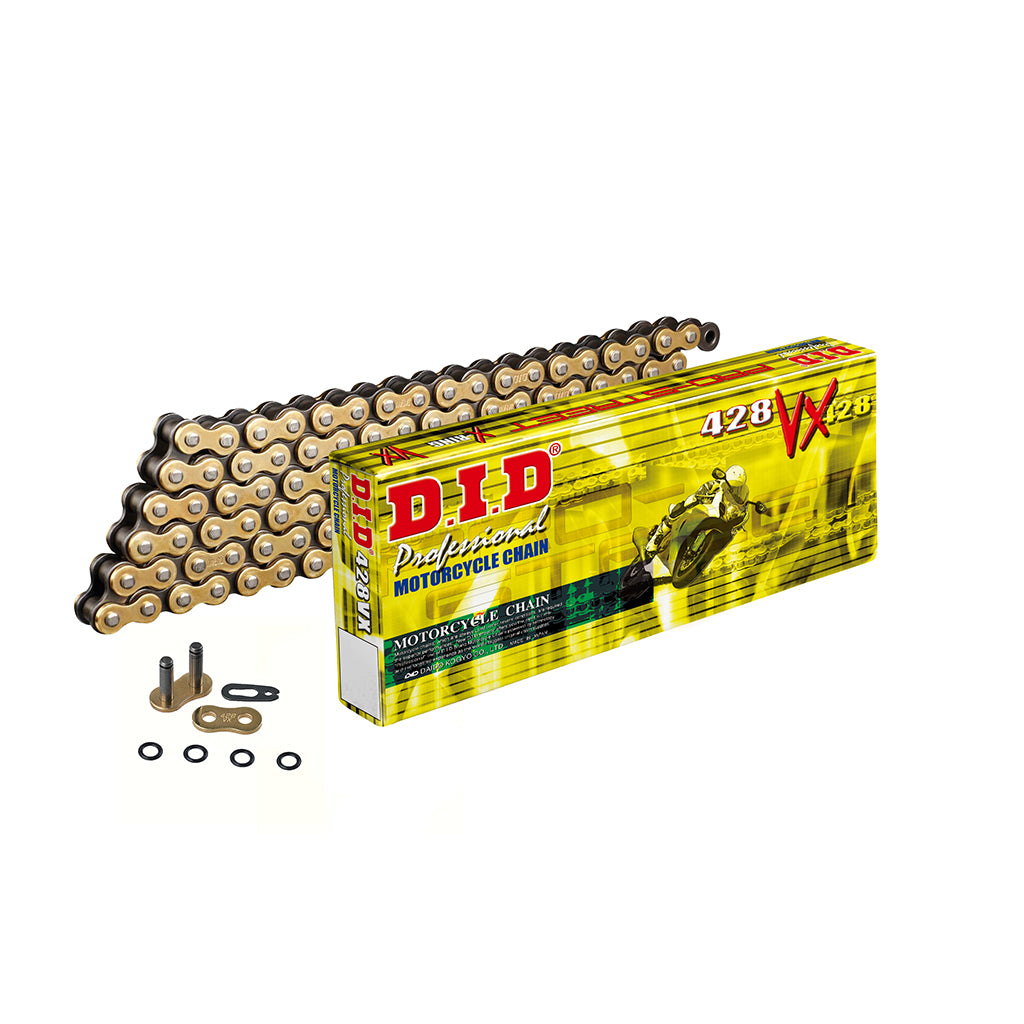

• Chain: DID chain 428 VX G&B 136 with clip-type connecting link - d6242825136

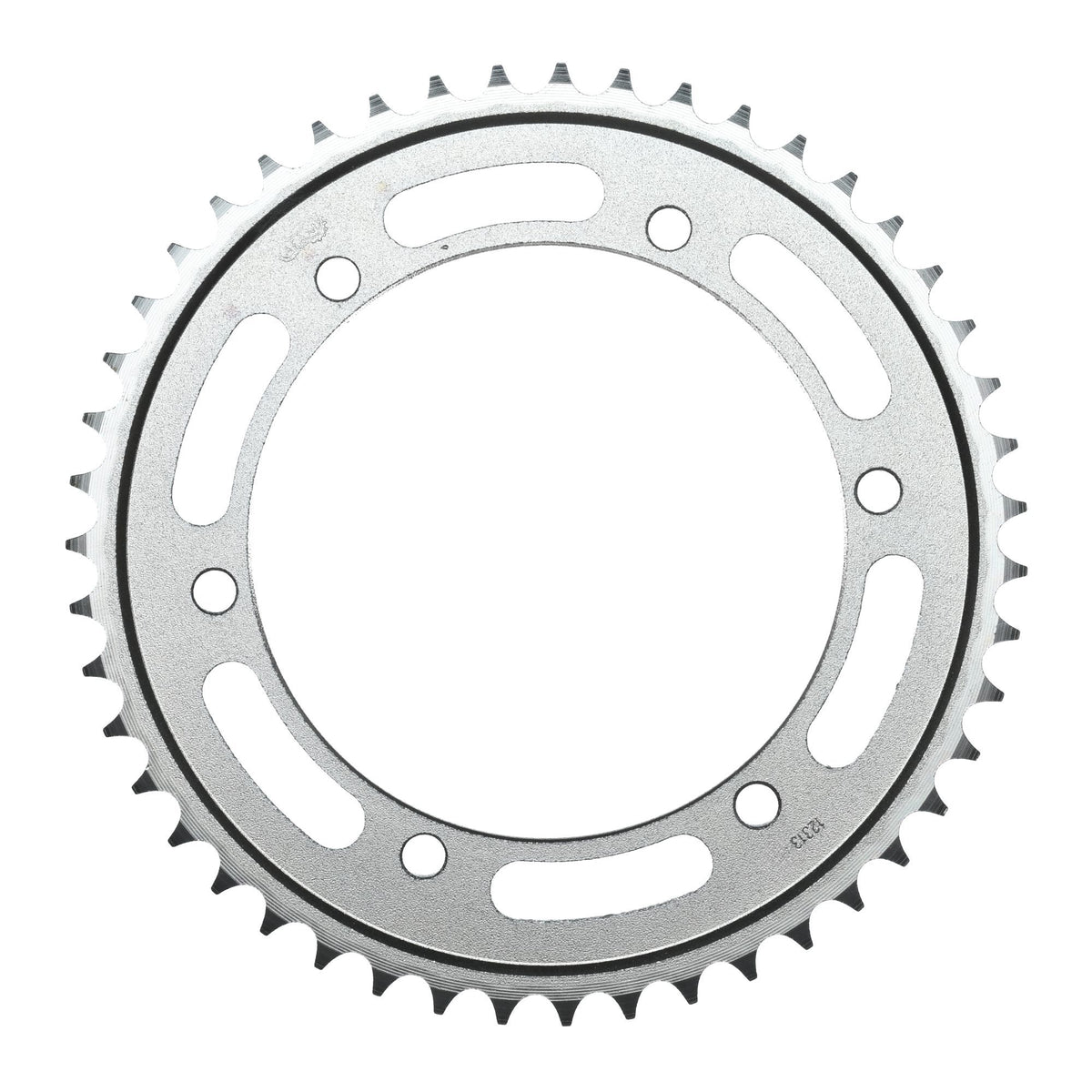

• Rear sprocket: AFAM rear sprocket STEEL #428 47 teeth - a12313.47
• Gear ratio sprocket-chain-rear sprocket: 18-136-47

DID 428 VX

Very good quality in the 428 range
X-Ring chain
Color: Gold/Black

Technical specifications:
Pitch: 428
Pin length: 20.65 mm
Roller Ø: 8.6 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 2700
Tensile strength: 33.00 kN
Weight per 100 links: 1.21 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-33612

Suitable for

Yamaha 101 - 125 cc TZR 125 R (Belgarda) 4DL 1991
Yamaha 101 - 125 cc TZR 125 R (Belgarda) 4DL 1992
Yamaha 101 - 125 cc TZR 125 R (Belgarda) 4DL 1993
