DID chain set for Yamaha WR 250 F 2005 520 ZVMX chain kit

DID chain kit for Yamaha WR 250 F 2005 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha WR 250 F CG22W 2005-2005

• Front sprocket: AFAM sprocket #520 13 teeth - a21309.13
• Chain: DID chain 520 ZVM-X G&G 114 w. rivet link - d6252029114

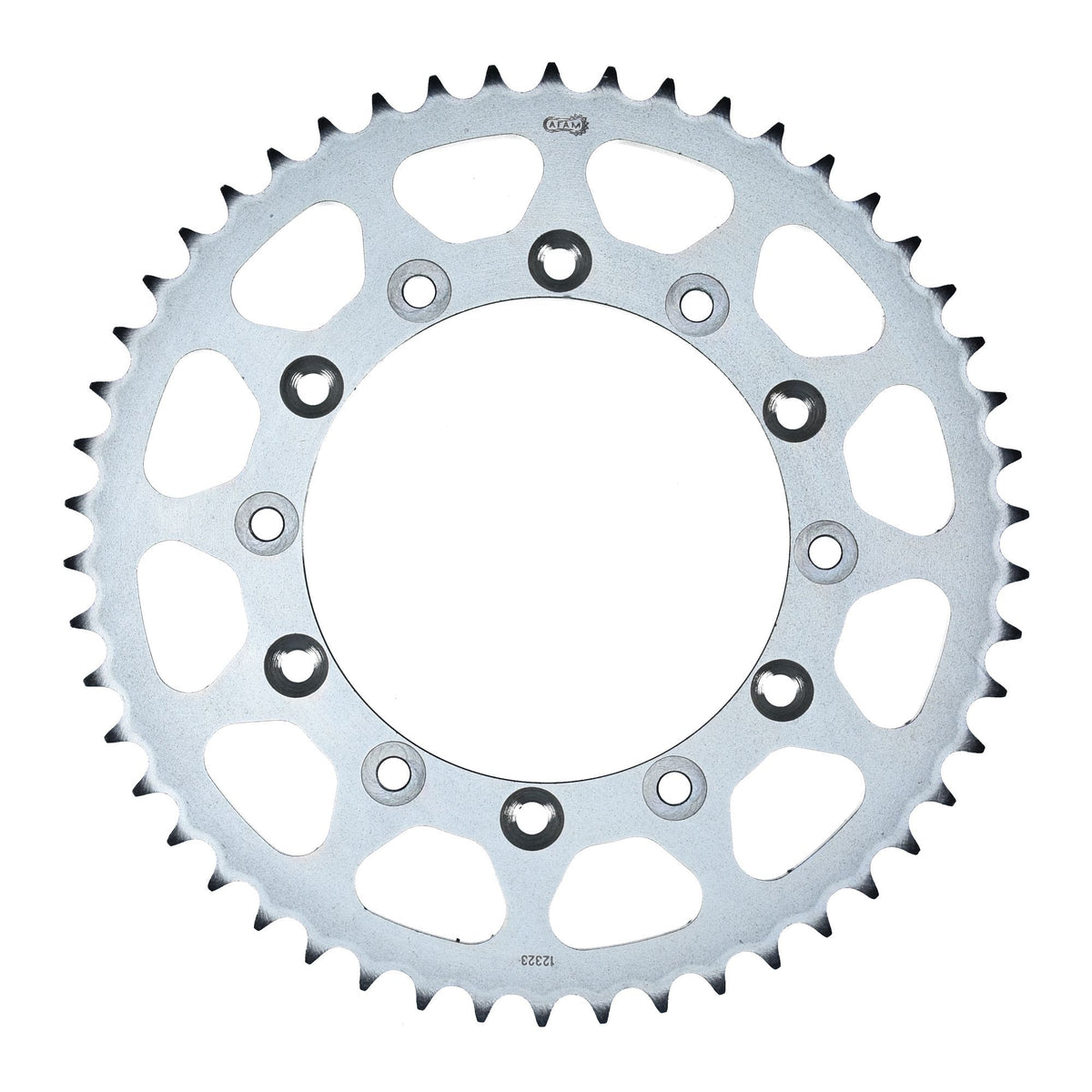

• Rear sprocket: Esjot sprocket 10304-50 12323 STEEL #520 50 teeth - a10304.50
• Gear ratio sprocket-chain-rear sprocket: 13-114-50

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-28655

Suitable for

Yamaha 126 - 250 cc WR 250 F CG22W 2005
