DID chain set for Yamaha WR 250 F 2007 520 NZ chain kit

DID chain kit for Yamaha WR 250 F 2007 520 NZ chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility representation only!

Components of the chain kit Yamaha WR 250 F CG26W 2007-2007

• Sprocket: AFAM sprocket #520 13 teeth - a21309.13
• Chain: DID chain 520 NZ 114 with clip connecting link - d6252001114

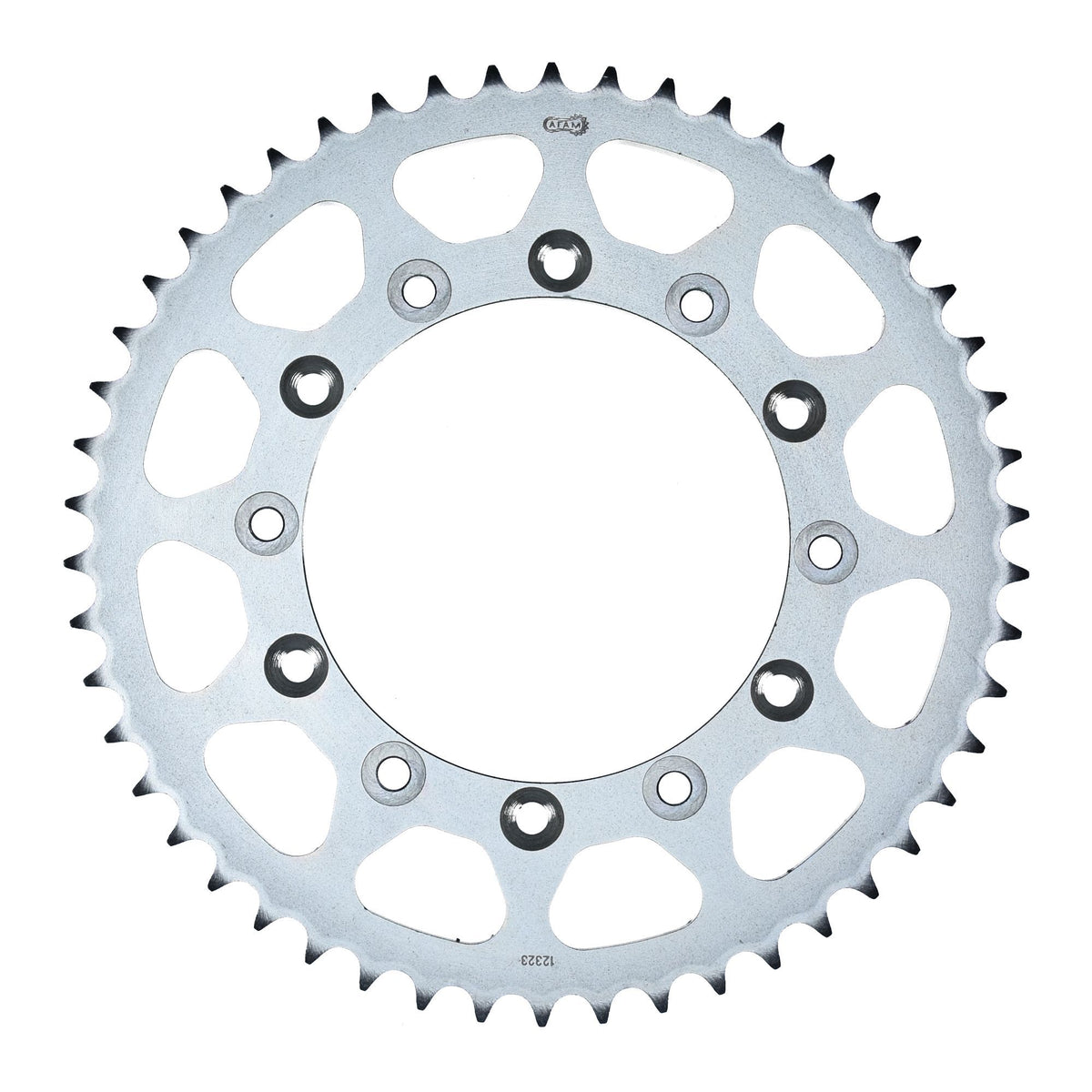

• Chain wheel: Esjot chain wheel 10304-50 12323 STEEL #520 50 teeth - a10304.50
• Gear ratio sprocket-chain-chain wheel: 13-114-50

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical data:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Mileage index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-53498

Suitable for

Yamaha 126 - 250 cc WR 250 F CG26W 2007
