DID chain kit for Yamaha WR 426 F 01-02 520 ZVMX chain kit

DID chain kit for Yamaha WR 426 F 01-02 520 ZVMX chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha WR 426 F CJ02W 2001-2002

• Front sprocket: AFAM sprocket #520 14 teeth - a27500.14
• Chain: DID chain 520 ZVM-X G&G 114 w. rivet link - d6252029114

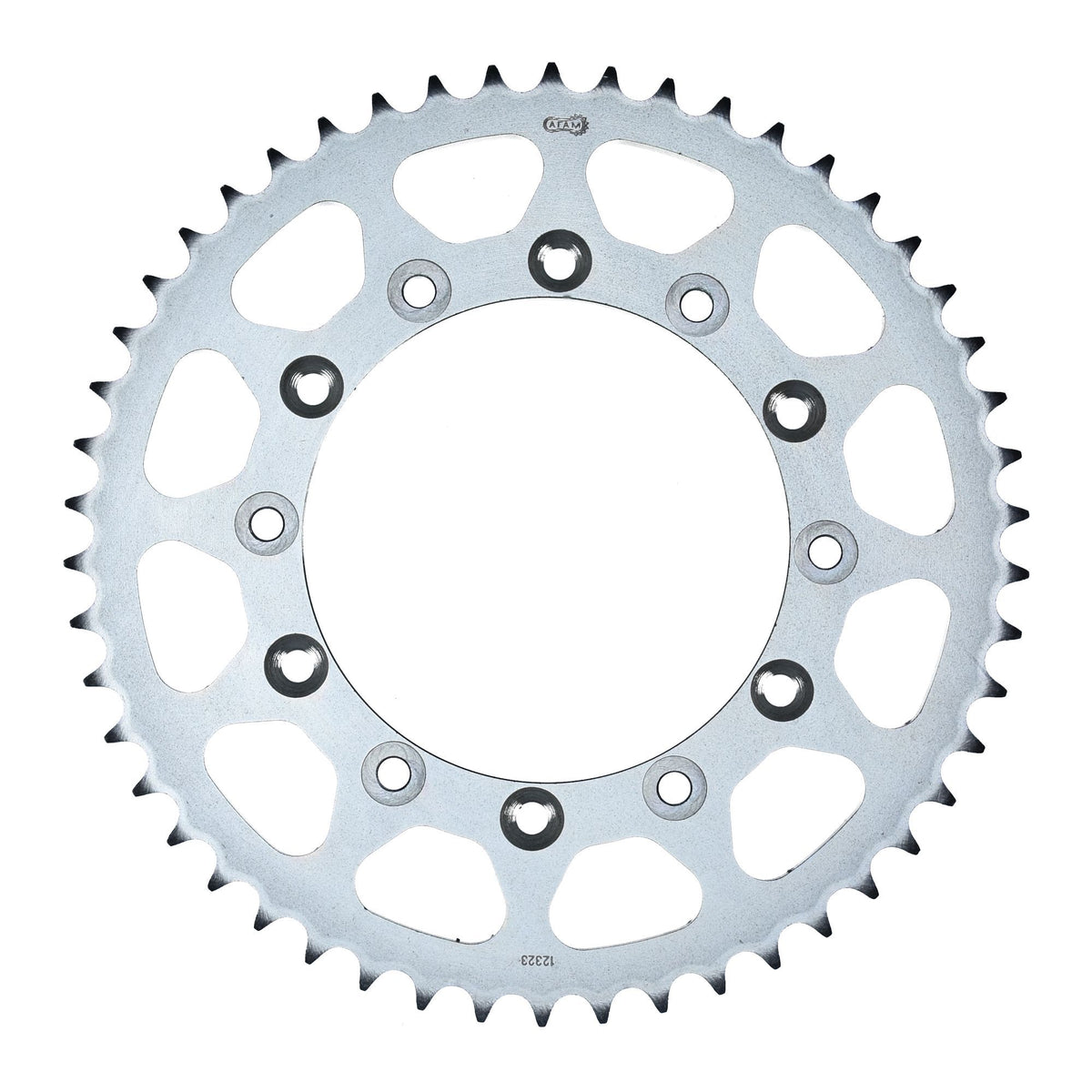

• Rear sprocket: Esjot sprocket 10304-50 12323 STEEL #520 50 teeth - a10304.50
• Gear ratio sprocket-chain-rear sprocket: 14-114-50

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-30506

Suitable for

Yamaha 251 - 500 cc WR 426 F CJ02W 2001
Yamaha 251 - 500 cc WR 426 F CJ02W 2002
