DID chain kit for Yamaha WR 450 F 2017 520 ERT3 chain kit

DID Chain kit for Yamaha WR 450 F 2017 520 ERT3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit for Yamaha WR 450 F CJ19W 2017-2017

• Sprocket: AFAM sprocket #520 13 teeth - a27500.13
• Chain: DID chain 520 ERT3 G&G 114 with clip link - d520ert3-114

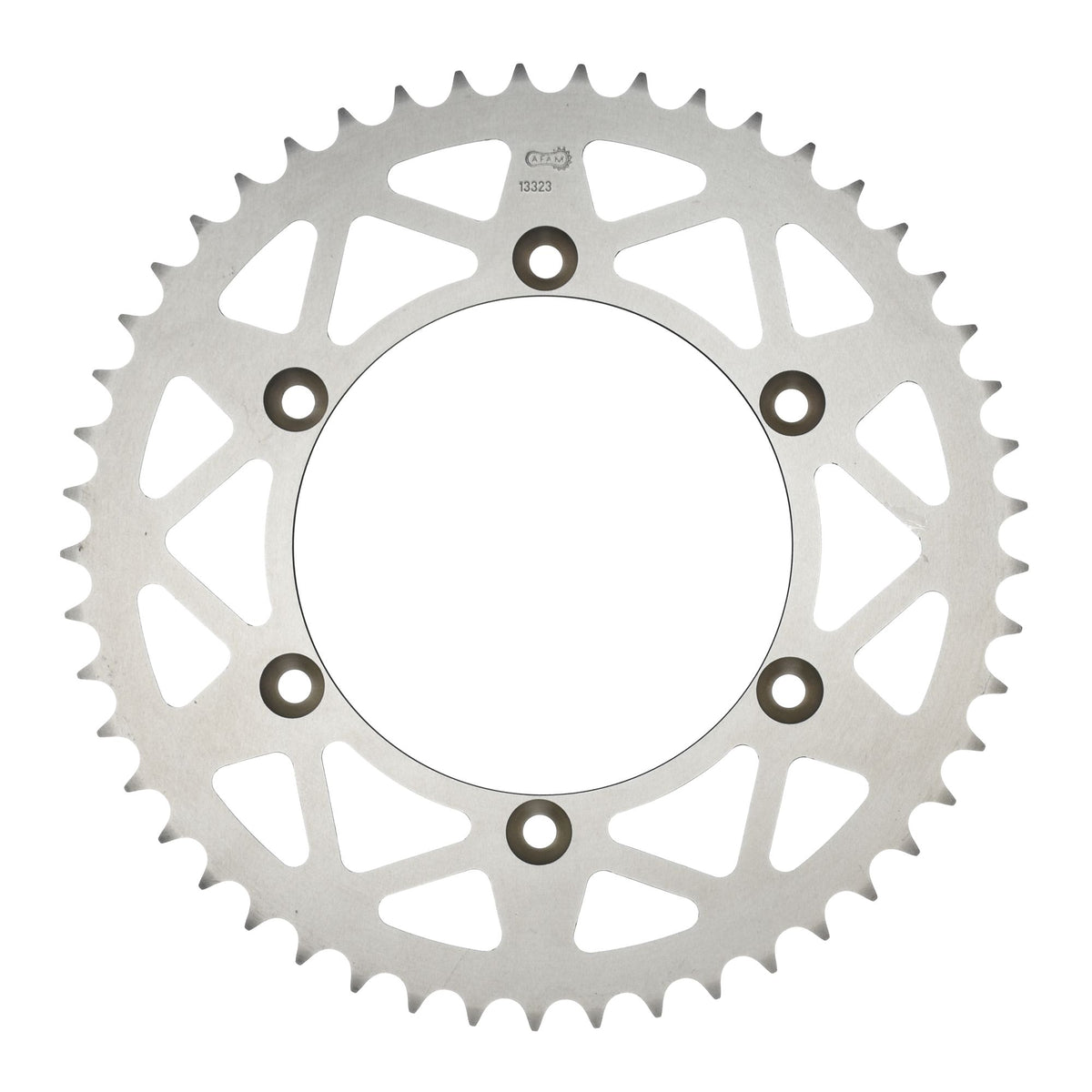

• Rear sprocket: AFAM rear sprocket ALU #520 47 teeth - a13323n.47
• Gear ratio sprocket-chain-rear sprocket: 13-114-47

DID 520 ERT3

Extra reinforced pure motocross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 450 cc / motocross only

Technical data:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand name is solely for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-48315

Suitable for

Yamaha 251 - 500 cc WR 450 F CJ19W 2017
