DID chain kit for Yamaha WR 450 F EnduroGP 2018 520 ERT3 chain kit

DID Chain Kit for Yamaha WR 450 F EnduroGP 2018 520 ERT3 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha WR 450 F EnduroGP 2018-2018

• Sprocket: AFAM sprocket #520 13 teeth - a27500.13
• Chain: DID chain 520 ERT3 G&G 114 with clip connecting link - d520ert3-114

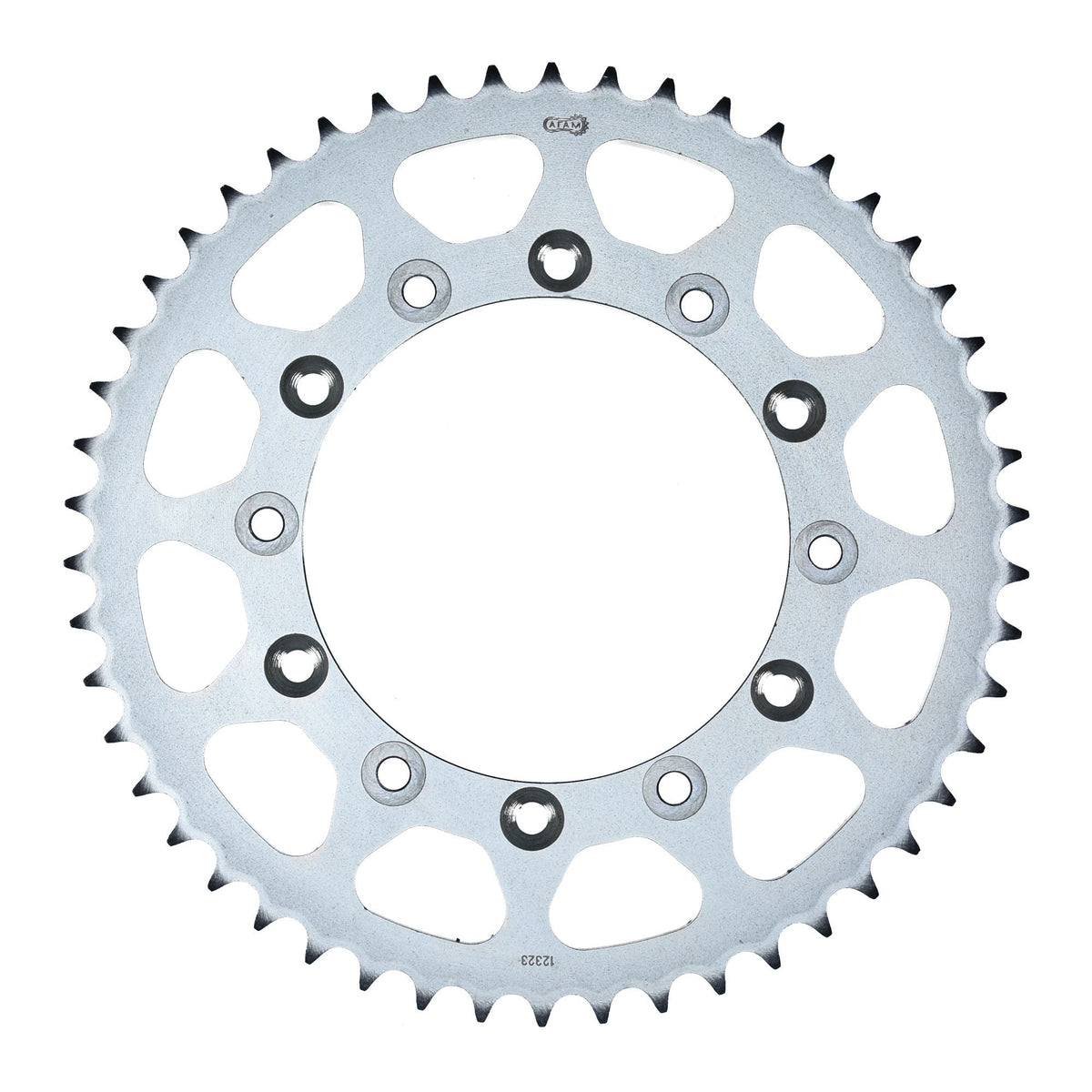

• Rear sprocket: Esjot sprocket 10304-50 12323 STEEL #520 50 teeth - a10304.50
• Gear ratio sprocket-chain-rear sprocket: 13-114-50

DID 520 ERT3

Extra reinforced pure moto-cross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 450 cc / moto-cross only

Technical data:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-33820

Suitable for

Yamaha 251 - 500 cc WR 450 F EnduroGP 2018
