DID chain kit for Yamaha XJ6 ABS 13-16 520 ZVMX chain kit

DID Chain Kit for Yamaha XJ6 ABS 13-16 520 ZVMX Chain Kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - mention of the manufacturer is for compatibility purposes only!

Components of the chain kit Yamaha XJ6 ABS RJ22 2013-2016

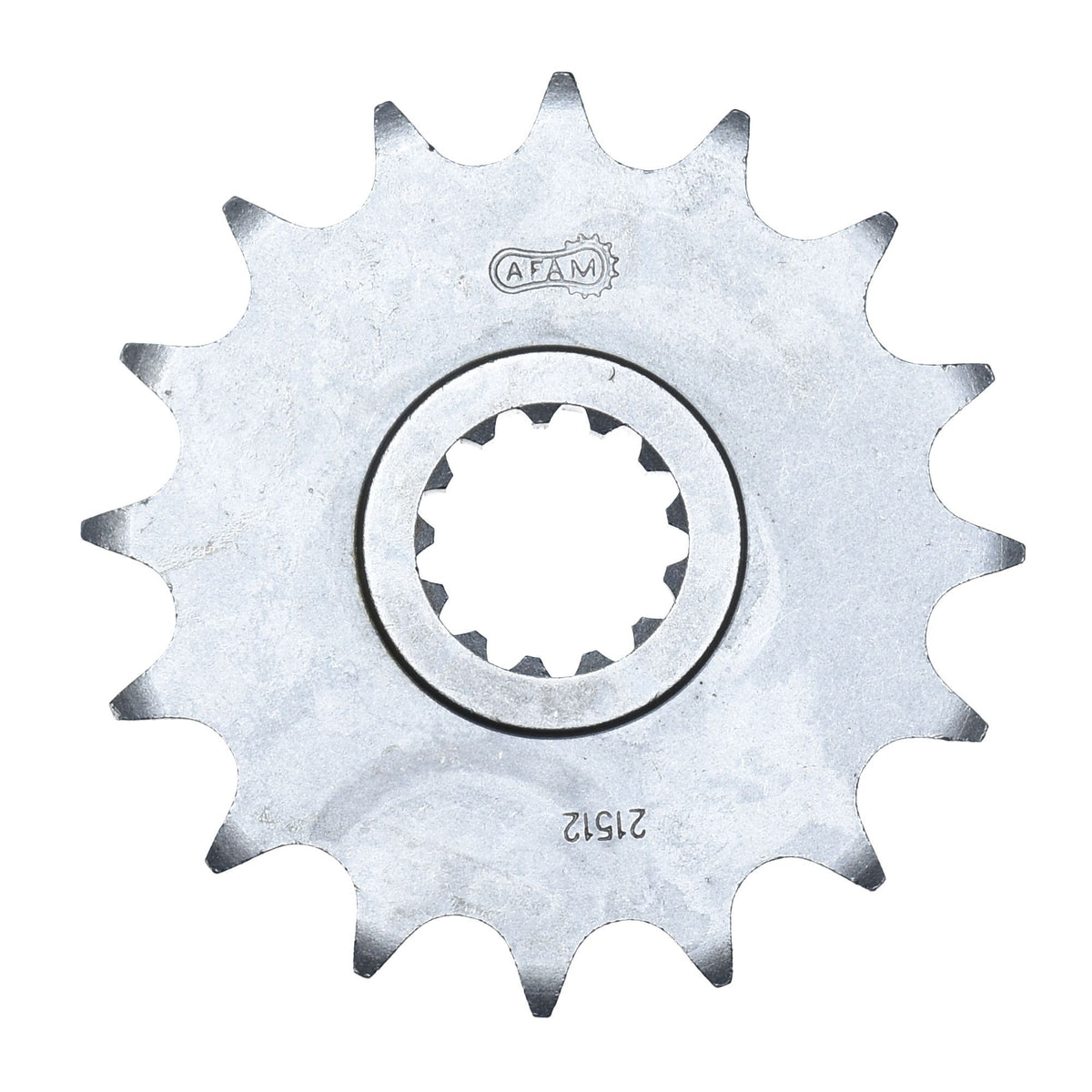

• Front sprocket: AFAM sprocket #520 for XJ6 16 teeth - a21512.16
• Chain: DID chain 520 ZVM-X G&G 118 w. rivet link - d6252029118

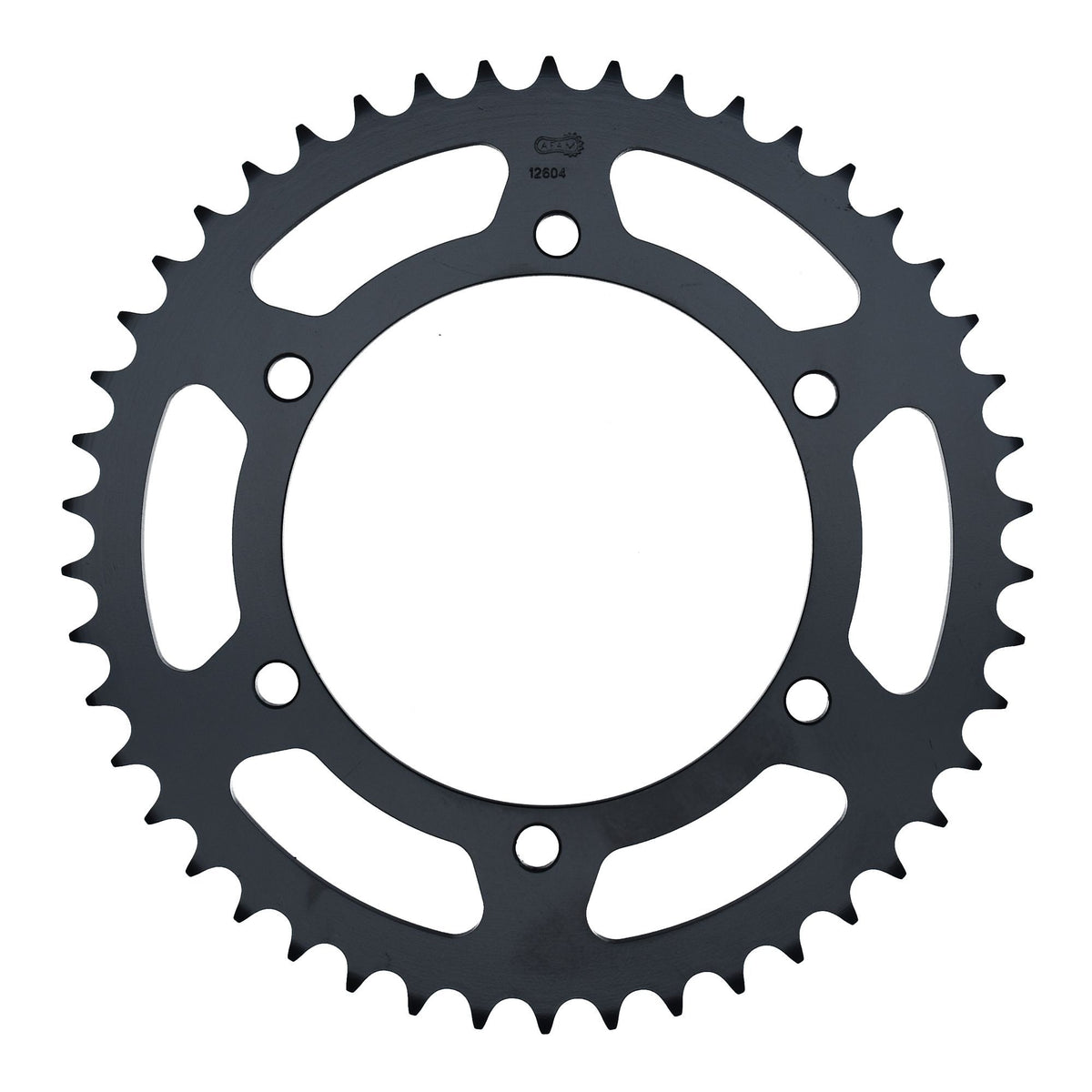

• Rear sprocket: AFAM sprocket STEEL #520 46 teeth - a12604.46
• Gear ratio front sprocket-chain-rear sprocket: 16-118-46

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Article number	KKF-44049

Suitable for

Yamaha 501 - 750 cc XJ6 ABS RJ22 2013
Yamaha 501 - 750 cc XJ6 ABS RJ22 2014
Yamaha 501 - 750 cc XJ6 ABS RJ22 2015
Yamaha 501 - 750 cc XJ6 ABS RJ22 2016
