DID chain set for Yamaha XJ6 Diversion 09-12 520 ZVMX chain kit

DID chain kit for Yamaha XJ6 Diversion 09-12 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha XJ6 Diversion RJ19 2009-2012

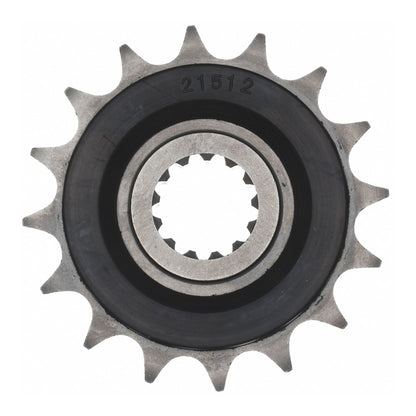

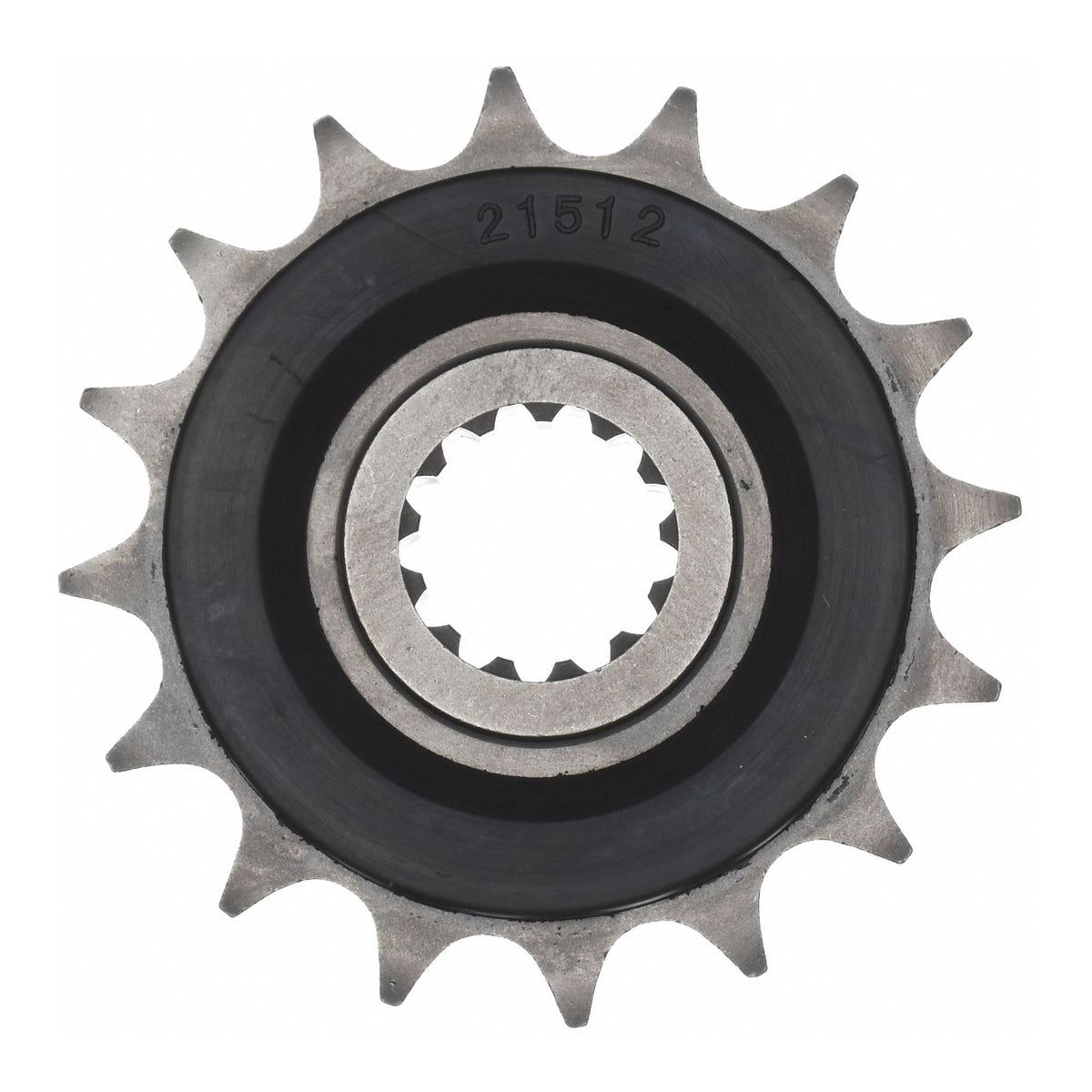

• Sprocket: AFAM sprocket rubber #520 Silent Sprocket 16 teeth - a21512oem.16
• Chain: DID chain 520 ZVM-X G&G 118 with rivet link - d6252029118

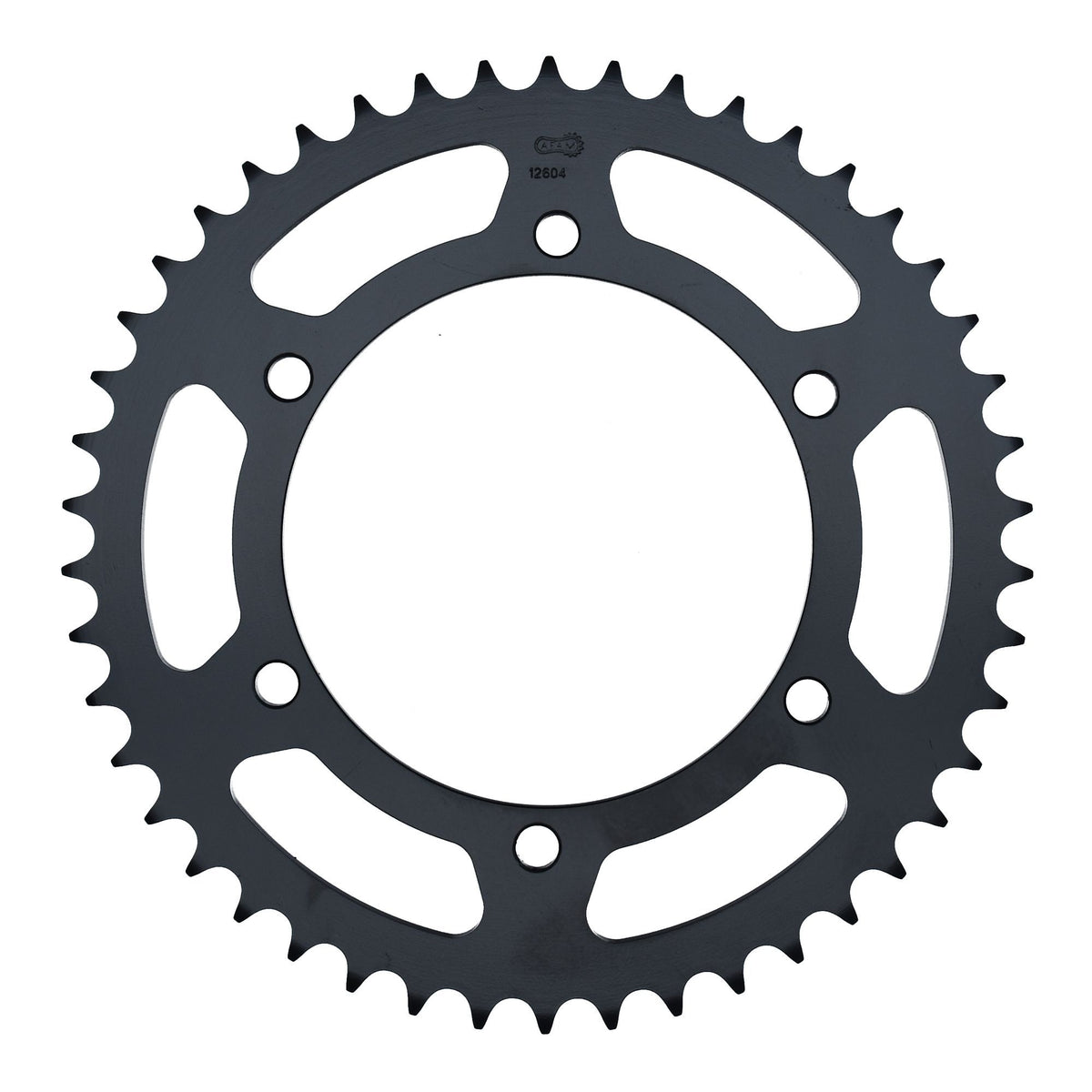

• Rear sprocket: AFAM rear sprocket STEEL #520 46 teeth - a12604.46
• Gear ratio sprocket-chain-rear sprocket: 16-118-46

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-43730

Fits

Yamaha 501 - 750 ccm XJ6 Diversion RJ19 2009
Yamaha 501 - 750 ccm XJ6 Diversion RJ19 2010
Yamaha 501 - 750 ccm XJ6 Diversion RJ19 2011
Yamaha 501 - 750 ccm XJ6 Diversion RJ19 2012
