DID Chain Kit for Yamaha XJ6 Diversion F ABS 13-16 520 VX3 Chain Kit

DID chain kit for Yamaha XJ6 Diversion F ABS 13-16 520 VX3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha XJ6 Diversion F ABS RJ22 2013-2016

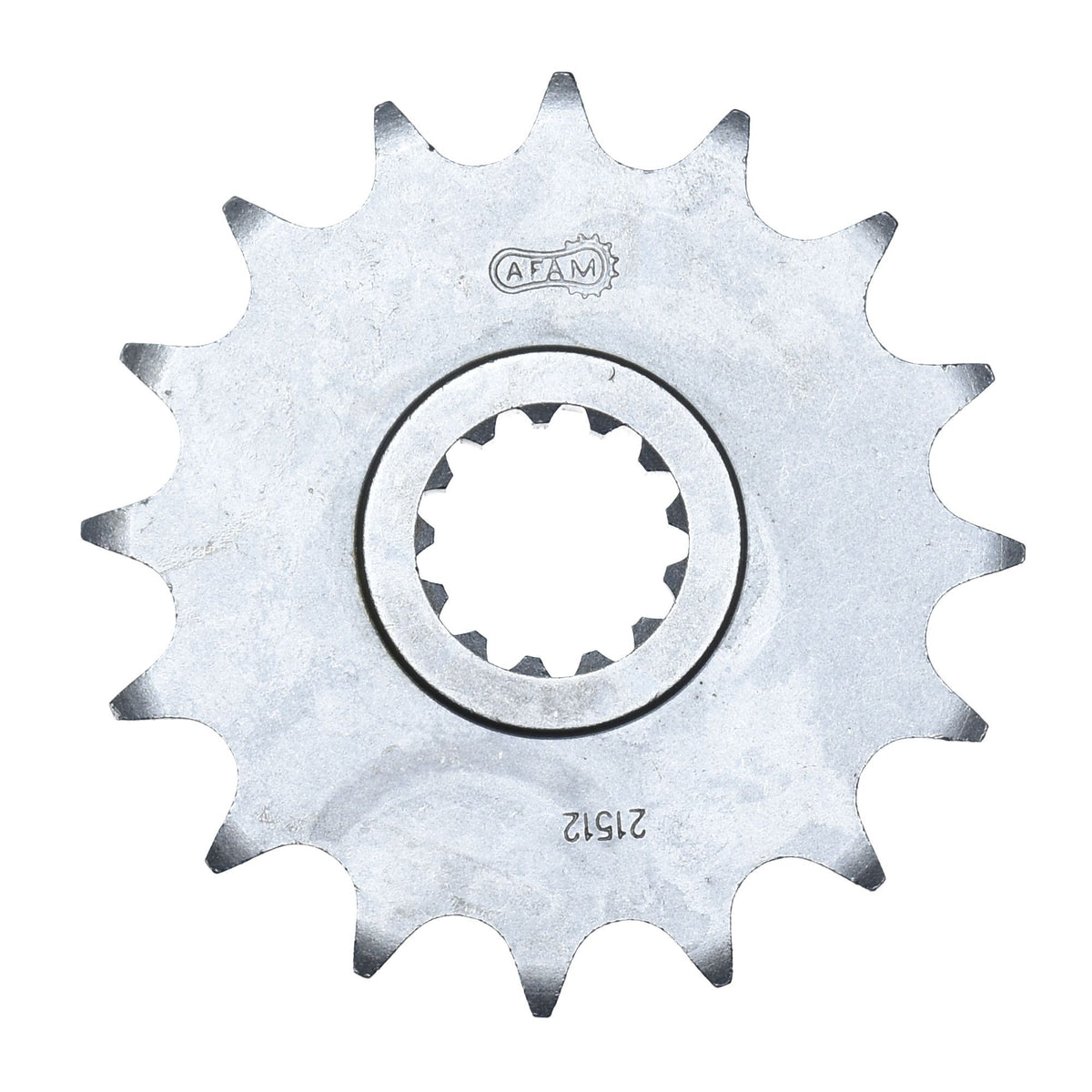

• Sprocket: AFAM sprocket #520 for XJ6 16 teeth - a21512.16
• Chain: DID chain 520 VX3 G&B 118 with rivet link - d520vx3-118

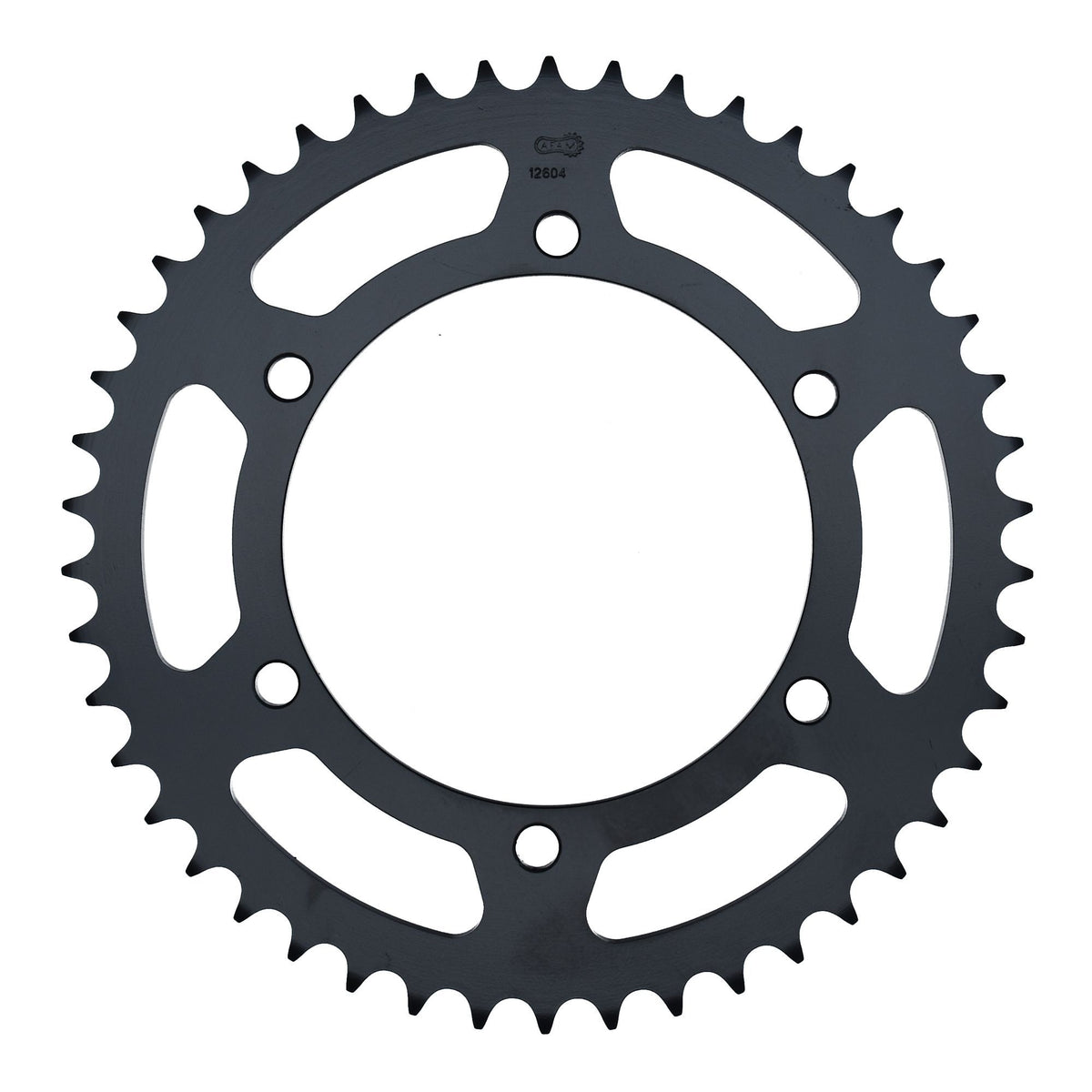

• Rear sprocket: AFAM rear sprocket STEEL #520 46 teeth - a12604.46
• Gear ratio sprocket-chain-rear sprocket: 16-118-46

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by engine displacement: up to 750 cc

Technical data:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-44059

Suitable for

Yamaha 501 - 750 cc XJ6 Diversion F ABS RJ22 2013
Yamaha 501 - 750 cc XJ6 Diversion F ABS RJ22 2014
Yamaha 501 - 750 cc XJ6 Diversion F ABS RJ22 2015
Yamaha 501 - 750 cc XJ6 Diversion F ABS RJ22 2016
