DID chain set for Yamaha XJR 1300 04-06 530 VX3 chain kit

DID chain set for Yamaha XJR 1300 04-06 530 VX3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

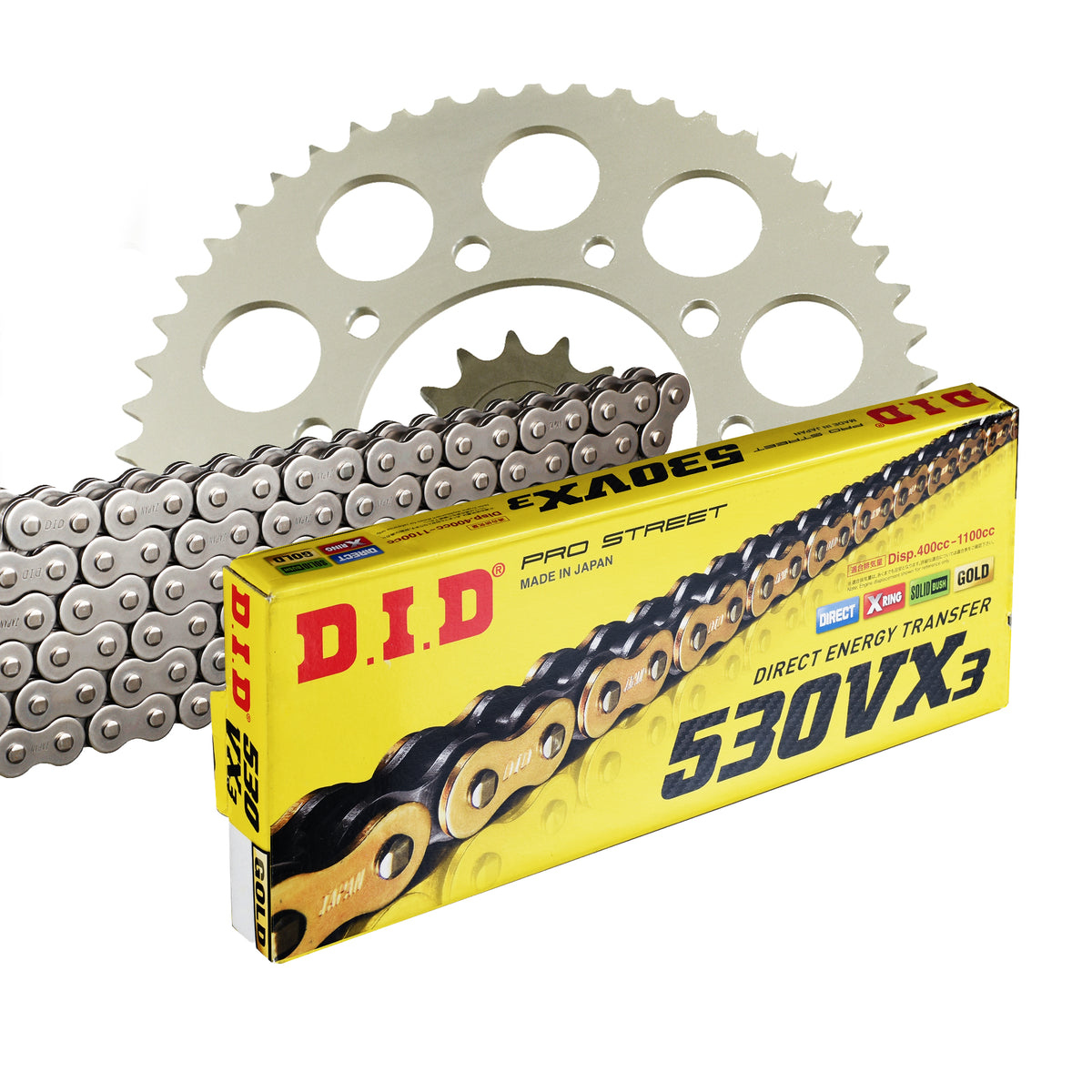

Components of the chain kit for Yamaha XJR 1300 RP10 2004-2006

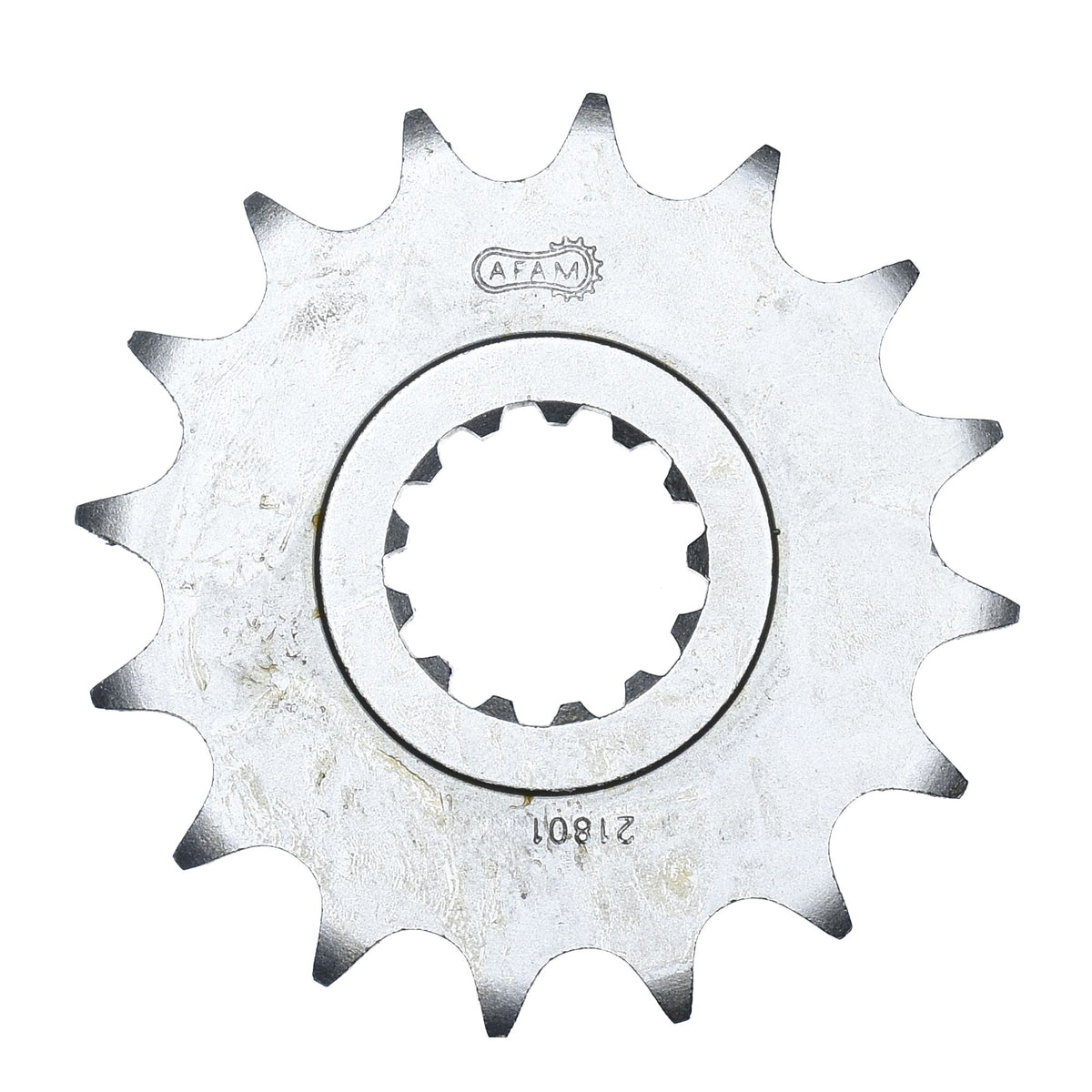

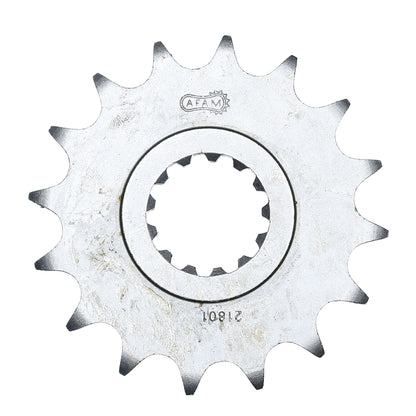

• Front sprocket: AFAM front sprocket #530 18 teeth - a21801.18

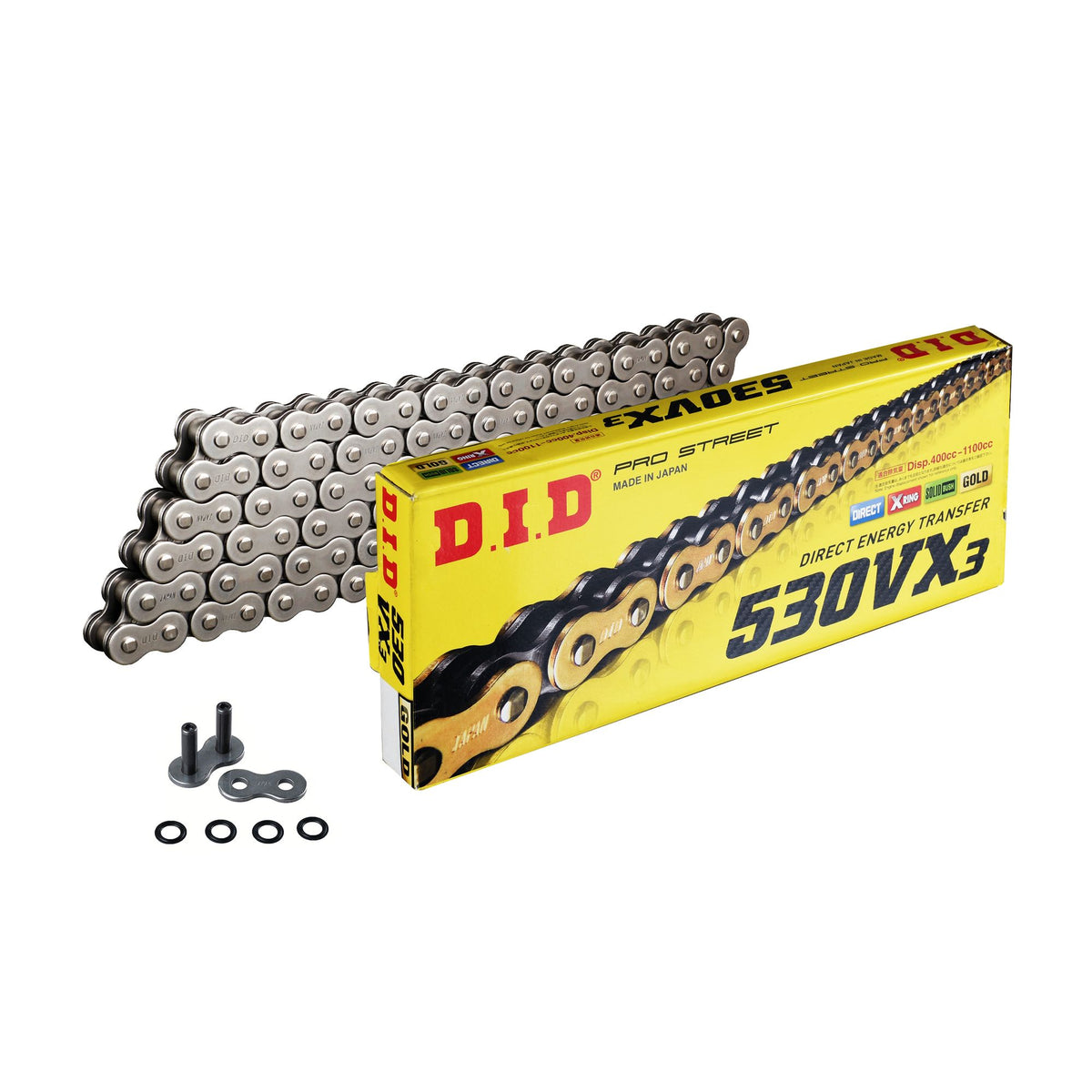

• Chain: DID chain 530 VX3 B&B 112 with rivet link - d530vx3-112

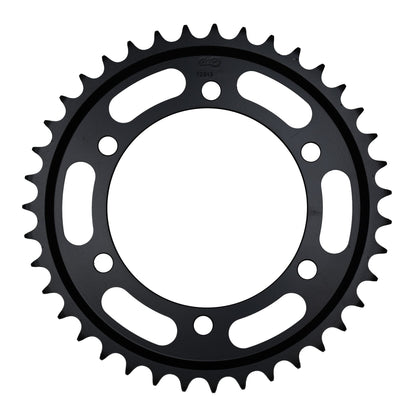

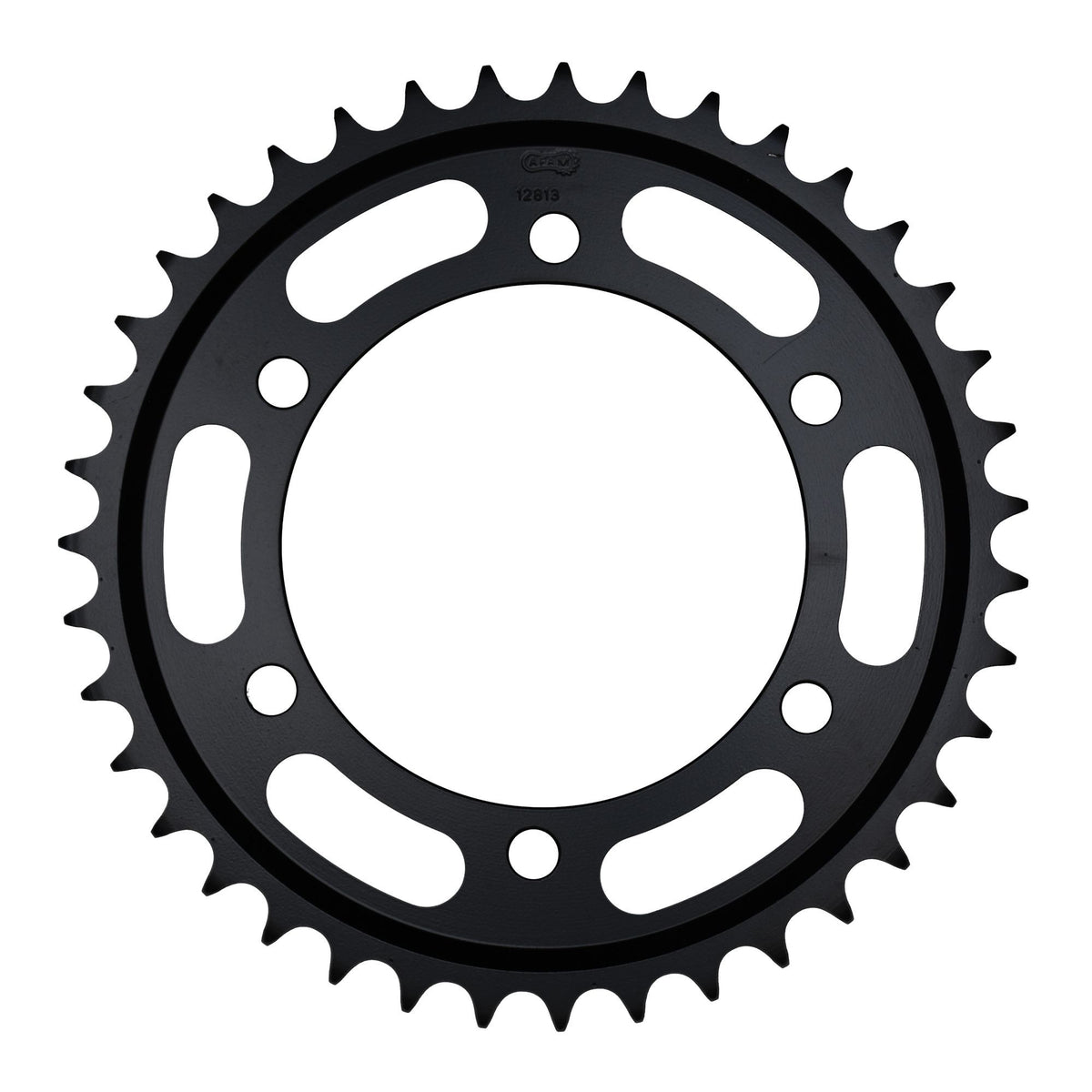

• Rear sprocket: AFAM rear sprocket STEEL #530 39 teeth - a12813.39
• Transmission ratio front sprocket-chain-rear sprocket: 18-112-39

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also referred to as silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical data:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-30426

Suitable for

Yamaha over 1001 cc XJR 1300 RP10 2004
Yamaha over 1001 cc XJR 1300 RP10 2005
Yamaha over 1001 cc XJR 1300 RP10 2006
