DID chain kit for Yamaha XS 360 76-78 530 VX3 chain kit

DID Chain kit for Yamaha XS 360 76-78 530 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

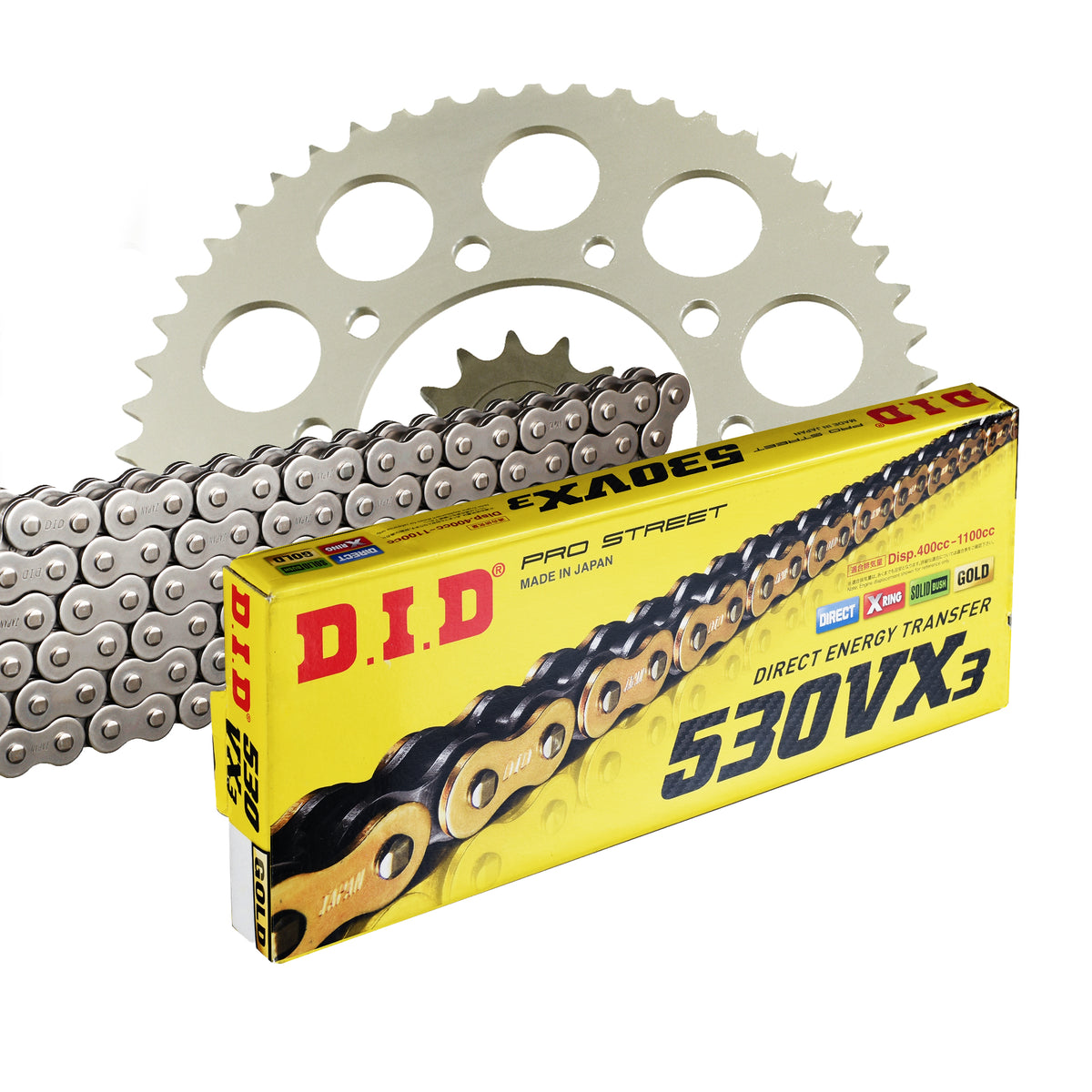

Components of the chain kit Yamaha XS 360 1U4 1976-1978

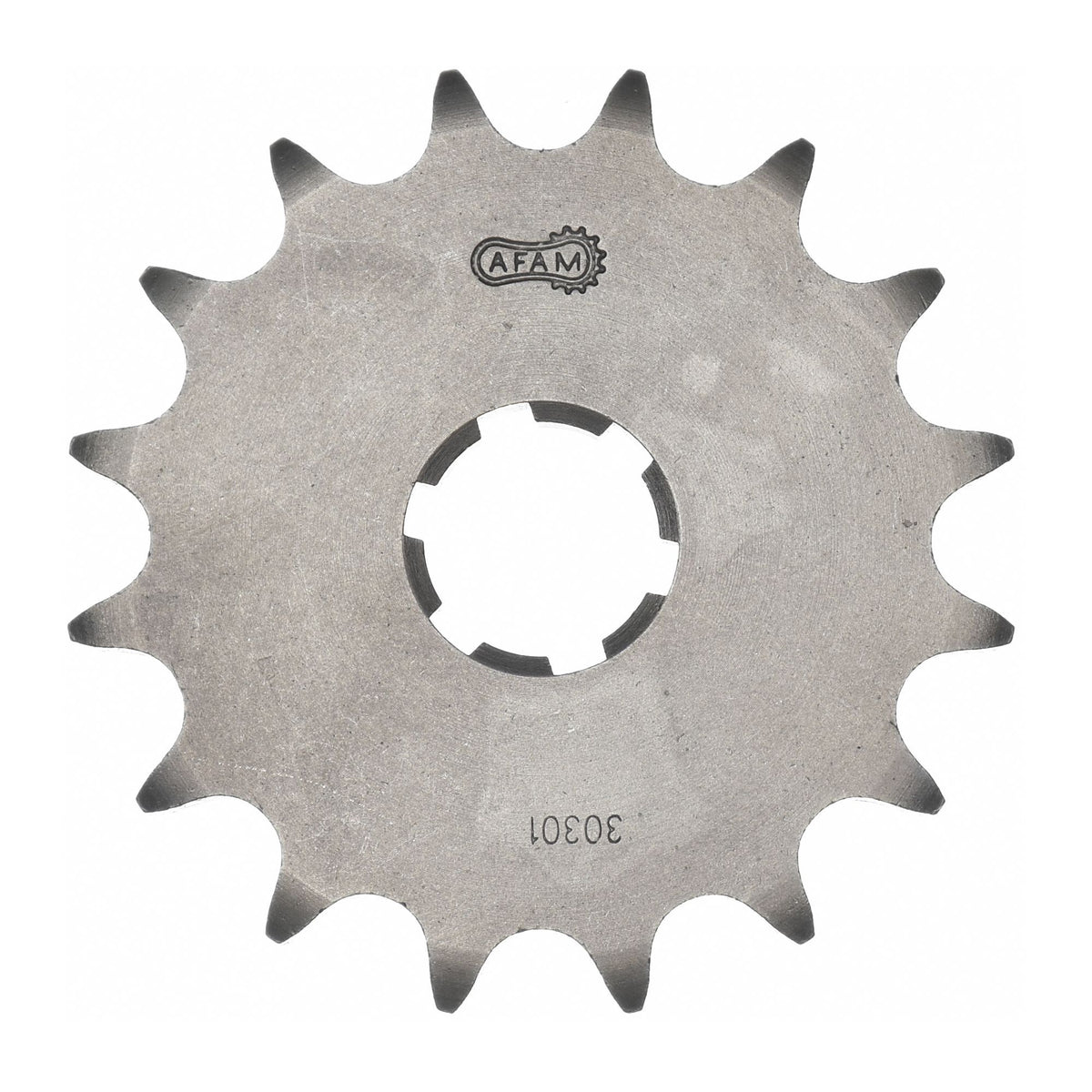

• Sprocket: AFAM sprocket #530 16 teeth - a30301.16

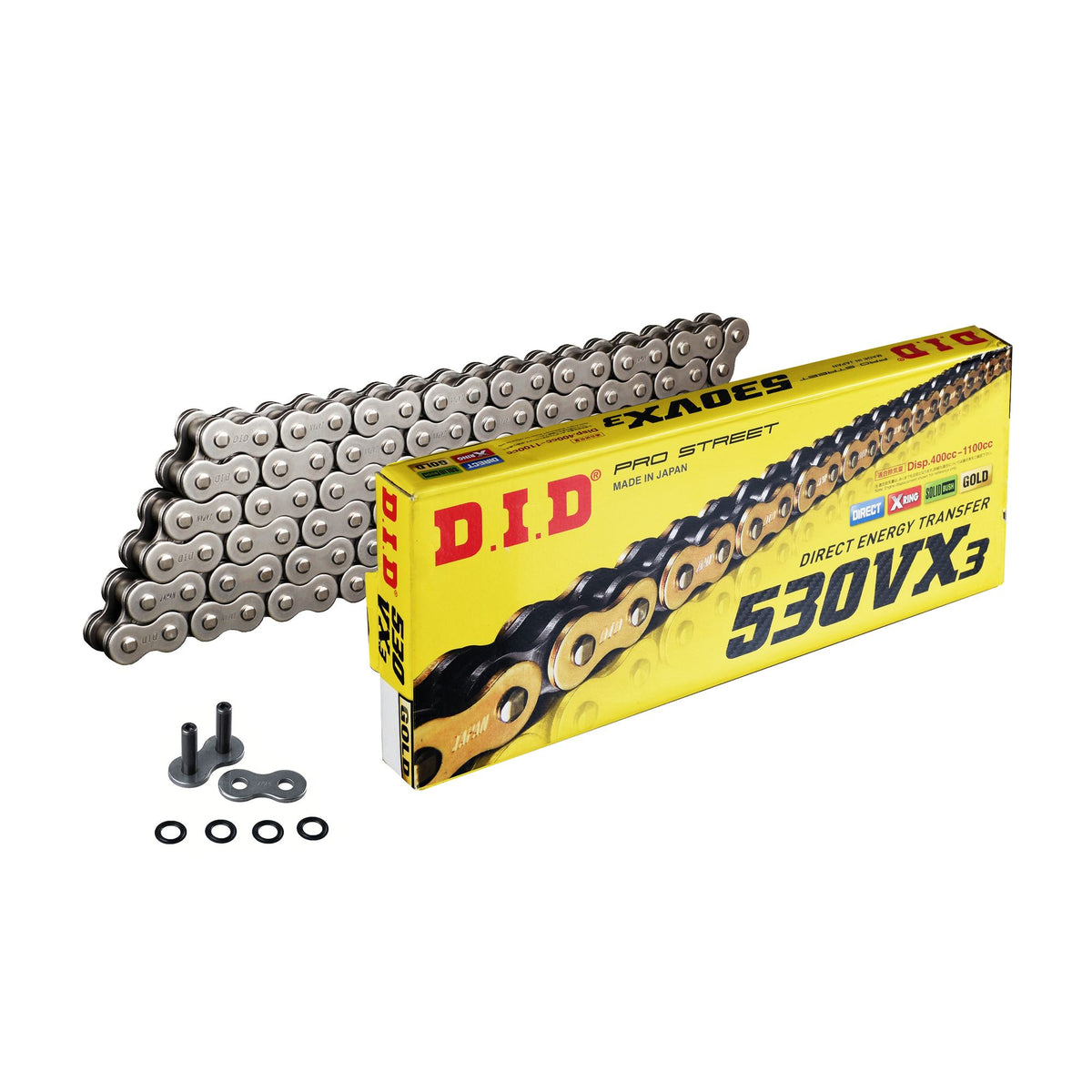

• Chain: DID chain 530 VX3 B&B 98 with rivet link - d530vx3-98

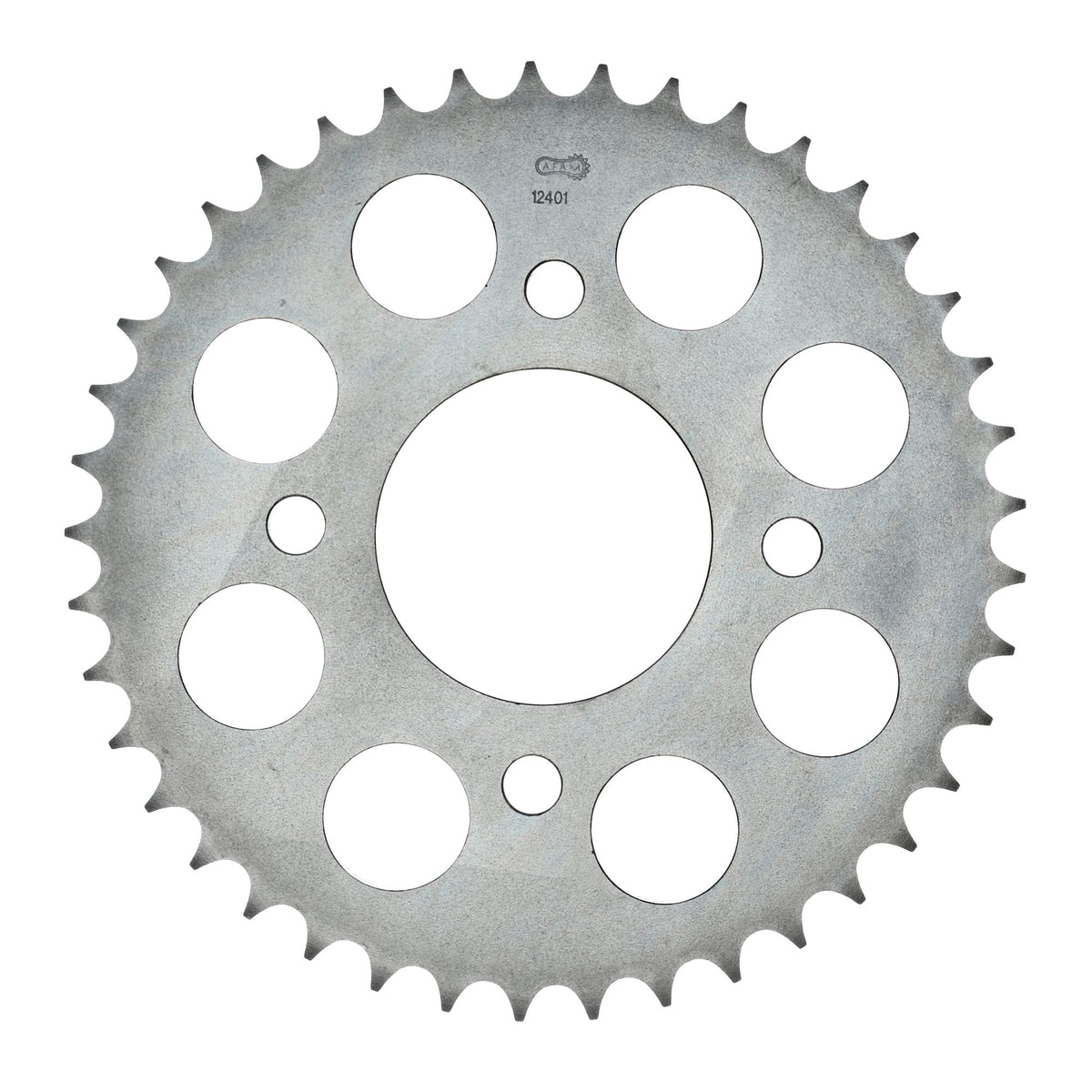

• Chain wheel: AFAM chain wheel STEEL #530 39 teeth - a12401.39
• Gear ratio sprocket-chain-chain wheel: 16-98-39

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by engine capacity: up to 1100 cc

Technical data:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-53885

Suitable for

Yamaha 251 - 500 cc XS 360 1U4 1976
Yamaha 251 - 500 cc XS 360 1U4 1977
Yamaha 251 - 500 cc XS 360 1U4 1978
